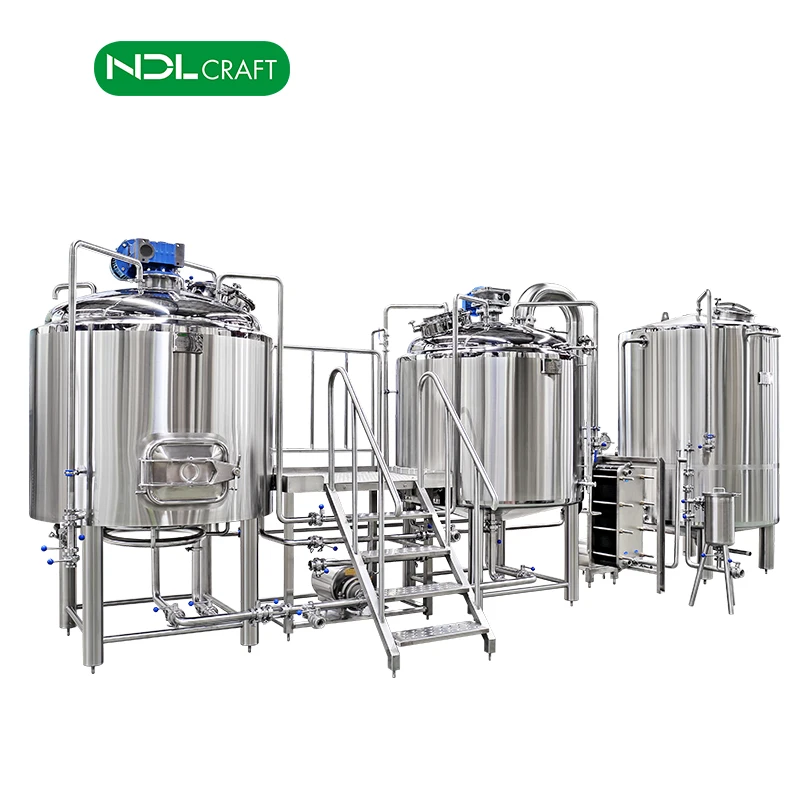

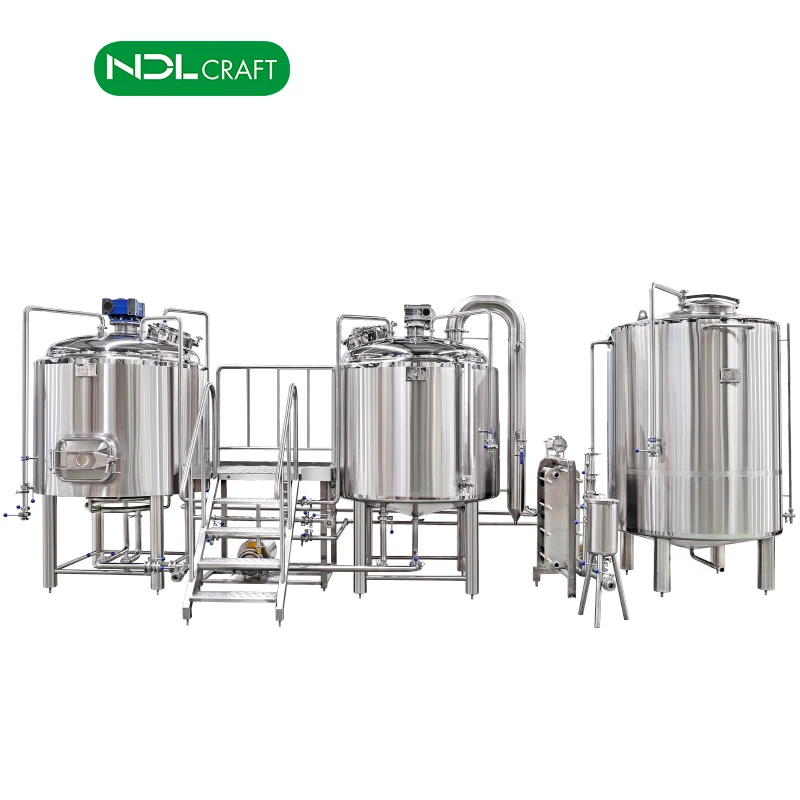

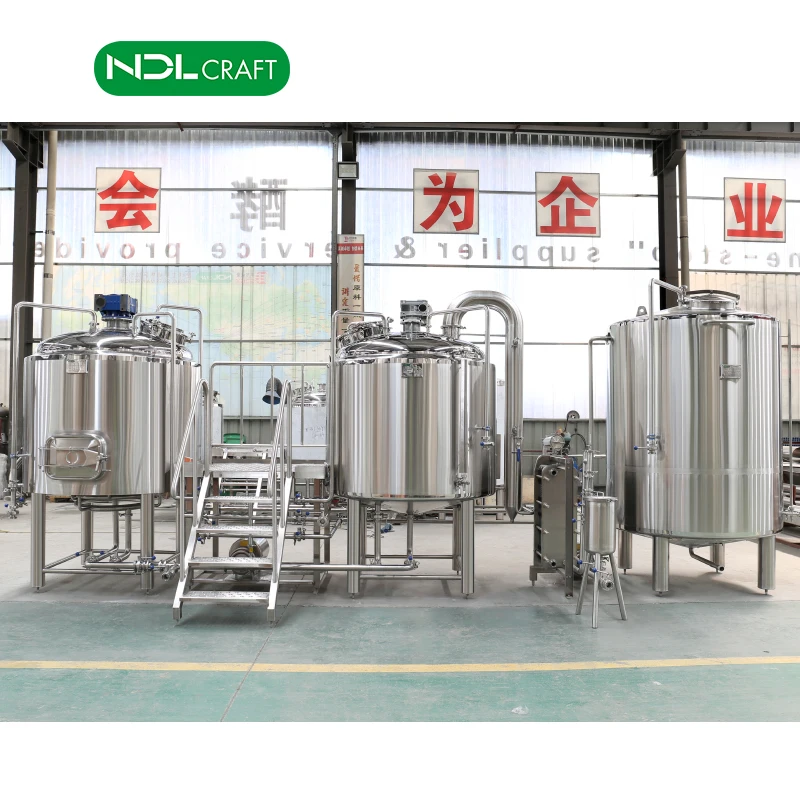

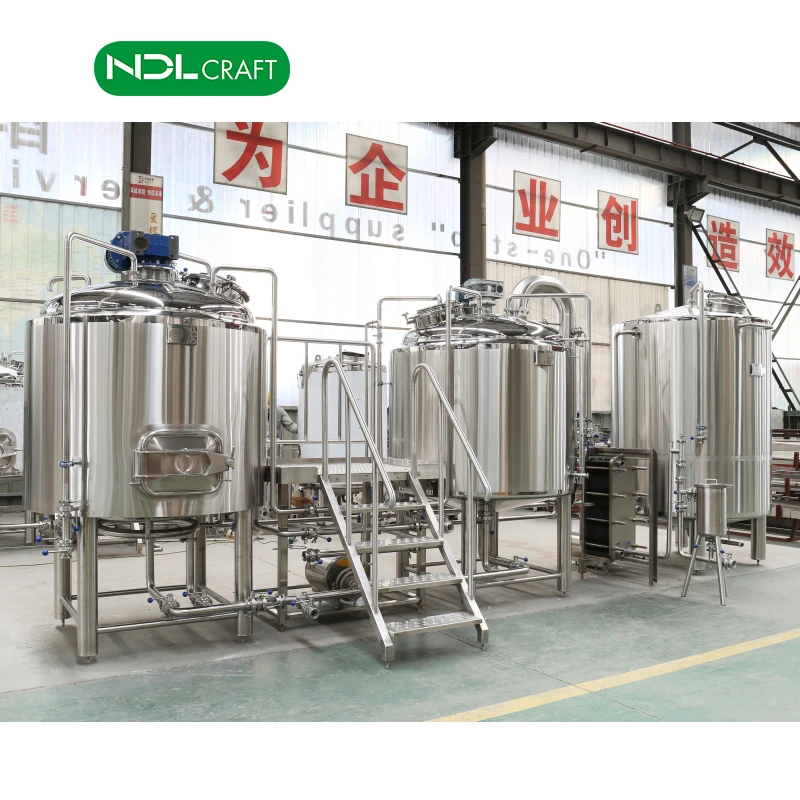

300L 500L Customized Draft Beer Brewing Equipment with Ce Automatic Welding

Micro brewery beer machine detailed specification list

Capacity: 300L~500L, 3bbl~5bbl and even larger

Material: stainless steel 304/316 or red copper

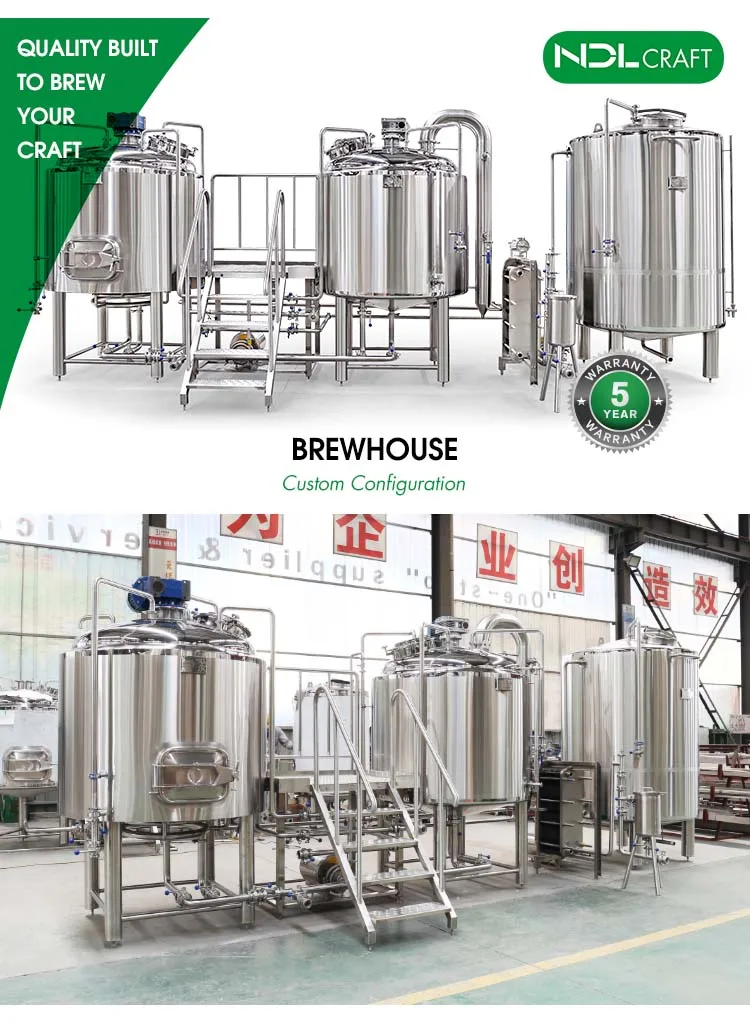

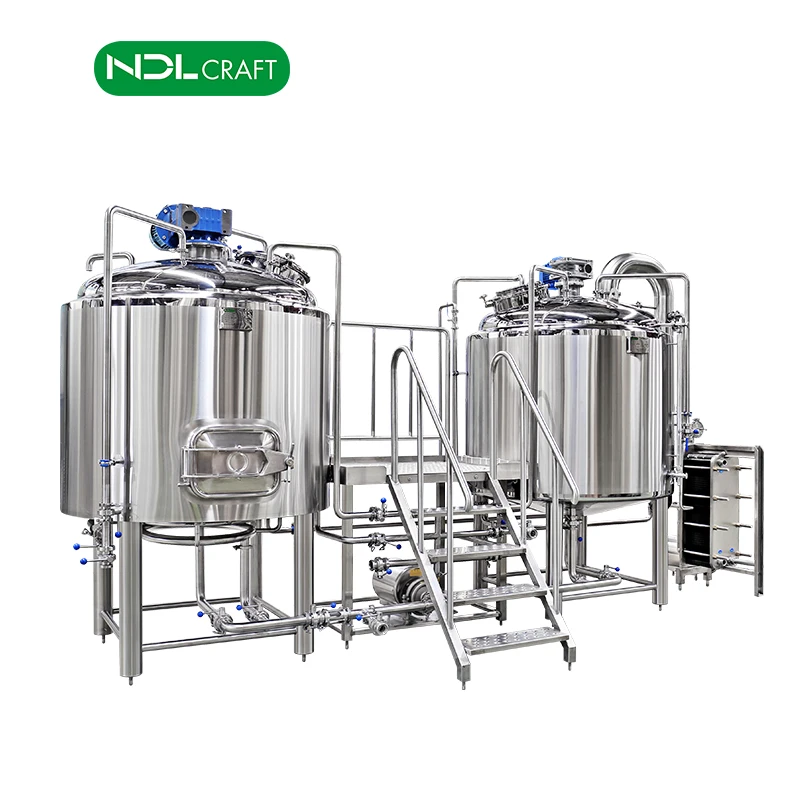

Combination way(a typical two vessels):

Mash/kettle tun & brew kettle/whirlpool tank

Heating way(option): electric heating, steam heating or direct fire heating way

Standard configuration:

-AISI 304 stainless steel full welded

-Insulation with PU or rock wool

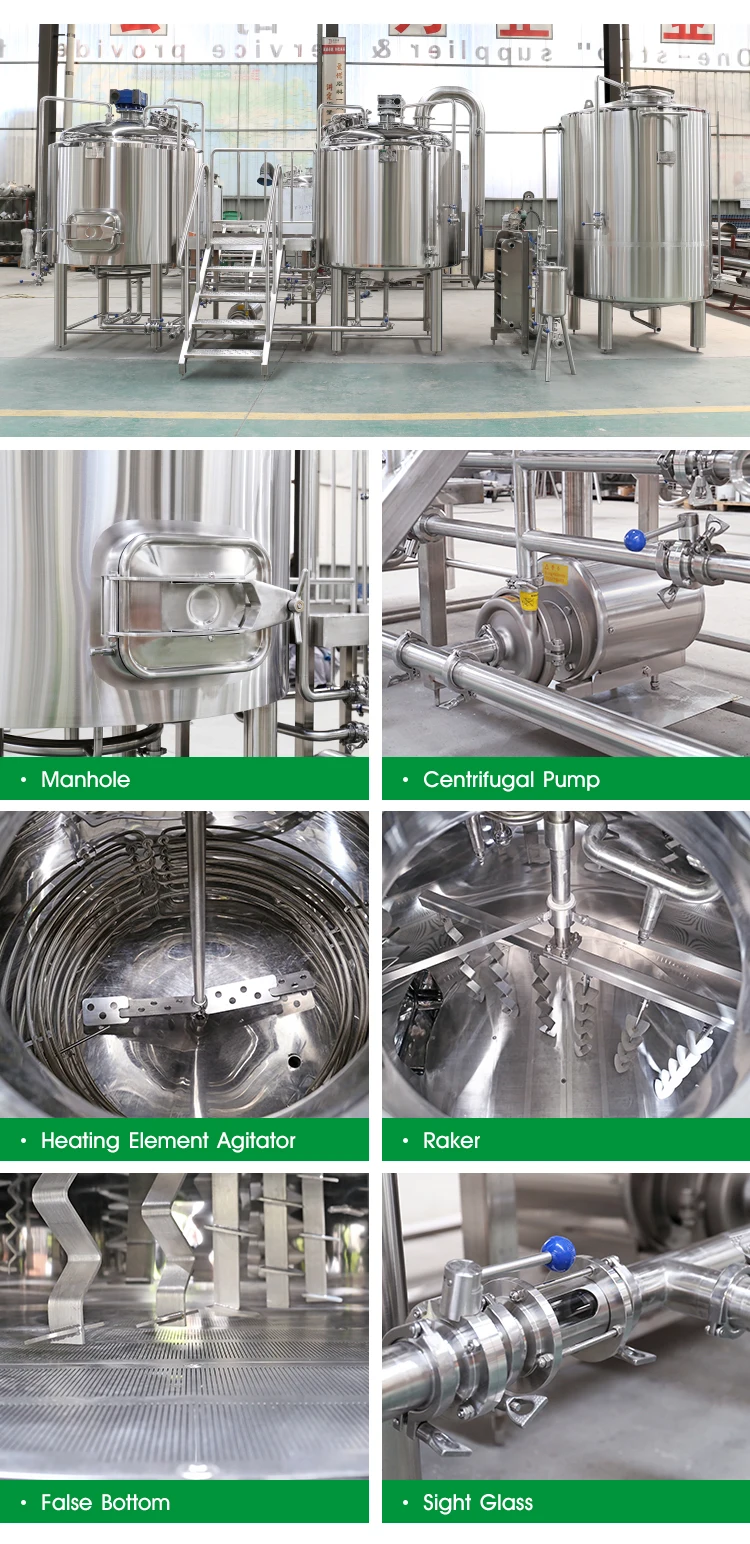

-Raker knife and milled false bottom in the lauter tank

-Stirrer under the bottom of MT&WK

-Temp probe( can be connected to the control cabinet)

-Spray ball – removable

Optional:

-Volume indicator on vessel side

-Grain case, auger, and grist hydrating device

-Operation platform

-Buffer tank

- Raker with variable speep drive

Fermentation tanks

Component: fermentation tank, brite beer tank, yeast adding tank etc

Capacity: 100L~200000L, and even larger

Material: stainless steel 304/316

Standard configuration:

-AISI 304 stainless steel full welded

-TIG welded cooling jackets or cold water belt

-Insulation with PU

-Tank top device

-CIP Spray ball – removable

-Operating temperature -15~35℃

-Manual valves or pneumatic valve can be chosen

-Roughness of internal surface 0.4~0.6μm as required

-60°cone bottom(could be adjusted)for fermentation tank, 160°cone for brite beer tank

-Foundation bolt

Optional:

-Hops adding port

-Racking arm

-Double period of cooling method

-Horizontal type

NDL Craft, founded in 2011, is a brewing equipment manufacturer and brewing technology engineering company that provides many kinds of customized tanks and turnkey projects throughout the world. The company attaches great importance to the research and development of core technology. On the basis of maintaining the manufacturing cost of China, the company can design according to CE PED standards and ASME design codes, and institutes production and quality control methods according to both European and American quality standards.

We have established an ERP management system and have passed quality audits for internationally recognized certifications.

ISO 9001: Certification for the Quality Management System

ISO 14001: Certification for the Environmental Management System

ISO 18001: Certification for the Occupational Healthland Safety Management System

CE: Certification of Compliance

PED(TUV): Certification of Compliance, Certification of Conformity

SGS: Gold Plus Supplier Assessment Certificate

NDL Craft attend the Exhibition all over the world, such as USA, Franch, Germany, Brazil, Australia etc, hope to see you at the Exhibition, dear all!

NDL Craft is a brewing equipment manufacturer and brewing technology engineering company that provides turnkey projects throughout the world.

What Can NDL Craft do for you?

New design: the company can design according to CE PED standards and ASME design codes

Localized after service: the company has set up three overseas branches located in the United States, the United Kingdom and Canada, as well as localized technology, sales and operation teams in Europe and the United States

New production: the company deploys a series of advanced production and testing equipment, modern production workshop of nearly 30,000 square meters, which organize production according to European and American technical and quality standards.

New Function: Programing system to achieve automatic control
