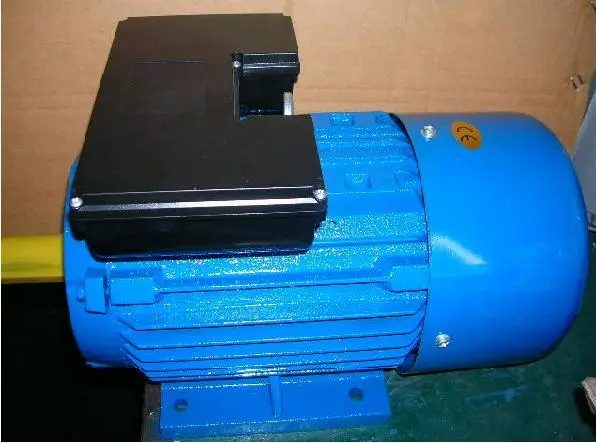

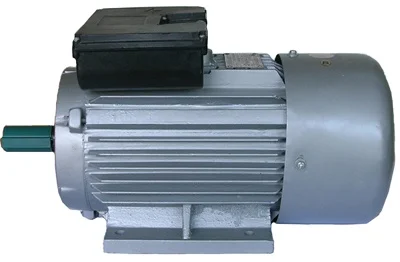

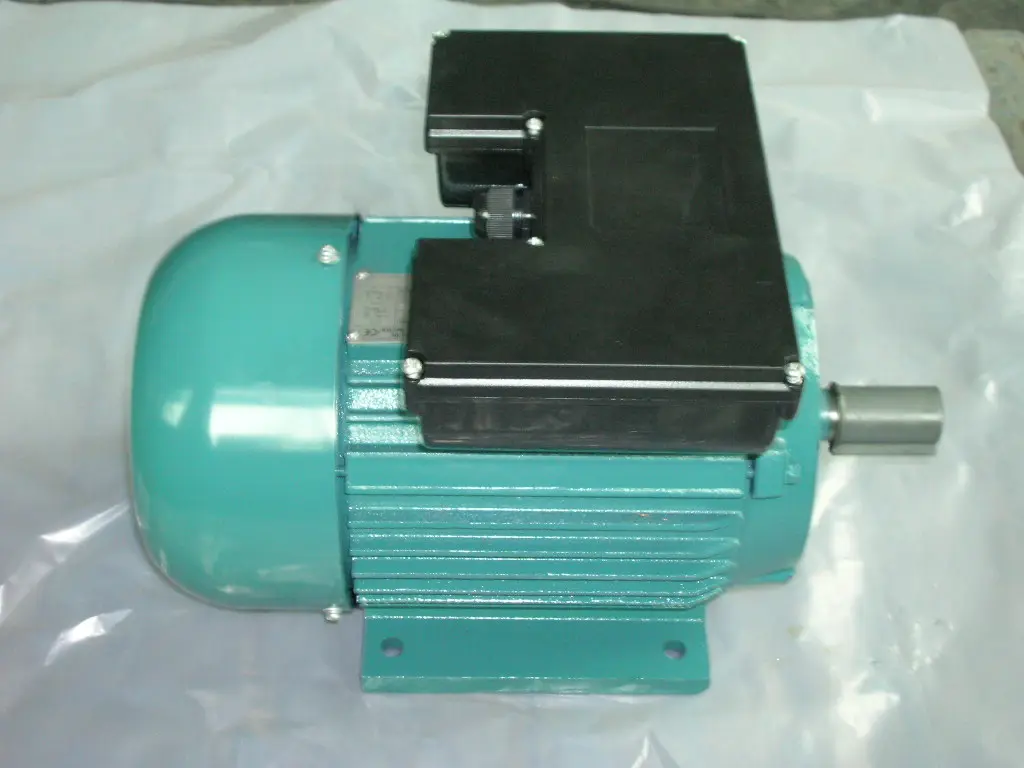

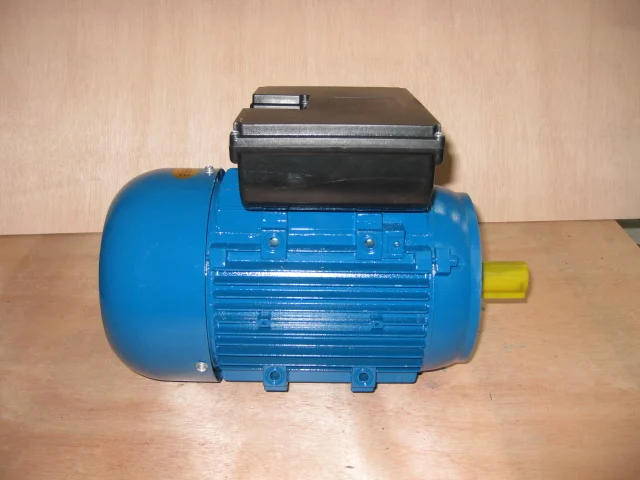

(YL100L2)YL series single phase two value capacitor asynchrinous motor
- Category: >>>
- Supplier: Zhejiang Hongda Group Dafeng Electronics Co. Ltd.
Share on (560630021):
Product Overview
Description
Product Description
Specifications:
1) Frame size: 100
2) Rated power: 3kW
3) Rated voltage: 110 - 120V, 200 - 240V
4) Frequency: 50Hz, 60Hz,50Hz/Hz
5) Protection class: IP44
6) Insulation class: B, F
7) Materials: cast iron, aluminum (FRAME 63-132)
8) EFF: EFF2, EFF1
9) Poles: 2, 4
10) Cooling method: IC411 (total-enclosed fan-cooled type)
11) Mounting types: IMB3, IMB35, IMB5, IMB14, IMB34
12) Operating mode: S1
13) Connection: "Y" type for 3kW and downwards, "D" type for 4kW and upwards
14) Ambient temperature: -15°C< θ <40°C
15) The altitude should be lower than 1,000m above the sea level
16) Relative humidity: not higher than 90%
17) Special motors can be designed according to customers' requirements
18) Export markets: Europe, North America, the Middle East, Africa, Southeast Asia,East Asia, South America
Inner packing:Foam box
Outer packing: Wooden box
Conveyance:
Qty/20' FCL: 295pcs
1) Frame size: 100
2) Rated power: 3kW
3) Rated voltage: 110 - 120V, 200 - 240V
4) Frequency: 50Hz, 60Hz,50Hz/Hz
5) Protection class: IP44
6) Insulation class: B, F
7) Materials: cast iron, aluminum (FRAME 63-132)
8) EFF: EFF2, EFF1
9) Poles: 2, 4
10) Cooling method: IC411 (total-enclosed fan-cooled type)
11) Mounting types: IMB3, IMB35, IMB5, IMB14, IMB34
12) Operating mode: S1
13) Connection: "Y" type for 3kW and downwards, "D" type for 4kW and upwards
14) Ambient temperature: -15°C< θ <40°C
15) The altitude should be lower than 1,000m above the sea level
16) Relative humidity: not higher than 90%
17) Special motors can be designed according to customers' requirements
18) Export markets: Europe, North America, the Middle East, Africa, Southeast Asia,East Asia, South America
Inner packing:Foam box
Outer packing: Wooden box
Conveyance:
Qty/20' FCL: 295pcs
Model | YL100L2 |
Frame size | 100 |
Rated voltage | 110 - 120V, 200 - 240V |
Frequency | 50/60Hz |
Materials | cast iron, aluminum (FRAME 63-132) |
Insulation class | B, F |
Company Introduction
We are in Zhejiang, China, we have a good geographic position and we have definetely strenth in the quality and price. Comparing
with the trading company, we are more reliable.
with the trading company, we are more reliable.
Our Services & Strength

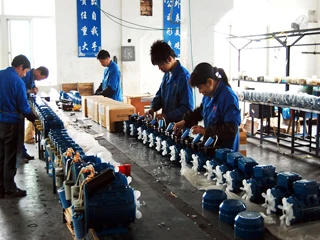

We are a traditional manufacturer, with more than over 20 years' experience of manufacturing motors , we have accumulated regular customers all over the world.
FAQ
Shipping Port: Ningbo Port
Place of Origin: Zhejiang, China
Terms of Payment: T/T only at present
Place of Origin: Zhejiang, China
Terms of Payment: T/T only at present
