Roller glass coating machine
US $10000-$13000
manual glass cutting table /Tilting air flotation table
- Category: >>>
- Supplier: Jinan Sunny Machinery Factory Co. Ltd.
Share on (561355117):
Product Overview
Description
Product Name:Tilting Air Flotation Table ,Vertical Glass Cutting BreakingTable
Tilting Air flotation Table with breaking
brief introduction
The tilting air flotation table is composed of air flotation table, “+” straight rod, air blower, air cylinder, hydraulic pressure station, electric cabinet, foot switch, etc. So it can tilt to pick up glass sheets from vertical position to horizontal position. On the working table, we can cut glass into pieces by hands. When splitting, put the cutting score of glass onto the middle part of the straight rod of the table, and close the air cushion, step the foot pedal down. The straight rod will be pushed upwards by the cylinder to break out the glass instantaneously. The table can break out glass in many positions, reducing the intensity of labor.
Technical Data
Max. glass size: 1800*2500mm
Glass thickness: 3-19mm
Power supply: 380v 50hz 3phase(adjustable)
Power rate: 4.5kw
Air Blower:2pcs
Foot switch: 2pcs
Hydraulic Pressure Station: 1pc
Overall dimension: 1940*2550*760mm
Weight: 1500kgs
Company Name: Jinan Sunny Machinery Co.,Ltd.
add.: zone 2,Yaoshan Industrial Park,Tianqiao Area,Jinan,Shandong,China

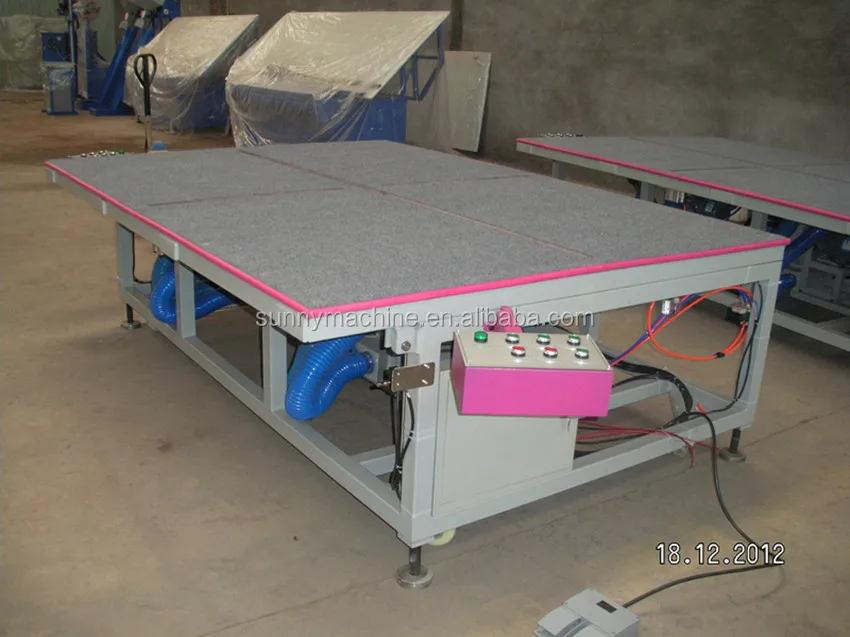

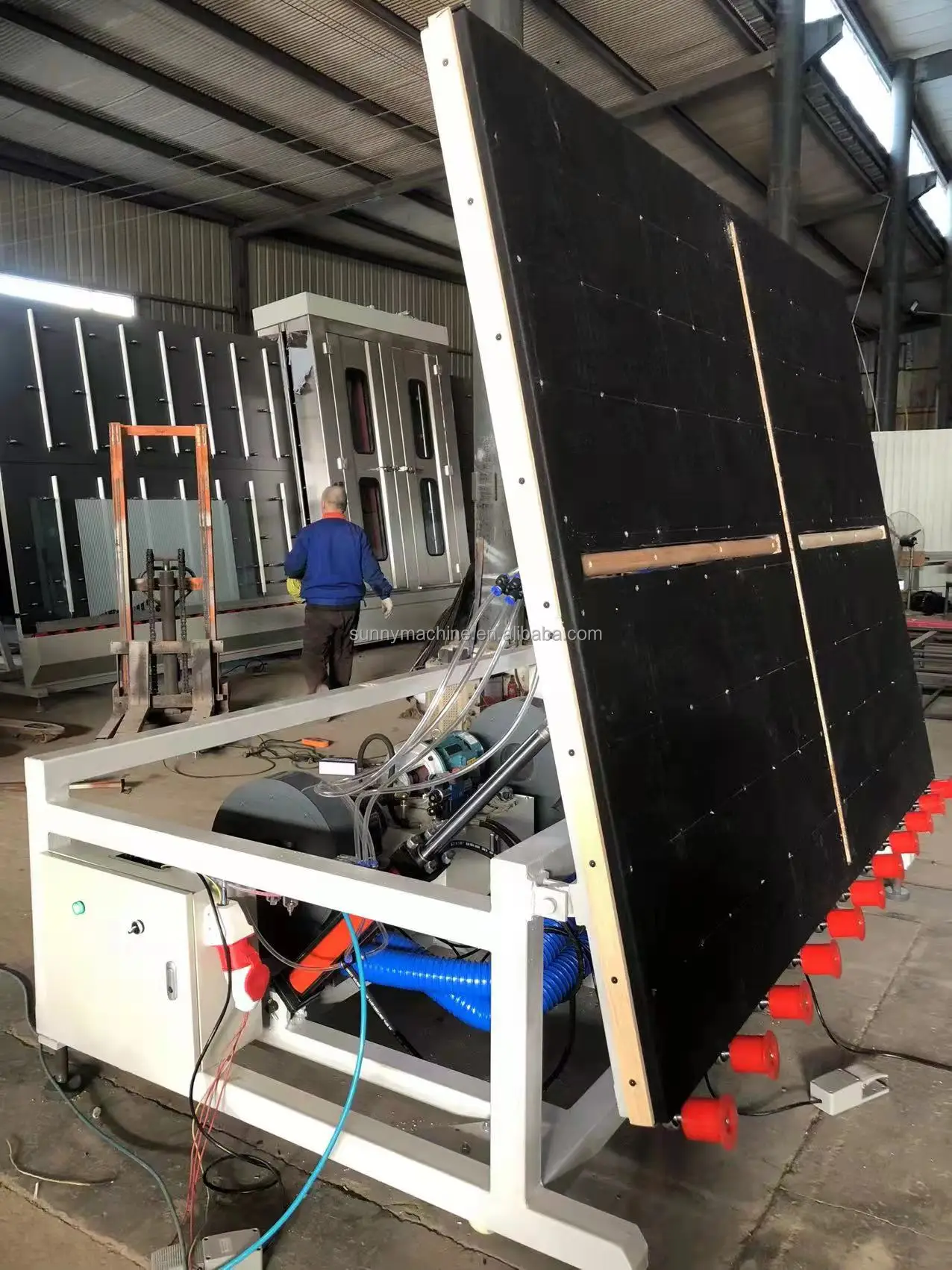

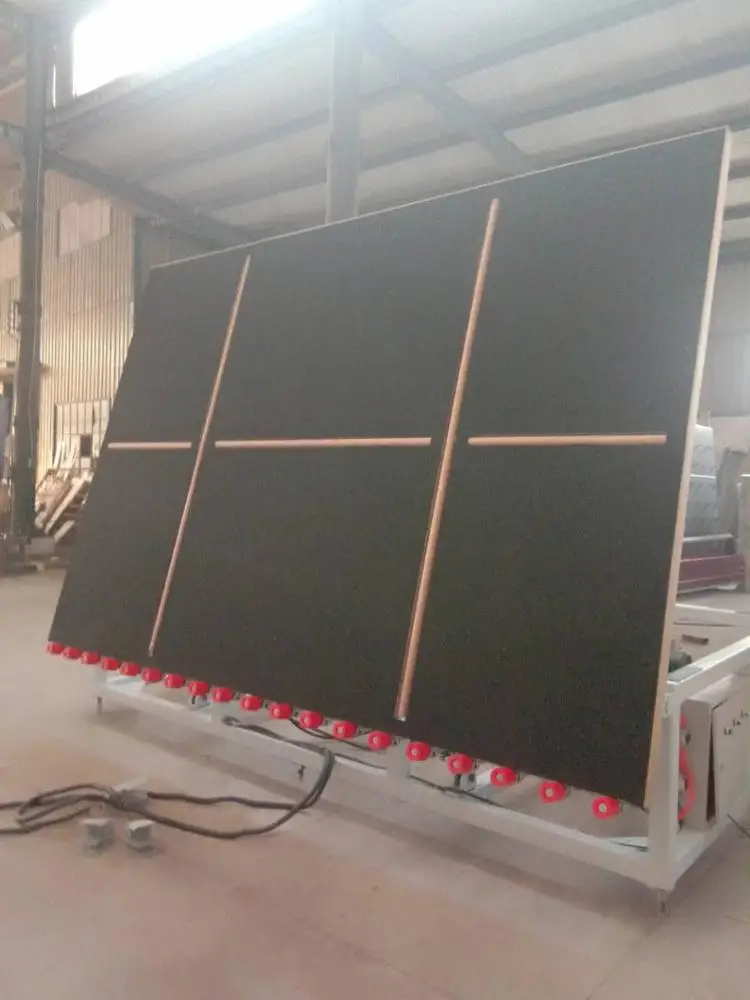

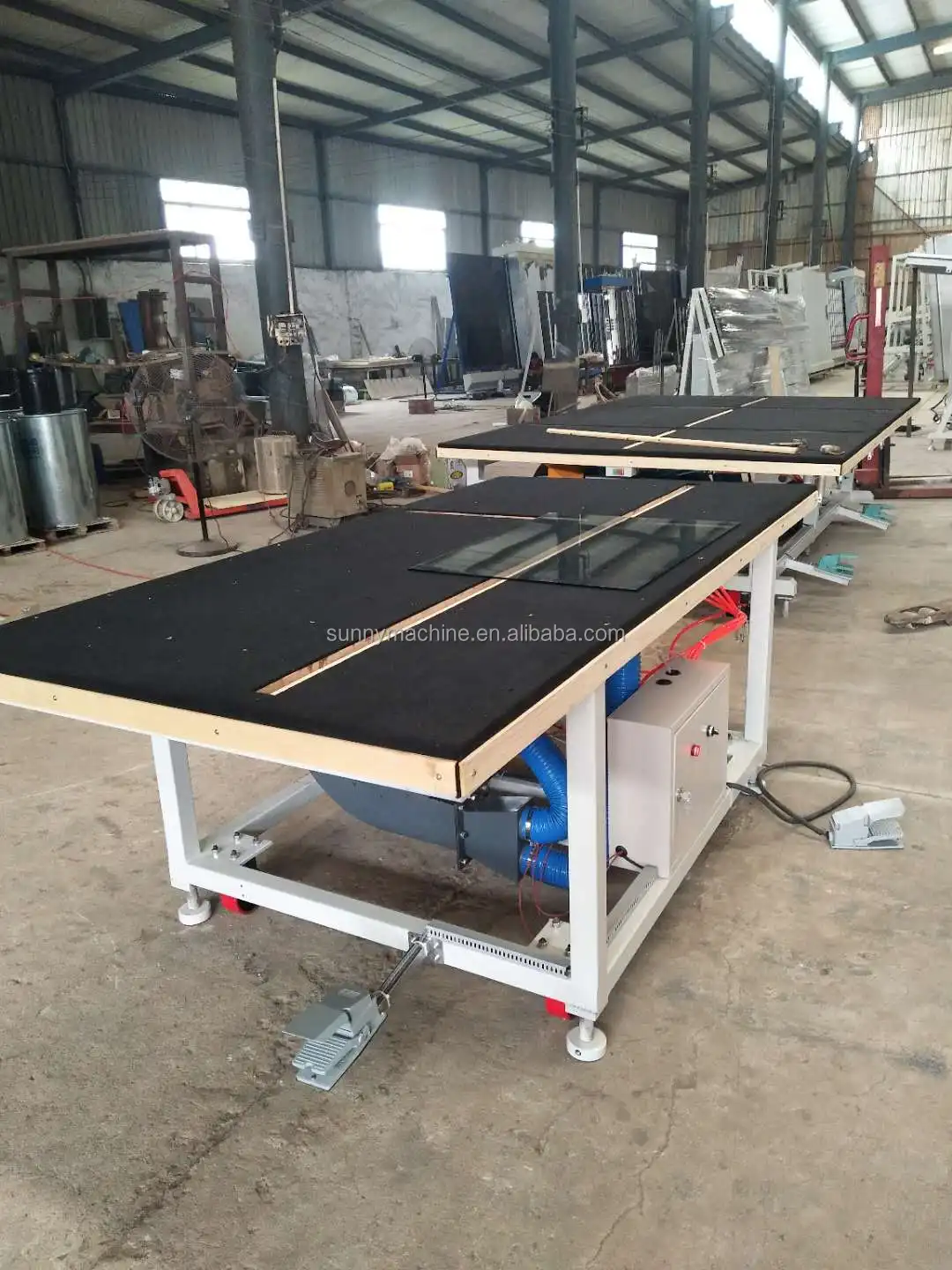

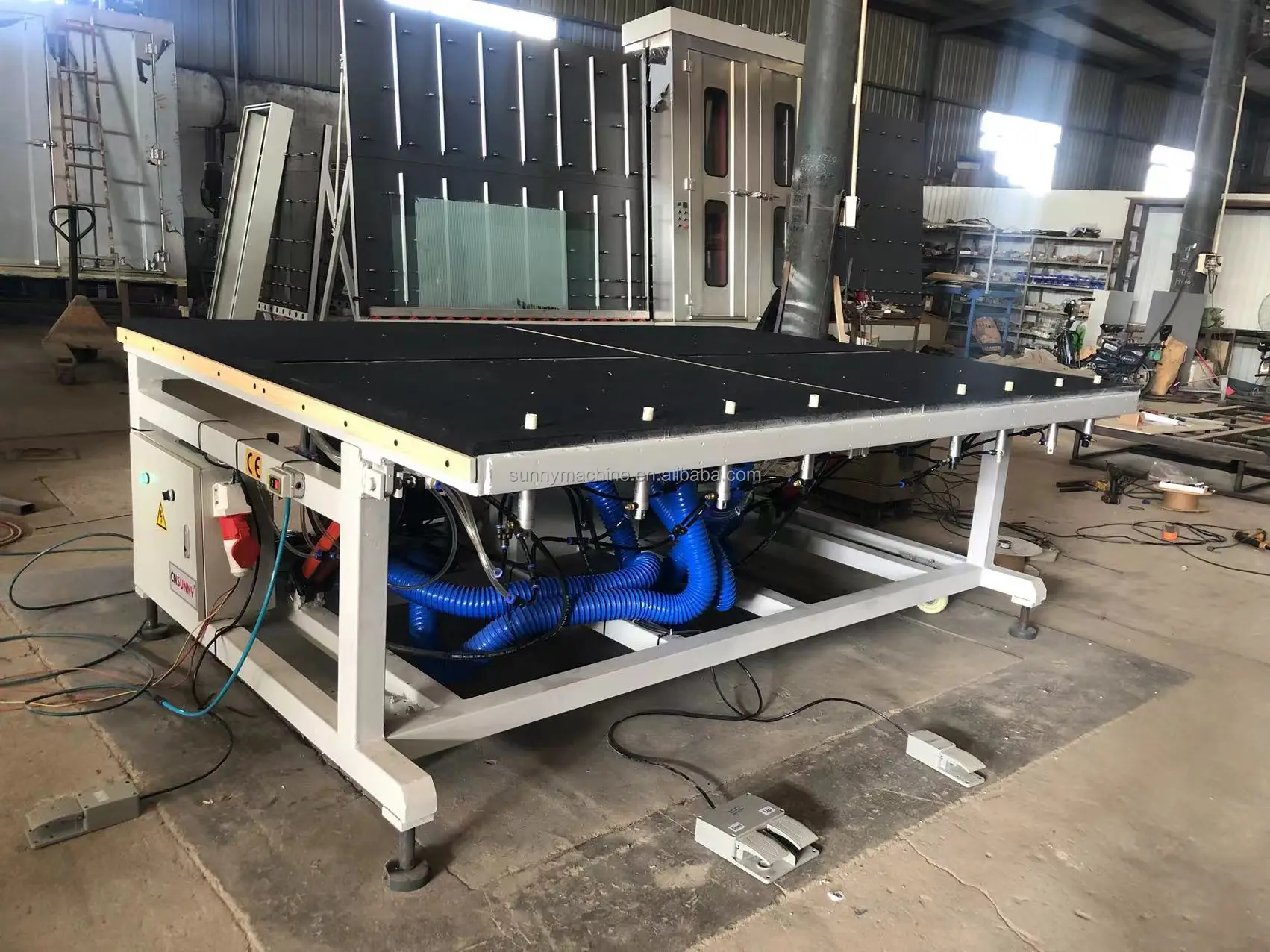

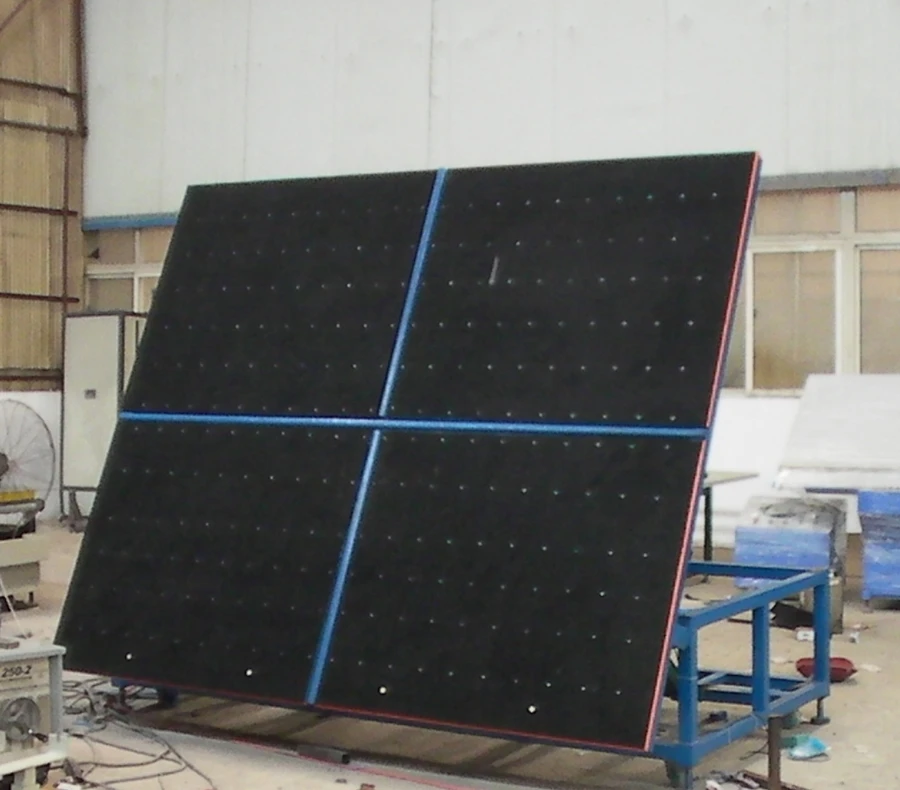

Real Photo
Contact person: Ms awen
mob:86-15063343341
Skype:yingying3523
