Reverse parking sensor,High level ultrasonic parking sensor system, LED display parking sensor
Model No.: SDW-4-RFP3H
• Truck/Trailer Waterproof Rear 4 Parking Sensor System
• Sensor detection range: 0cm~2.5m;
• Display range: 45cm~2.5m;
• Advanced self-diagnosis with error indication;
• Improved anti-interference function;
• All weather design, waterproof level: IP68;
• 4*RFP3H SmartSensor module built in double angle sensor, fit for metal tube bumper use, Automotive connector type;
• Precision accuracy: CM;
• DSP01 display, 3 color LED 4 channel / buzzer built-in & digital readout;
• Power Input: 10~35V DC;
• Industrial cables and connectors, Microchip MCU.

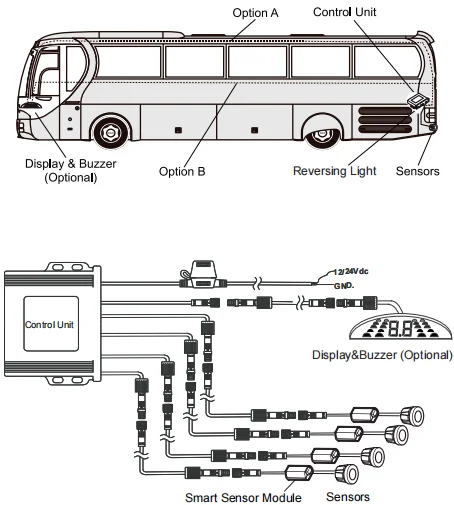

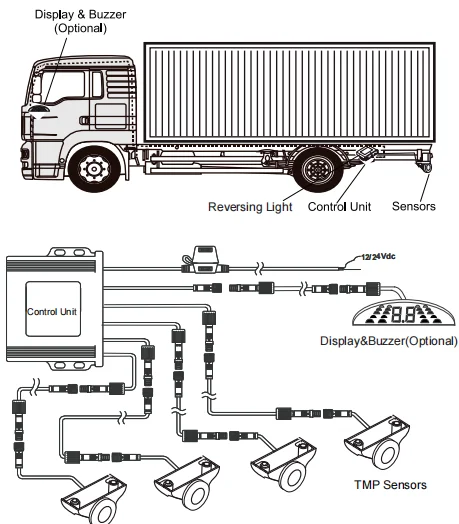

Wiring Diagram

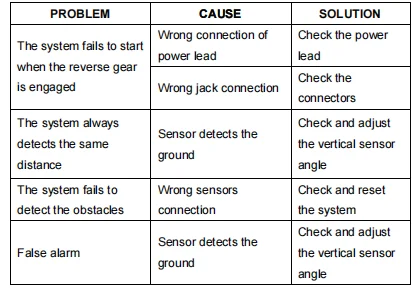

Trouble shooting guide
For more details information,pls do not hesitate to contact us!
