Inert Ceramic Ball for Catalyst Support Media
- Category: >>>
- Supplier: Jiangxi Voda Chemical Co. Ltd.
Share on (561525282):
Product Overview
Description

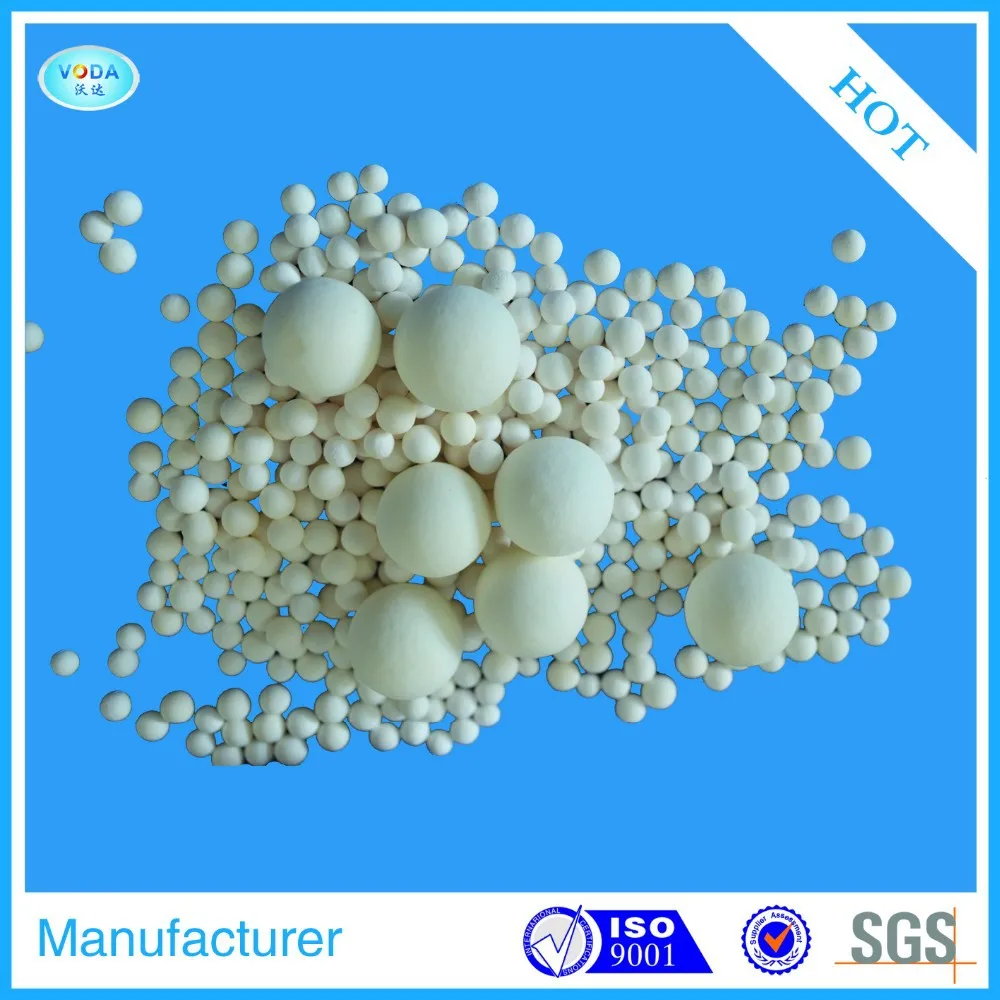

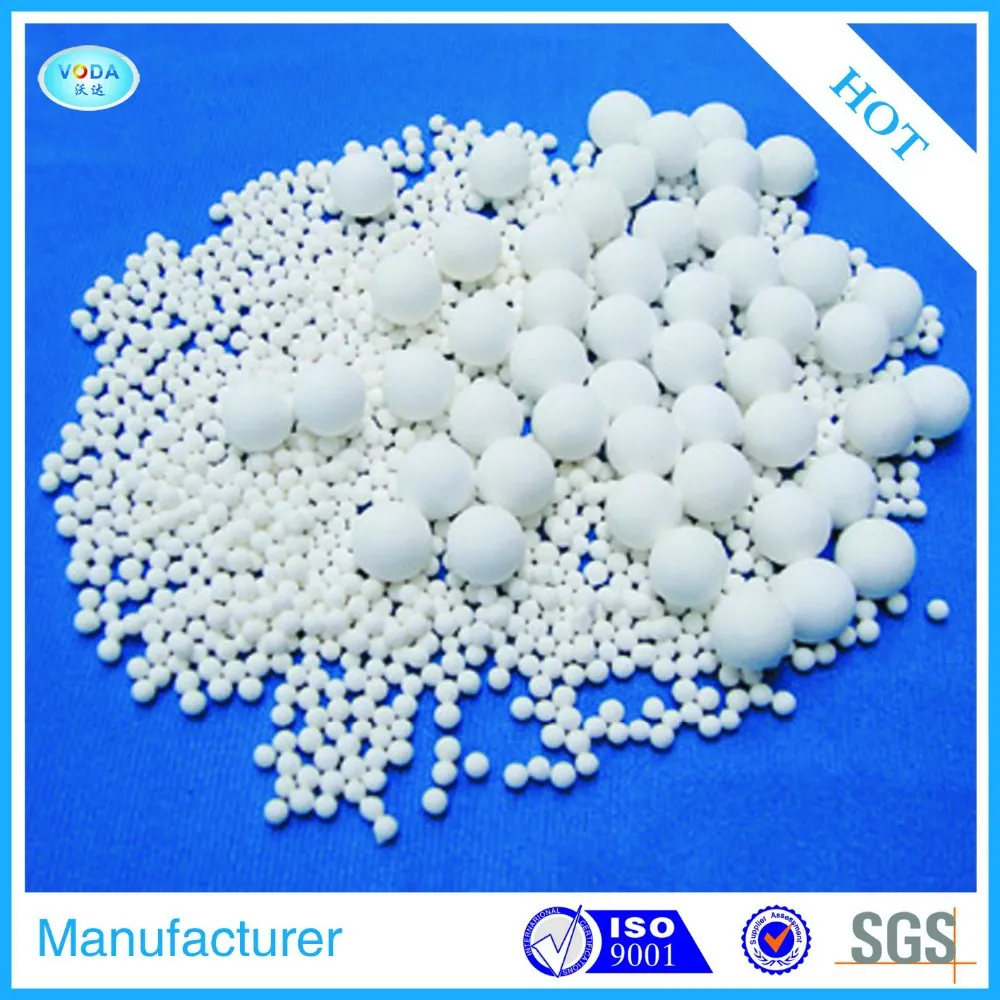

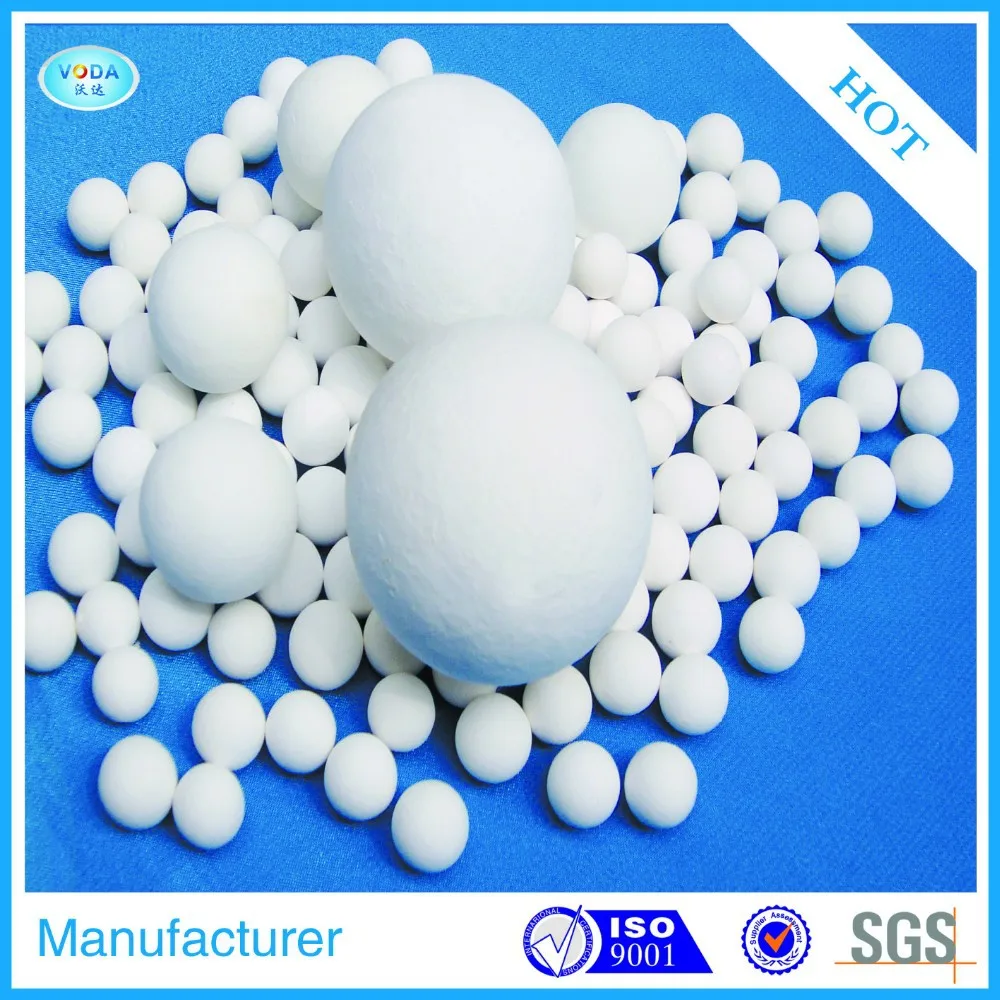

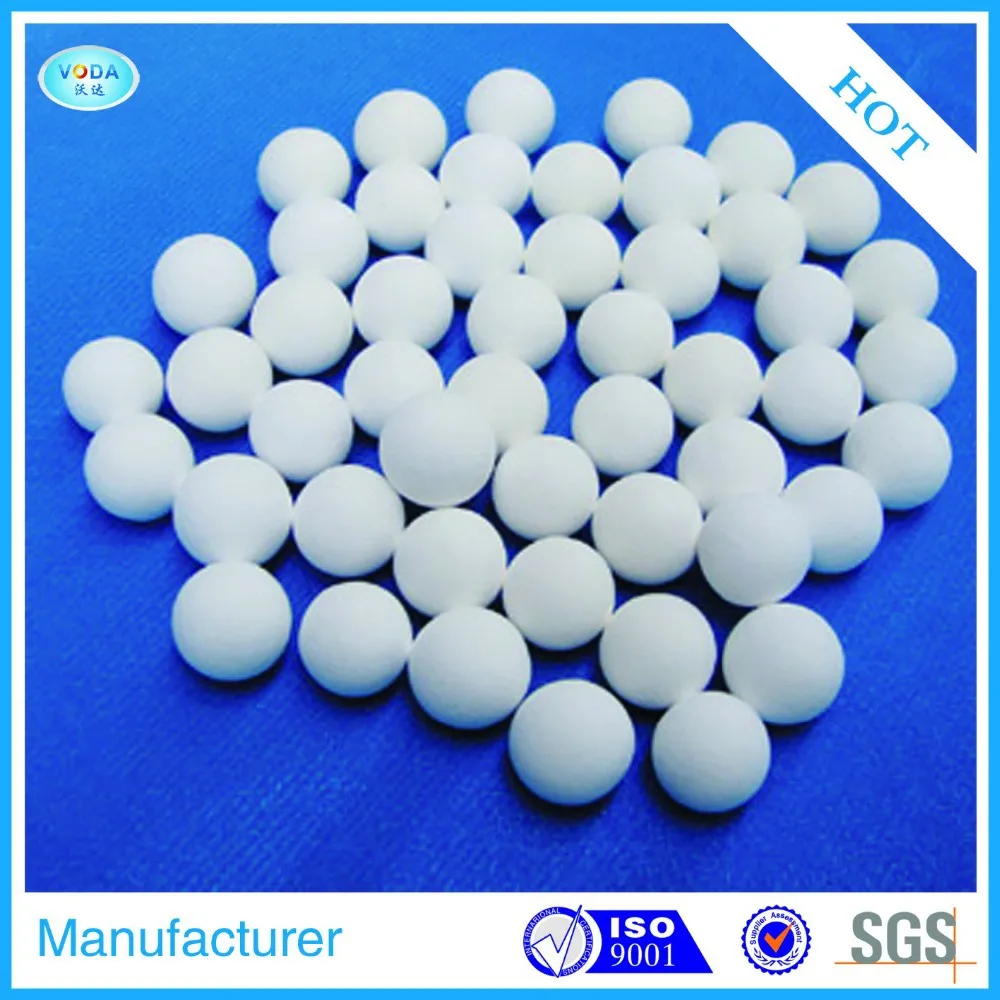

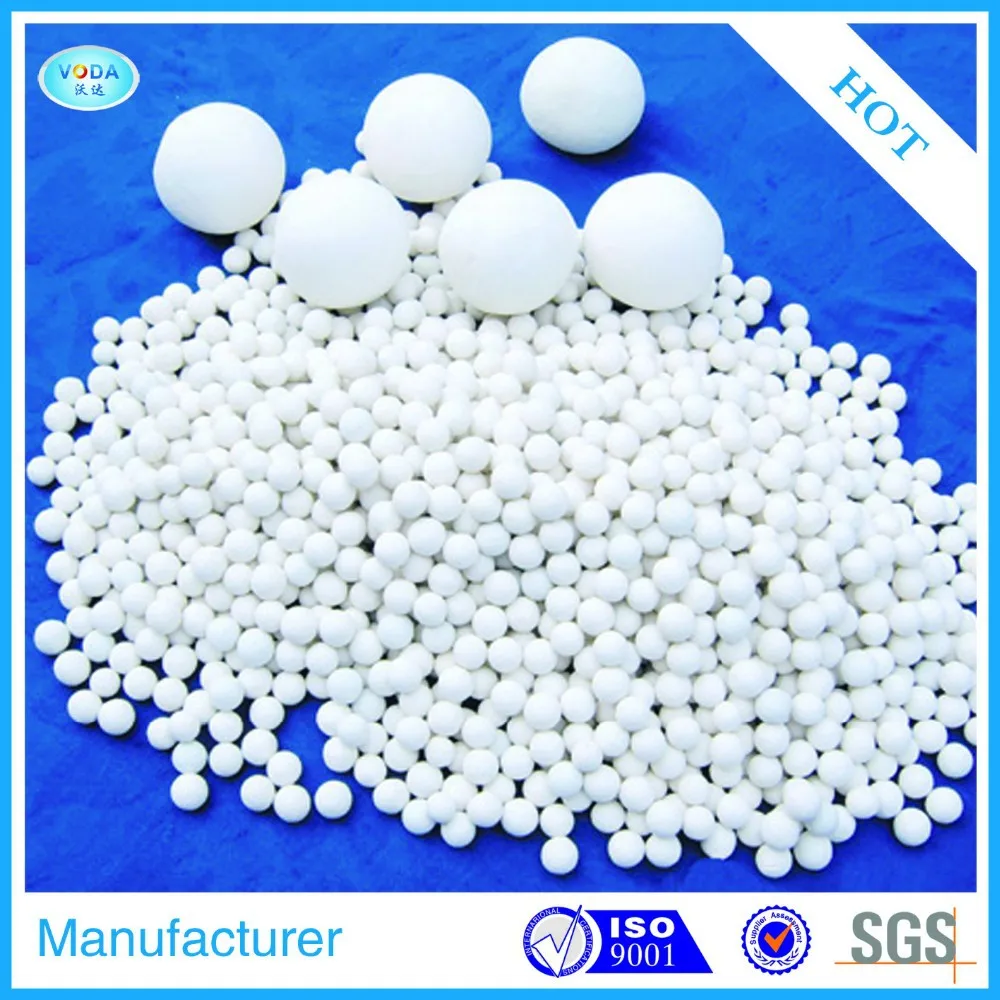

Inert Ceramic Ball for Catalyst Support Media
Product Description
Introduction:
Catalyst bed support media are widely used support media in the world because of their excellent consistence and reliability. Products to these specifications are manufactured from very high quality chemical-porcelain clay materials, which has quite excellent stability, high mechanical strengthand resistance to thermal shock. This makes them all ideal choice for support of all types of catalyst.
Chemical composition & Physical properties
Specification | Common Ceramic Ball | Inert Ceramic Ball | Medium Alumina Ball | High Alumina Ball | 99% Alumina Ball |
Al2O3 + SiO2 (%) | >93 | >92 | >93 | >94 | >99 |
Al2O3 (%) | 17-23 | 23-30 | 47-56 | 90-93 | 99 |
Fe2O3 (%) | <1 | <1 | <1 | <1 | <1 |
CaO (%) | <0.5 | <1.5 | <2 | <4 | 0.2 |
MgO (%) | <0.5 | <2.5 | <0.5 | <0.5 | 0.1 |
K2O + Na2O (%) | <4 | <4 | <3.5 | <4 | >0.5 |
TiO2 |
| <0.5 | <0.1 | <0.1 | 0.5 |
Leachable Iron (%) |
| <0.1 | <0.001 | <0.001 |
|
Water Absorption (%) | <0.5 | <0.2 | <2 | <3 | 2.0-6.0 |
Bulk Density (g/cm3) | 1.35-1.40 | 1.35-1.40 | 1.35-1.45 | 1.8-2.0 | 1.8-2.0 |
Operation Temp. max. | >1100 | >1100 | 1480 | 1760 |
|
Mohs Hardness (scale) | >6.5 | >7 | >7 | >7 | >7.5 |
Crush Strength | KN/particle | ||||
1/4 inch (6mm) | >0.5 | >0.54 | >0.56 | >0.44 | >1 |
1/2 inch (13mm) | >1.5 | >1.67 | >1.56 | >1.99 | >3 |
3/4 inch (19mm) | >4.15 | >4.21 | >2.89 | >3.21 | >5 |
1 inch (25mm) | >6.07 | >6.22 | >4.89 | >5.33 | >8 |
1-1/2 inch (38mm) | >8.52 | >8.92 | >5.33 | >5.28 | >8 |
2 inch (50mm) | >9.7 | >9.8 | >6.22 | >8 | >15 |

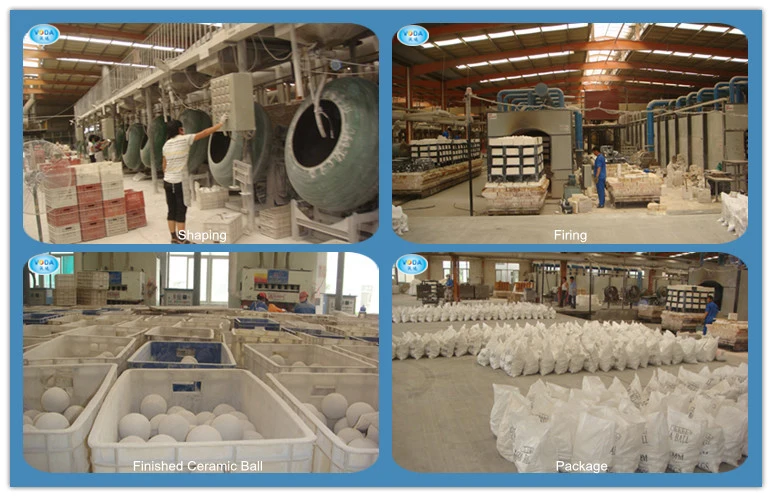

Inert Ceramic Ball for Catalyst Support Media Production Process

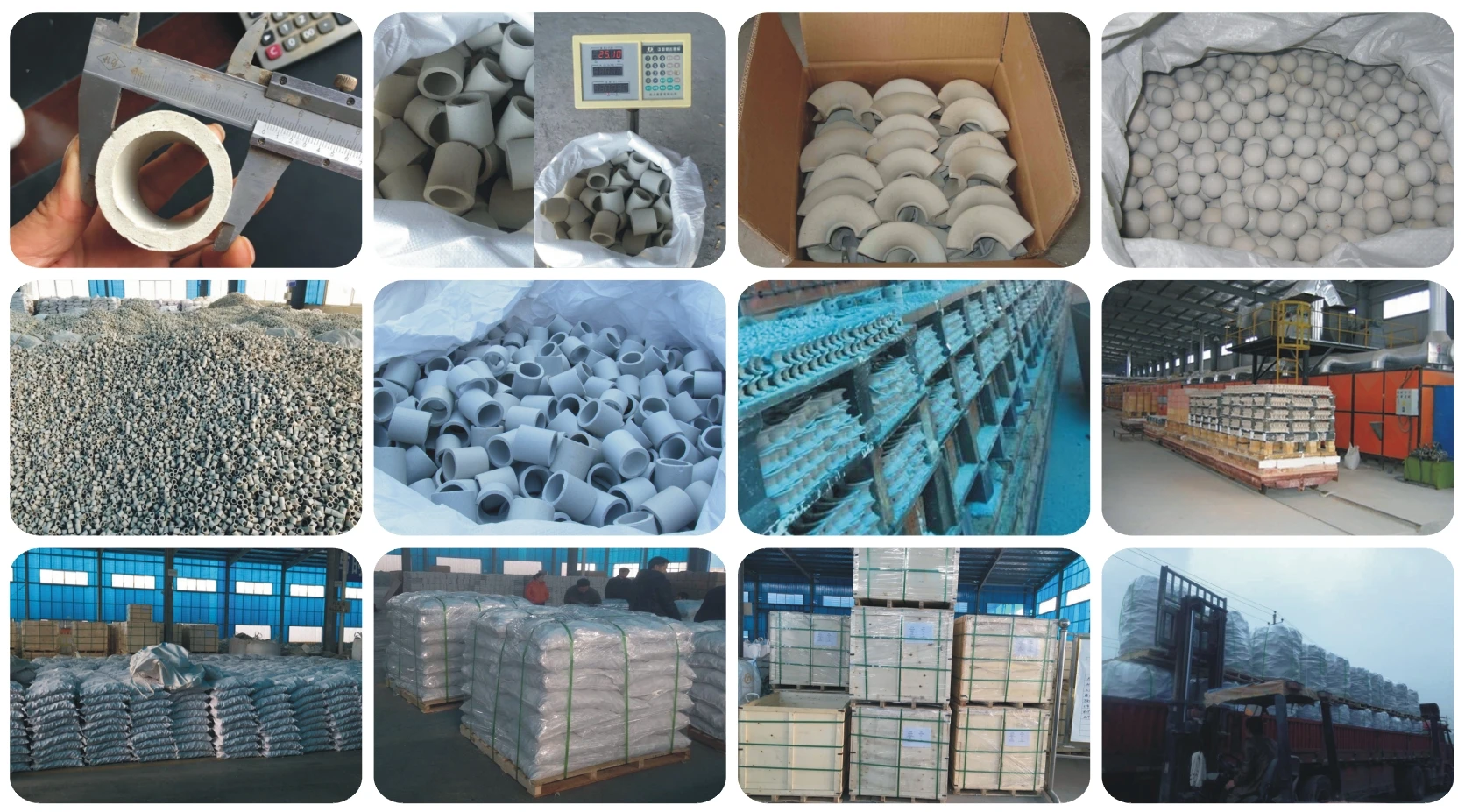

Packaging & Shipping
Company Information

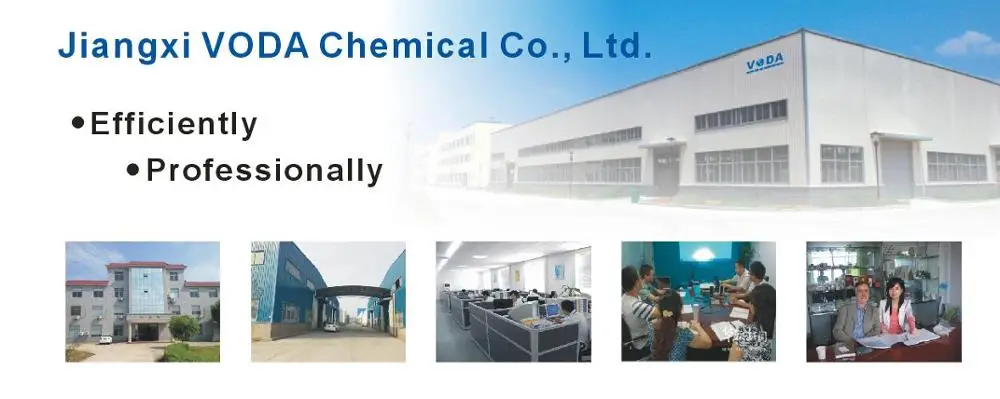

Jiangxi VODA Chemical Co., Ltd
The Largest Supplier Of The Chemical Random Tower Packing, Absorbent, Desiccant In China.
Located in Pingxi City where is one of leading production area for the chemical packing in the world.
Our main products are Molecular Sieve, Random and Structured Chemical Packing in Ceramic, Plastic & Metal, Honeycomb Ceramics, Inert Ceramic Balls, Activated Alumina, Silica gel, Alumina Grinding Balls, etc.

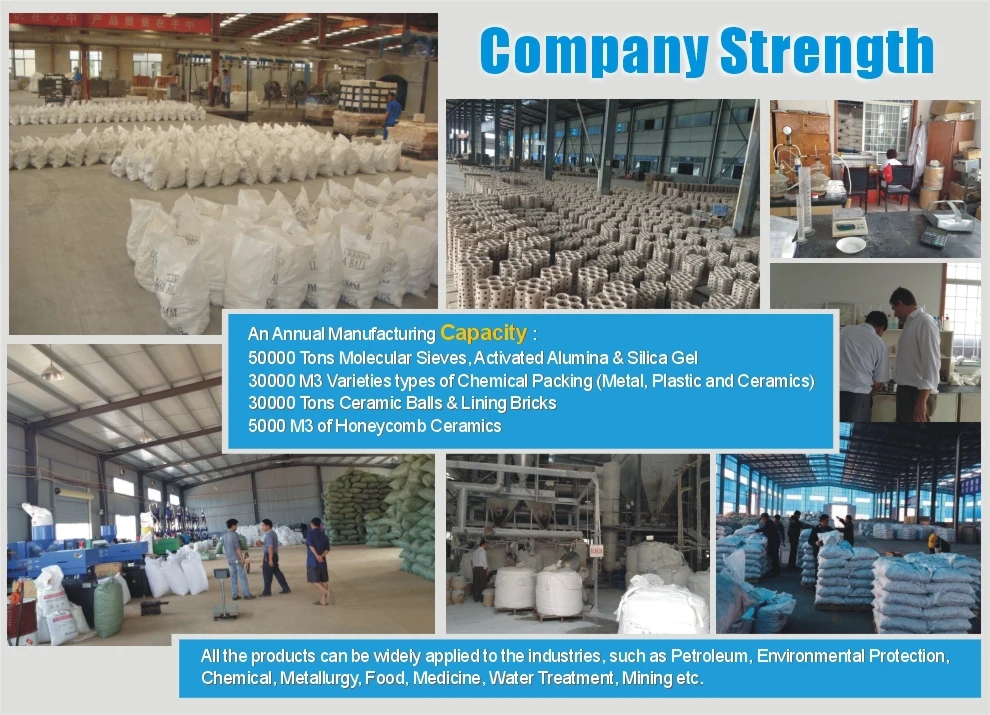

VODA has an annual manufacturing capacity of 50000 ton molecular sieves, silica gels, 50000 m3 of varieties types of chemical packings, 30000 m3 of honeycomb ceramics and 50000 m3 of inert ceramic balls, 50000 ton activated alumina etc.
VODA not only promote our product, also emphasize on providing professional technique and good service. Customer’s satisfaction and prompt delivery are two points that never change. Good reputation is our strong backbone. Because of this, we maintain our reputation with excellent quality and prompt delivery service.
We sincerely hope, we have a long-term cooperation with mutual benefits; the common benefits between us can reach the biggest intersection. VODA has a skilled responsible and committed team work who will ensure your requirements will be met promptly and fully. Please contact us for your requirements.
