Ceramic Raschig Ring In Distillation Column Tower Packing
Product Description

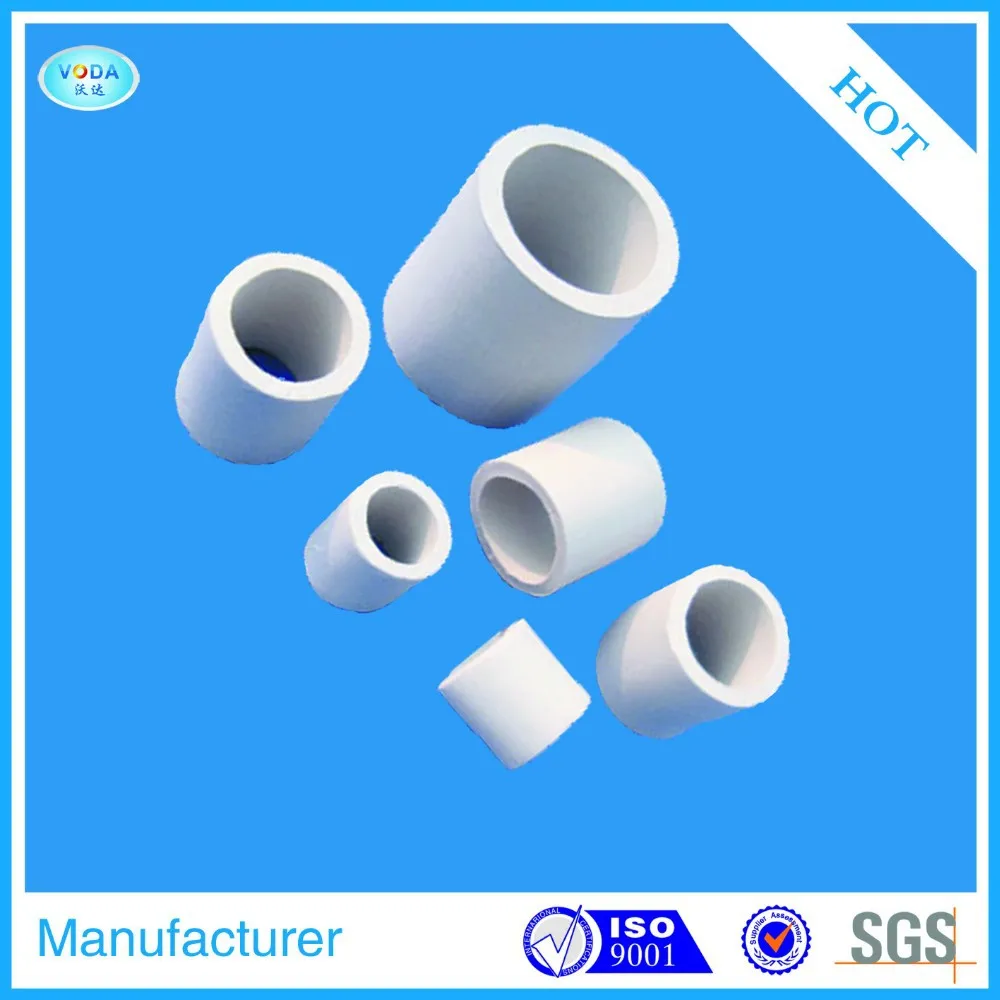

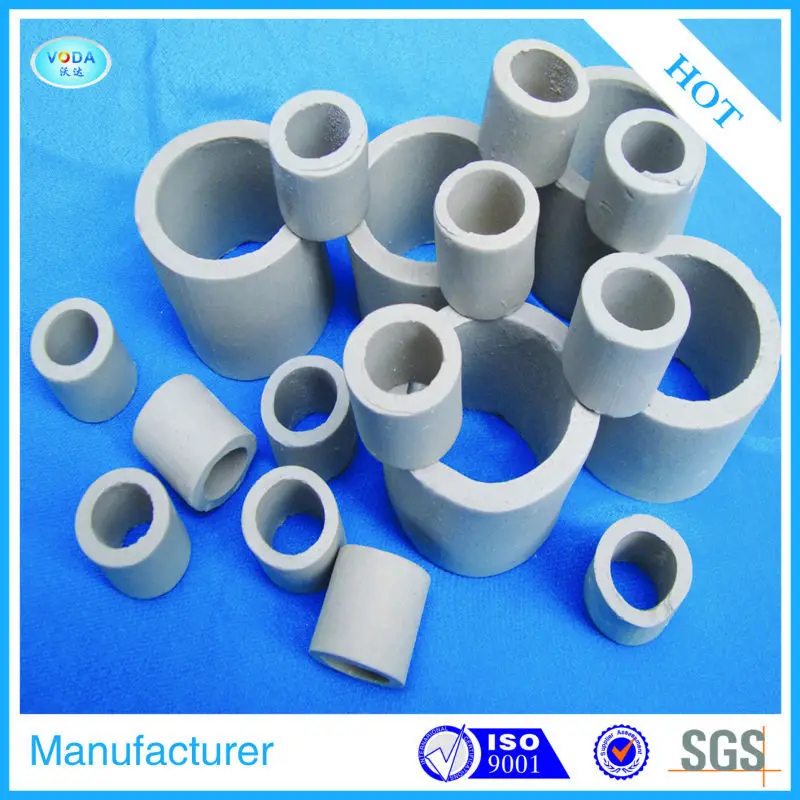

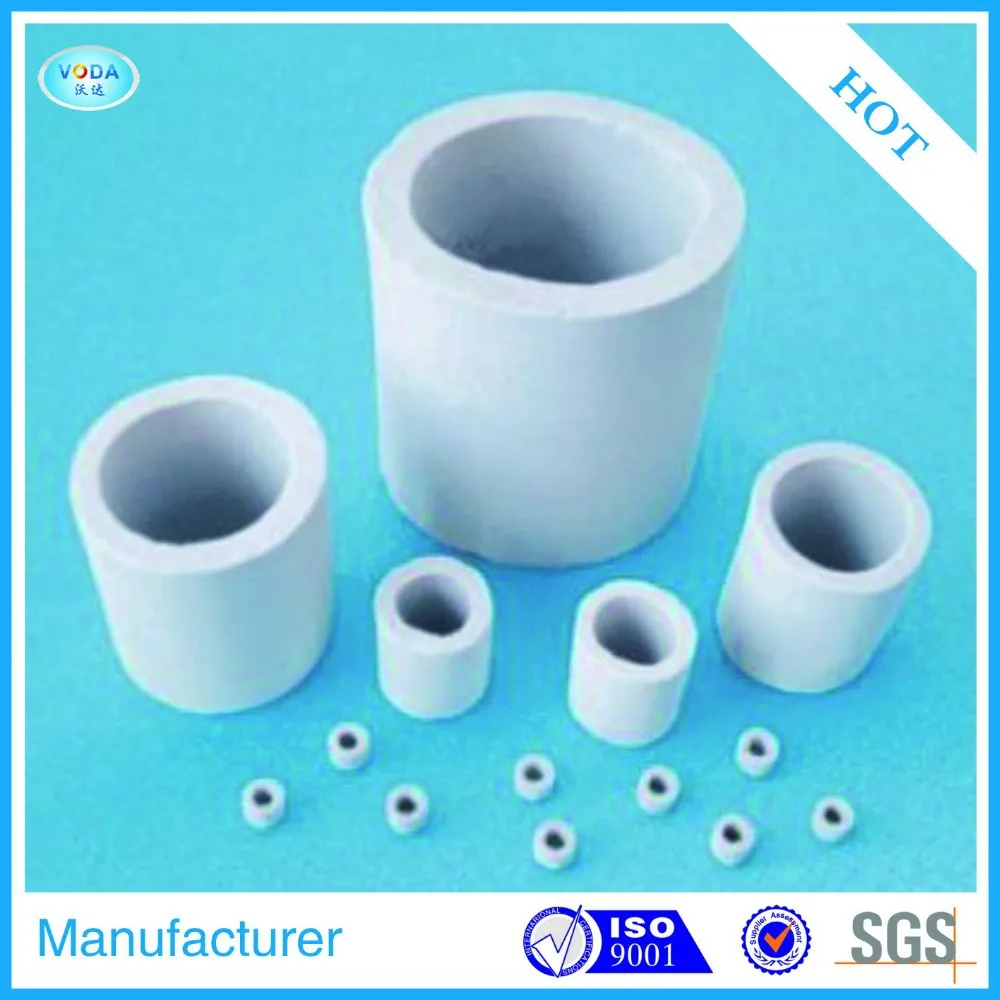

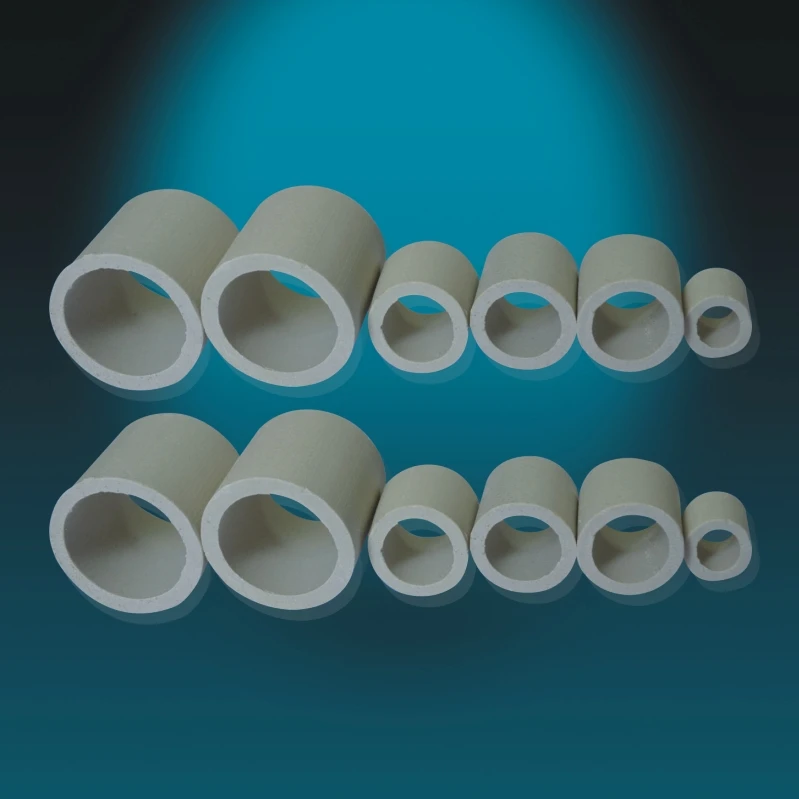

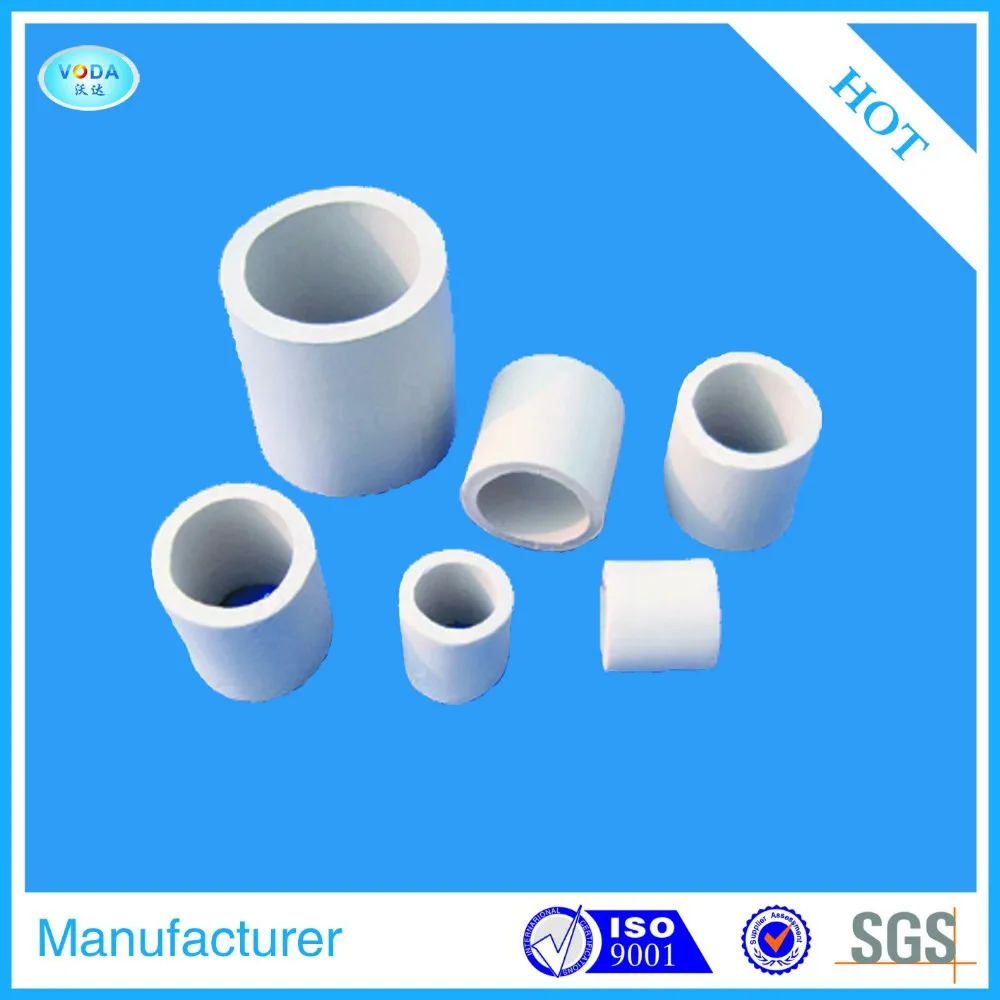

Ceramic Raschig Ring Sample
Introduction:
Ceramic Raschig ringhas excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. It can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
Technical Data
Spec.
D*H*T (mm)
Surface area (m²/m³)
Free volume (%)
Number per m³
Bulk density (Kg/m³)
Dry Packing Factor(m-1)
Ø 15
15*15*2
330
70
250000
690
960
Ø 16
16*16*2
305
73
192500
730
784
Ø 25
25*25*2.5
190
78
49000
505
400
Ø 40
40*40*5
126
75
12700
577
305
Ø 50
50*50*5
93
81
6000
457
177
Ø 80
80*80*9.5
90
68
1910
714
234
Ø 100
100*100*10
70
70
1000
700
172
Ø 150
150*150*15
50
68
295
790
142
Chemical composition
SiO2
Al2O3
Fe2O3
CaO
K2O+Na2O
>70%
23-30%
<1%
<1-2%
<2-4%
Physical properties
Index
Value
Specific gravity(g/cm3)
2.25-2.35
Water absorption(%)
<0.5
Acid-resisting strength, %Wt. Loss (ASTMc279)
<4
Firing temperature(Degree C)
1280-1320
Softening point( Degree C)
>1400
Density(kg/m3)
2350
Ceramic Raschig Ring Production Process
Packaging & Shipping
Various Package:Plastic bag, Jumbo Bag, Wooden Case, Carton Box, On Pallet With PP Film Wrapped
Fastest Shipment: Within 3 Days After Your Formal Order
