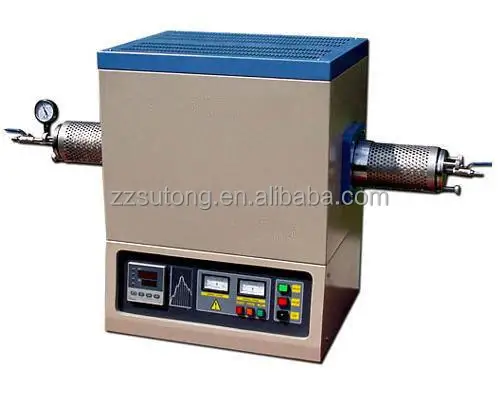

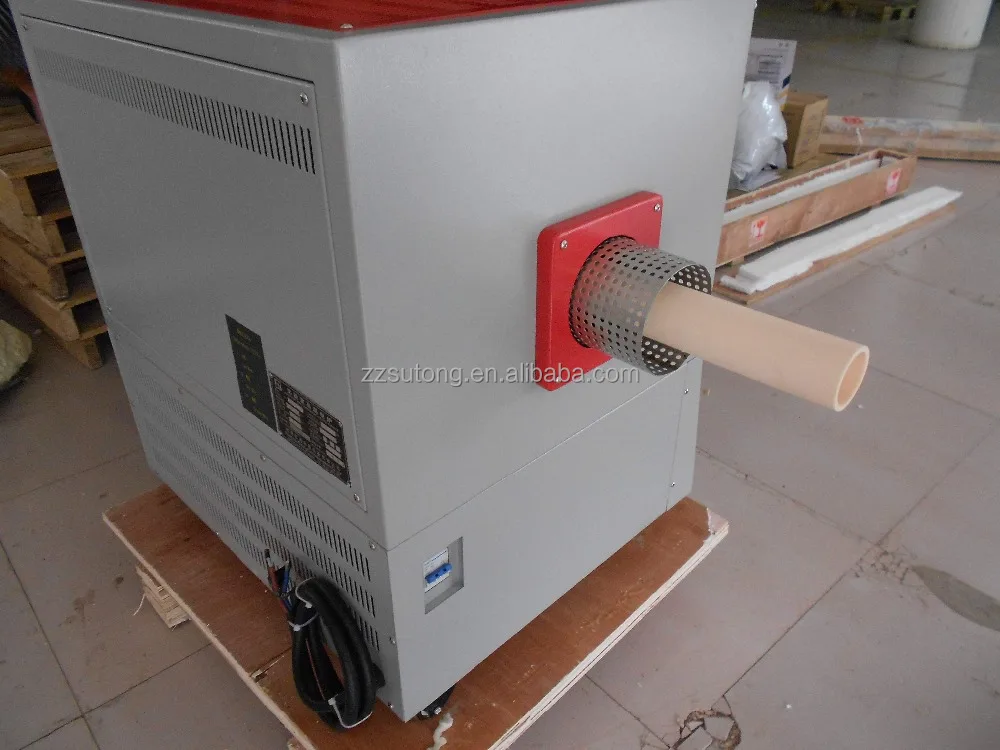

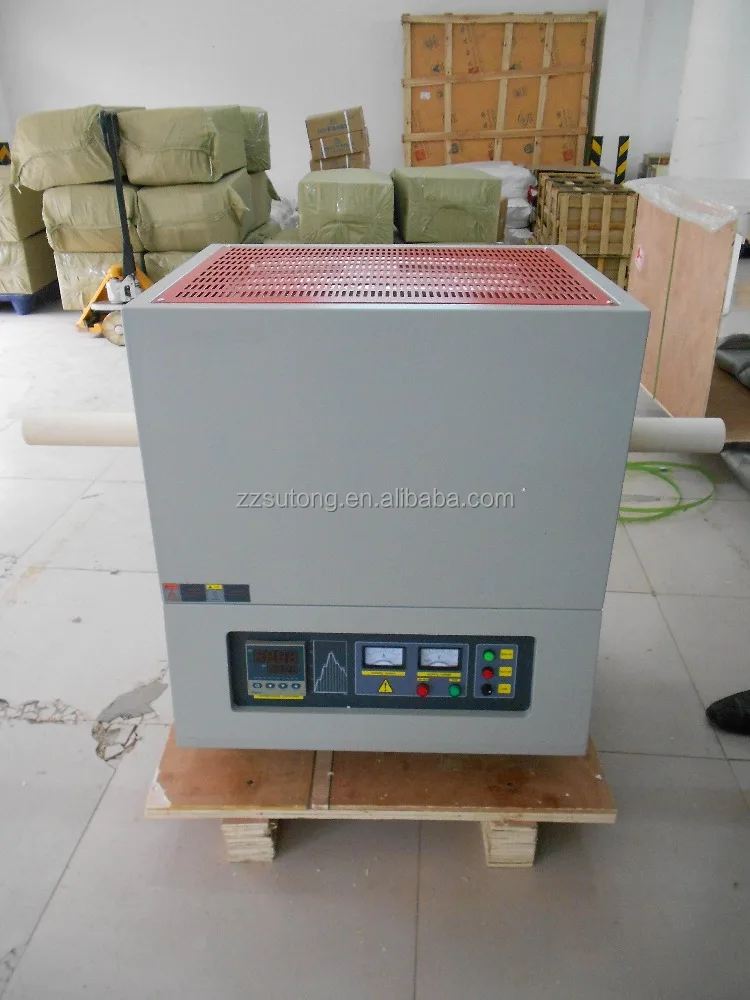

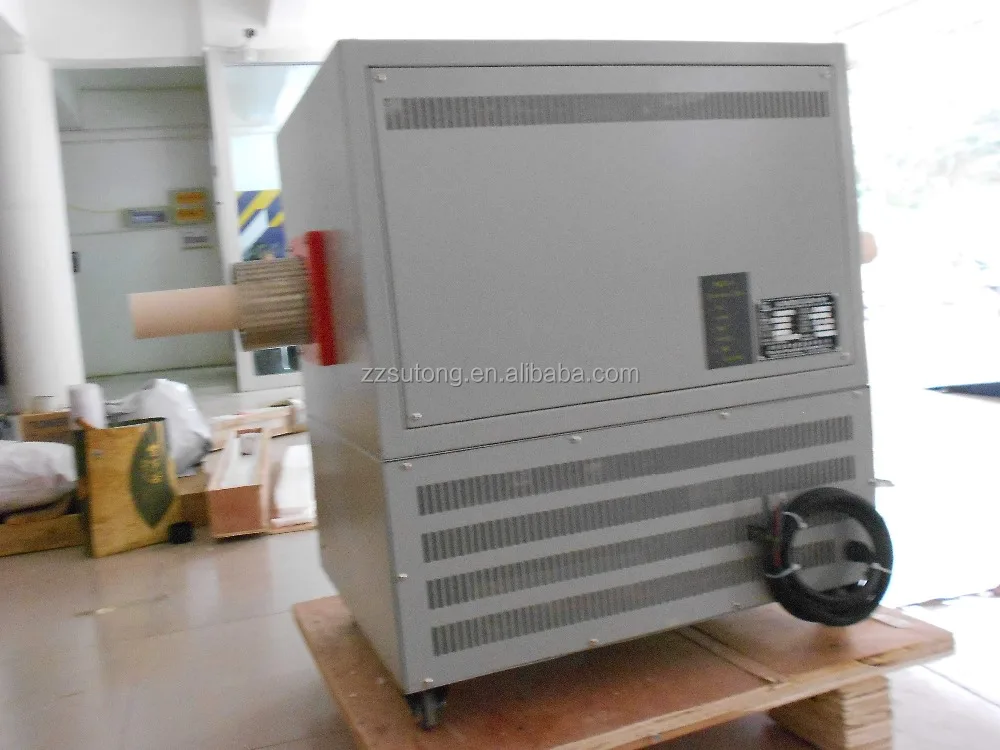

low price 1600C corundum tube electric furnace resistance furnace for sale

Share on (561973766):


Price:

Quantity:


Product Overview

Description


 low price 1600C corundum tube electric furnace


resistance furnace for sale





 electric furnace application :


Annealing


Heat Treating


Research & Development


Melting


Sintering Ceramics


Gold Melting


Silver Melting


Copper Melting


Thermal Reactors


General Purpose Heating


1700.C tube furnace .jpg






features


1.Heating element:


ST - 1700 type tube high temperature furnace,Using MoSi2 as heating elements, rated temperature 1600℃.

2.Temperature measuring and control :


Using B-types double platinum-rhodium thermocouple test temperature and Use 708P type temperature controller for automatic
temperature control with high temperature control precision (±1℃).

3.Vacuum


This furnace have vacuum device, can be used to vacuum,and can work under a variety of atmosphere, which greatly improving the scope of its use.

4.Advantage


This furnace has many advantages,such as using under high temperature, high precision temperature control, simple operation , convenient maintenance and so on.

5.Usable range


Can be widely used in metallurgy, machinery, light industry, commodity inspection, institutions of higher learning and scientific research departments.







Main Specifications of electric furnace














































Inside Chamber Size



Dia80 x400 mm(2.5 "x16")



Standard Working Temperature



1500.C  ( continuous )



Maximum Working Temperature



1600.C  ( < 3 hrs)



Temperature Control



30 steps programmable and PID automatic control



Heating Rate



0~10.C / min (suggestion: =< 10.C)



Temperature Accuracy



±1.C



 Heating Element



MoSi2 heating elements



Working Voltage



AC 220V  Single Phase  60/50 Hz (or according to your requirement)



Max. Vacuum



-0.1MPa



Thermocouple



B type



Note: The furnace tube is High purity Al2O3 ceramic


used in chemical analysis,decomposition and synthesis of substances,sintering super hard material(as ceramics),smelting and refining rare and precious metals,researching technology for metal heating processing.

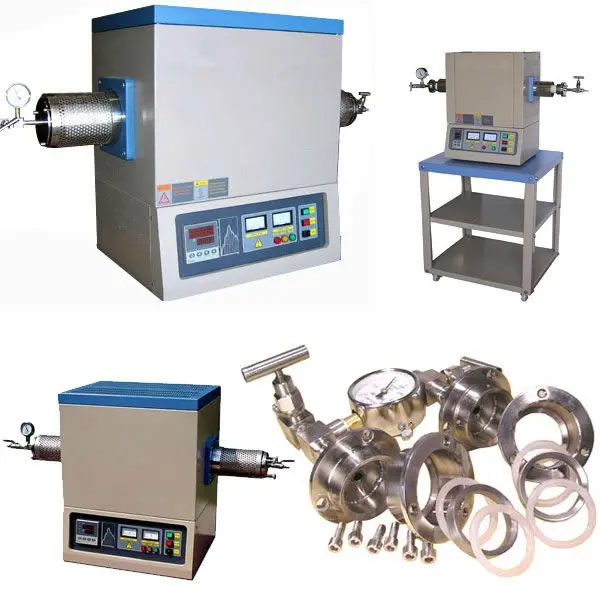

ST-1600MG-1






Our services


package of furnace :


♥ .Packing detailed: plastic foam inside, woooden box outside and according to custom requirement.


Delivery times :


♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;


♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.





Our Warranty :





Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.





 Our advantages:


♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.


♥ We supply good service after sale, you can be assured about that





Our service :


♥ Reply your inquiry and questions in 24 hours.


♥ Our professional technicians answer all your questions in English.


♥ Customized design is available.
