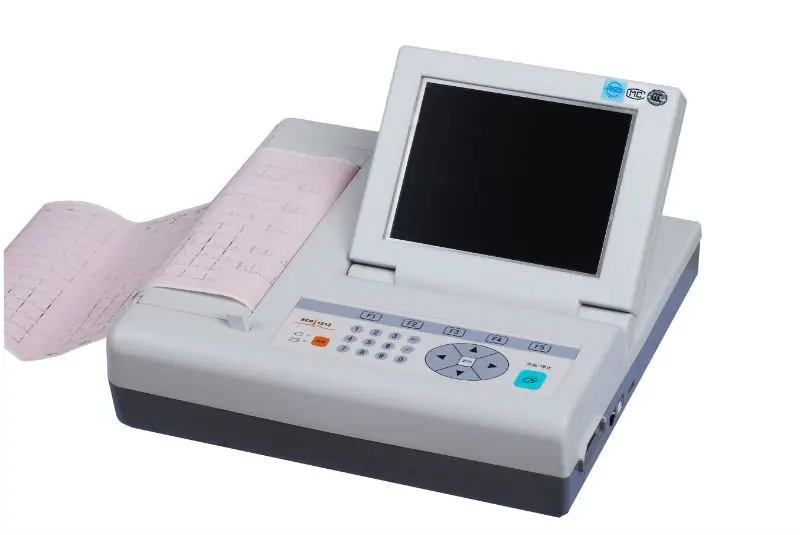

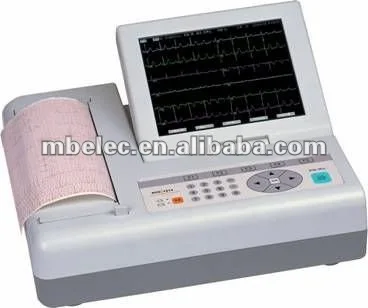

CE Approved ECG 12 Channel

Product Overview

Description

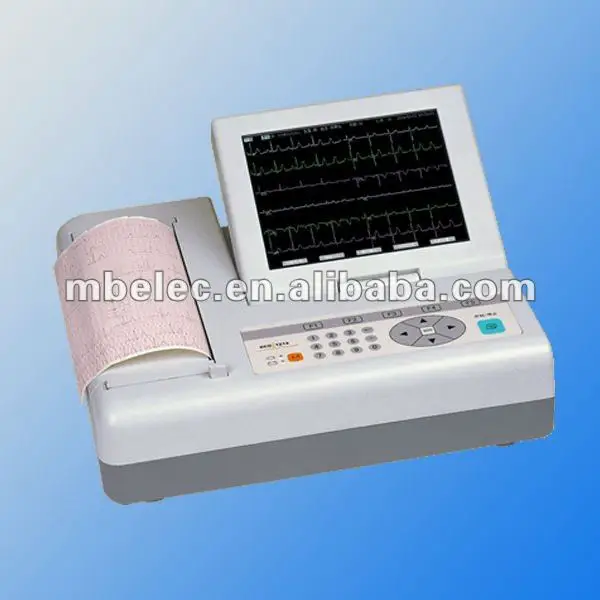

ECG1212





Brief Description:



1. ECG

2 Simultaneously display/print 12channel ECG wave form

3 8’’color LCD Screen

4 Non-memory rechargeable battery to ensure continues use of the machine

5 Single button operation

6 200 ECGs in internal memory

7 12-lead simultaneous acquisition

8 Record mode: Manual/Auto mode: Arrhythmia/Interpretation1/Interpretation 2/RR Trend

9 Data transfer to PC via USB interface, PC-based data management and analysis(optional)

10.CE, ISO13485



Features:



1 Portable, compact, flexible and convenient to use



2 Display: 12 channels/6 channels/3 channels optional, displaying ECG

waveform at the same time



3 ECG analysis: 12 channels/6 channels/3 channels optional, with synchronous records



4 Built in rechargeable Ni-MH battery.Non-memory rechargeable battery can ensure continuous use of the device



5 Chinese/English language.Shortcut key can change setup of electrocardiogram test. Single key can record automatically

6 Simultaneous 12 leads



7 LCD, 8.4 inch screen,the LCD screen with high frequency can display electrocardiogram wave and rhythm of heart and catch record opportunity instantaneously which is helpful in work-up



8 Record means: automatic channel connecting means, manual channel connecting means; long time rhythm channel connecting record, periodical record

9 50/63/110/210mm recorder can record 3-lead, 6-lead,12-lead electrocardiogram. Web recording paper is more convenient



10 100 Patients save/copy/communication (optional)



Specification:
