High output 80 100degree TW Epistar chips 8 9lm Super bright 5mm Straw hat white LED for lighting
- Category: Lamp LED >>>
- Supplier: Shenzhen Fedy Technology Co. Ltd.
Share on (563661845):
Product Overview
Description
High output 80-100degree TW Epistar chips 8-9lm Super bright 5mm Straw hat white LED for lighting
Product Description
Item: 4.8mm straw hat led
Warranty: 3 years
Lifespan > 80 000hours
Super low decay version
Packing: 1000pcs/ESD bag
Certificate: CE/RoHS
| 4.8mm Straw hat Red LED | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5HTR-1 | 300-400 | 100-120degree | 620-630 | Water clear lens White diffused lens Red diffused lens |
| FD-5HTR-2 | 400-600 | 620-630 | ||
| FD-5HTR-3 | 600-800 | 620-630 | ||
| FD-5HTR-4 | 800-1200 | 620-630 | ||
| FD-5HTR-5 | 1200-1800 | 620-630 | ||
| FD-5HTR-6 | 1800-2200 | 620-630 | ||
| FD-5HTR-7 | 2500-3000 | 620-630 | ||
| 4.8mm Straw hat Yellow LED | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5HTY-1 | 150-250 | 100-120degree | 588-595 | Water clear lens White diffused lens Yellow diffused lens |
| FD-5HTY-2 | 500-700 | 588-595 | ||
| FD-5HTY-3 | 800-1000 | 588-595 | ||
| FD-5HTY-4 | 1500-1800 | 588-595 | ||
| FD-5HTY-5 | 2000-2800 | 588-595 | ||
| 4.8mm Straw hat Amber LED | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5HTA-1 | 150-250 | 100-120degree | 600-610 | Water clear lens White diffused lens Amber diffused lens |
| FD-5HTA-2 | 500-700 | 600-610 | ||
| FD-5HTA-3 | 800-1000 | 600-610 | ||
| FD-5HTA-4 | 1500-1800 | 600-610 | ||
| FD-5HTA-5 | 2000-2800 | 600-610 | ||
| 4.8mm Straw hat White LED | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5HTW-1 | 6-7lm | 100-120degree | Warm white (2500-5500K) Pure white (5500-6500K) Cool white (6500-10000K) | Water clear lens White diffused lens |
| FD-5HTW-2 | 7-8lm | |||
| FD-5HTW-3 | 8-9lm | |||
| 4.8mm Straw hat Green LED | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5HTG-1 | 1600-1800 | 100-120degree | 520-530 | Water clear lens White diffused lens Green diffused lens |
| FD-5HTG-2 | 2500-3000 | 520-530 | ||
| FD-5HTG-3 | 3500-4000 | 520-530 | ||
| 4.8mm Straw hat Blue led | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5HTB-1 | 500-600 | 100-120degree | 460-470 | Water clear lens White diffused lens Blue diffused lens |
| FD-5HTB-2 | 600-800 | 460-470 | ||
| FD-5HTB-3 | 1200-1800 | 460-470 | ||
| 4.8mm Straw hat UV LED in water clear lens | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5HTUV-1 | 150-250 | 100-120degree | 400-410 | Water clear lens White diffused lens |
| FD-5HTUV-2 | 400-800 | 400-410 | ||
| FD-52HTUV-1 | 100 | 390-400 | ||
| FD-53HTUV-1 | 600 | 380-385 | ||
| FD-54HTUV-1 | 200 | 360-365 | ||
| FD-542HTUV-1 | / | 365-370 | ||
| FD-55HTUV-1 | / | 410-420 | ||
| FD-56HTUV-1 | / | 430-440 | ||
| FD-57HTUV-1 | / | 370-375 | ||
| FD-58HTUV-1 | / | 375-380 | ||
| 4.8mm Straw hat Pink led | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5HTPI-1 | 200-300 | 100-120degree | Water clear lens White diffused lens | |
| FD-5HTPI-2 | 1000-1200 | |||

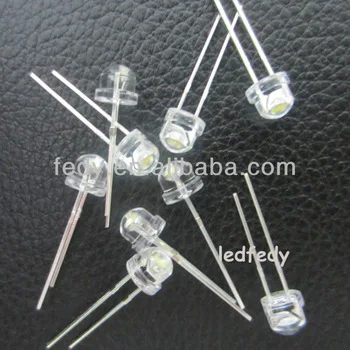

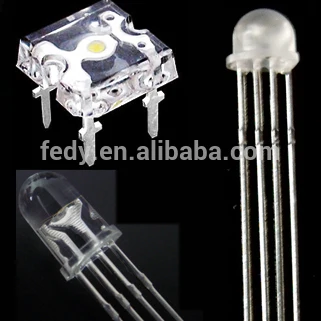

Product Pictures
Pictures
Company Information
1. FEDY is a professional manufacturer of high quality led diode since 2000
2. Class A quality with 3 years warrany for all items.
3. Orignal Epistar/Bridgelux chips with 100% Class A grade.
4. All leds 100% QA passed before shipped.
5. Fully automatic production machine and quality checking machines insure great quality of goods , and fast delivery .
FAQ
1) How can I place order?
A: You can contact us by email about your order details.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) , Paypal, or Western Union are the most usual ways we are using.
3) What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pre-paid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-10days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
Certificate
Certificate
All the raw materials we used are CE ROHS Applied .
Factory Show
Factory
Contact Us
Contact
Contact us freely !
Packing & Shipment
Packing
Packing details :
SMD LED : Reels
DIP LED : ESD bag , Taping . Tubes
High power led : ESD box . Taping , Tubes
Shipping :
