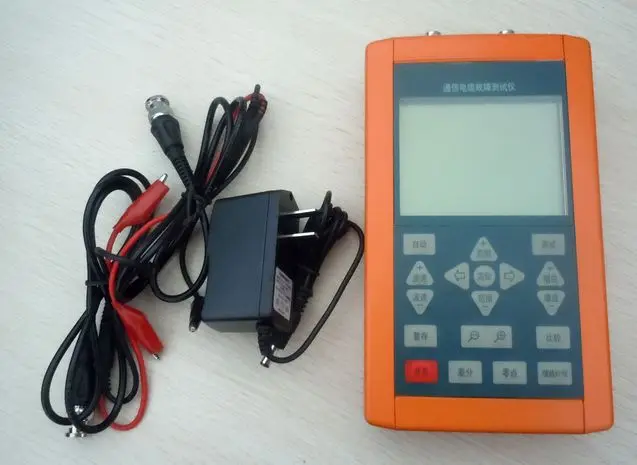

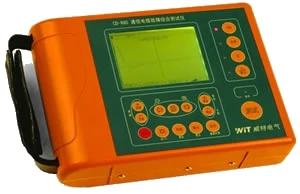

TDR Cable Fault Locator,Telecom Cable Testing,

Product Overview

Description

Telecom Cable fault locator,TDR locator

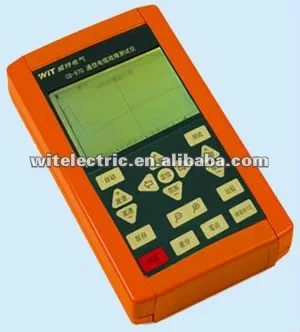

TRD function:CD970 Telecom Cable Fault Locator





TDR: Automatic locating breakage,cross and bad insulation fault Gain compensation:Digital compensation according cable attenuation. Waveform record and computer communication function



TRD function:CD970

• Range:0-30km
• Resolution:max.1m
• Pulse polarity:<2km,unipolarity impulse >2km Ambipolar impulse
• Impulse amplitude:Unipolarity impulse 30V;Ambipolar impulse ±30V
• Impulse width:80ns-10μs,adjustable
• Measurement dead zone:1m
• Adjustable wave velocity :100-300m/μs;variable-gain range:0-80db
• Display:320x240 dot LCD
• Power:Lithium battery
• Dimension:195mmx115mmx45mm
• Weight:0.6kg
