Product Overview

Description













Product Description

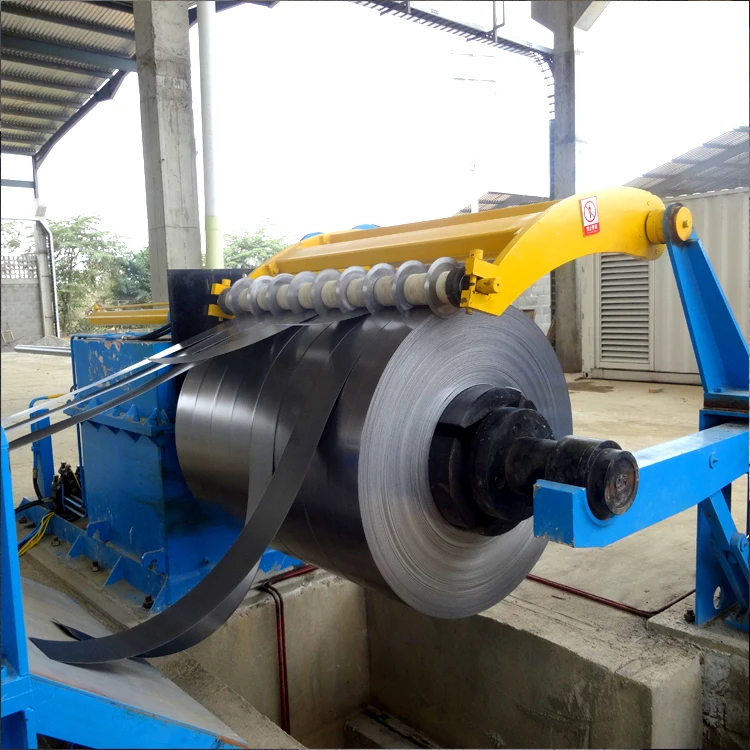

Steel slitting machine can not only be used for the steel serivice slitting industry, but also for the tube & pipe making. Many customers produce the pipes after slitting the large coil strips to the small size.





The technical flow of the production line:


Storage rack→ Coil car → Uncoiler→ Centering device→ Disc shear→ Locating expanding set→ Recoiler→ separate pressure lever→ coil car


































Steel Pipe Specification
Thickness of steel strip

0.7-4.0mm


Width of steel strip

150-1200mm


Inner diameter of strip coil20X20mm 60X60mm
Pipe Thickness

Φ508mm


Outer diameter of strip coil

 Φ1000-1800mm


Max quantity of strip coil15T






































Steel Tape Specification
MaterialCarbon steel (δb≤500Mpa, δs≤235Mpa)
Inner diameter

Φ610mm


Outer diameter

Φmax=1800mm


Cuts

6-20cuts


The maximum weight

3.0 tons


Input Power380Volt, 3 phase, 4 lines, 50Hz
Line Speed

Max 80m/min






Product Details




















Product display










Product Usage










Related Products





















About us


 Shijiazhuang Teneng Electrical & Mechanical Equipment Co., Ltd is the professional manufacturer of the welded steel pipe production line, cold roll forming line, slitting line, cut-to-length line and the related auxiliary equipment. Teneng company is the modern enterprise which capable of research and development, production and sales. Teneng is a council member of China Roll Forming Association,a president member of Hebei Steel Tube Trade Association.Teneng machines are the most effective tube manufacturing equipment available in the world.In China, the well-known users are Hebei Jingye Group, SANY Group, China Shipbuilding Industry Corporation, Chongqing Changzheng Heavy Industry Co., Ltd etc.
