AUTO Spiral vibratory finishing / deburring machine system
- Category: >>>
- Supplier: Huzhou Xingxing Abrasive Co. Ltd.
Share on (563907046):
Product Overview
Description
Product Description
It is mainly used for deburring, removing rust, rounding and polishing all sorts of metals, non-ferrous metals and non-metals parts. The workparts after surface finishing, not only remain the shape accuracy of the original state, but also improve the precision of surface roughness of parts.
SPECIFICATIONS FOR AUTO SPRIAL VIBRATORY FINISHING / DEBURRING SYSTEM XXZP-LX180 | ||||||
Vibratory Finishing Machine | Machine Type | XXZP-LX180 | SET | |||
Motor | 7.5 | KW | ||||
Motor Speed | 1440 | RPM | ||||
Main parameters | Machine Size | 4540X2500X1860 | MM | |||
Process Time(adjustable) | 4-12 | Minutes | ||||
Process Vessel Width & Depth | 180X300(Average depth) | MM | ||||
Other information | Lining | PU lining | PU | |||
Lining thickness | 20-25 | MM | ||||
Voltage | 220V-440V | 3 Phase | ||||
Detailed Images
1. Equipment Name：Spiral Vibratory Finishing System
2. Equipment Product Code: XXZP-LX180
3. Application: Designed for the work pieces cannot be collided in the surface finishing process. It is suitable for the work
pieces finishing without colliding and short process cycle time required.
4. Process Time：4-12 minutes of finishing time for one piece, adjustable.
5. Vibratory Machine Work Channel Size：180*300mm（W*H）.
6. Maximum Work Part Size Limit：dia 140mm size type.
7. Total Consuming Power: 10.39KW
8. Parts Loading Efficiency：2-10 seconds/ work part (it depends on the work pieces size and requirement)
9. Finishing Principle： Through vibratory finishing
10. Finishing Requirement: Deburring the work pieces with acceptable surface finishing requirement, avoiding the work parts
surface colliding by each other during the finishing process.
11. Media Recycle：Media are separated & sent back to conveyor for reloading into the machine.
12. Conveyor：Loading work parts and medias with adjustable speed.
13. Polishing Steps：Loading work parts and medias into conveyor →Vibratory Finishing→Separating & washing (this machine is without separation design, but we can do)& air blowing → medias return(recycle)
tory polishing machine
ry polishing machine

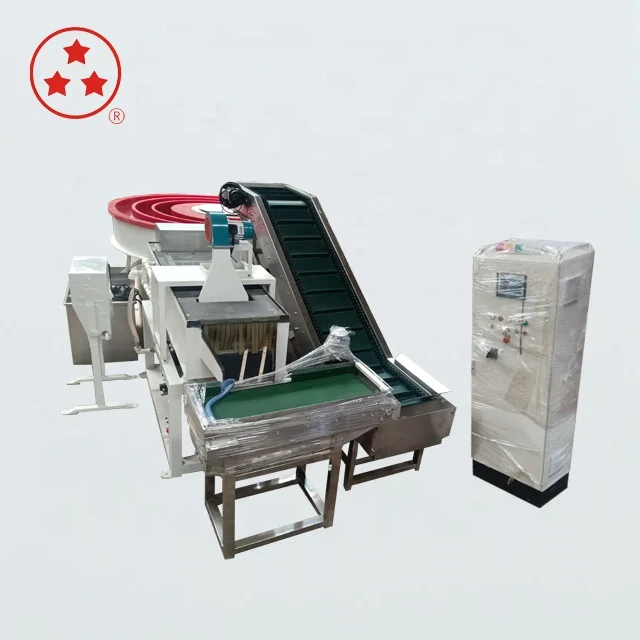

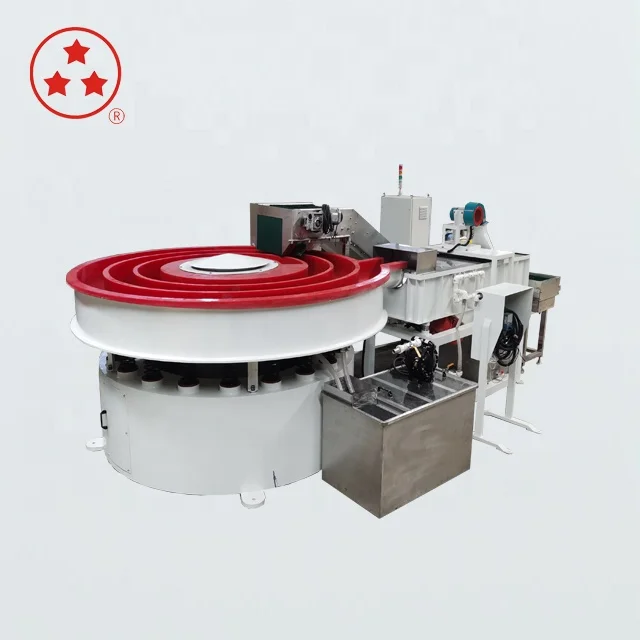

AUTO Sprial Vibratory Finishing Machine
Name: Vibratory Finishing Machine
Code: XXZP-LX180
Brand: Xingxing
Original: Zhejiang, China
1. CE certified vibratory finishing machine.
2. Stress relief welding required, heavy duty structure design.
3. Adoption of vibratory motor to produce vibratory force, it makes workparts and medias move in one direction and mass finished
interactively in the processing vessel to accomplish the surface improvement.
4. Similar outlook style design as international brand.
5. With independent control panel available.
6. The machine bowl is with floor drain design.
AUTO Sprial Vibratory Finishing Machine

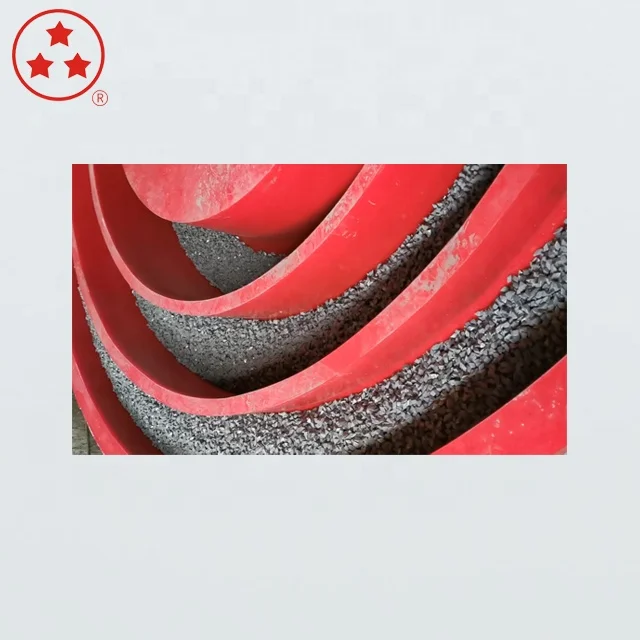

Name: Work vessel of vibratory polishing machine
Brand: Xingxing
Original: Zhejiang, China
1. The main machine consists of upper bowl and basement.
2. The upper bowl is with work channel which is with PU(polyurethane) lining.
3. The work channel with width as 180mm and depth as 300mm(average depth, the center channel with more deeper than 300mm, the
outer channel is not as deep as 300mm).
4. Total 3 big circular channel for this bowl.
5. The PU lining thickness with 20-25mm, to ensure the PU lining wear life time.
Original: Zhejiang, China
1. The main machine consists of upper bowl and basement.
2. The upper bowl is with work channel which is with PU(polyurethane) lining.
3. The work channel with width as 180mm and depth as 300mm(average depth, the center channel with more deeper than 300mm, the
outer channel is not as deep as 300mm).
4. Total 3 big circular channel for this bowl.
5. The PU lining thickness with 20-25mm, to ensure the PU lining wear life time.
Name: Vibratory Motor
Brand: Xingxing
Original: Zhejiang, China
Brand: Xingxing
Original: Zhejiang, China
1. CE certified vibratory motor.
2. China-Germany joint venture manufacturer made quality product, with consistant reliable quality.
3. With motor fan shape shafts, the intersection angle can be adjusted with the reading of point marks on the shaft. EASY FOR MOTOR VIBRATING FORCE ADJUSTMENT.
Brand: Xingxing
Original: Zhejiang, China

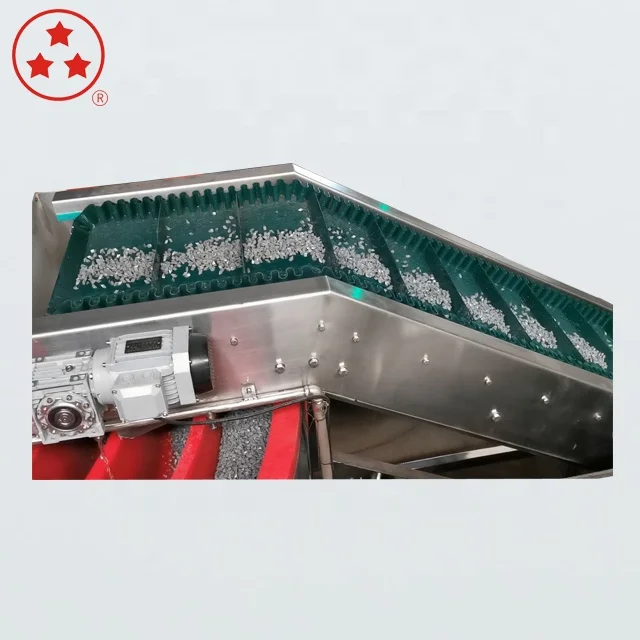

1. Designed with S.S. steel frame contructed conveyor connection design, anti-rust design.
2. The conveyor is PU made, long life cycle. Special kind of conveyor belt shape avoiding the medias and work pieces jammed with
the flame of conveyor machine.
3. The conveyor is started and stopped with the multi-pass vibratory machine.
5. With good quality motor installed.
1. Designed with S.S. steel frame contructed conveyor connection design, anti-rust design.
2. The conveyor is PU made, long life cycle. Special kind of conveyor belt shape avoiding the medias and work pieces jammed with
the flame of conveyor machine.
3. The conveyor is started and stopped with the multi-pass vibratory machine.
5. With good quality motor installed.
Brand: Xingxing
Original: Zhejiang, China
1. With media and work pieces separation(without separation design is also available).
2. With work pieces water flushing clean to next step.
3. With external S.S. water solution tank to recycle the water usage repeatedly.
4. With air blowing the work pieces before it go es to next step.
5. External S.S. water sinking tank, controlled by PLC. Auto-dosing system design, the water after vibratory finishing can be
collected in the waste water tank, and to be discharged automatically to the place which customer want.
1. With media and work pieces separation(without separation design is also available).
2. With work pieces water flushing clean to next step.
3. With external S.S. water solution tank to recycle the water usage repeatedly.
4. With air blowing the work pieces before it go es to next step.
5. External S.S. water sinking tank, controlled by PLC. Auto-dosing system design, the water after vibratory finishing can be
collected in the waste water tank, and to be discharged automatically to the place which customer want.

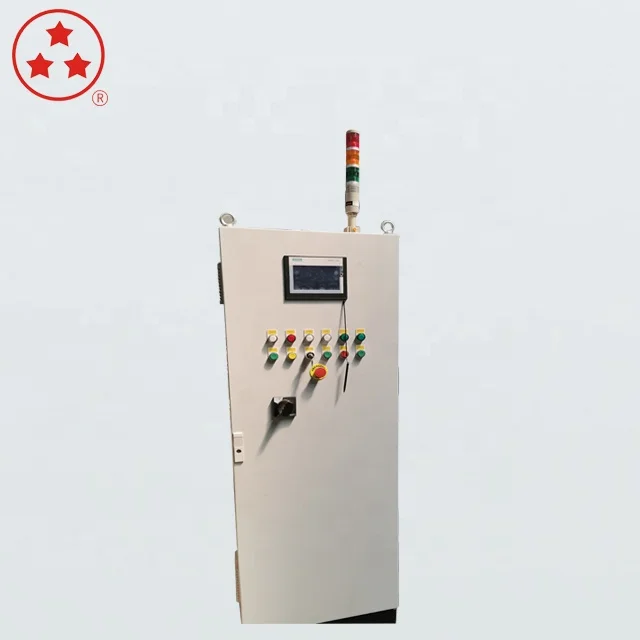

Name: PLC control panel
Brand: Xingxing
Brand: Xingxing
Original: Zhejiang, China
1. Simens S7-200 PLC
2. Simens touchscreen
3. Simens inverter
4. There are auto or manual operation choices, the operator can set the parameters shows from the touch screen to choose for auto operation or manual operation.
5. With power cut memory and the alarm message can be presented from the touch screen.
1. Simens S7-200 PLC
2. Simens touchscreen
3. Simens inverter
4. There are auto or manual operation choices, the operator can set the parameters shows from the touch screen to choose for auto operation or manual operation.
5. With power cut memory and the alarm message can be presented from the touch screen.
6. Urgent stop for whole system.7. The touch screen is locked with password, to prevent unauthorized persons to change the setting of parameters.
8. Power distributor inside, easy for maintenace.
9. International standard control cabinet design.
8. Power distributor inside, easy for maintenace.
9. International standard control cabinet design.
