Single color Volumetric Doser in plastic mixer

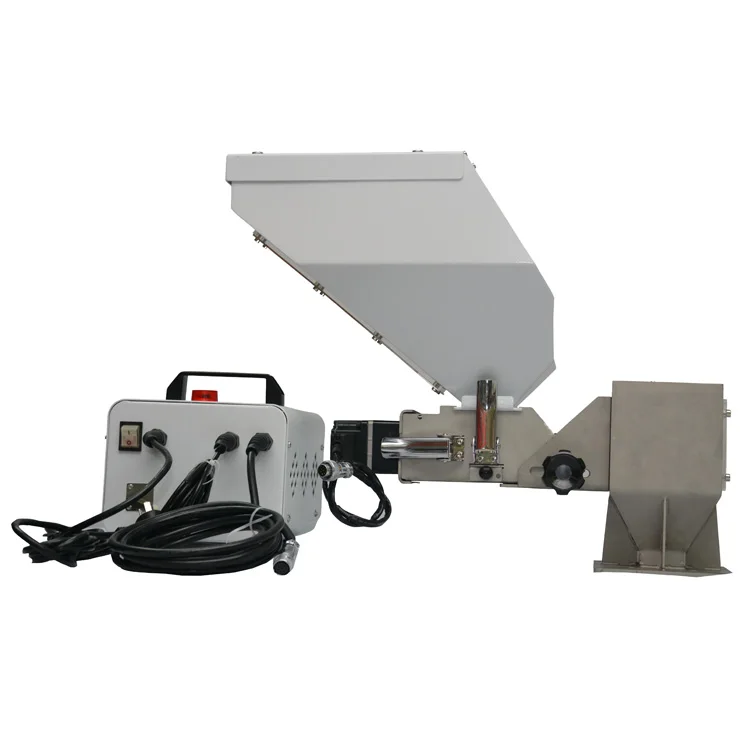

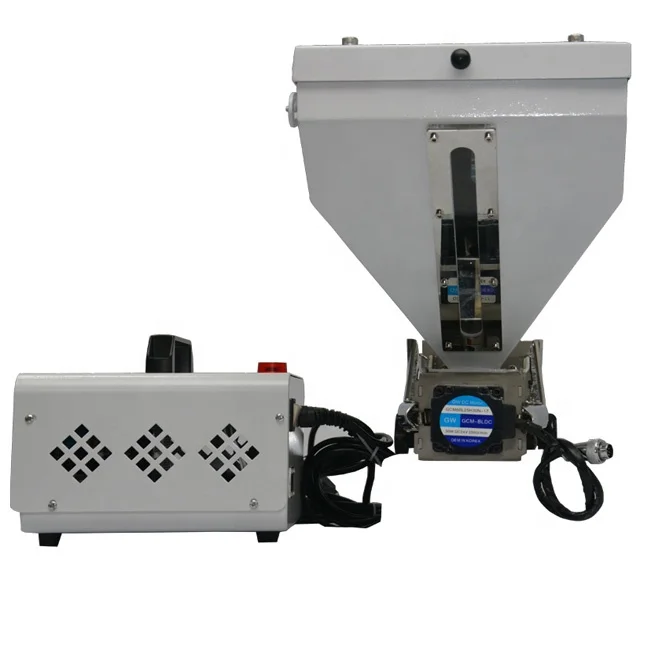

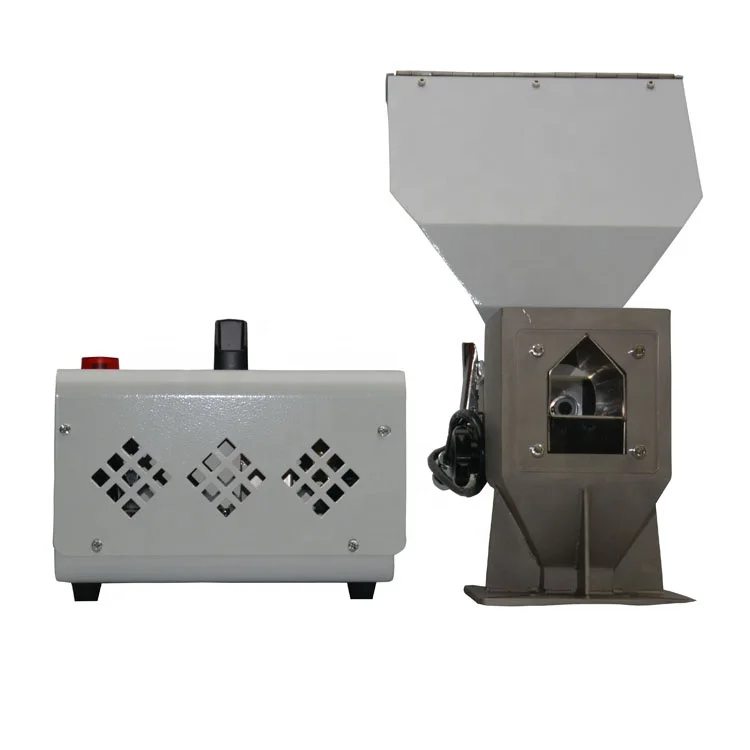

Single color Volumetric Doser in plastic mixer

Category: Other Plastic & Rubber Machinery >>>
Supplier: Guangdong Gainwal Automation Technology Co. Ltd.

Price:$1,000.00 - $1,080.00

Quantity:

Product Overview

Description

Features:

1. Microprocessor controlled LED indicator for operating status and fault.

2. Digital display of set point of speed and time.

3. Quick openable latches for motor and screw removal.

4. Drain cover for quick batch change and clean out.

5. Sight glass to check on material level.

6. Compact and accurate DC geared motor.

Specification List:

Model	Single color unit						Double color units
Model	CM20-25	CM20-20	CM20-16	CM50-25	CM50-20	CM50-16	Double color units
Output Capacity(kg/hr)	1.1~32	0.6~20	0.3~10	0.5~15	0.2~8	0.1~4	*	*	*
Motor Power(kw)	0.05	0.05	0.05	0.05	0.05	0.05	0.05*2	0.05*2	0.05*2
Motor Speed(rpm)	0~3000	0~3000	0~3000	0~3000	0~3000	0~3000	0~3000	0~3000	0~3000
Storage Bin (L)	10	10	10	10	10	10	10	10	10
Gear Ratio	20:1	20:1	20:1	50:1	50:1	50:1	20:1/20:1	20:1/50:1	50:1/50:1
Screw External Dia.(mm)	16	14	12	16	14	12	**	**	**
Main Material Hopper	Optional	Optional	Optional	Optional	Optional	Optional	Standard	Standard	Standard
Mixer	Optional	Optional	Optional	Optional	Optional	Optional	Standard	Standard	Standard
Dimensions
H(mm)	520	520	520	520	520	520	615	615	615
W(mm)	610	610	610	610	610	610	1045	1045	1045
D(mm)	335	335	335	335	335	335	335	335	335
Weight(kg)	19	19	19	19	19	19	40	40	40
