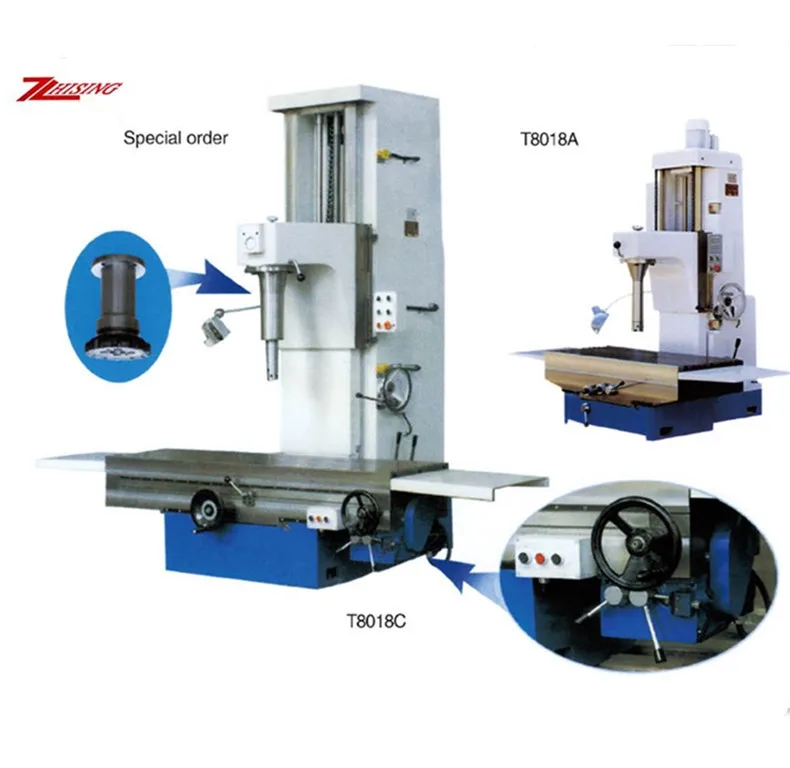

Cylinder Boring Machine

Product Overview

Description

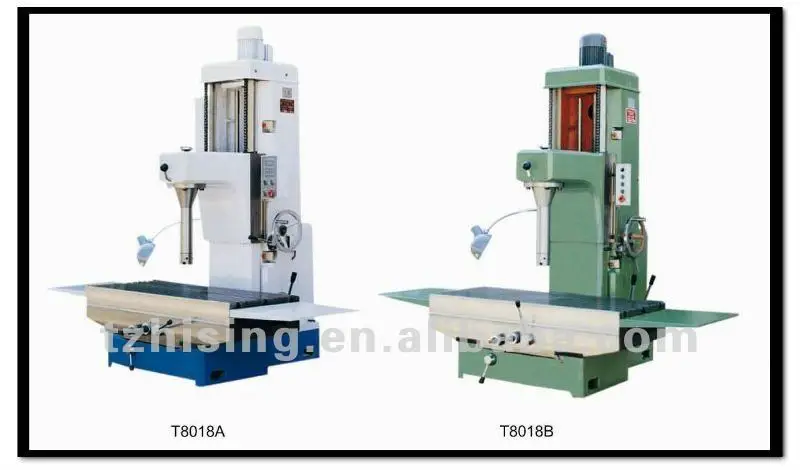

The Specification of Cylinder Boring Machine T8018A/T8018B:

Main Specifications	T8018A	T8018B
Processing Diameter	30-180	30-180
Max.Boring Depth	450	450
The Rotational Speed of Spindle(r/min)	140-610	175,230,300,350,460,600
Spindle Feed(mm/r)	0.05,0.10,0.20	0.05,0.10,0.20
M aching Power(kw)	3.75	3.75
Overall Dimensions(L×W×H mm)	2000×1235×1920	2000×1235×1920
Packing Dimensions(L×W×H mm)	1400×1400×2250	1400×1400×2250
N.W/G.W(kg)	2000/2200	2000/2200

Boring machine is also used for cutting boring cylinder cars,

tractor wait and cylinder liner internal combustion engine cylinder hole hole,

can also be used to other mechanical parts of boring hole precision cutting processing.

T8018A spindle speed for frequency-converter step-less speed regulating (140 ~ 610 r/min)
