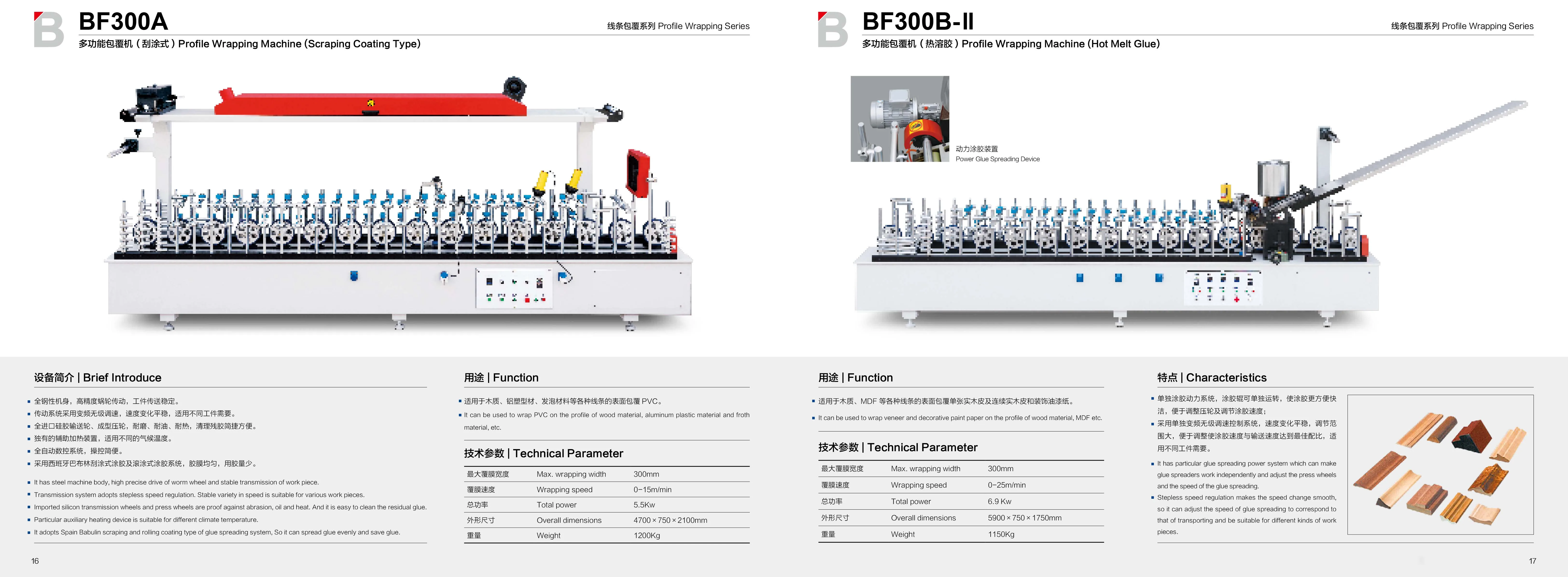

BF300A Multi Functional Aluminum Profile Wrapping Machine(Rolling Coating Type)

Product Overview

Description

 BF300A Multi Functional Aluminum Profile Wrapping Machine(Rolling Coating Type)







Function

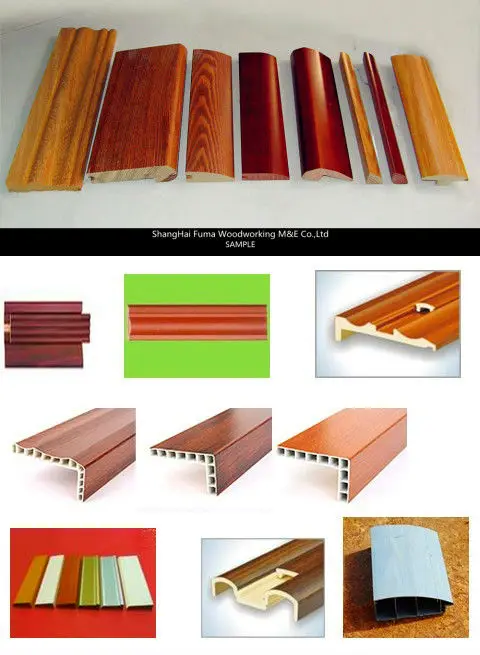

It can be used to wrap PVC on the profile of wood material and aluminum plastic material and froth material, etc.



Characteristics:



1. It has steel machine body, high precise drive of worm wheel and stable transmission of work piece.



2. Transmission system adopts stepless speed regulation. Stable variety in speed is suitable for various work pieces.



3. Imported silicon transmission wheels and press wheels are proof against abrasion, oil and heat. And it is easy to clean the residual glue.



4. Particular auxiliary heating device is suitable for different climate temperature.



5. It adopts Spain Babulin scraping and rolling coating type of glue spreading system, so it can spread glue evenly and save glue.



6. Synchronous device in the hot melt glue system can improve the stability of product and be suitable for different kinds of veneer.





TECHNICAL PARAMETER

Model	BF300A
Max. Wrapping width	300mm
Wrapping speed	0-25m/min
Total power	5.5kw
Overall size	4700*750*2100mm
weight	1200kg
