Product Overview

Description

Product Description


Mini electric drilling machine


Adopt mechanical transmission, simple structure, small volume, light weight, easy to operate, reliable performance, equipped with hydraulic chuck and hydraulic feed cylinder.


It is mainly used for water and coal exploration, gas drainage, dust-proof water injection and other purposes. It can also be used for ground geological exploration, building foundation reinforcement and other purposes of drilling.

Features

It is suitable for drilling engineering of geological survey exploration, geophysical exploration and road and building exploration

Diamond, alloy, sand and grain drill bits can be selected according to the formation

It can drill into sandy clay and bedrock of grade 2-9

It can be used for drilling grouting holes, blasting holes and small column foundation holes

Suitable for drilling small Wells in arid areas

Detailed Images
Technical Data
Drill Pipe Diameter
Φ42 mm
Drill Depth
150 m
Drilling Diameter
Φ50 / Φ65 / Φ75 mm
Spindle Diameter
Φ44 mm
Spindle Speed
120/214/375 (r/min)
Range of Borehole Angles
0-360°
Rope capacity of reel
30 m
Wire rope diameter
Φ11mm
Oil pump type
YBC-12/80
Rated pressure of oil pump
8Mpa
Rated flow of oil pump
12Mpa
Power
7.5 KW
Speed
1400r/min
Voltage
380/660 V
Current
13.4/8.8 A
Weight
500 kg
Dimension(L×W×H)
1250×640×1265 mm

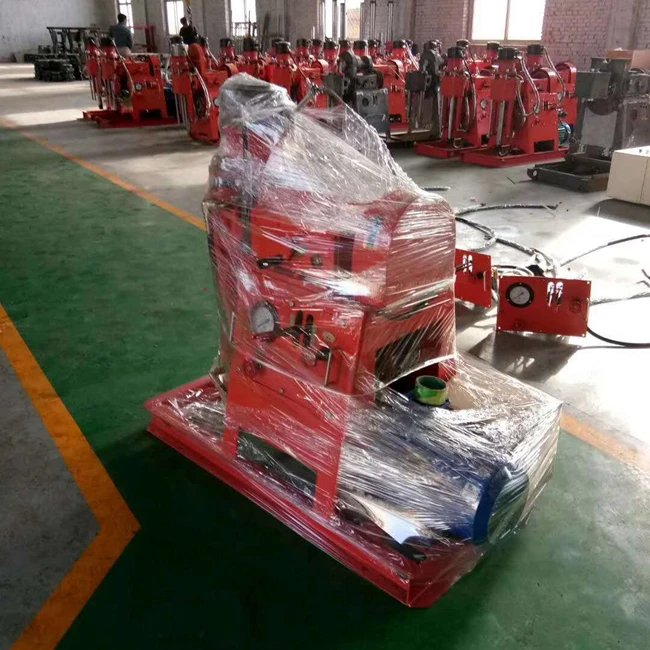

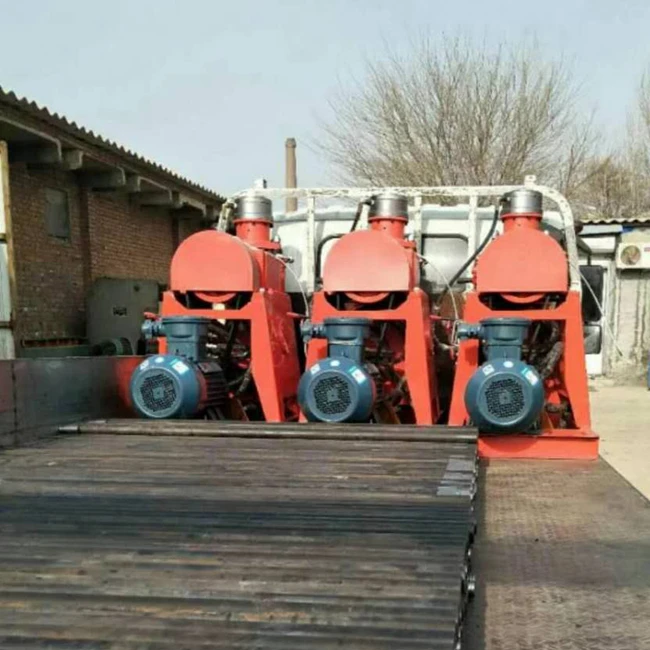

Packing & Delivery

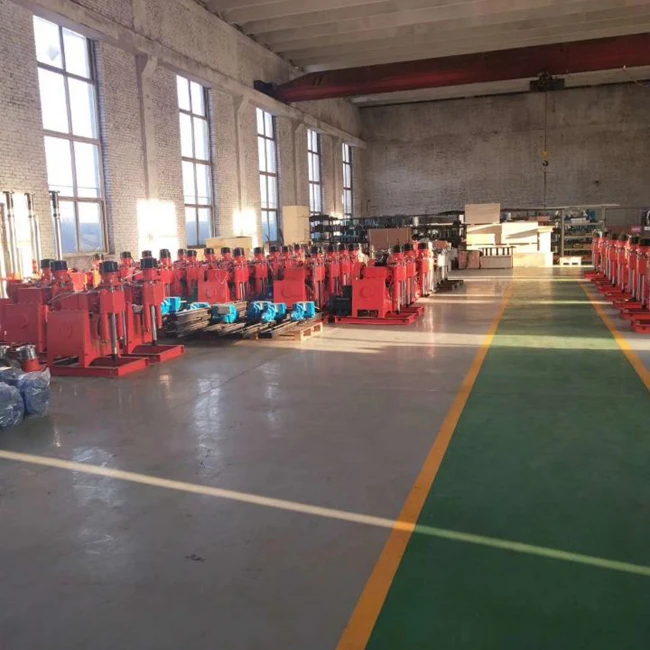

Our Company


Zhengzhou Xuda Machinery Co.,Ltd


Zhengzhou Xuda Machinery Co., Ltd is a comprehensive manufacturing factory with 20 years experience in Zhengzhou city of China.Our main product are Dry-mix and Wet-mix shotcrete machine,Mortar plastering machine, Hydraulic concrete pump,Mortar/Cement grouting pump,Hydroseeder,Mixer,Drilling rig ,etc.

With a shotcrete machine manufacturing factory which cover about 1000 square meters,we employ 5 high quality talents and 20 specialized workers.Lots of them have 10-20 years experiences.

Customer Show
FAQ

Q: How many types drilling rig do you have ?
A:We have 7 different type drilling rigs for you choose.

Q: What depth and maximum diameter can you drill?
A: Our drilling rig max depth can reach 200meters, maximum diameter can reach 325mm.

Q: Does your drilling rig only drill in soil? what about stone?
A: We have 6 types drilling rig can work in soil with stone.You can choose which you like.

Q:How long is the warranty on the machine?
A:One year. If the machine has any non-human fault, we will free express replacement parts.


Q:What if I don't know how to operate the machine?
A:We have English instructions and we will send detailed operation video. If you have any questions, we'll answer them by online video.

Q:I am afraid of being cheated for the first business, what are the safeguards?
A:You can trade through Alibaba Credit Insurance Order, which protects the buyer's rights and can apply for a refund if there is a problem with the machine.

Q:Are you a trade company?
A:No,we are a professional manufacture factory with more than 20 years.Located in Zhengzhou city of China.
