Ceramic Intalox Saddle has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. It can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
Chemical composition
SiO2
Al2O3
Fe2O3
CaO
K2O+Na2O
>70%
23-30%
<1%
<1-2%
<2-4%
Physical properties
Index
Value
Specific gravity(g/cm3)
2.25-2.35
Water absorption(%)
<0.5
Acid-resisting strength, %Wt. Loss (ASTMc279)
<4
Firing temperature()
1280-1320
Softening point()
>1400
Density(kg/m3)
2350
Technical data
Spec. (inch)
Spec. (mm)
Approx. weight (kg/m3)
Surface area (m²/m³)
Free volume (%)
Packing factor (l/ft)
1/2
12
720
623
71.7
200
3/4
19
688
334
73
130
1
25
688
253
73
85
1.5
38
640
164
75
50
2
50
577
115
77.4
37
3
76
623
92
75.5
24
Advantages These saddles are made from chemical porcelain and have excellent resistance to acids except in the case of hydrofluoric acid. Moisture absorption must less than half a percent. The porcelains specific gravity is 2.3-2.4g/cm3 and an average heat capacity (between 20 and 500 of 0.22 cal/g.) VODA ceramic saddles softening point is 1400 min. And they show good thermal shock resistance during repeated cycling between 20 and 820 .

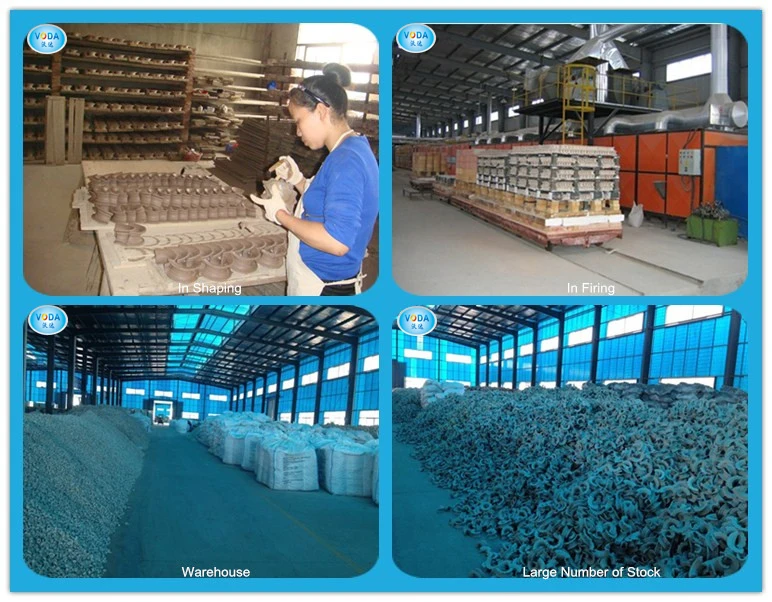

Ceramic Intalox Saddle for RTO Media Production Process
Packaging & Shipping
Various Package:Plastic bag, Jumbo Bag, Wooden Case, Carton Box, On Pallet With PP Film Wrapped
Fastest Shipment: Within 3 Days After Your Formal Order
