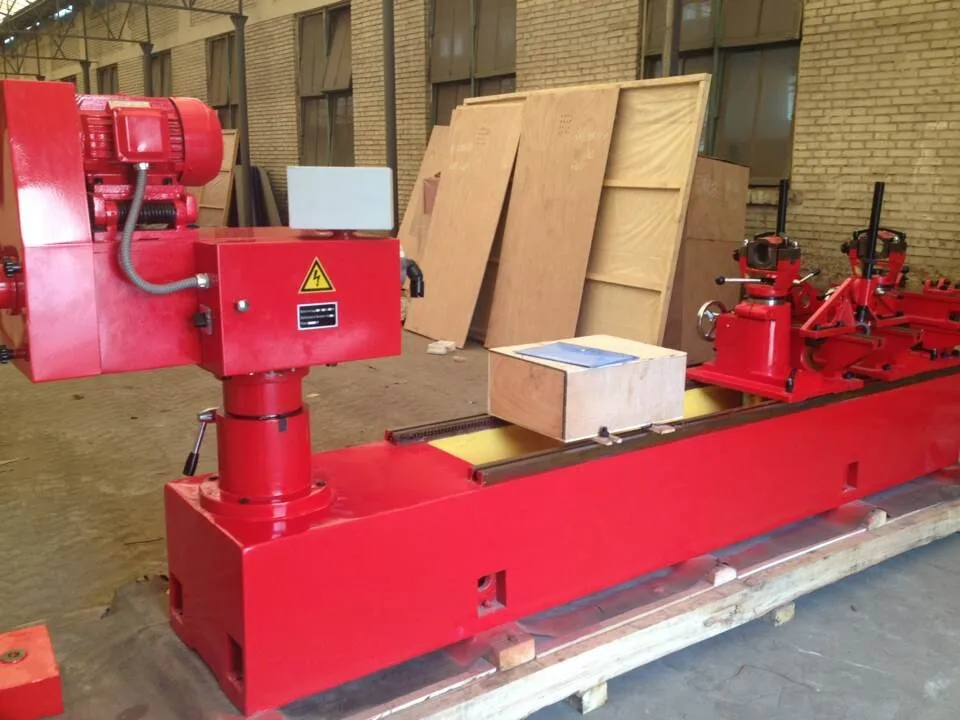

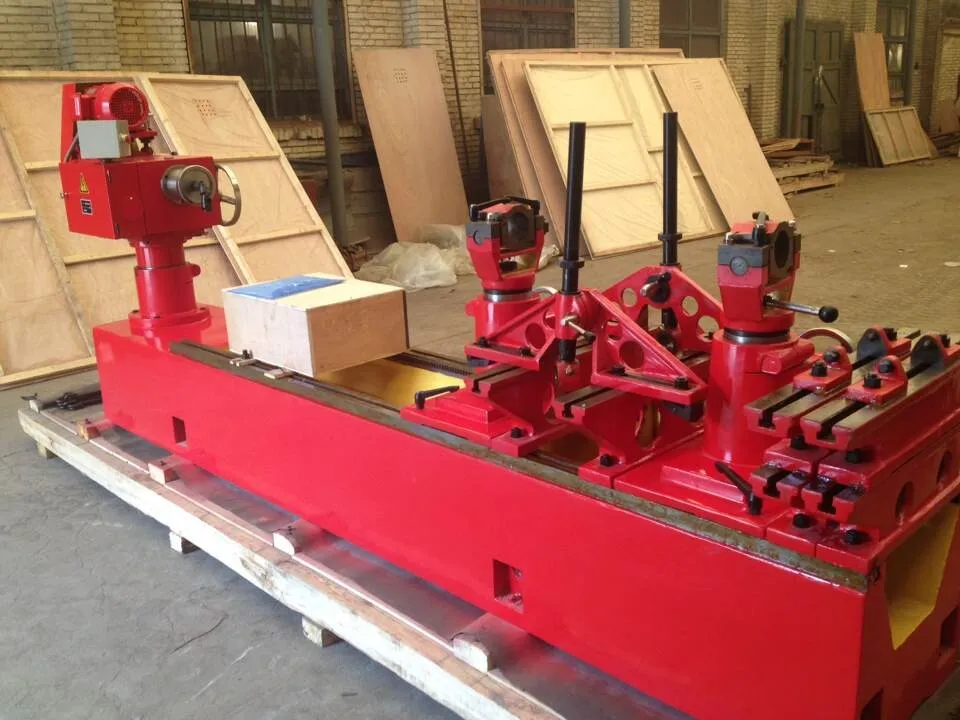

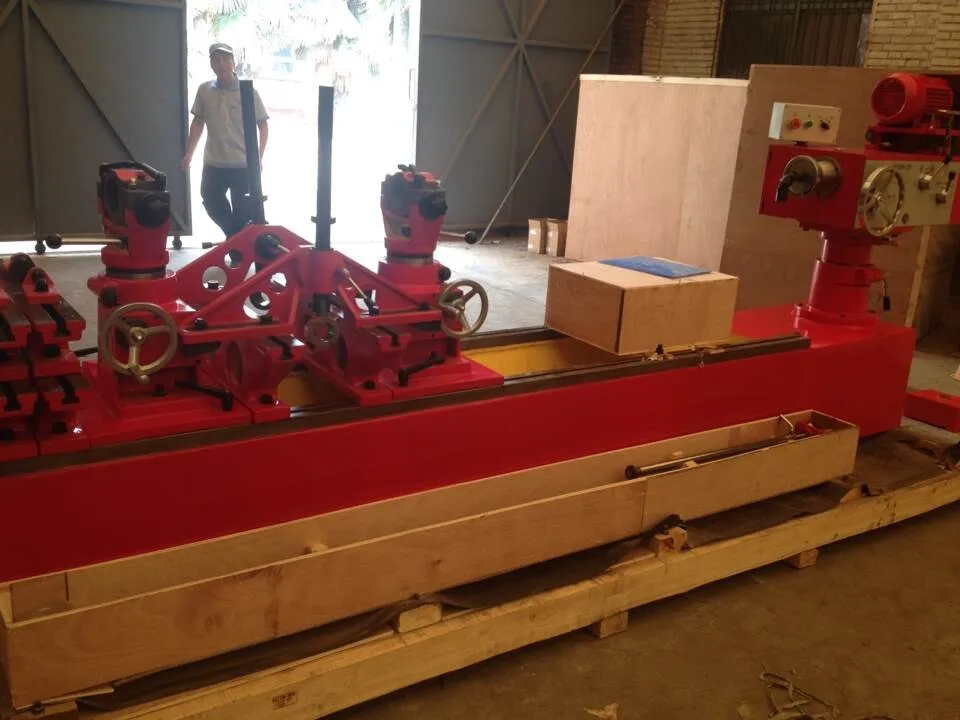

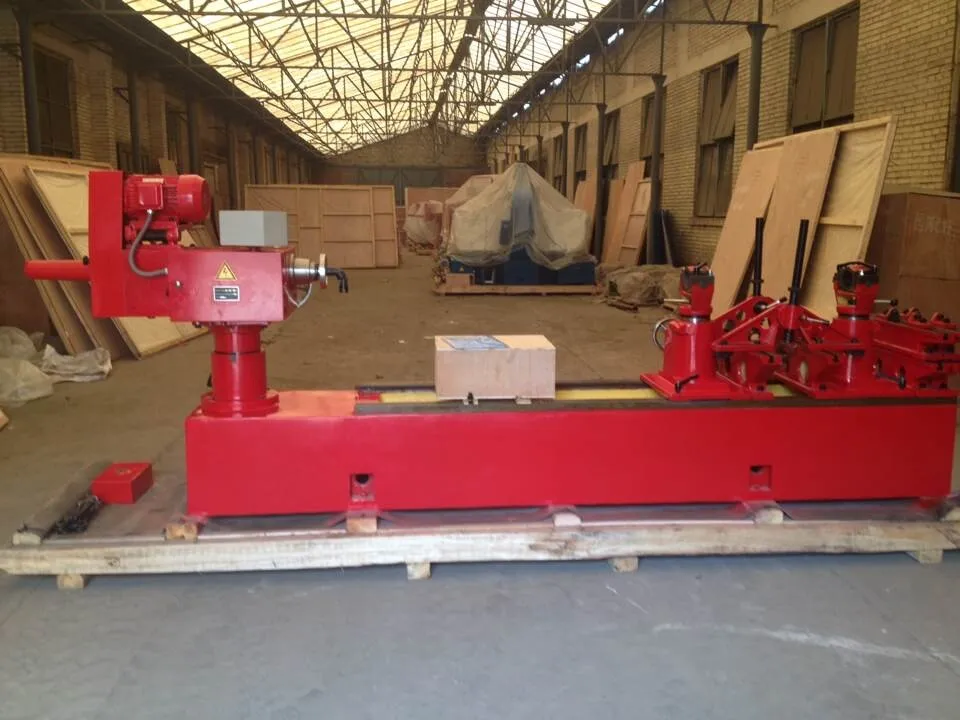

T8120x20 Engine Rebuilding Horizontal Cylinder Body Bushing Line Boring Machine

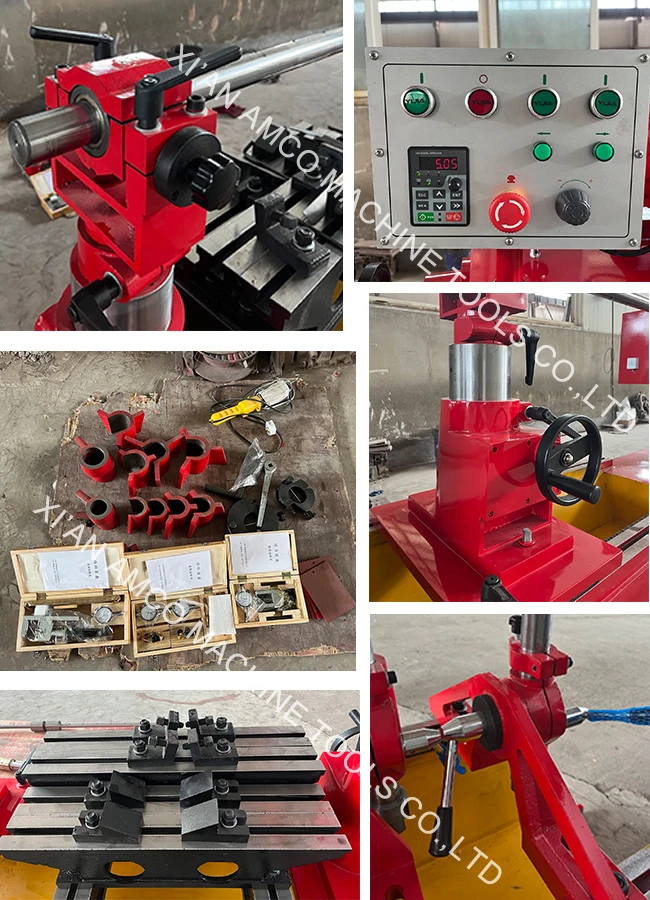

Model T8120x20 and T8115Bx16 cylinder body bushing boring machines are repairing machine tools with high efficiency and high precision . Which were developed in our factory. They can be used for boring master bushing and can bushing of engine & generator's cylinder body in automobiles, tractors and ships etc. if necessary, the flywheel hub bore and bushing seat hole can be also finely bored. In order to reduce auxiliary manhours and labour intensity and guarantee machining quality, accessories for centering, Align cutter gauge, measuring inner diameter, boring rod bracket, tool holder to increase diameter, boring tool micro-adjuster can be provided with the main machine.








Packaging & Shipping












































































Model



T8115Bx16



T8120x20



T8120Ax20



Dia. Range of boring hole   mm



F36 –F150



F36 –F200



F28 –F225



Max. length of cylinder body



1600mm



2000mm



2250mm



Main shaft max length



300mm



Main shaft rotating speed



210-945rpm ( 6 steps)



I:30~150rpm


II:93-467rpm



Boring rod feed quantity     mm/rad



0.044, 0.167



0.43;0.085;0.125



Motor Power



0.75kw / 1.1kw



1.5kw




Stepless regulating speed + Synchronous belt wheel   (Optional)









Main shaft rotating speed


(stepless)



30-467r/min



/



Boring rod feed quantity



0.044, 0.167mm/rad



/



Motor Power



1.5kw



/



Overall Dimension  (LxWxH)


 3910*1000*1700 mm

N.W/G.W


 2300kg/2500kg

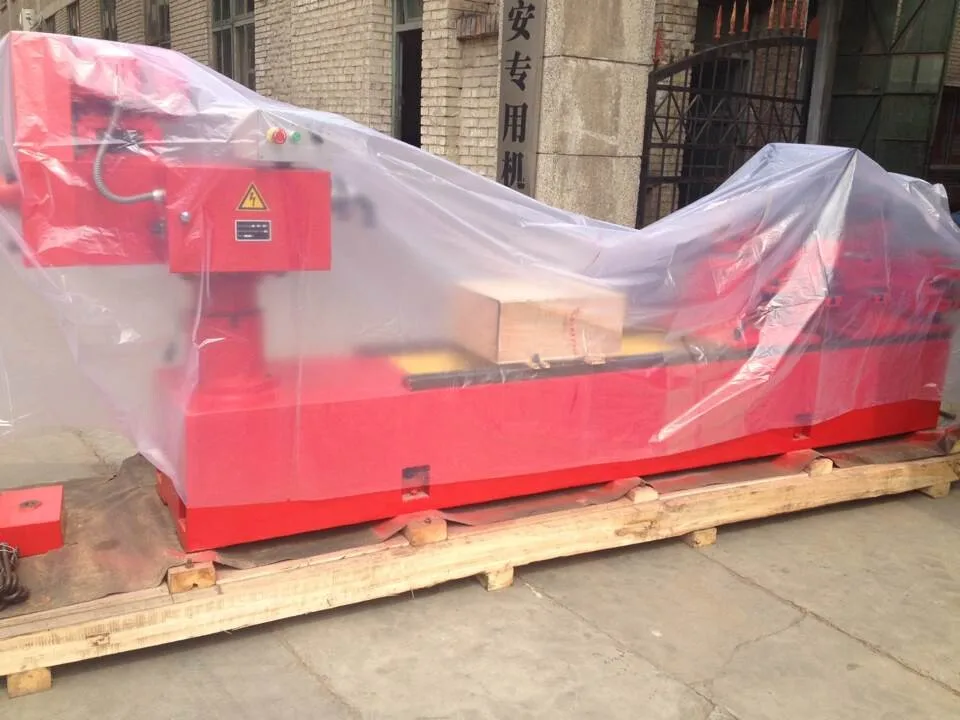

Packaging & Shipping
