glazed pressure solar collector

Product Overview

Description

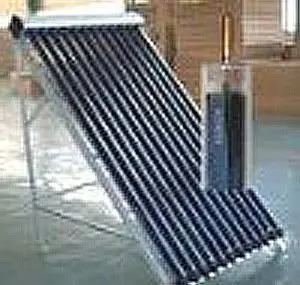

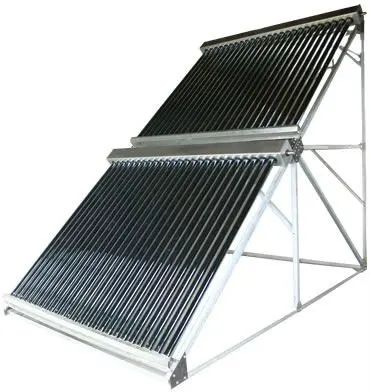

Heat pipe solar collector

Heat Pipe Solar Collector Area( ) Vacuum tube Qty(pcs) Length/Width/Height(mm) Gross wet(kg) 20GP/40GP/40HC loading Qty(sets) CD-HP58/1800-10 1.31 10 2020 × 995 × 155 39.9 140/300/340 CD-HP58/1800-15 1.97 15 2020 × 1410 × 155 58.3 92/200/228 CD-HP58/1800-20 2.62 20 2020 ×1825 ×155 77.1 70/150/170 CD-HP58/1800-25 3.49 25 2020 ×2240 ×155 96.1 56/120/136 CD-HP58/1800-30 3.93 30 2020 ×2655 ×155 114.1 46/100/112 Remark: vacuum tube size: Ø58 × 1800

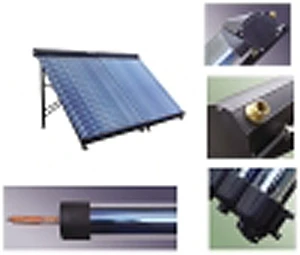

Solar vacuum tube with heat pipe
Tri-element vacuum tube: 58 x 1, 800mm, 47 x 1, 500mm
Heat pipe: 0.8mm in diameter
Flowing passage: 1.2 mm thick high quality rose copper
Outer chest: 0.2mm thick aluminum alloy

Bracket: 1.8mm thick aluminum alloy
Hail resistance: Diameter 25mm
Insulation layer: 50mm thick rockwool
Heat preservation: 72 hours
Maximum working pressure: 0.6mPa
Warranty: 5 years international responsibility for free repairing or exchange due to original quality problems
