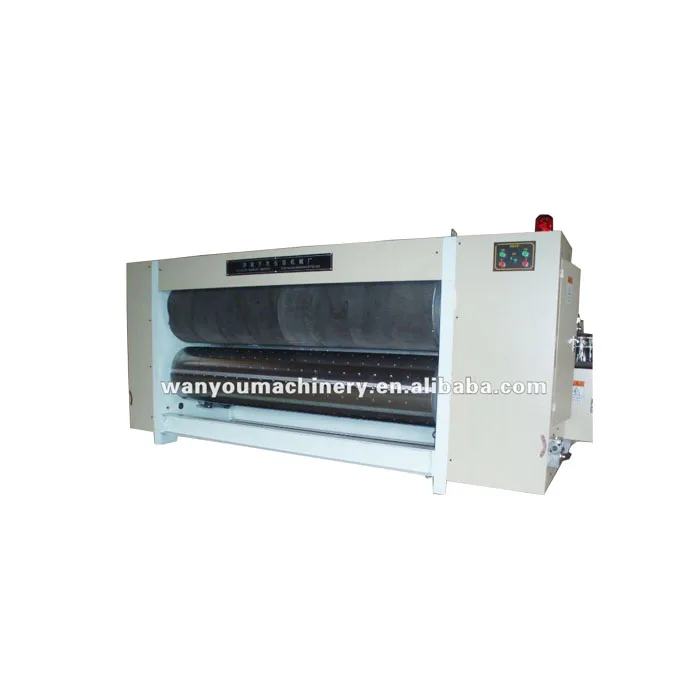

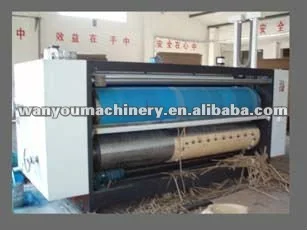

Chain Feeding Rotary automatic die cutting machine
- Category: >>>
- Supplier: Jinan Wanyou Packing Machinery Factory
Share on (565495169):
Product Overview
Description
Model Max feeding size(mm) Min feeding Size(mm) Thinkness(mm) Max die cutting size(mm main power (kw)
140 1250*1800 400*600 2-11 1250*1600 5.5
160 1380*1800 400*600 2-11 5.5
(Main Specifications)
| Model Number | Unit | 2400 | 2600 | 2600 | 2600 |
| Roller diameter | mm | 300 | 405 | 420 | 480 |
| Max. Feeding size | mm | 950×2300 | 1270×25500 | 1300×2500 | 1500×2500 |
| Max.Printing Area | mm | 850×2100 | 1150×2300 | 1200×2300 | 1400×2300 |
| Feeding paper by partition | mm | 1100×2300 | 1300×2500 | 1450×2500 | 1650×2500 |
| Min. Feeding size | mm | 260×650 | 350×650 | 380×650 | 400×650 |
| Feeding thickness | mm | 2-11 | 2-11 | 2-11 | 2-11 |
| Print plate thickness | mm | 7.2 | 7.2 | 7.2 | 7.2 |
| Machine speed | Pcs/min | 100 | 100 | 100 | 100 |
Performance of the main mechanisms
Designed according to the high request and reliable function. The operation of the machine is humanization, can accomplish the setting, revision, implement, replacing and memories function in a short time, and display with an exact data.
All the drive rollers adopted high quality steel materials, hared chromium plating and the surface is treated by lapping finish.
The drive gears adopted high quality alloy steel 40Cr, after heat treatment and lapping finish.
The main drive roller adopts key-less connect, decrease the connection gap, guarantee the printing precision.
Lubricate oil automatic balance device, keep the equal oil level equal in each unit.
The machine adopt PLC control, with “automatic zero return system” and “memories” function. (can choose PLC with touch screen control system)
Mechanical edge-leading feed type (can choose servo edge leader feed type)
Feeding part can adjust wind to suit different size paper by frequency converter.
Customer can choose use steel anilox roller or ceramic roller, the lines of the anilox roller also can be chosen according to the customer’s requirement.
About Us
Jinan Wanyou Packing Machinery Factory, located in Spring City Jinan, Shandong Province,China, is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
We insist on creating refined products in earnest and regard the product quality as the life of the company.
Today, with the rapid development of packing machinery, Jinan Wanyou Packing Machinery Factory desires to build refulgence with a great number of clients hand in hand.
History:
Jinan Wanyou Packing Machinery Factory has more than 10 years history and abundant experience in China’s Egg Tray Machine market and Corrugated Carton Making Machine Market.
