38Ton /380KN copper/brass cold chamber die casting machine in ningbo
- Category: Die Casting Machine >>>
- Supplier: Ningbo Dongfang Die-Casting Machine Tool Co. Ltd.
Share on (565542228):
Product Overview
Description
The details of the YSC38Ton cold chamber die casting machine

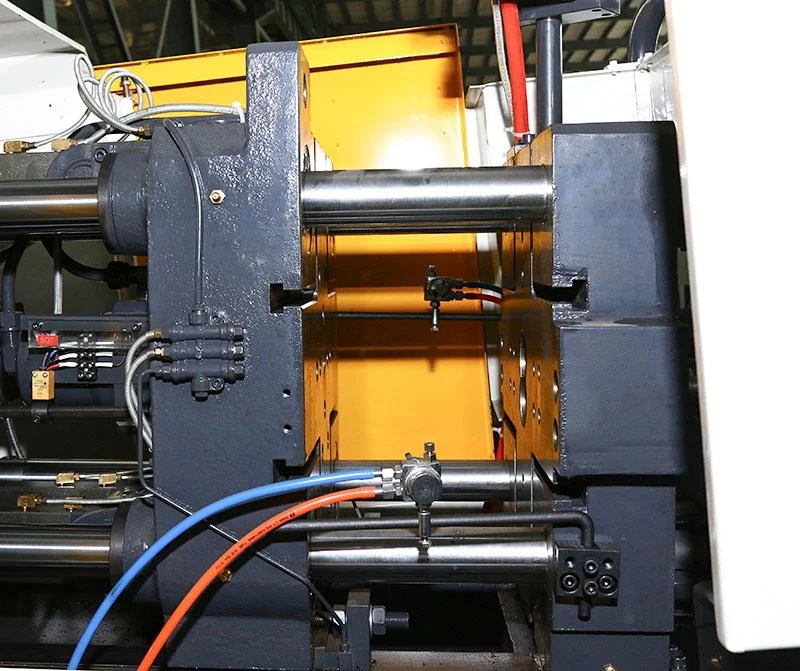

The Clamping Unit ----The claming unit is used to provide claming force to hold the die casting machine or mould during injection process .The acceleration of the force is usually driven by a hydraulic cylinder or servomotor through a toggle mechanism which acts as a maganifying device.
The injection unit-----The injection unit of die casting machine is the divise used to push the materials into the mould.It is usually driven by hydrulic power.Accumulators are used to increase the speed of the injection of the die casting machine.

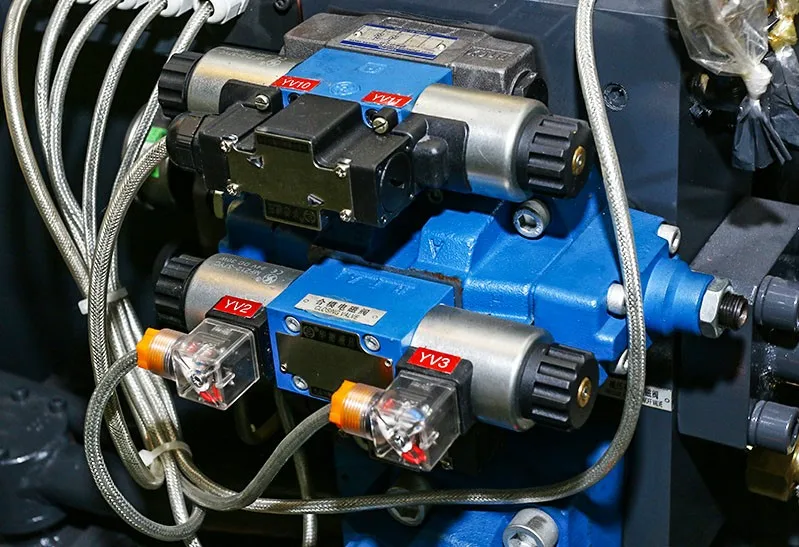

The hydraulic unit----The hydraulic system of the machine adopts pressure double-scale system so that can be adjusted at discretion. The ejecting system use large-caliber logic and cantilever beam-type oil-way, which ensure high ejecting speed.

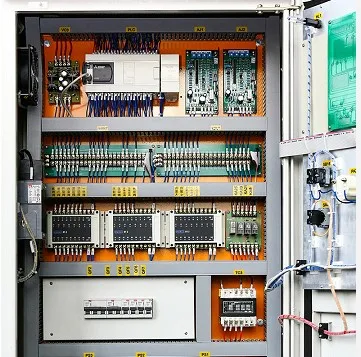

The electrical and electronic control system -----This systerm is the instruction systerm for the control of the machine .It usually consists of a processor ,input /output device and a human interface device.The operator enters the required parameters though the human interface device.After that ,the processor will follow the pre-set program to provide the corresponding instructions to the machine .
Features and applications of 38Ton copper/brass die casting machine
1.380kN/38T Cold Casting Machine
2.Suitable for aluminum,zinc and copper alloy
3.Computer-programmed control
4.Trouble location and adjust of machine are remote controlled
5.4-rod pilot elastic framework
6.Proportional relief and flow control valves
7.4-phase injection for fast injection speed
8.3-tie bars connect the fixed plated with injection cylinder for larger operation space
9.Efficiency: maximum injection rate over 6m/s
10.Minimum boosting time less than 20ms
What product this machine can make? -----This cold chamber die casting machine is widely used for mass production of foundry goods from nonferrous metals such as aluminum, zinc and copper in various industries .
Some machine device ----Computer-programmed control, the trouble location and adjust of machine are remote control, via communication net, hydraulic drive adopts import proportional control valve for control, crank expanding structure, 4-rod pilot elastic stress framework,locking that is tensile, faster and reliable,there are reliable security mechanism,The high precision elestrical-machinery adjusting device adjust the die height 4-sphase injection is afforded for fase injection speed, up to more than 6m/s, and minimum boosting less than20ms, and in individual control of injection and pressure intensification is possible.
| The project | The unit | YSC38 |
| Die locking force | kN | 400 |
| Size of moving platen(HxV) | mm | 270X270 |
| Inner space between the bars (H x V) | mm | 210 |
| Thickness of die block (Min./Max) | mm | 120/320 |
| Stroke of moving platen | mm | 240 |
| Ejection stroke | mm | 50 |
| Ejection force | kN | 35 |
| Injection force | kN | 40 |
| Injection stroke | mm | 250 |
| Diameter of shot sleeve | mm | 25/30 |
| Dosage of fluid metal per shot (AL) | kg | 0.4 |
| Injection Pressure | kN | 57/80 |
| Projecting area of casting | cm2 | 68 |
| Dry cycle | s | 4 |
| Pipeline pressure | kN | 7.5 |
| Motor power | KW | 63 |
| Machine weight | kg | 2030 |
| Noise | decibel(A) | <85 |
| Overall dimensions (L x W x H) | mm | 3150X1100X1300 |
YSC38 38ton/380Kn cold chamber die casting machine for copper, aluminum or zinc alloy is equiped with Mitsubishi PLC and screen,
YUKEN electronic valve
SUNNY vane pump.
If some problems and questions pls tell us with no heisitate.Thank you
