type 2 spd 2 Pole SPD AC DC 40KA spd 385VAC
- Category: >>>
- Supplier: Wenzhou Chuangjie Lightning Protection Electrical Co. Ltd.
Share on (565546433):
Product Overview
Description
Product Description

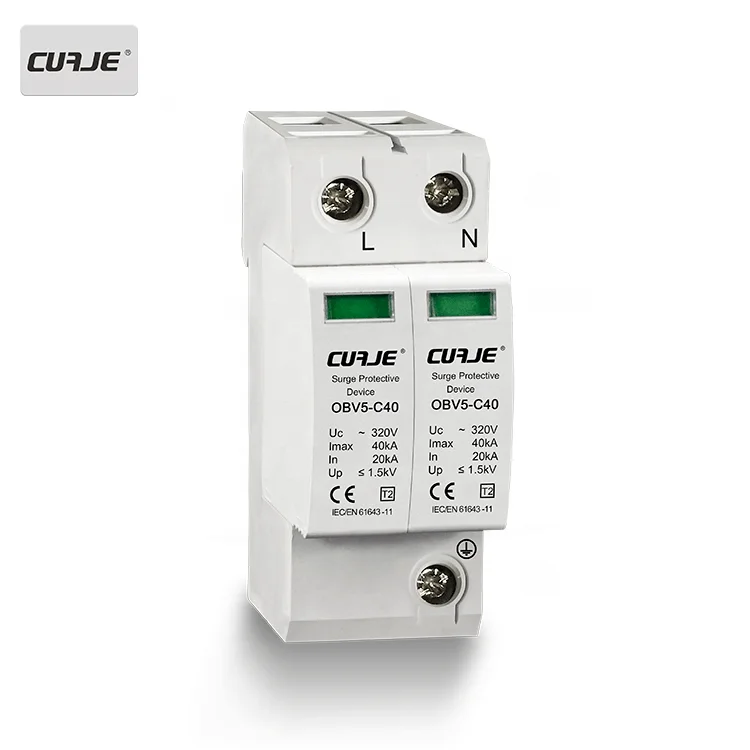

The transient voltage surge supression OBV5-C40 meet the type 2 requirement class according to IEC 61643-11. These devices protect low-voltage consumer systems from overvoltages of all types and are available in single-pole to four-pole versions. The use of high-performance varistors permits a rapid response time and a low protection level, without any line follow current. If circumstances are uncertain and there is a risk of fire from an overload, the internal cut-off unit disconnects the arrestor from the mains if necessary. In addition, the QR code printed on the arrestor allows disary. In addition, the QR code printed on the arrestor allows direct access to the online installation instructions.
+ Connectable surge arrestor
+ High arresting capacity
+ Visual status display
+ Available with optional remote signalling
+ Vibration-proof
+ Simple standard hat rail mounting
+ Labelled connections
+ Voltage encoding
Model: OBV5-C40 | |||
Maximum continuous voltage AC | Uc | V | 275/320/385/440 |
SPD to EN 61643-11 |
|
| Type 2 |
SPD to IEC 61643-1 |
|
| class II |
Nominal discharge current (8/20µs) | In | kA | 20 |
Maximum discharge current (8/20µs) | Imax | kA | 40 |
Voltage protection level | Up | kV | <1,3/1,5/1,8/2,0 |
Response time | tA | ns | <25 |
Maximum back-up fuse |
| A | 125 |
Temperature range | ϑ | °C | -40℃~+85℃ |
Protection rating |
|
| IP 20 |
Max. cable cross-section flexible (fine-wire) |
| mm² | 25 |
Max. cable cross-section rigid (single wire/multi-wire) |
| mm² | 35 |

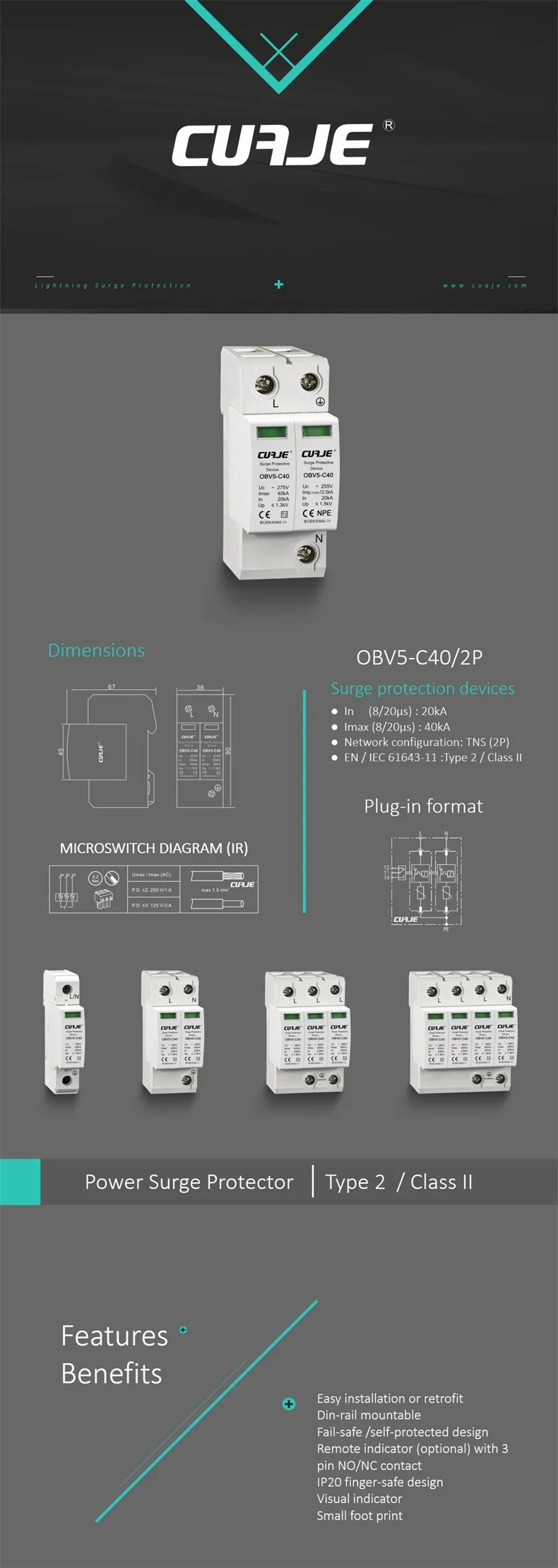

Dimension
application
Our Services
Certifications
Company Information
contact information
FAQ
Q: Can I get some samples?
A: Yes, Sample orders welcomed.
Q: Can I use my own Logo or design on goods?
A: Yes, Customized logo and design on mass production are available.
Q:What is the delivery time?
A: 3 days for samples, 7-15 days for mass production.
Q: What is the payment term?
A: T/T, L/C at sight, West union , Paypal, etc
Q: Can I trust you?
A: Absolutely YES, We are “Alibaba” verified supplier for many years.
Q: May I visit your factory?
A:Sure, welcome any time. We can also pick you up at airport or station.
