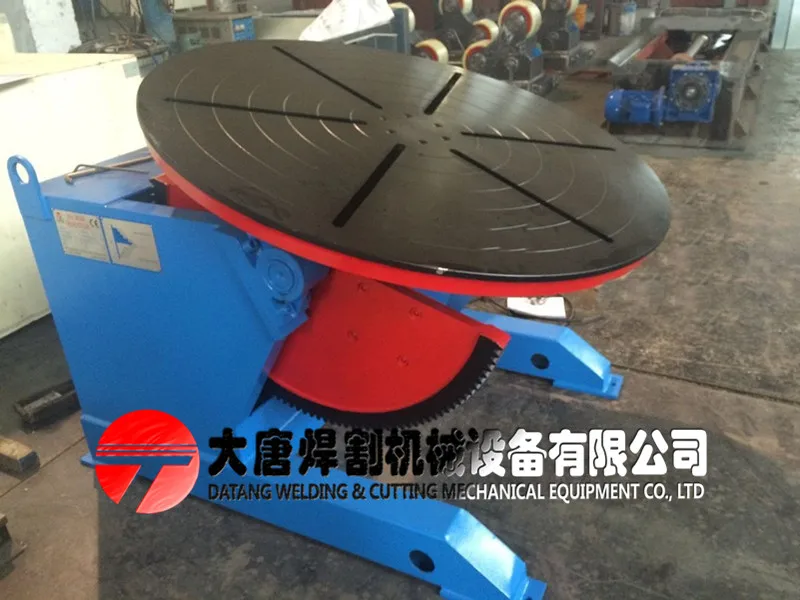

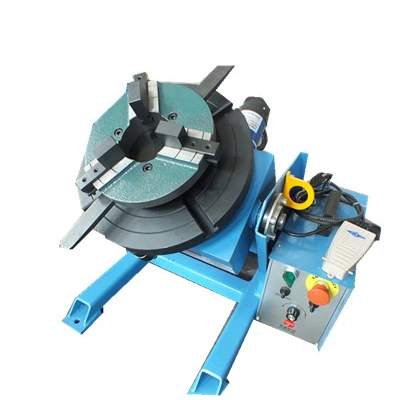

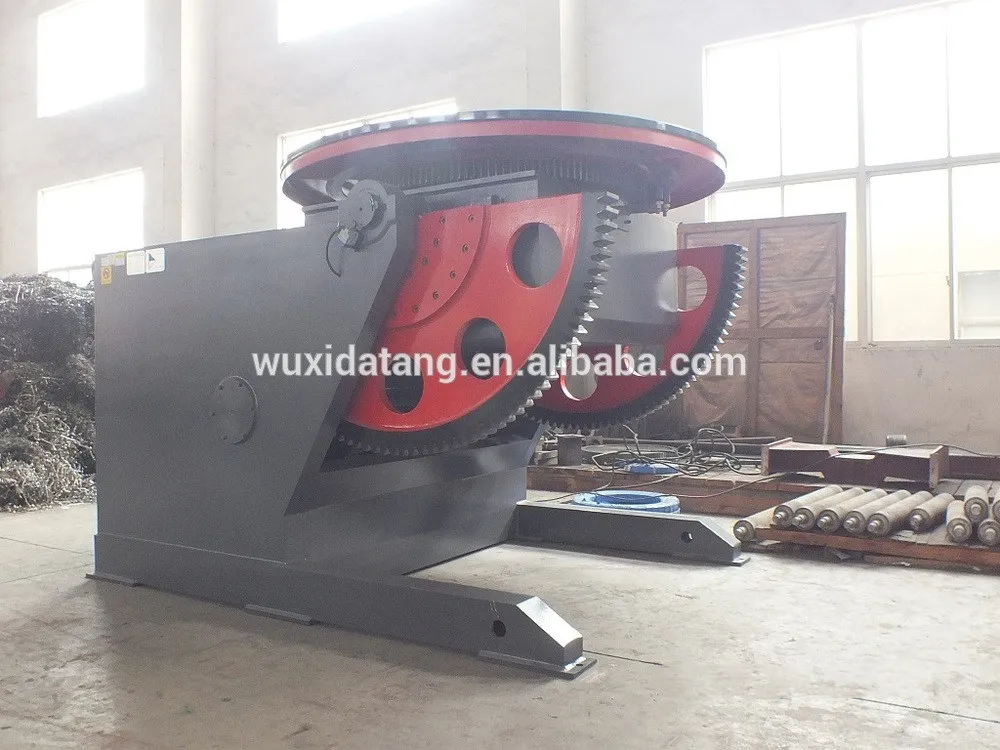

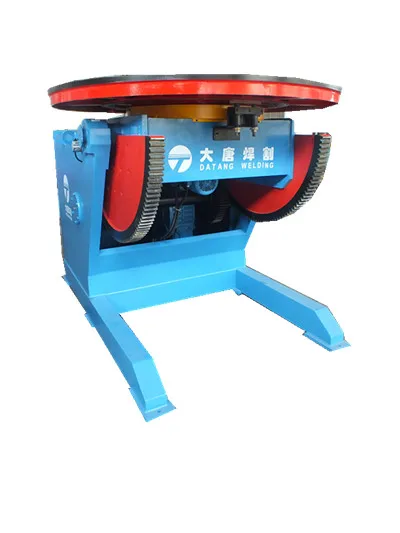

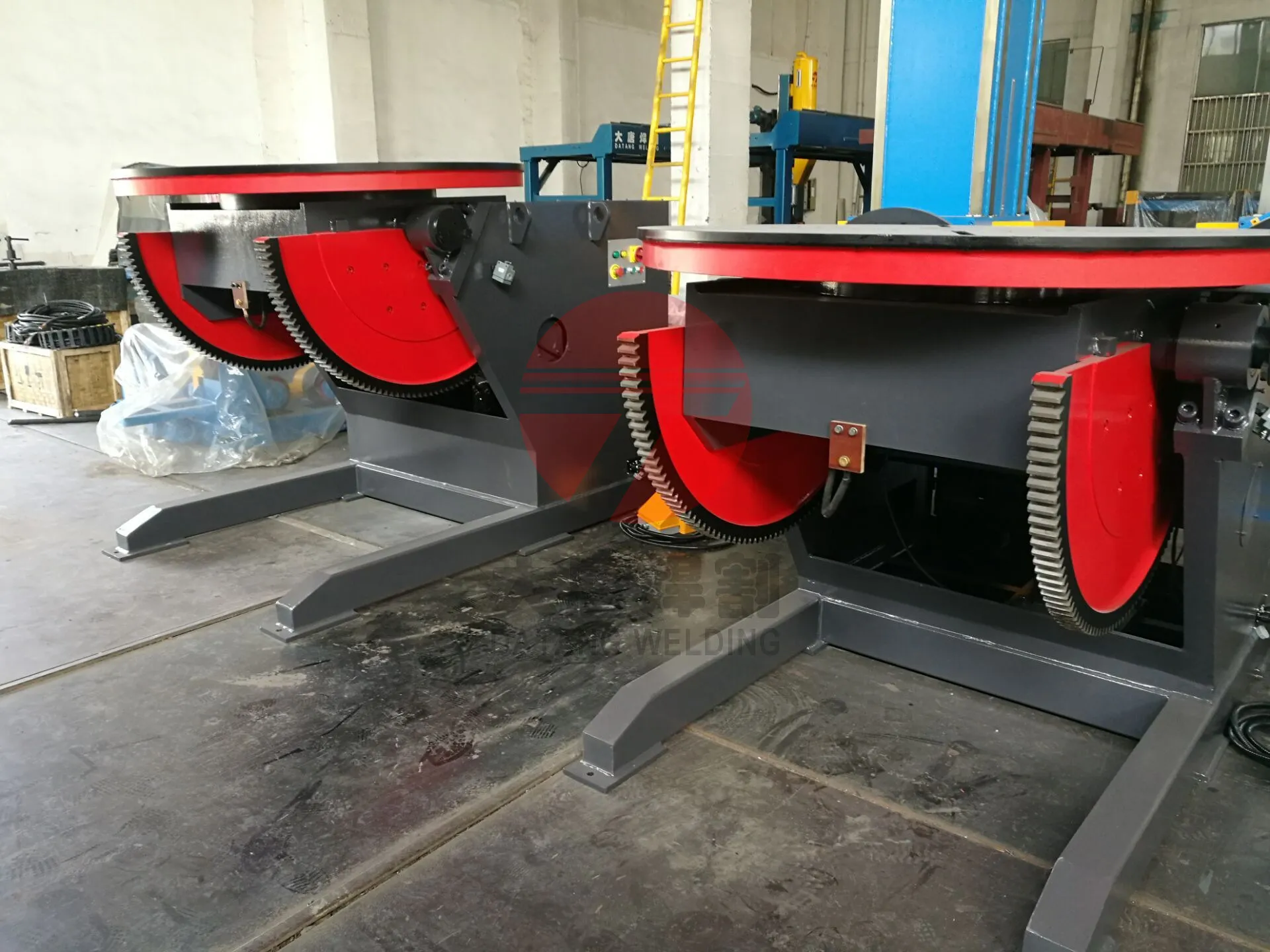

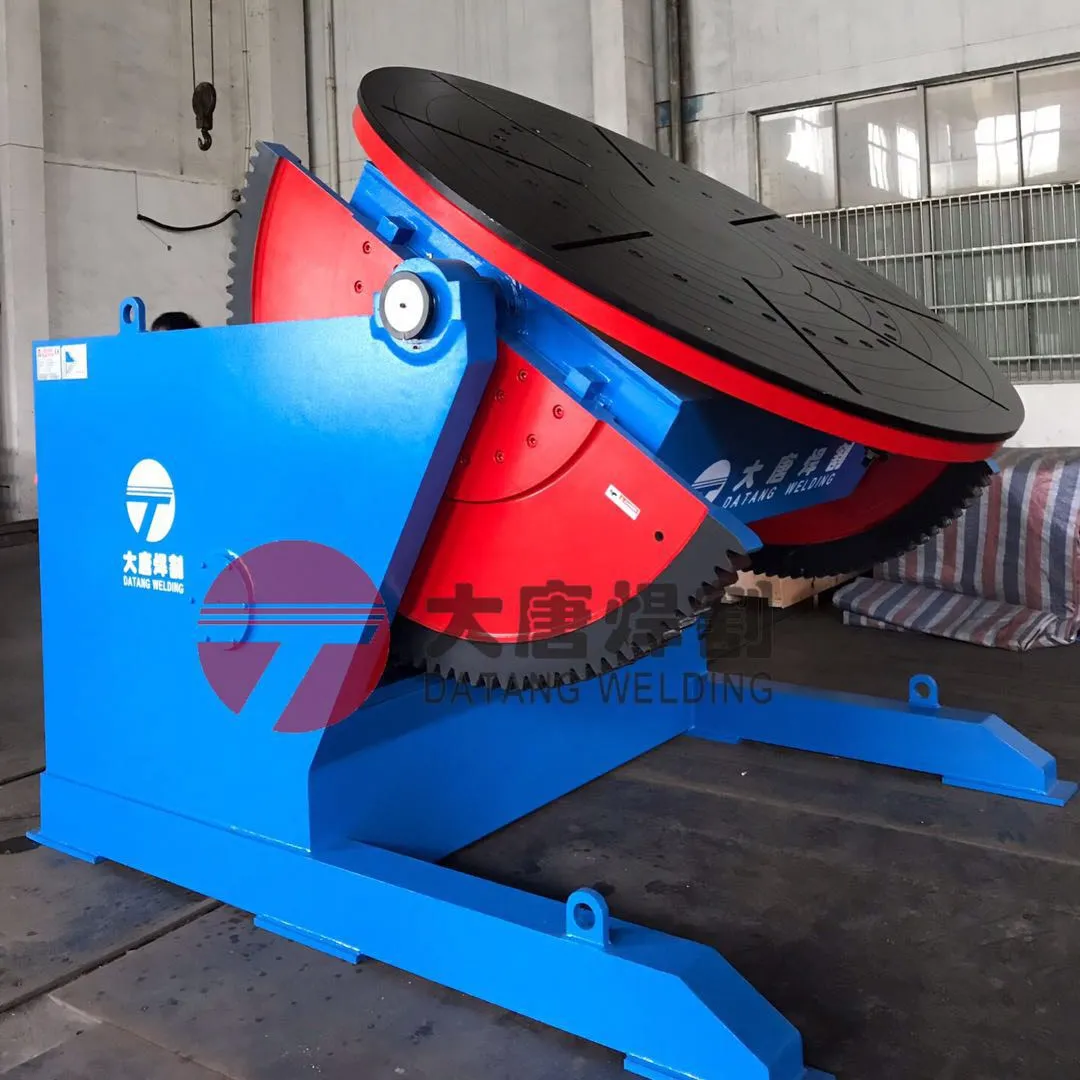

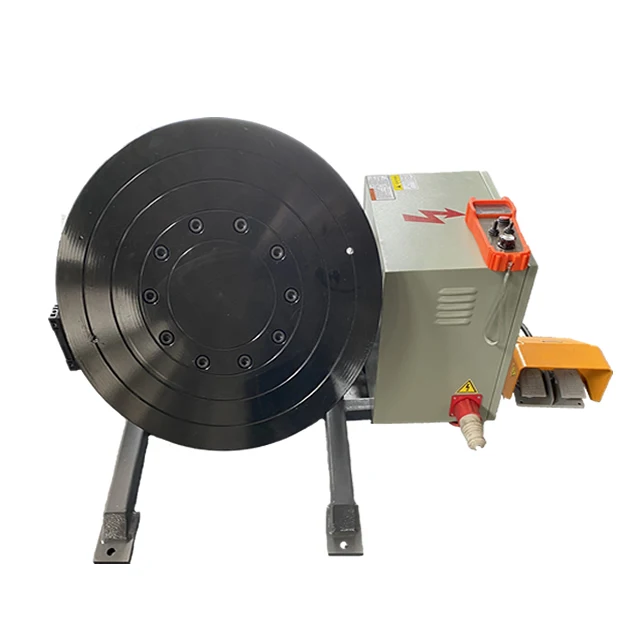

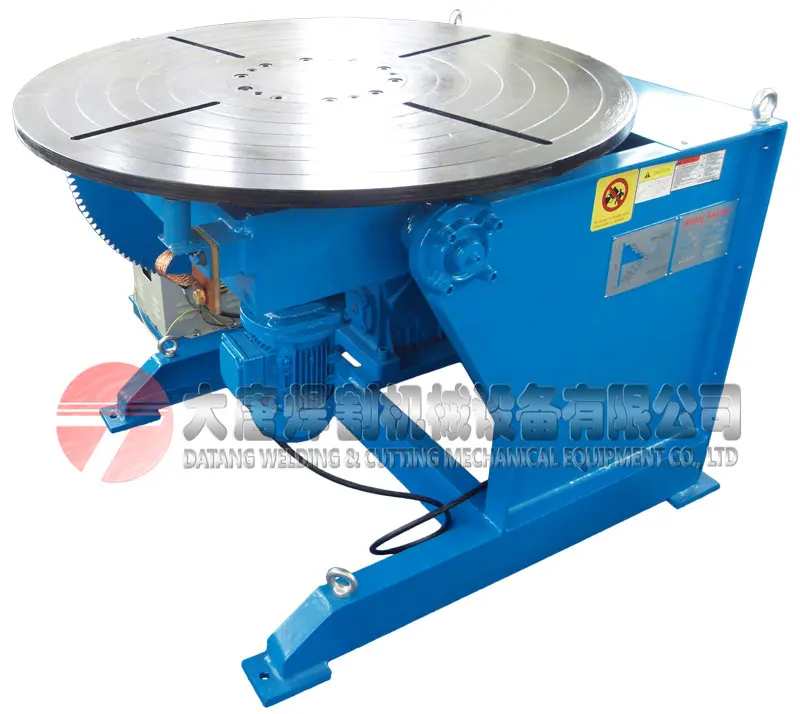

DATANG New Automatic Rotary Table Welding Positioners with Reliable Motor and Engine Components
- Category: >>>
- Supplier: Wuxi Datang Welding & Cutting Mechanical Equipment Co. Ltd.
Share on (565648163):
Product Overview
Description
TechnicalParamete | Model | ||||||||||||||||
HB05 | HB1 | HB3 | HB6 | HB12 | HB30 | HB50 | HB100 | HB150 | |||||||||
Rated loading (Kg) | 50 | 100 | 300 | 600 | 1200 | 3000 | 5000 | 10000 | 15000 | ||||||||
Max eccenteric Distance (mm) | 50 | 100 | 200 | 200 | 250 | ||||||||||||
Max distance of Gravity center (mm) | 150 | 200 | 300 | 400 | 500 | ||||||||||||
Worktable size (mm) | Φ300 | φ400 | φ600 | φ1000 | φ1200 | φ1400 | φ1500 | φ1800 | φ2000 | ||||||||

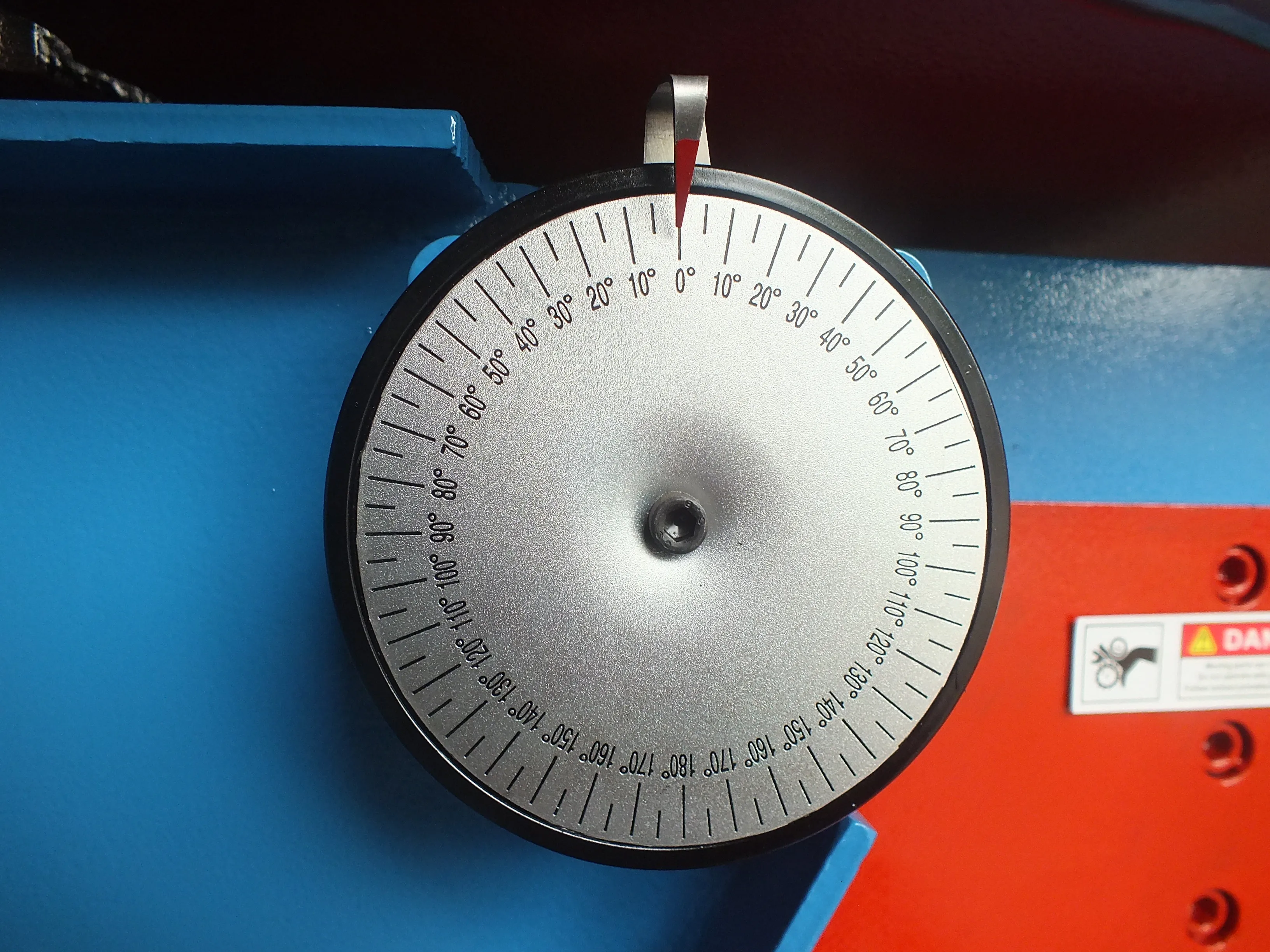

Tilting angle (°) | 0°~+90° | 0°~+120° | |||||||||||||||
Rotating speed (rpm) | 0.4~4 | 0.12~1.2 | 0.1~1 | 0.05~0.5 | 0.03~0.3 | ||||||||||||
Rotating Power (Kw) | 0.09 | 0.18 | 0.18 | 0.75 | 0.75 | 1.5 | 2.2 | 3 | 4 | ||||||||
Tilting speed (rpm) | 0.8 | 0.5 | 0.3 | 0.14 | |||||||||||||
Tilting Power ( kw ) . | 0.75 | 1.1 | 2.2 | 3 | 4 | 5.5 | |||||||||||
Speed adjusting way | Rotating speed VFD | ||||||||||||||||
Tilting speed constant | |||||||||||||||||
Good quality.

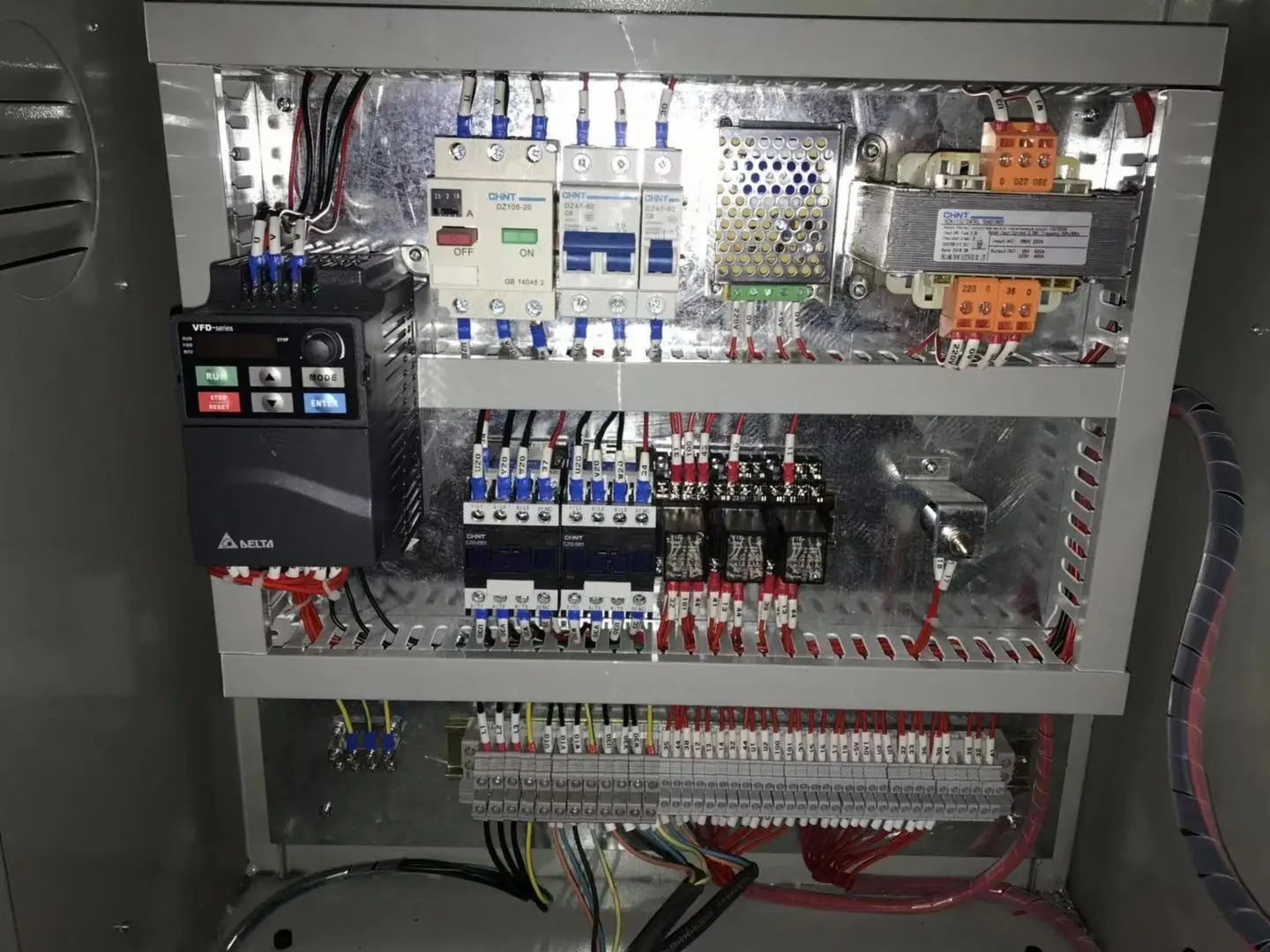

Electrical parts are with famous brand in China. We have cooperated with these brands for more than 10 years. With good quality.

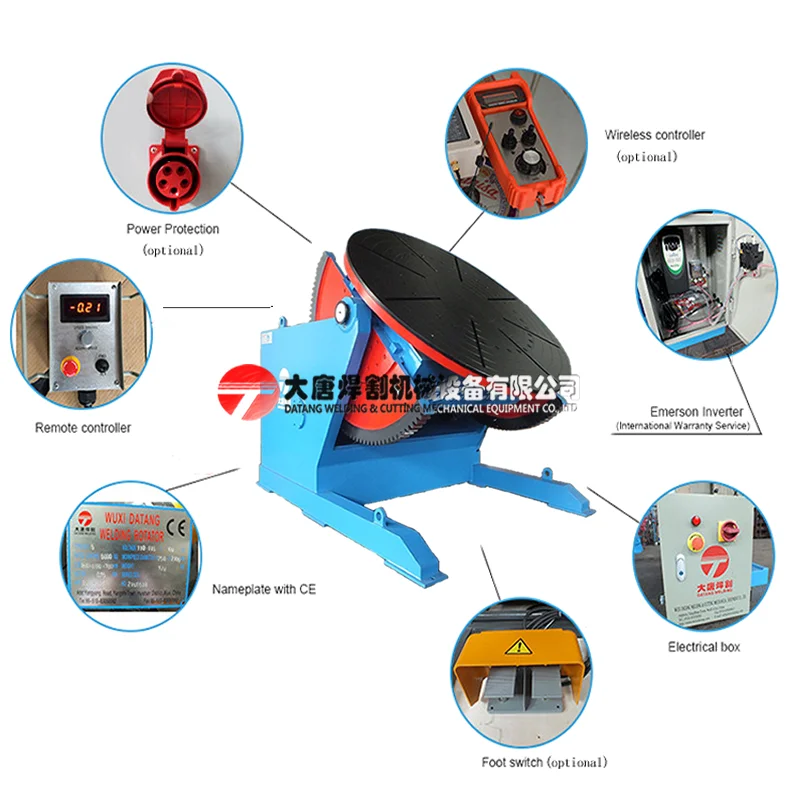

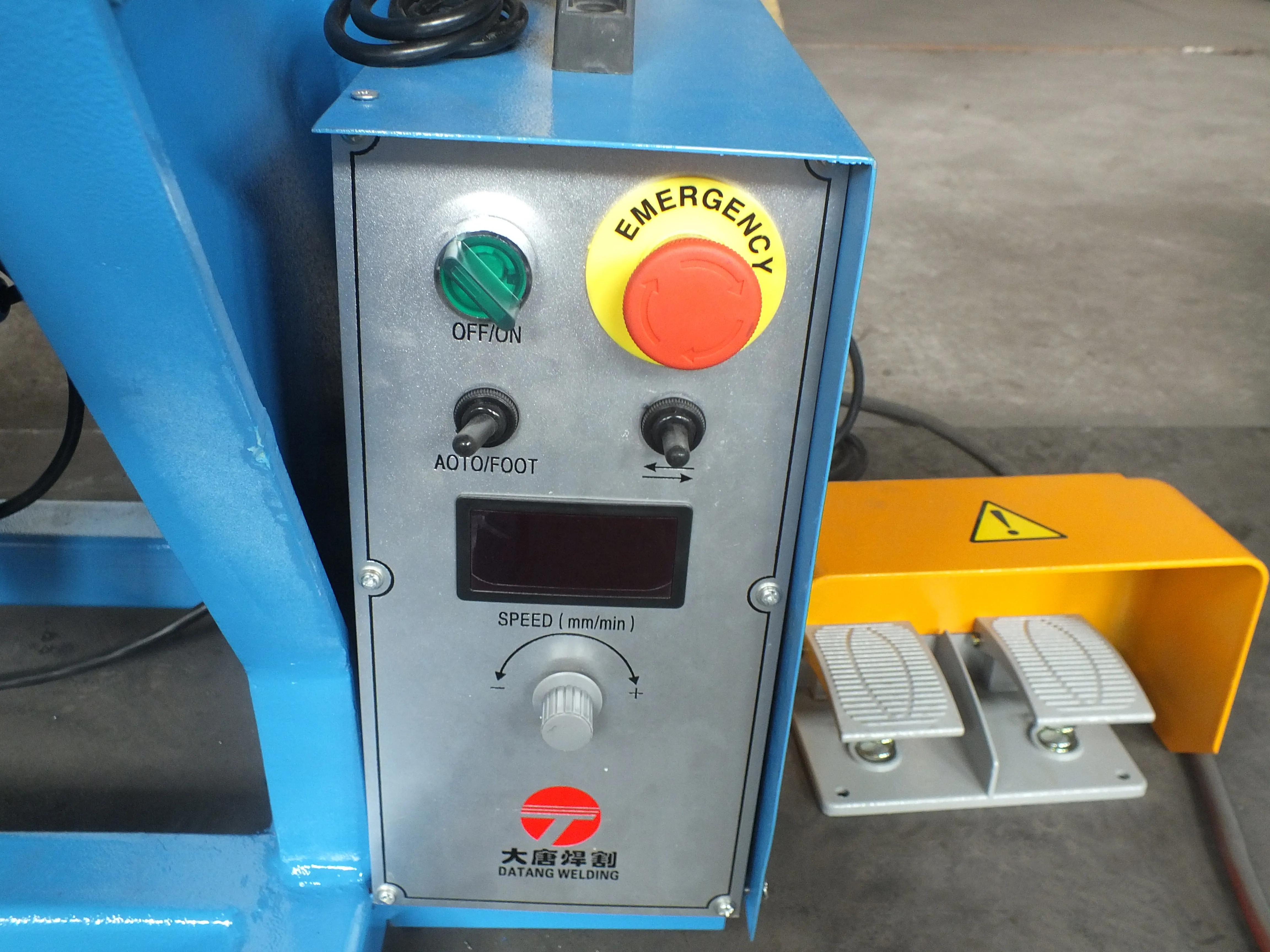

Easy operation
Our standard controller is with 3m wire.
It is very easy to operate. With digital display.
Wireless controller is optional, if you need, please tell us.

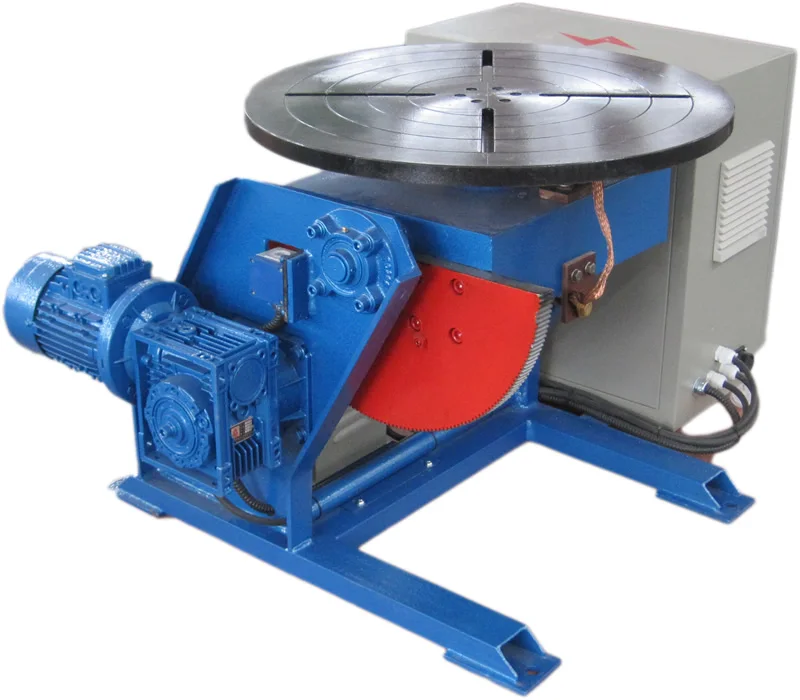

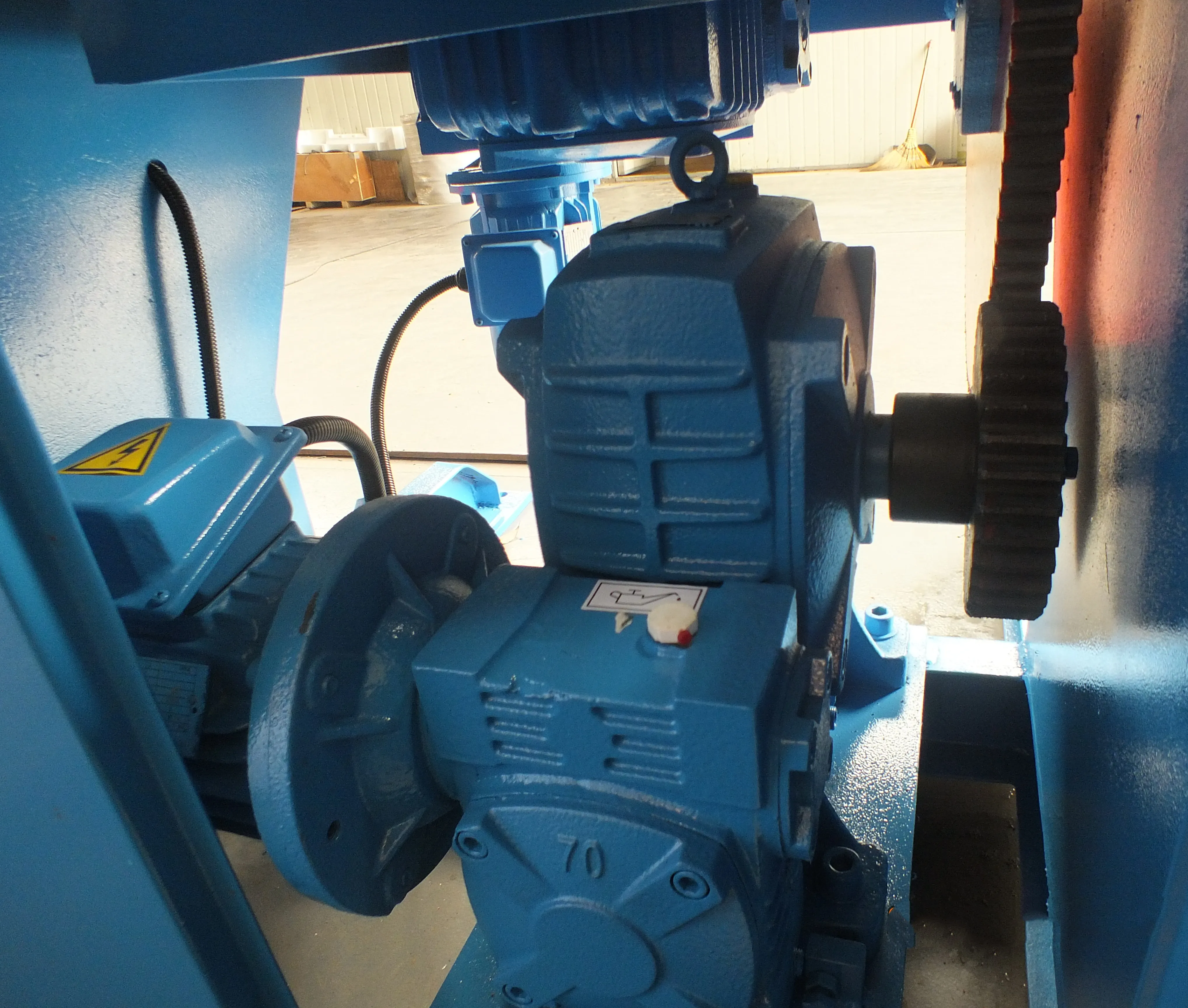

Motors and reducers are with famous brand in China. Also can use other brand. If you need, please tell us.
The warranty time is one year, during this year, if there is any made problem, we will supply you a new one for free.
