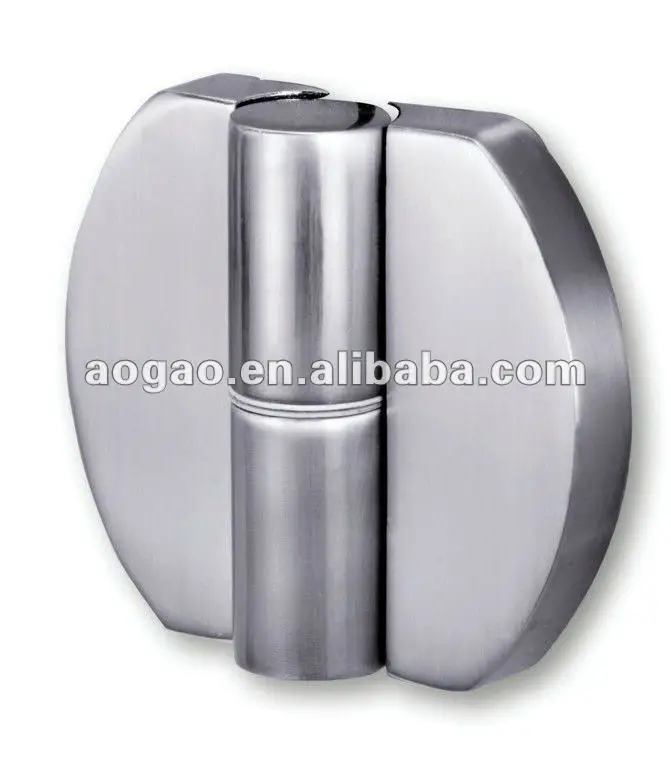

toilet cubicle door hinge

Product Overview

Description

                                                                           toilet partition door hinge



Destructive power of hardware accessories for our toilet partition:





Leg	≥44.1kN
Hinge	≥1.67kN
Corner Fastener	≥6.0kN





Detection data of Compact laminate:



Compressive strength	280MPa as per ASTM D695-02a
Rockwell hardness	123/ as per ASTM D785-03
Linear expansibility (-30oC~+30oC) as per ASTM D696-03	Horizontal 2.48 X 10-5  oC-1,Vertical 2.55 X 10-5 oC-1
Moisture(23oC,24h)	0.81% as ASTM D-570-98
Tensile strength	H 90.0MPa, V 87.7MPa as ASTM D638-03
Bending strength	H 107MPa, V 121MPa as ASTM D790-03
Flexural modulus	H 12.0GPa, V 13.1GPa as ASTM D790-03
Impact strength of cantilever beam gap	H49.2 J/m, V 48.3J/m as ASTM D256-06a

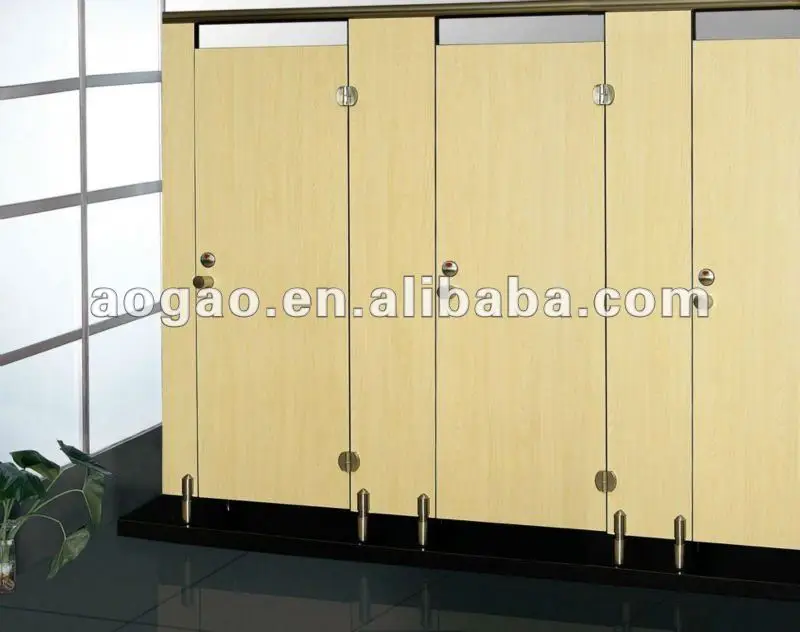

Accessory combination for a whole set 23 series toilet partition:





corner fastener	stainless steel	12 pcs
lock	zinc alloy	1 pc
support leg	zinc alloy	2 pcs
hinge	zinc alloy	2 pcs
knob	zinc alloy	2 pcs
coat hook	zinc alloy	1 pc







Feature:



Water & Humidity resistance, lmpact resistance, Heat & Cigarette burns resistance, it is acid and alkali approved.
