6.5 inch speakers foam surround line array

Product Overview

Description

6 inch midrange speaker

ferrite magnet

High intensity Aluminum basket

1.49" Aluminium voice coil

95dB sensitity, 200 W rating power midrange speaker



Specifications
Nominal Diameter	187/7	mm/inch
Nominal Impedance	8	Ohm
Minimum Impedance	1.8	Ohm
Power handling
(50-500Hz)
Nominall	100	Watts
Continuous Program	200	Watts
Sensitivity (1W/1m)3	95	dB

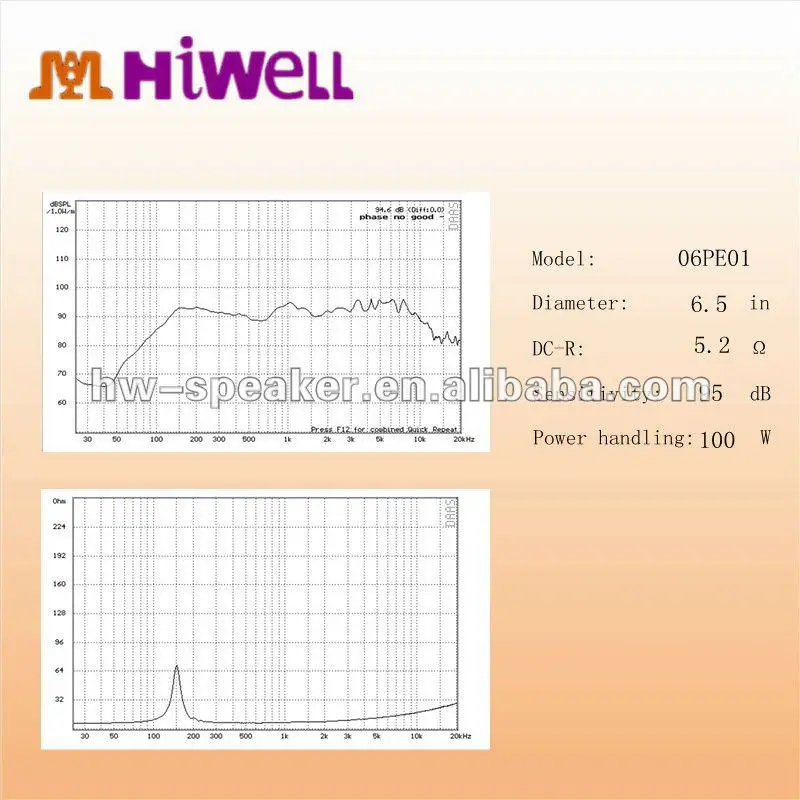

Frequency Range	150-8000	Hz
Voice Coil Diameter	38/1.5	mm/inch
Winding Material	Aluminium	outside
Former Marerial	DHF
Winding Depth	7.5/0.3	mm/inch
Magnetic Gap Depth	6/*0.2	mm/inch
Flux density	1.3	T
Thiele-Small parameters4
Fs	150	Hz
Re	5.2	Ohm
Qes	0.78
Qms	7.28
Qts	0.7
Vas	4.4	liters
η0	1.84	%
X max	1.5	mm
X var	1	mm
Mms	14.4	gr
BL	9.5	N/A
Le	0.3	mH

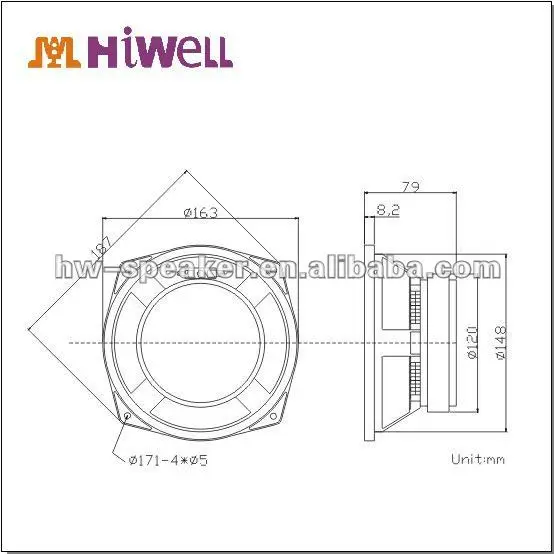

Mounting and Shipping Information
Blot Circle Diameter	171/6.7	mm/inch
Overall Diameter	187/7	mm/inch
Baffie Cutout Diameter	148/6	mm/inch
Depth	Mar-79	mm/inch
Flang and Gasket Tickness	8.2/0.3	mm/inch
Net Weight	2	Kg
Shipping Weight	2.2	Kg
Shipping BOX	270×270×200	mm
Magnet Size	120*60*20	mm
