Product Overview

Description

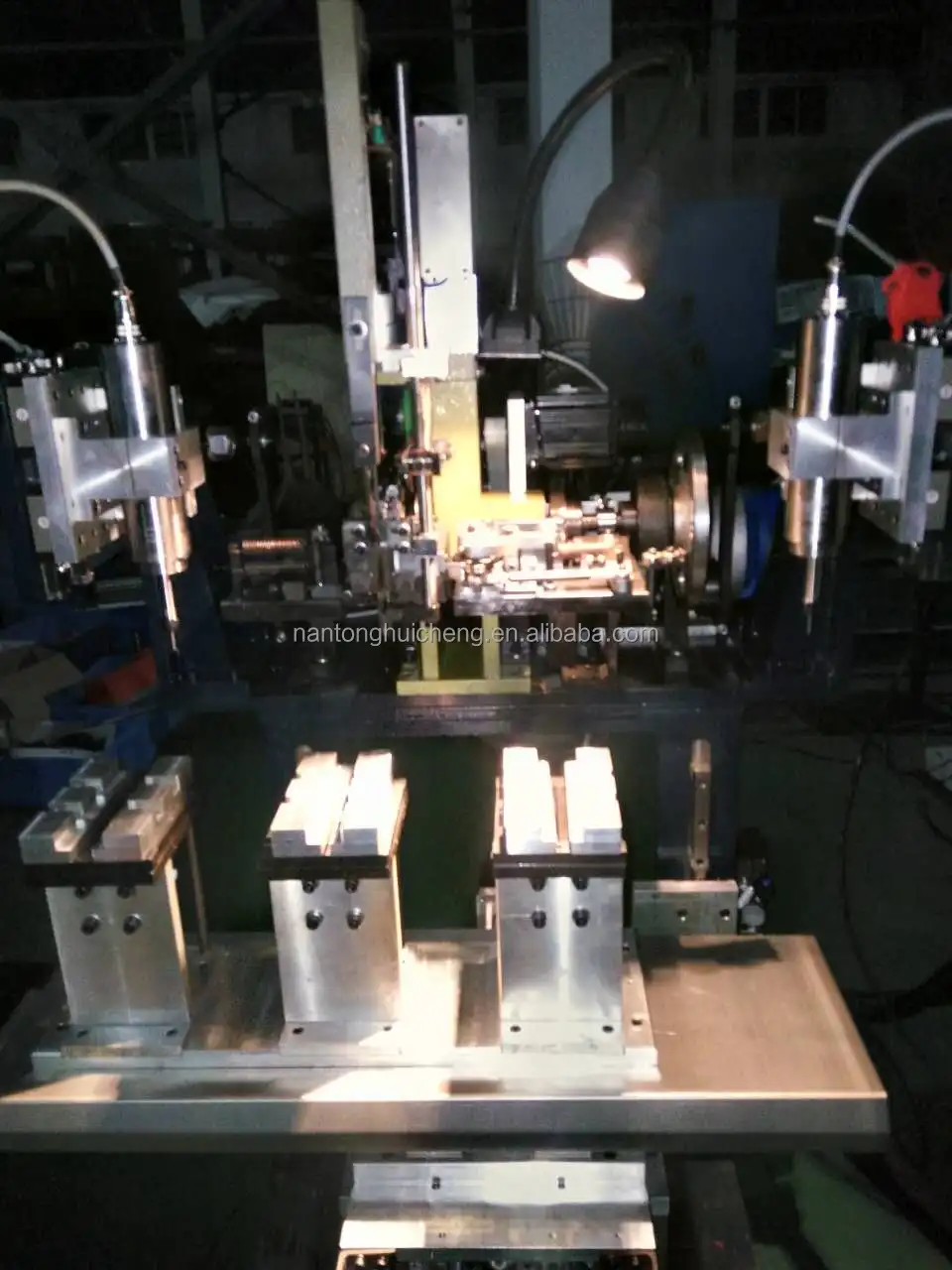

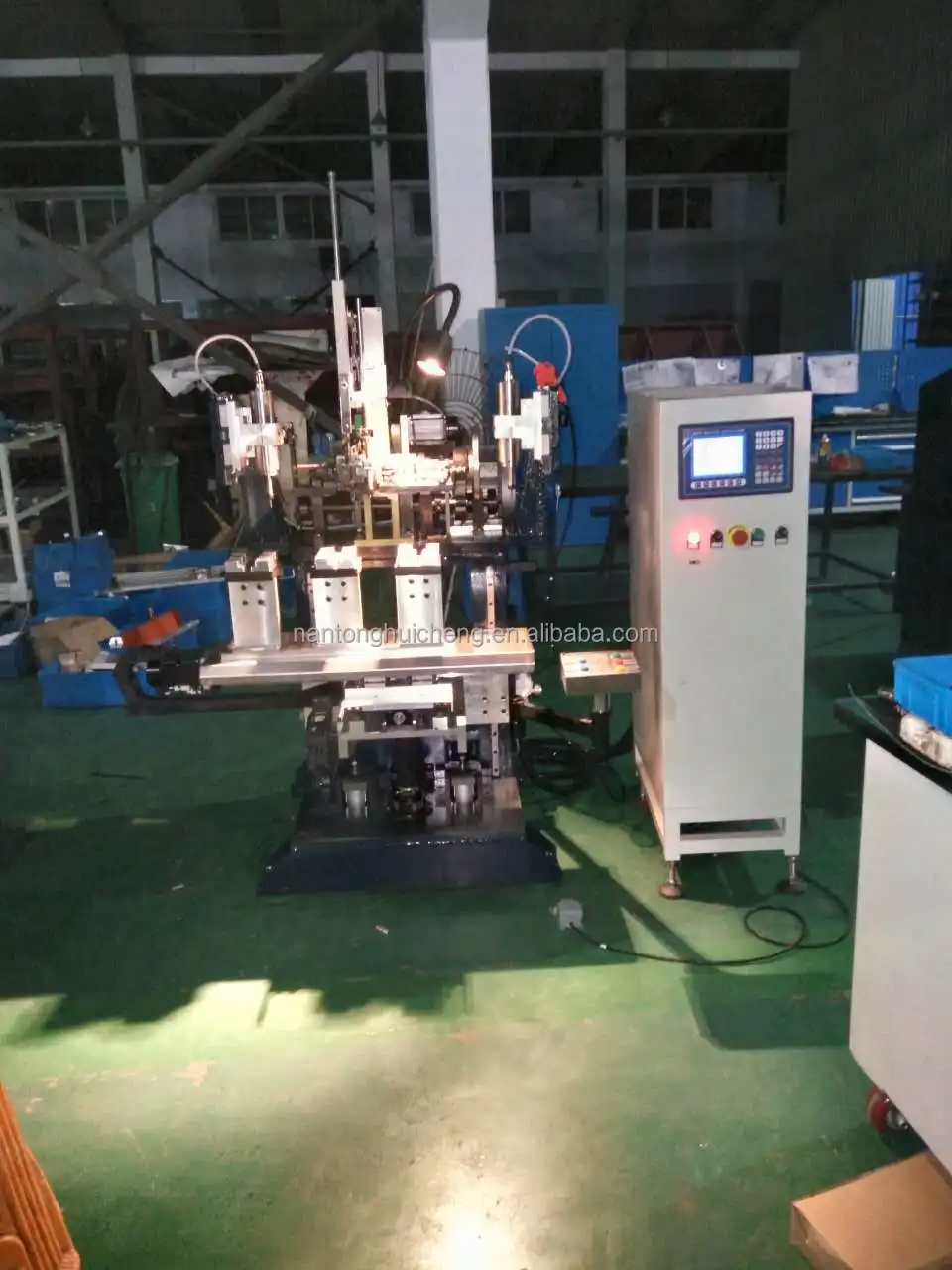

CNC Steel Wire Brush Drilling and Tufting Machine

Product features

This machine is suitable for all kinds of brush of  which the diameter between Dia.2.2mm and Dia.4mm and within the height of bristle is 40mm for tufting.

Panel Control System of Man-Machine displays in either Chinese or English, easy to understand..

Wearing parts and spare parts are standardized designs to reduce hair mechanic technology dependence.

Tufting methods: Oblate style.

Largest wool length: 40mm.

Models can be stored: 20 (expandable).

Input methods: Chinese display, menu-driven operation, handheld encoder or keyboard input.

Technical parameters

Description	Unit		Paramenter
Max Speed	Holes/min		≤600
Hole diameter	mm		Dia.2.2-Dia.4mm
Spindle quantity	Piece		2-4piece
Journey X axis	mm		500
Journey Y axis	mm		300
Maximum program quantity	Piece		100
Air pressure	Mpa		6
Power voltage, frequence	V, Hz		380V, 50Hz
Machine power	KW		1.5
Contour size	mm		1100×1150×1830
Weight	KG		800
Control system		CNC Controller
Disturbance Display		English edition
Safety protection		Overload, short circuit protection
Lubrication		Auto Lubrication System
Main Speed Control		Frequency inverter
Fiber box		Frequency inverter



Warranty period and after sales:

One year. In the warranty period, if there are some troubles with the machines the manufacturer should send engineers to repair or replace the parts freely (expect for easy broken parts). But you need pay the come and back tickets.

About after sales we have whole life repair this machine, but you need pay the cost (ticket, hotel, food).

Technology for installation

According to the demand of buyer, our factory sends the engineers to guide to install and debug. But the charge in the buyer’s site and the traveling should be paid by buyer (including the cost of living, the round-trip ticket etc...)
