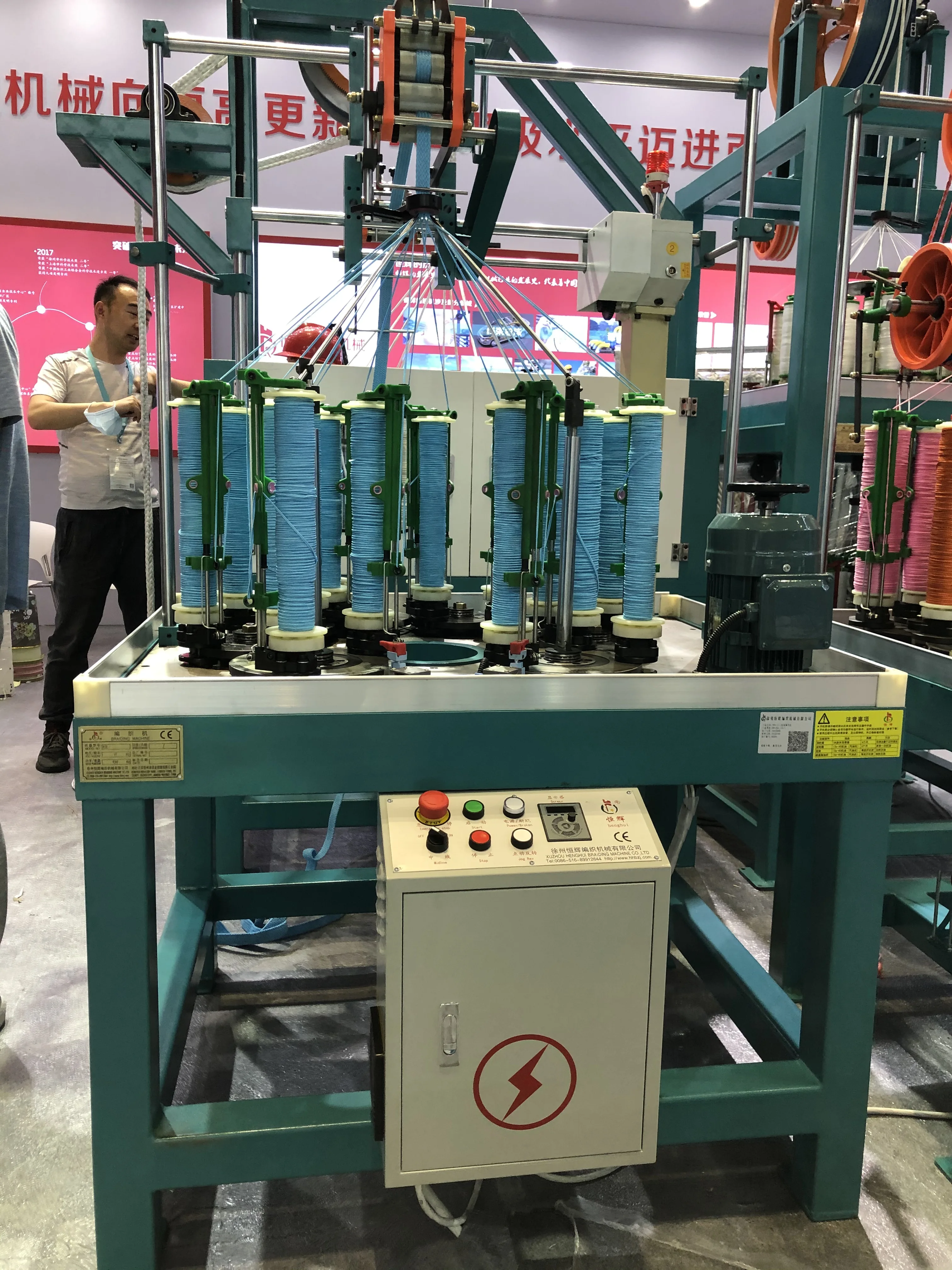

Henghui High Speed 17 Spindle Rubble Flat Elastic Belt Braiding Machine
- Category: >>>
- Supplier: Shanghai Henghui International Co. Ltd.
Share on (567231436):
Product Overview
Description
Product Description
Xuzhou Henghui Braiding Machine Co. Ltd.
More than 1000 kinds braiding machines, there is always one for you here !
From 3-120 spindles:
rope braiding machine(small and giant);
fashion belt braiding machine,
cords and strings braiding machine,
fashion shoelace braiding machine,
ribbon & lace braiding machine,
fiber glass sleeve braiding machine,
hose braiding machine(flexible hose, water hose, PET hose, etc),
wire &cable braiding machine(high temperature wire, coaxial cable),
tipping machine, bobbin winding machine , etc.
More than 1000 kinds braiding machines, there is always one for you here !
From 3-120 spindles:
rope braiding machine(small and giant);
fashion belt braiding machine,
cords and strings braiding machine,
fashion shoelace braiding machine,
ribbon & lace braiding machine,
fiber glass sleeve braiding machine,
hose braiding machine(flexible hose, water hose, PET hose, etc),
wire &cable braiding machine(high temperature wire, coaxial cable),
tipping machine, bobbin winding machine , etc.
Lace Braiding Machine
Product Name | Braiding Machine KBL17-1-224 |
Material Use | PP, Nylon,PE,HDPE, High polymer material, composite material,etc. |
Application | Garments accessories braiding machine is applied for the production of round or flat shoelace ,elastic cord or lace,flat lace,zigzag lace,piping cord,double color cord,triangular cord,square cord,quadrangular cord,and multicolor lace for national costume,etc. |
Heads | 1 |
Spindle | 17 |
Motor | 0.55 KW |
Horngear Size | 168 |
Bobbin Size | 87*325 mm |
Application:
Garments accessories braiding machine is applied for the production of round or flat shoelace ,elastic cord or lace,flat lace,zigzag lace,piping cord,double color cord,triangular cord,square cord,quadrangular cord,and multicolor lace for national costume,etc.
Advantages:
This serie machine is reasonable in design,small in area,convenient in operation,large in capacity of bobbin,high in output,adjustable in pitch(gear or servo motor).Machine have auto-stop motor,inverter has various functions, such as count meters,adjust speed,set current protection,record production time and set output.The machine can be equipped with rubber feeder or cross winding system or spool packing system.
Material Use:
PP,Polyester,PE,HDPE,Cotton,Nylon,Dyneema,etc.
Products Show
Please Note:
If you want to know other more machine model information,
please contact with me by the email or whatsapp/wechat shown as below information,
thanks.
Contact us
Our Service
1.\tBefore-sale
► We provide perfect braiding solutions.
► Helping clients select appropriate machine series
and models.
► If necessary, welcome to visit our factory.
2.\tAfter-sale
► We can provide professional engineer to door to door service if clients need.
► It is available for us to provide training service in clients's factory or manufacturer factory, teach clients how to operate and maintain the machines.
► One year guarantee for whole machine except wearing part.
► Providing user manual and detailed videos/CD
Our Company
Factory
Workshop
Exhibition
Our Certifications
Our Clients
FAQ
1.What is the warranty for the braiding machines?
For the braiding machines ,we have one year warrnaty,if any quality problems on our side occured in this period.We will free spare parts and our technicians will be oversee to fix machines.
2.How is quality of the braiding machines?
In our company ,we have indepandent processing equipments.For damageable spare parts ,like horngear,gears,spindles and bobbins.We have heat treatment equipment.Every spare part is processed by ourselves,no worry about spare parts in the future.
3.How to get braiding machine's production?
Many clients care about the production of braiding machines.When clients provide their sample or picth size and yarn denier .We have machine speed.Then we can calculate the production.
4.If the machine has problem or stops working?
We have English translated operation manual and video for client reference.Also we provide engineers available to service machinery overseas after-sales service.
5.How to maintain the machines?
Change the machine oil regularly.Before working,inject some machine oil between horngear and horngear axle. After working,clear the broken yarn ,especially spindle track.
