Product Overview
Description
Product Overviews

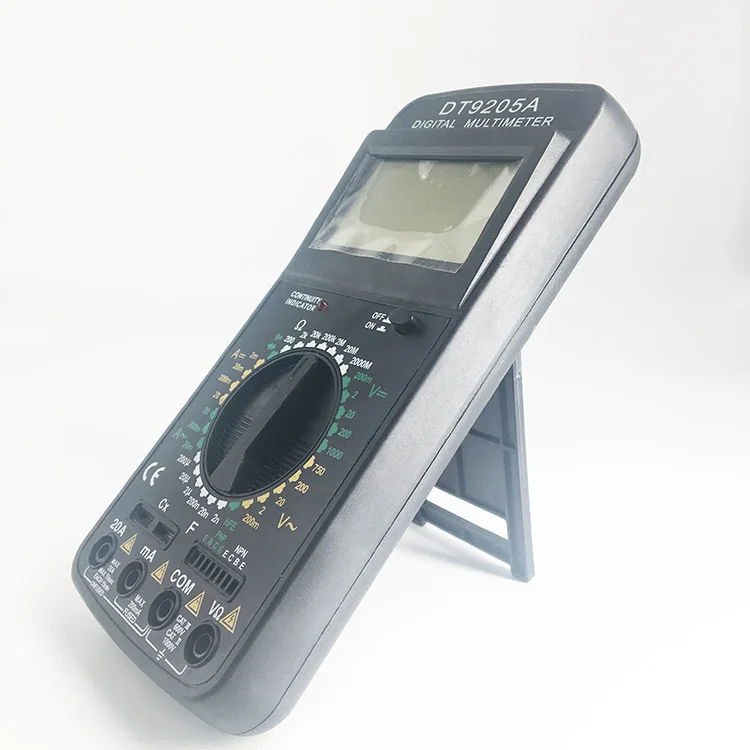

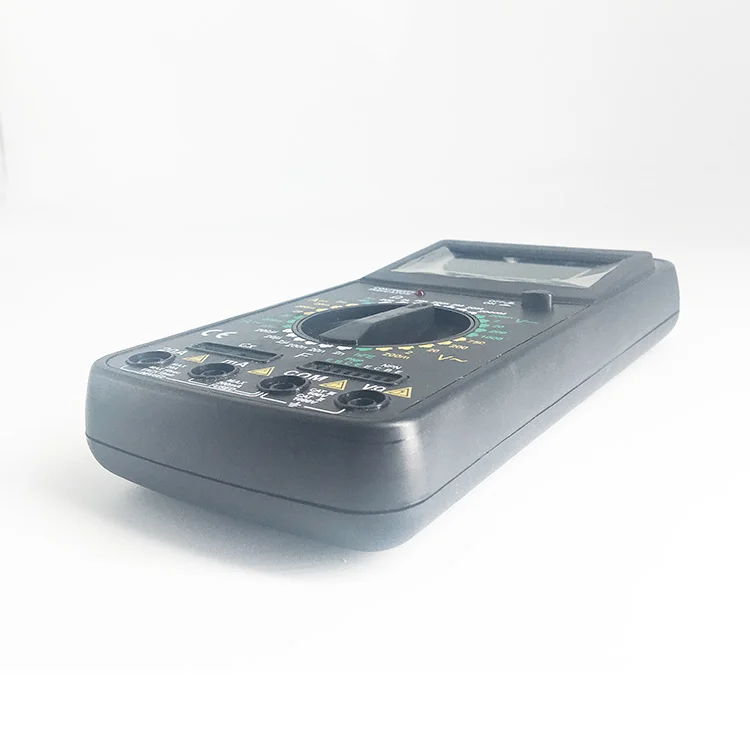

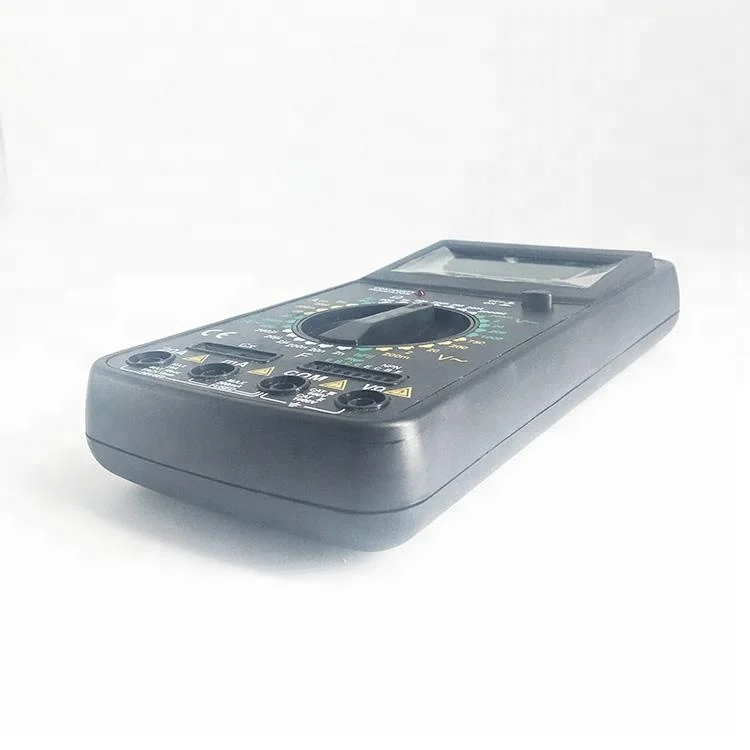

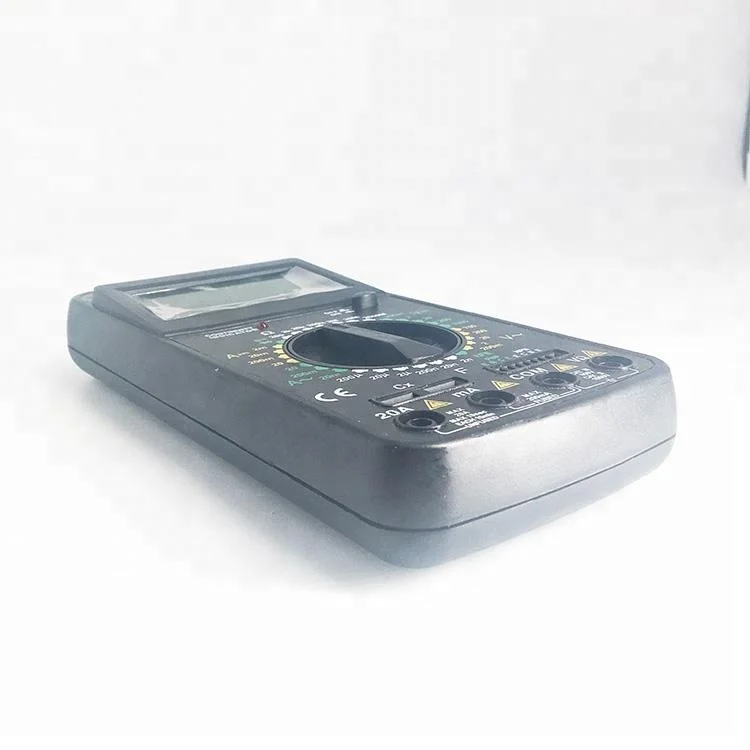

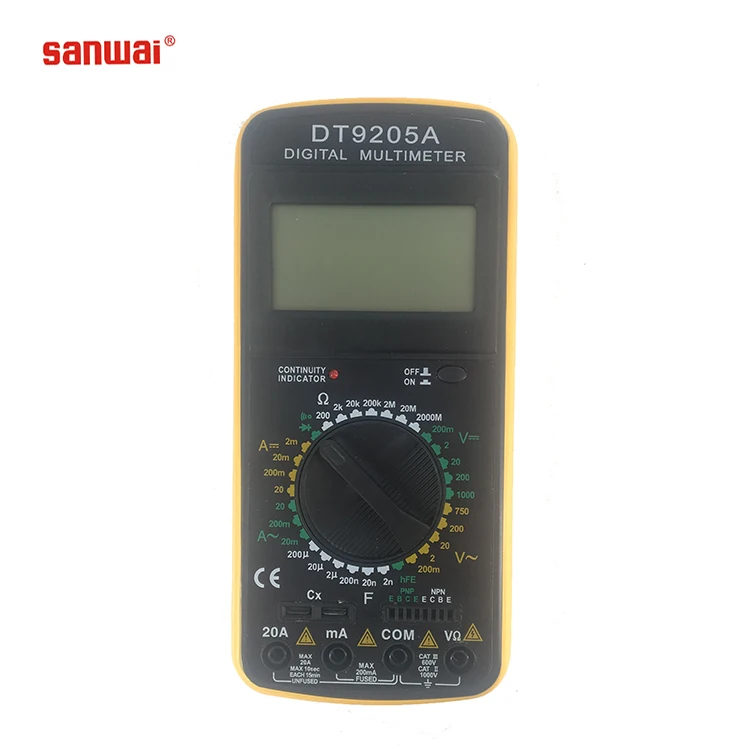

The model DT9205A has following personality which is an essential for electrician,electrical enthusiastics and experts.

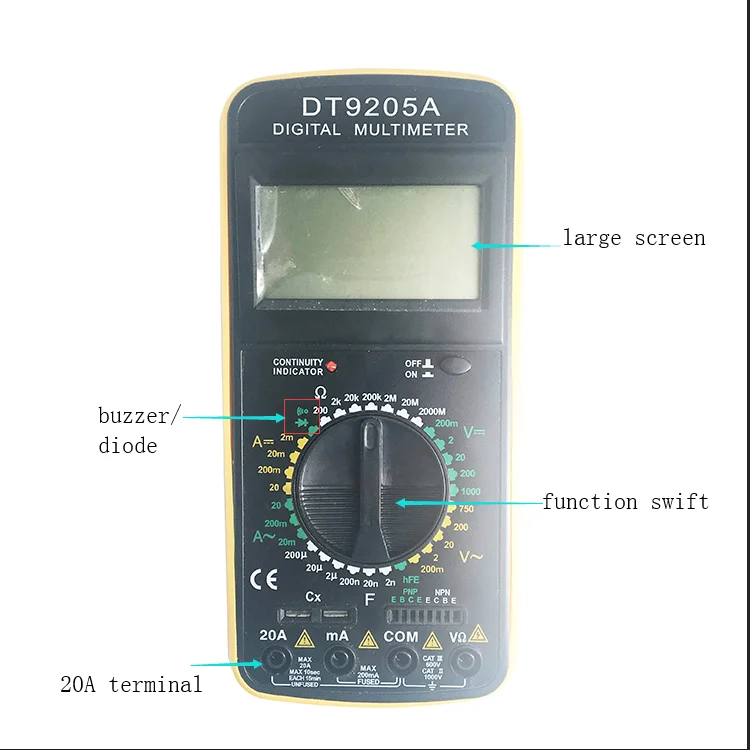

1.3 1/2 digits Large LCD
2.Engineering unit annunciators
3.display(18mm) /Digital Multimeter
4.Low battery indication
5.Audible continuity 6.Diode&Transistor&Capacitance&ResistanceTest
7.DC/AC voltage¤t measurement
8.Single 32 positions rotary switch for function and range selection
9.Automatic polarity indication on DC voltage ranges
10.Overload protection
| Model name | DT9205A |
| Product Net Weight | about 300g |
| Products Size | 191*91.5*35mm |
| Technical features | |
| DC Voltage | 200m-2-20-200-1000V ±(0.5%+1dgt) |
| AC Voltage | 200m-2-20-200-750V ±(0.8%+3dgt) |
| DC Current | 2m-20m-200m-20A ±(0.5%+1dgt) |
| AC Current | 20m-200m-20A ±(1.0%+3dgt) |
| Resistance | 200-2k-20k-200k-2M-20M-200MΩ ±(0.8%+1dgt) |
| Capacitance | 2n-20n-200n-2µ-20µ-200µF ±(4.0%+3dgt) |
| Diode Test | Yes |
| Transistor Test | Yes |
| Continuity Buzzer | Yes |
| Auto Power Off | No |
| Data Hold | No |

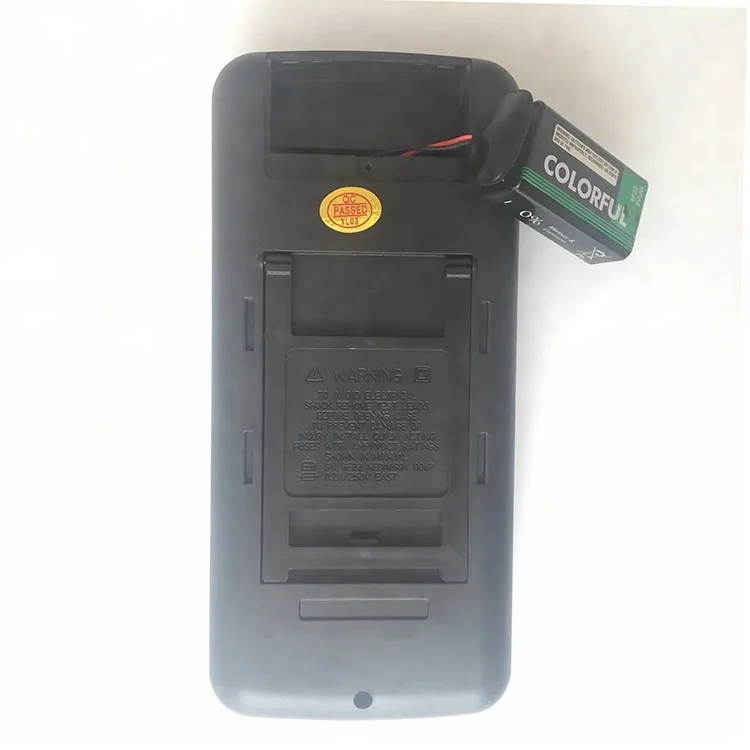

| Power Supply | 9V Battery 6F22 |
| Maximum Display | 1999 |

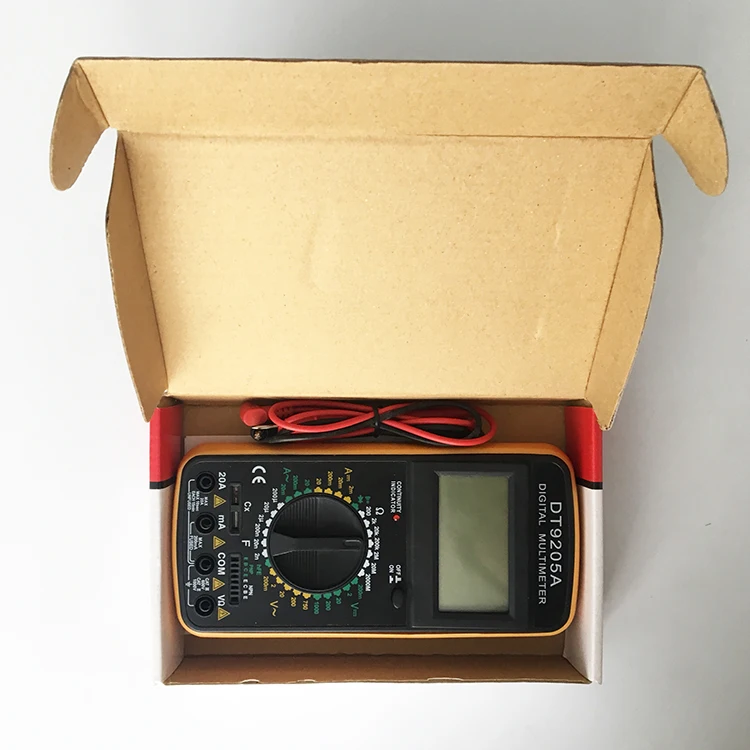

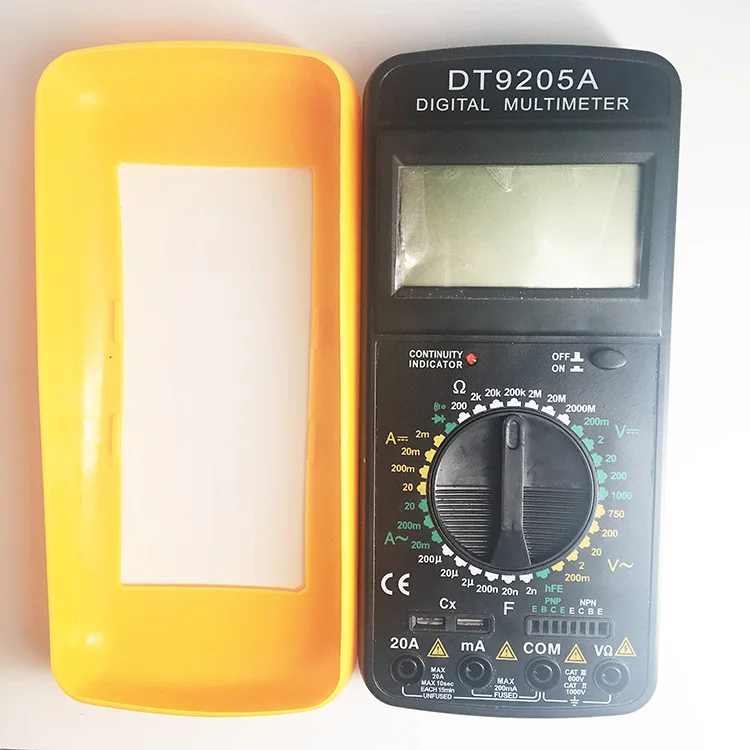

| Standard Accessories | Test Lead, Battery, Manual, Holster |
Company Introduction
Certifications
Shipping and Payment
RFQ
Contact person
| Company name | Wenzhou Habo Technology Co., LTD |
| Address | Bl D,No.111 of Binhai 4th Road, Longwan Economical and Technological Development Zone,Wenzhou,China |
| Contact person | Posymia Peng(Sale Manager) |
| Phone,Wechat | 0086-18057725820 |
habometer at hotmail.com (change at to symbol when use it) |
