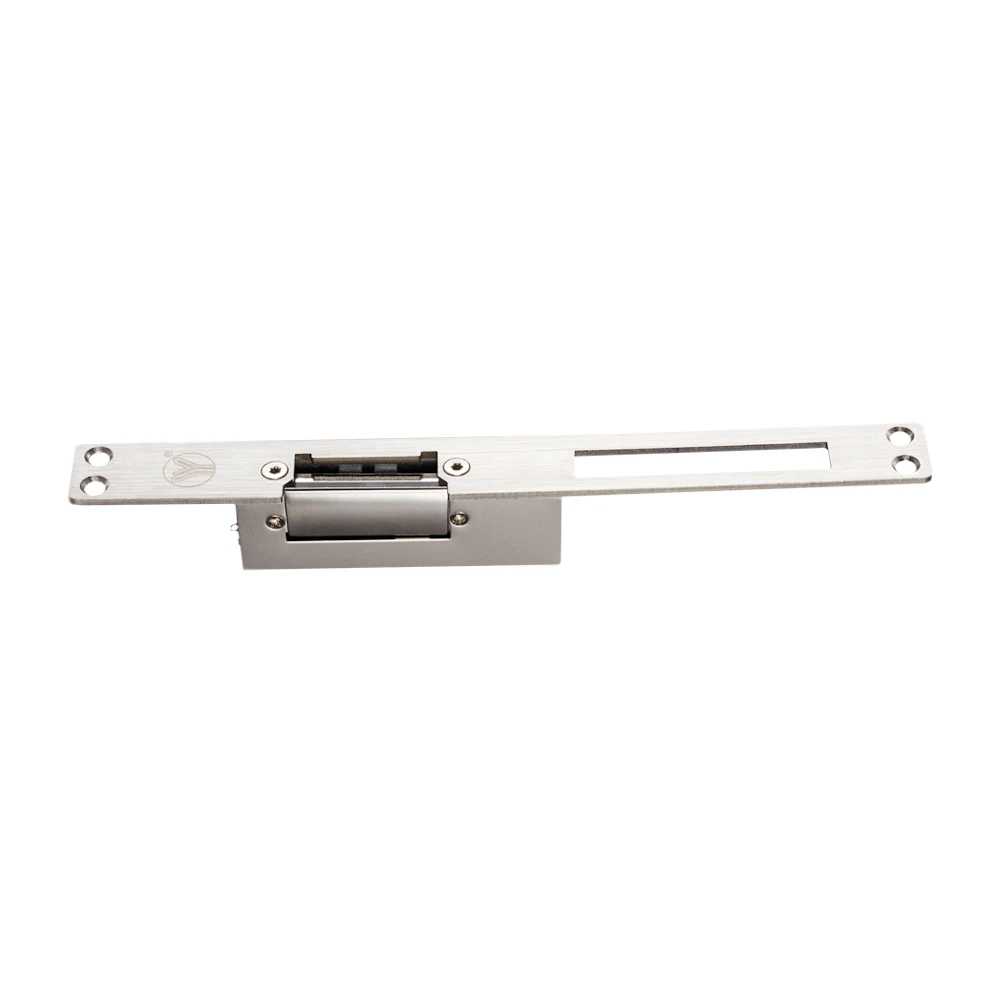

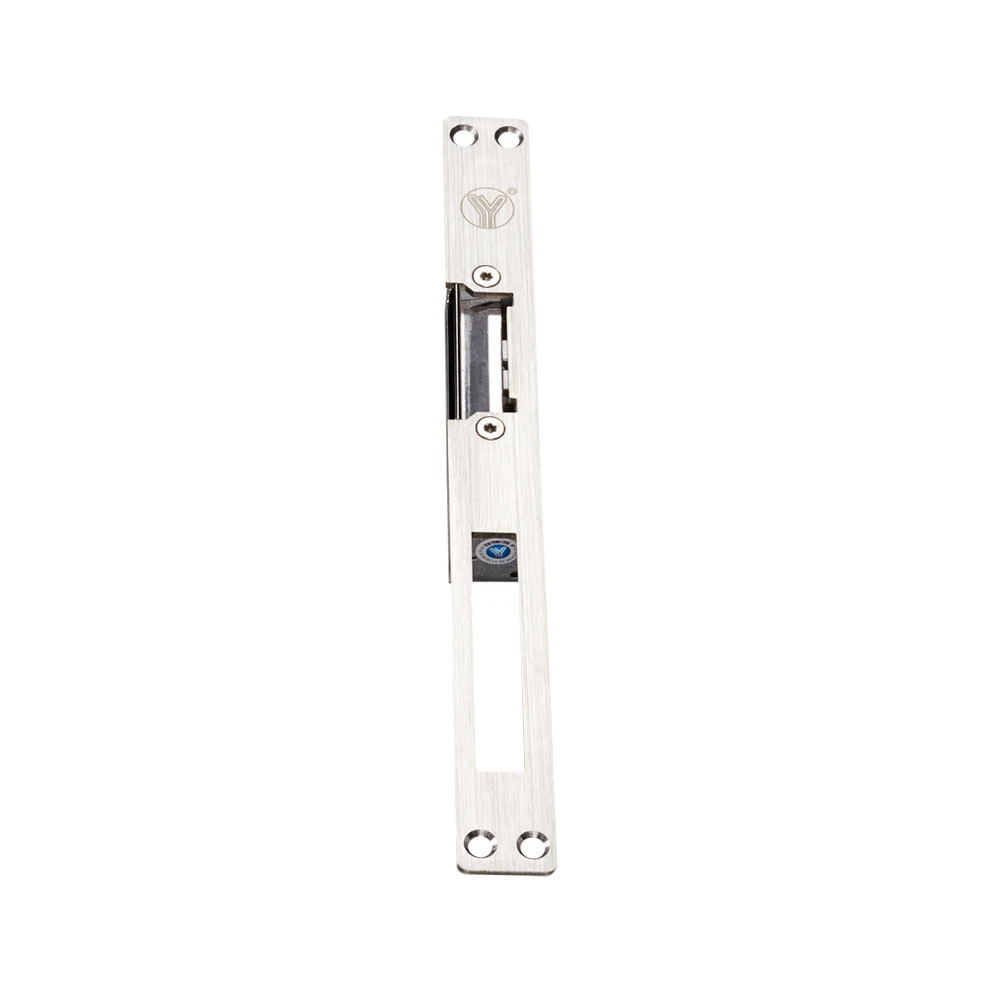

Fail Safe Short Plate Oblique Mouth Electric Door Strike YS 132NC
- Category: >>>
- Supplier: Shenzhen Yli Electric Lock Co. Ltd.
Share on (568910652):
Product Overview
Description
Product Description
Product Application

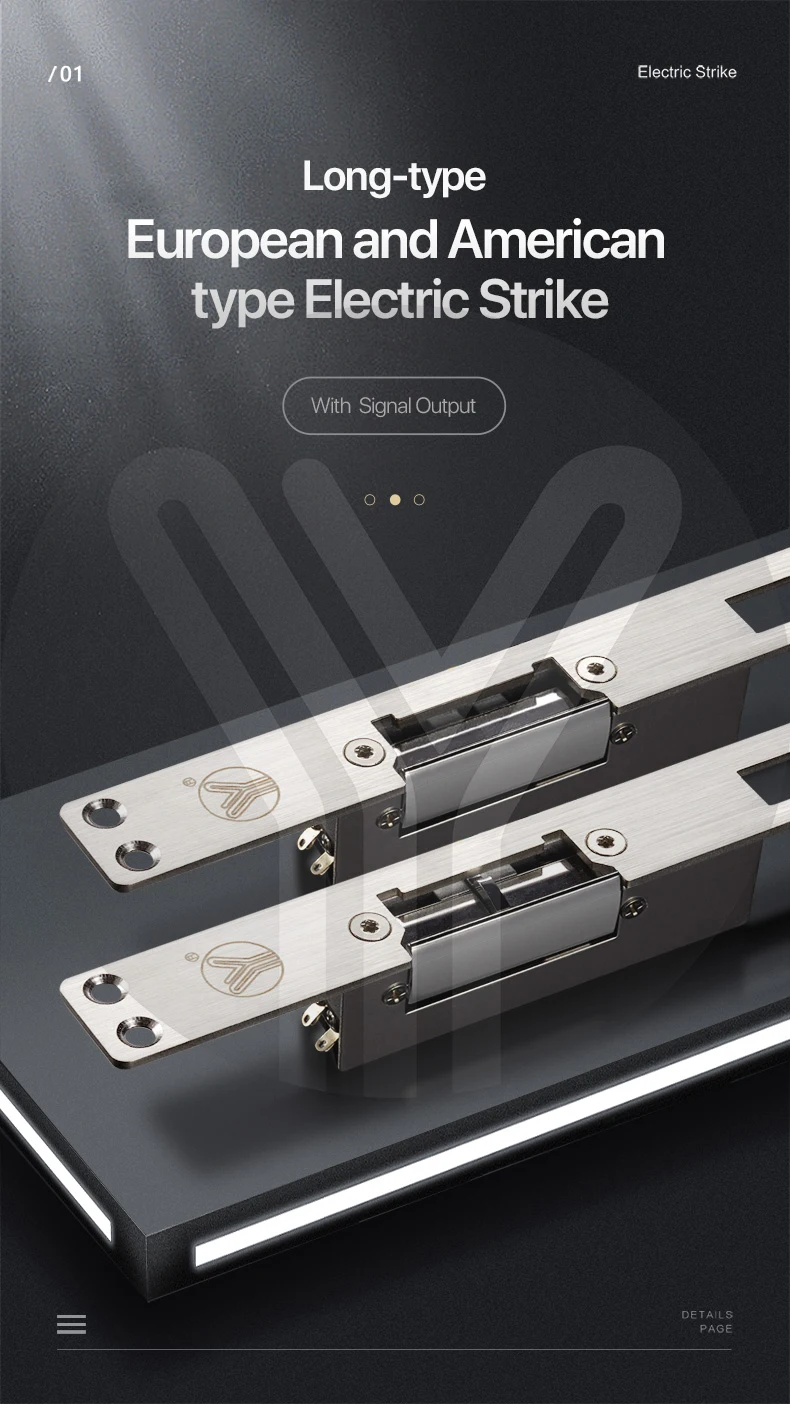

Electric strikes come in many varieties.YS-132NO/NC is the electric strike with long faceplate. It has two modes: A fail safe electric strike needs power to keep it locked. A fail secure electric strike stays locked even without power.

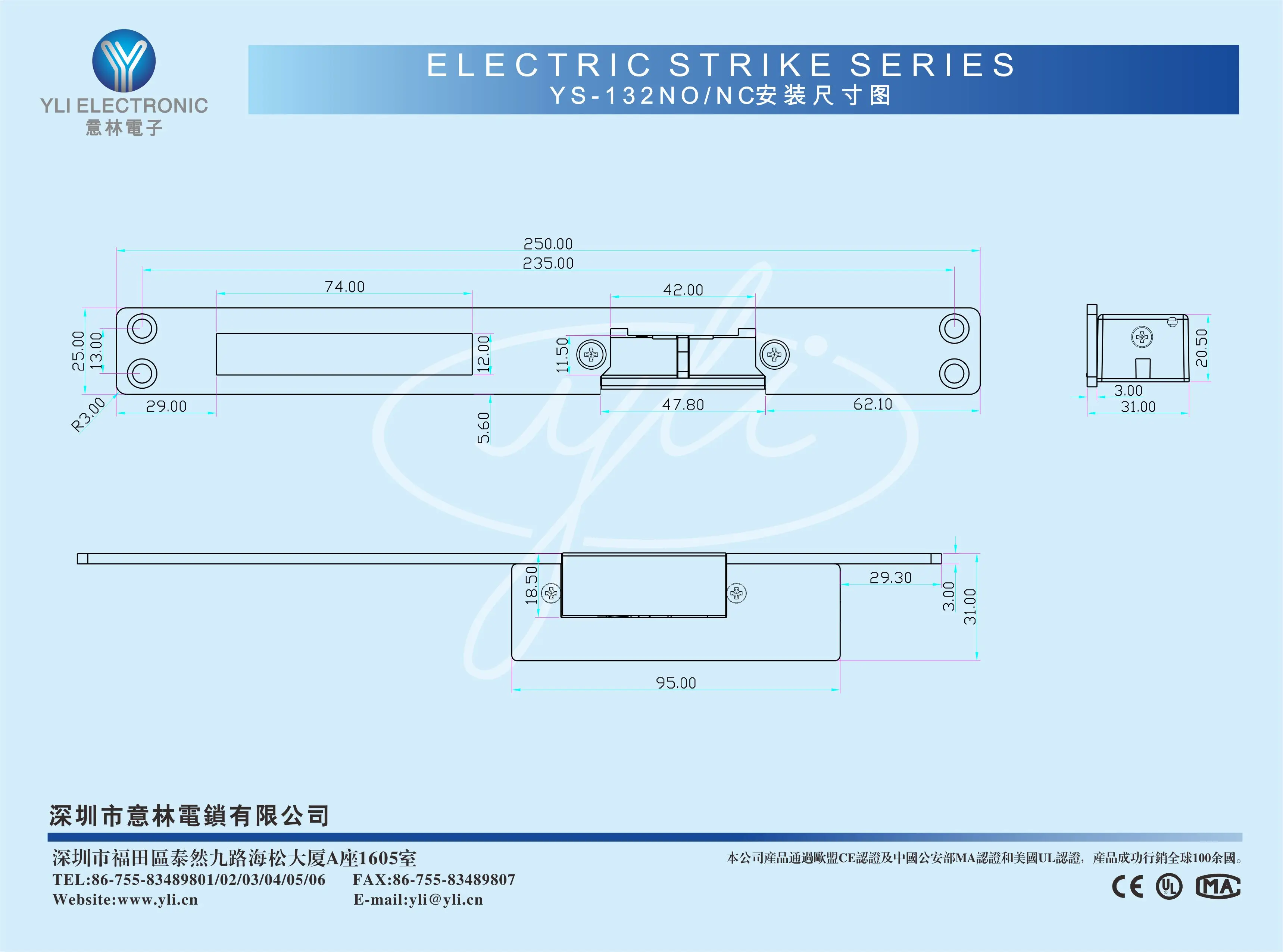

Lock Size | 250Lx25Wx31H(mm) | ||||

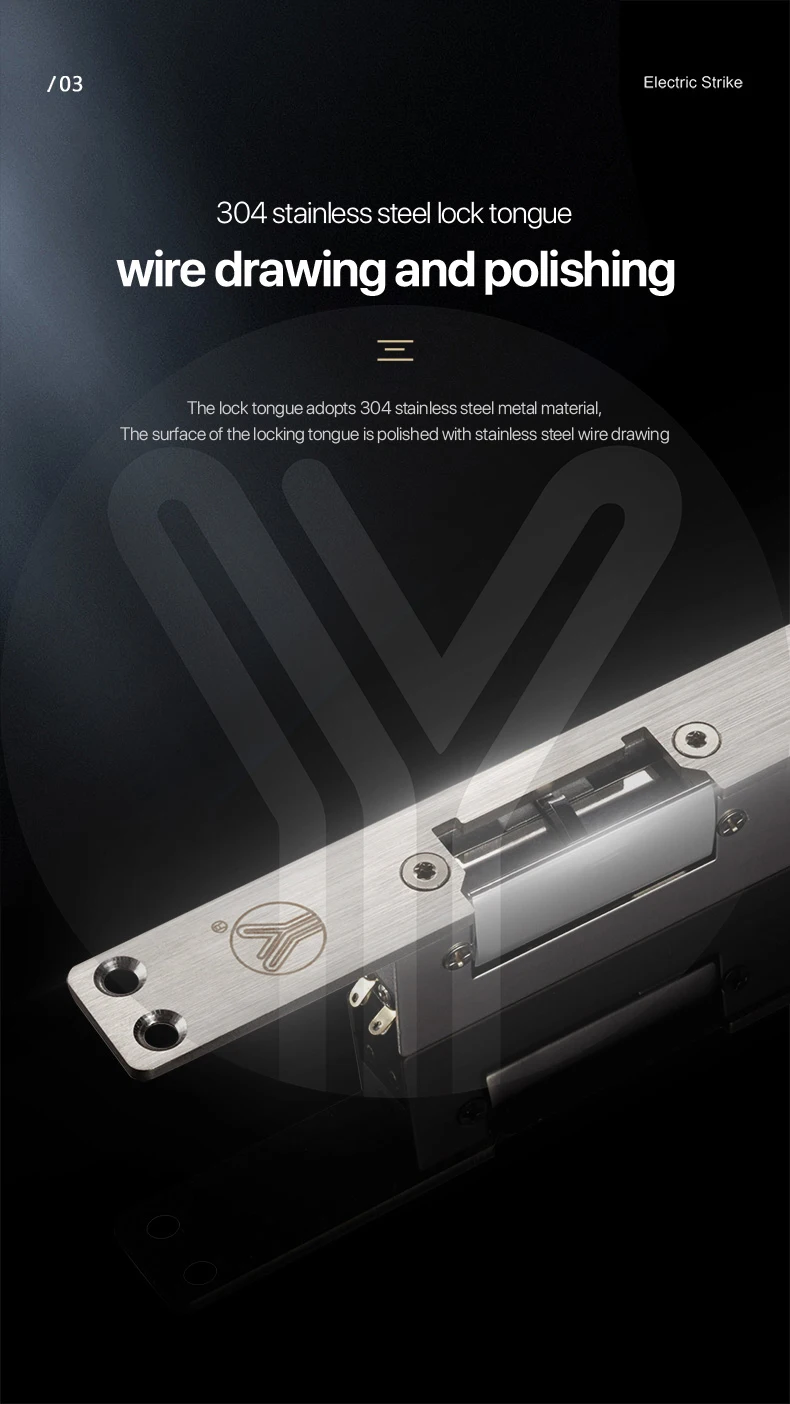

Strike Structure | Stainless Steel | ||||
Holding Force | 500kg | ||||
Voltage | DC12V (Need Order DC24V) | ||||
Current | 200mA(YS-132NO);200mA(YS-132NC) | ||||
Feature | Fail Secure(YS-132NO); Fail Safe(YS-132NC) | ||||
Suitable For | Wooden Door,Metal Door,PVC Door | ||||
Surface Temperature | Within +20℃ | ||||
Suitable Temperature | -10~+55℃(14-131F) | ||||
Operating Humidity | 0~90%(non-condensing) | ||||

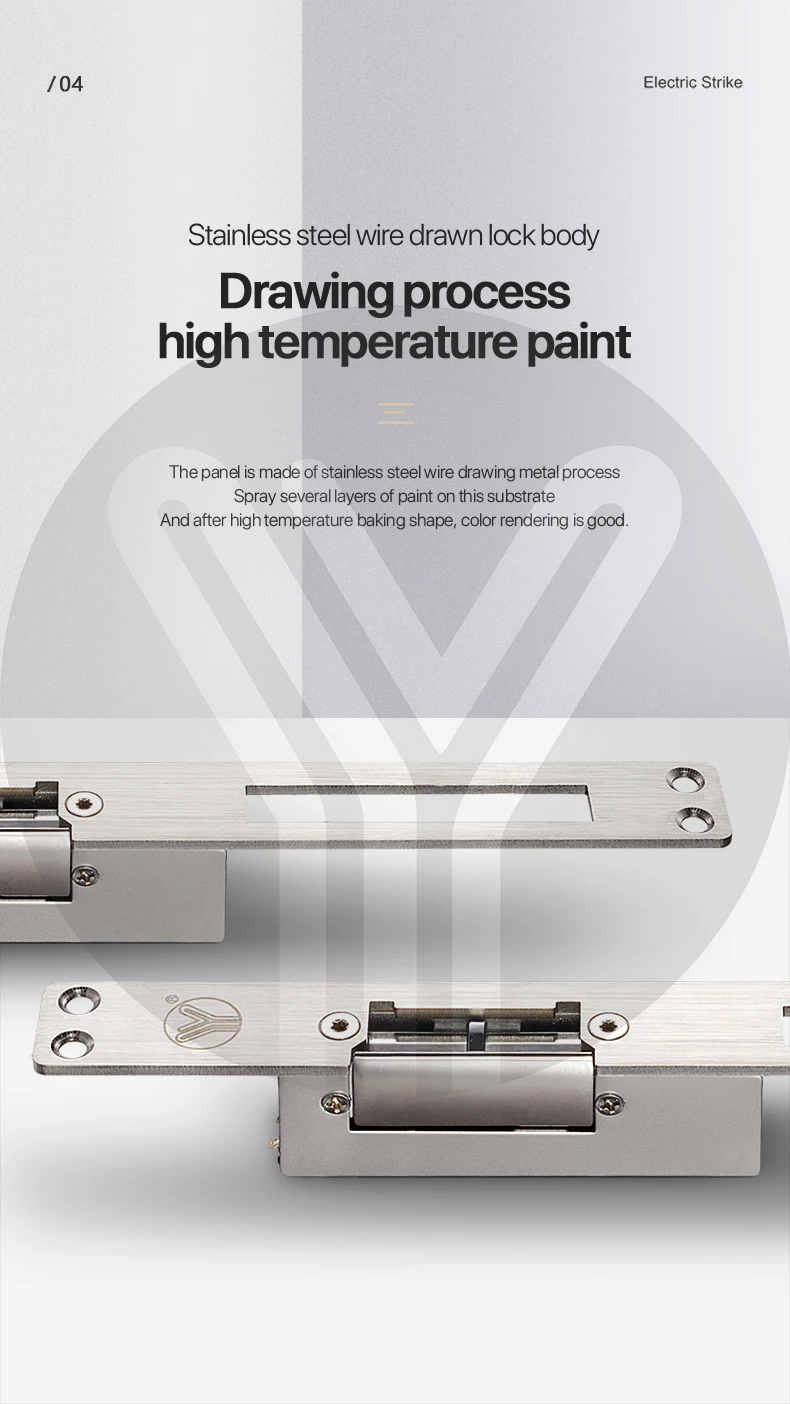

Face plate Housing | Painted Steel | ||||
Function | Built-out MOV | ||||
Optional Accessories | YS-308 | ||||
Weight | 0.4kg | ||||
