automatic winding machine
- Category: Winding Machines >>>
- Supplier: Zhejiang Qunli Plastics Machine Co. Ltd. [Zhejiang China]Zhejiang
Share on (569400993):
Product Overview
Description

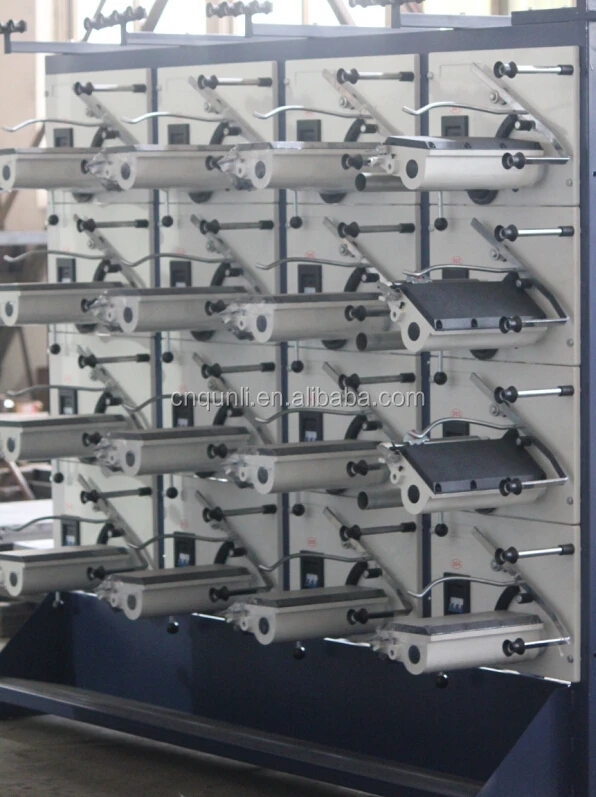

Automatic winding machine
Performance and characteristics:
The machine matches the tape drawing machine to wind the tape into tape spindle for the weaving of circular loom.
It adopts magnetic-driving which makes the winding speed twice as quick as that of combination winding machine and keeps the winding tension steady and winding spindle flat to improve the quality of weaving flatness,by maching high speedtape drawing machine, it can increase the output and reduce the cost greatly.
Main technical parameters:
| Type | Layer number of spindle | number of spindle | winding of tape spindle | speed of tape winding | gross pwoer |
| QL-SDC-112A | 4 | 112 | 200(240)mm | 50-280m/min | 20kw |
| QL-SDC-144A | 4 | 144 | 200(240)mm | 50-280m/min | 26kw |
| QL-SDC-168A | 4 | 168 | 200(240)mm | 50-280m/min | 30kw |
| QL-SDC-192A | 4 | 192 | 200(240)mm | 50-280m/min | 35kw |
| QL-SDC-240A | 4 | 240 | 200(240)mm | 50-280m/min | 43kw |
| QL-SDC-256A | 4 | 256 | 200(240)mm | 50-280m/min | 46kw |
| QL-SDC-288A | 4 | 288 | 200(240)mm | 50-280m/min | 52kw |
Machine details:
Machine back side
Motor
Company Information
Zhejiang Qunli Plastics Machine Co.,Ltd is an enterprise which was recognized by the state, intergration to scientific research, manufacturing, sales, import and export, have 300 staff members including over 50 technical persons and senior managers.
Our company is a modern enterprise producing Plastic machine, PP woven bags and paper cup machine professionally with more than 20years old experience and high advance technology. Products have sold throughout the country and other overseas countries and regions, such as Russia, Vietnam, Indonesia, S. Afric, Braziland, etc.
We will, as always, following the purpose "Credit creates benifits, quality leads to survive", our all staff sincerely hope to have a pleasant cooperation with customers both at home and abroad in the future.

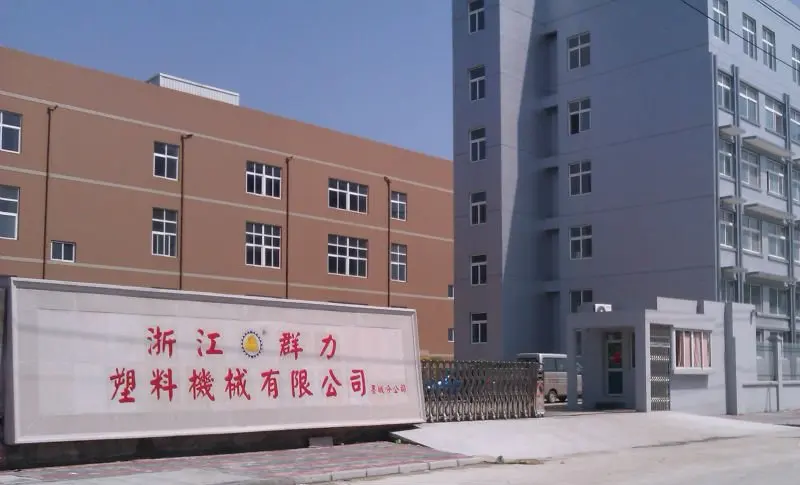

Our head office:
Our subsidiary:
