single acting multi stage dump truck hydraulic telescopic cylinder

Product Overview

Description

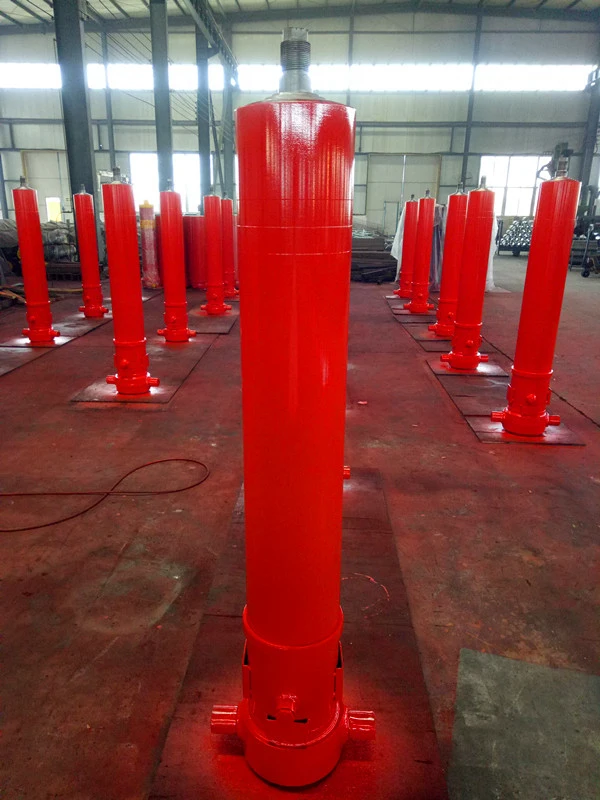

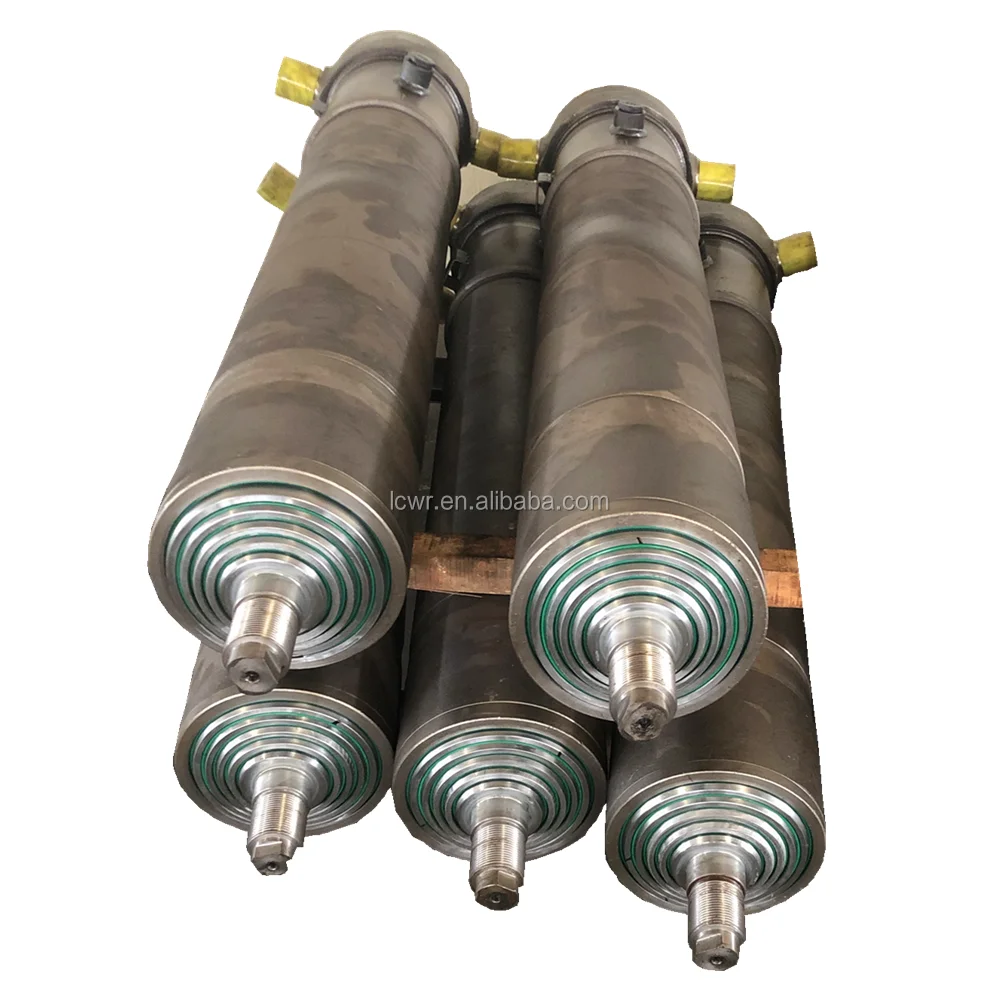

  single-acting multi-stage dump truck hydraulic telescopic cylinder

• Application: dump truck


•

  Designed For: Single-acting




•

  Stage:3~5 stage cylinder




•

  Max inner tube diameter: 170mm,180mm,195mm,200mm,210mm,etc.




• Mounting distance: 325mm/345mm/425mm


• Working Pressure:16Mpa


• Stroke:750mm~7200mm


• Tipping Weight:35~68Ton


•

  Seal Type: Parker,NOK, BUSAK SHAMBAN or as customer's requirement




•

  Piston Rod: Chrome or nickel plated,ground & polished piston rod




•

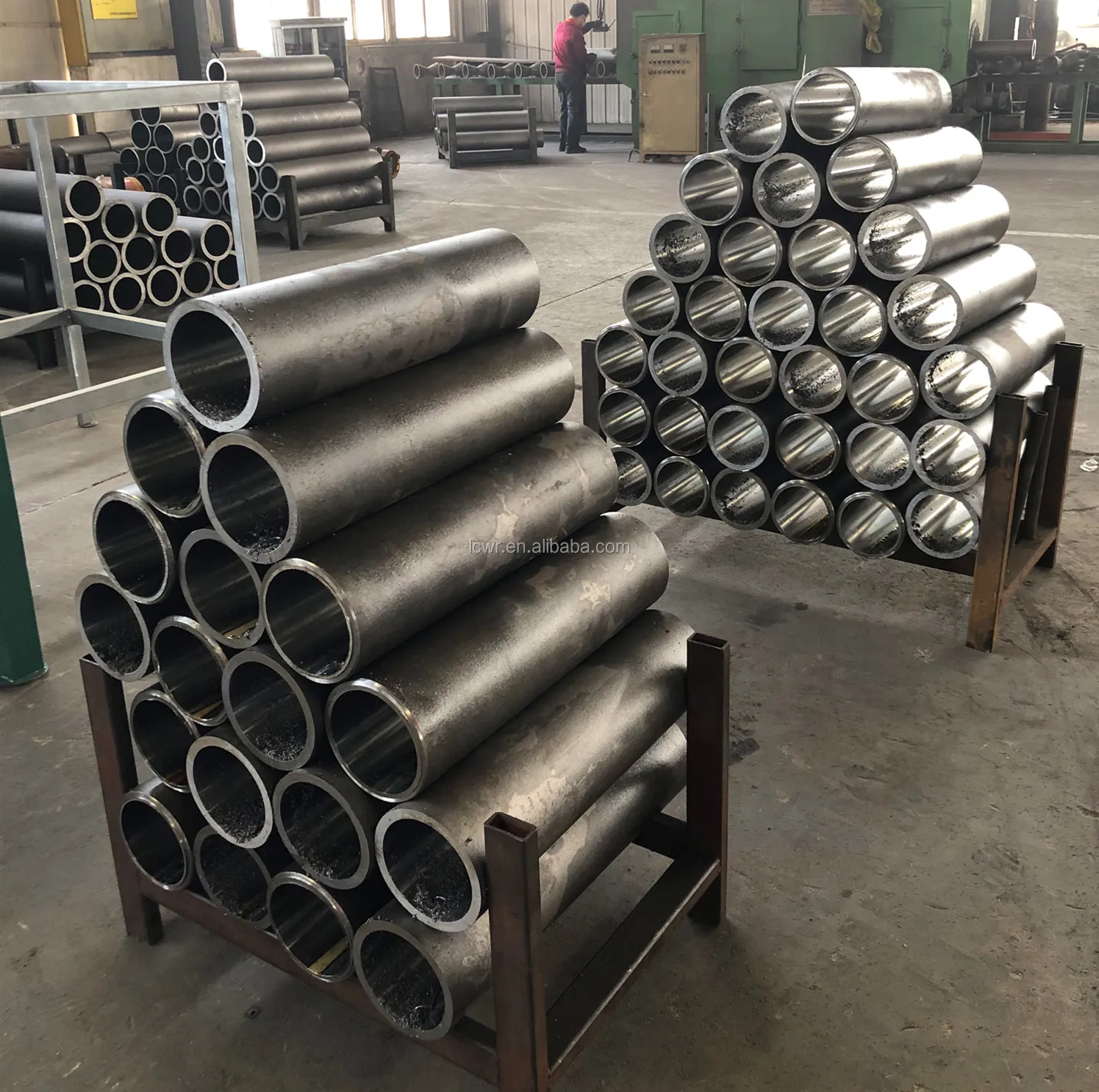

  Tube: High tensile cold drawn tube, precision honed for extended seal life




•


•




  Any interesting or inquiry,please feel free to contact,if you can provide the following information with your quotation,we will be very appreciated and offer you ASAP.Thanks for your cooperation.




  1)Hydraulic cylinder Data:




  a.Bore size:




  b.Stoke length:




  c.Rod Diameter:




  d.Mounting Type:




  e.Mounting length:




  d.paint color requirement:




  2)Application Data:




  a.Type of machine(loader,steer loader,excavator,etc.):




  b.Type of function(hoist,swing,steering,etc.):




  c.Type of structure(piston,telescopic):




  d.Single acting or double acting




  e.Operating Pressure:




  3)Customer Data




  a.Contact name:




  b.company name:




  c.website(if had):




  e.address:




  f.TEL and Fax:




  g.E-mail,MSN,YAHOO,SKYPE
