Изоляционная машина для стекла sencondary, машина для запечатывания

Product Overview

Description

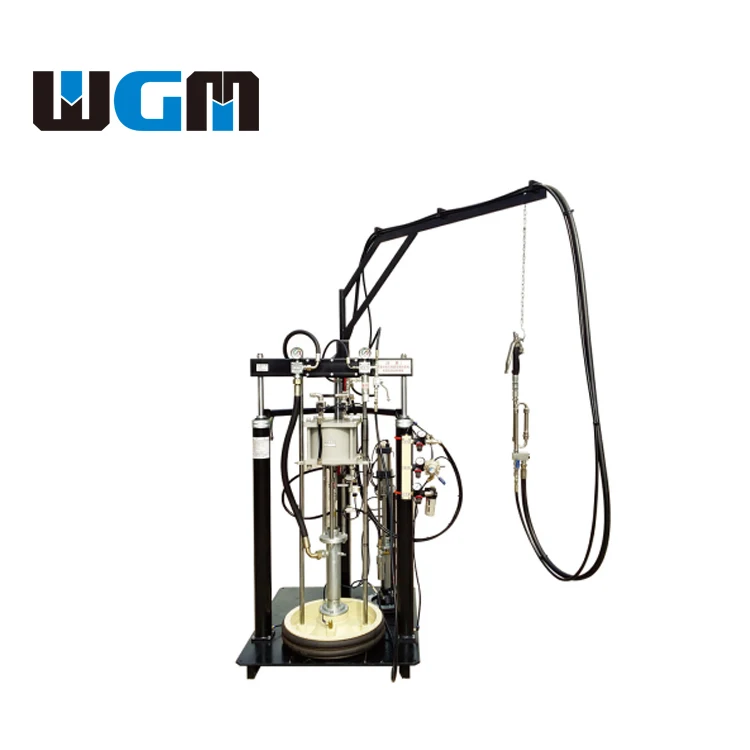

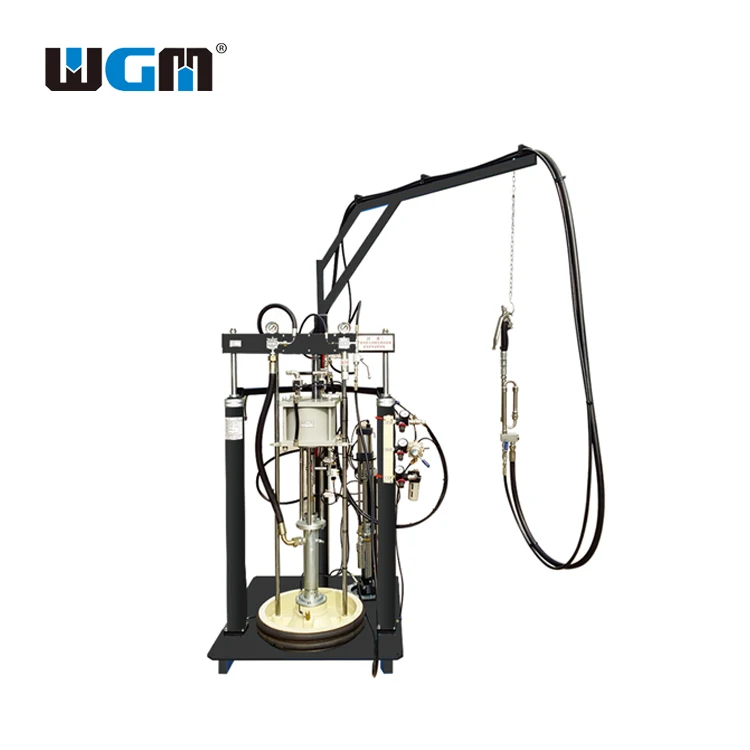

Silicone and Polysulfide extruding machine---ST05 Sealant-Spreading machine







Main Feature:

1.The machine’s curing agent system is fully closed, which can prevent the agent from exposing to air and getting solidified.

2.The fluid flow rate stability is ensured and mixing effect improved. The system is also equipped with a pipes overload protection device, which makes it to be more safety for operation.

3.The A and B component glue pump and proportional pump's high pressure valve are made of ground special leak-free alloy.

4.The special and convenient mixing device ensure high precise mixture performance.

5.The internationally prevailing stationary reciprocating mixer is used in the machine, with the specially designed needle valve, the mixture result is excellent. The special material with elasticity is used to make the dispensing nozzle, the production of insulating glass is more convenient, simple and elegant.

6.Imported glue gun,reliable sealing.

7.The machine can be used to spread two-component polysulphide glue or silicone glue.



Main Technique Parameter:



Power Supply	380V/50Hz
Mixed Rate	6: 1--14: 1
Sealant Volume	4L/min
A pump size	300 KGS
B pump size	30   KGS
Total Power	1.5KW
Air Pressure	0.5--0.8MPa
Dimension	2900*1000*2150mm
Total Weight	650kg
