TS 224 2 Channel Feedback Suppressor Microphone Feedback Eliminator
- Category: >>>
- Supplier: Guangzhou ITC Electronic Technology Limited
Share on (570437563):
Product Overview
Description

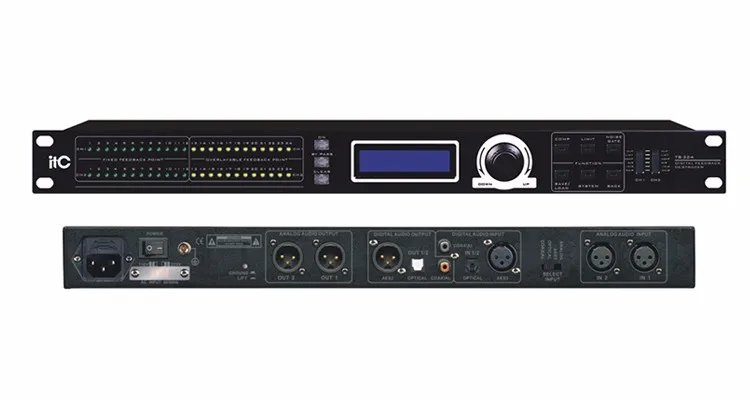

TS-224 2 Channel Feedback Suppressor Microphone Feedback Eliminator
Feature
* 96KHz sampling frequency, 32-bit DSP processors, 24-bitA / D and D / A converter.
* The digital signal input and output channels provide coaxial, AES and fiber optic interfaces.
* Using the LCD display 144 x 32 display parameters functions, providing 4-segment LED output level display.
* Each channel has 24 LED lights to display the status of the howling suppression quantity.
* Each channel provides compression, limiter, noise gate, feature set.
* The operating mode can be switched to straight-through or feedback inhibition.
* Fixed and dynamic feedback can be arbitrary edit point number, also can be a key to remove the noise points.
* The machine can store 30 groups the user program.
Specifications
Model | TS-224 |
Input Channel and Socket | 2-channel XLR female Analog inputs / 2 stereo coaxial / optical fiber / AES inputs (each digital port transmit two way audio signal) |
Output Channels and Socket | 2-channel XLR male connector Analog Output / 2 stereo coaxial / optical fiber / AES inputs (each digital port transmit two way audio signal) |
Input Impedance | Balanced: 20KΩ |
Output Impedance | Balanced: 100Ω |
KCMR | >70dB (1KHz) |
Input Range | ≤+20dBu |
Frequency Response | 15Hz~25KHz (-0.3dB) |
S/N Ratio | ≥98dB@1KHz0dBu |
Distortion | <0.01% OUTPUT=0dBu/1KHz |
Channel Resolution | >80dB (1KHz) |
Howling Search and Suppression Mode | Automatic notch |
Input Signal Frequency Response | 20Hz~20KHz ±0.5dB |
Filter | Independent 24 per channel |
Minimum Bandwidth | 1/27th Octave |
Maximum Bandwidth | 1/14th Octave |
Frequency Resolution | 0.5Hz |
Whistle Seek Time | 0.1—0.5S |
FFT length | 2048 |
Sound Transmission Gain | 6—10dB |
System Gain | 0dB |
Compression | Starting level: -40dB~+20dB; Compression ratio: 1:1.0~1:20.0; Response Time: 10~200ms; Recovery time: 50ms~5000ms |
Limiter | Starting level: -40dB~+20dB; Response Time: 10~200ms; Recovery time: 50ms~5000ms |
Noise Gate | -120dB~-40dB.A26 |
Display | With a resolution of 144 x 32 LED display, Provide 4 LED display output level |
Processor | 96KHz Sample frequency, 32-bit DSP Processor, 32-bit A/D and D/A conversion |
Power Consumption | <20W |
Rack | 1U |
Product Dimension | 482 x 148 x 44mm |
Net Weight | 2.3Kg |
Transport Dimension | 553 x 296 x 98mm |
Gross Weight | 4.3Kg |
Connection

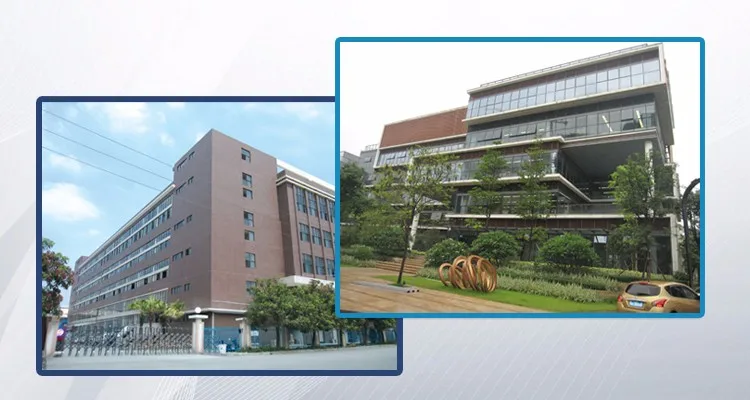

Company Information
Guangzhou ITC Electronic Technology Limited
* Operate a 30,000sqm factory
* 15 years of audiovisual experience
* Integrating research, production, sales and service
* 10 major product series and 1,000+ models
* Support OEM & ODM service

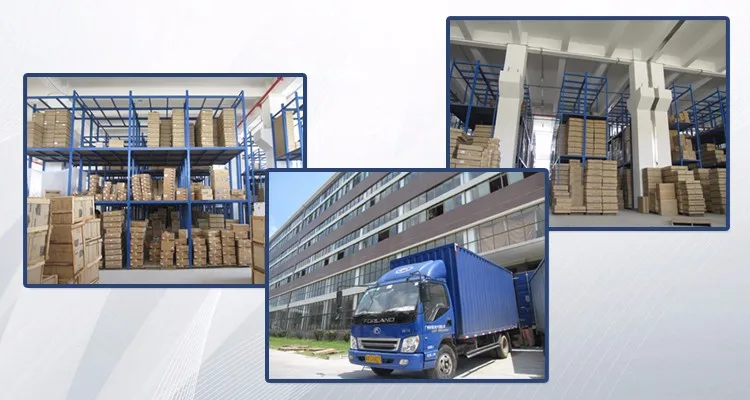

Packaging & Shipping
* We have very strict quality control system.
* We promise the electronics yearly failure rate is less than 1%.
* 100% products need to be aged (full loading) at least 24 hours and tested 4 times before delivery.
Exhibitions
By now, we have been successfully conducting both import and export activities worldwide for 10 years with suppliers and buyers.
Certifications
We have 50 software copyright and 12 patents.
Product complied with certificates:
CE Certificate
ISO9001, ISO14001, IS018001, ISO27001
CCC Certificate: China Compulsory Certification
International Standard Product Making Certificate
Successful Cases
Our Services
Pre-sale Service
* High Quality + Factory Price + Quick Response + Reliable Service, is our working faith.
* Professional foreign trade team, Reply your Alibaba enquiry and trade messager in 24 working hours.
* 30 system consultants and 10 designers to make drawing and BOQ for each tender.
* Design and BOQ response to customer within 48 hours.
Middle-sale Service
* Testing quality again before sending goods.
* Well-trained sales team for sales and basic technical service.
* Online system software demo and configuration is available.
* PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
* Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goods.
After-sale service
* ITC guarantee all electronics of 3 years quality warranty.
* ITC could supply 1% wearing spare parts free of charge.
* Two English spoken technician provide online after sales service.
* Technical documents could be downloaded from website www.itc-pa.com.cn.
* All of the quality compliant shall be feedback with a solution within 48 hours.
