HSS 10 ~ 85 мм круглый инструмент для вытаскивания

Product Overview

Description

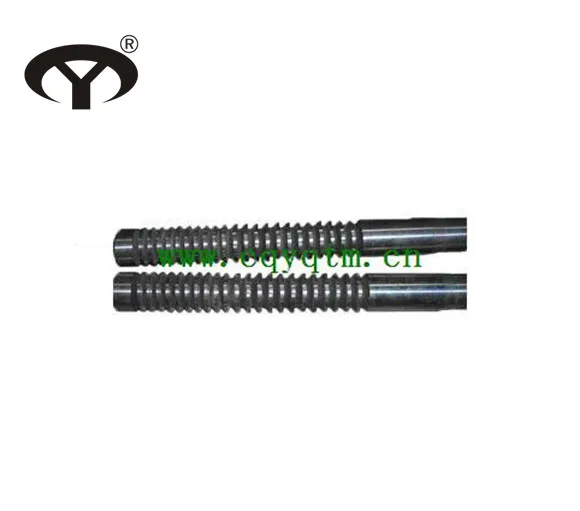

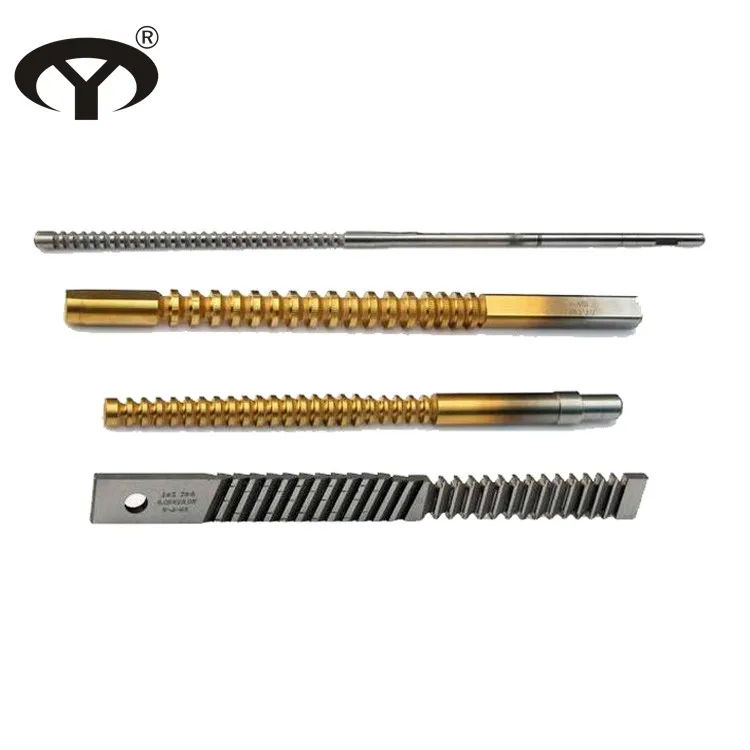

HSS 10~85mm Round Push Broaching Tool Pull Broach



1. Material : M2/M35



2. Specification table of round push broaching tool :





Nominal Dia.	Overall Length	Pushing Length	Pushing Quantity
10	140	1030	0.04
11
12
13
14
15
16	140.170	1050
17
18
19	150.185	1050	0.040.06
20
21
22	155250	1080
24
25
26
28	185350	18120
30
31	190360	18120
32
34
35
36
38
40
42	260.365	30120	0.040.06
45
48
50
52	270.370	30120
54
55
58
60
62
65
70
75
80
85























Material Introduction:



A. W6Mo5Cr4V2 (GB)  M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance





W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
