SMF 500 High Speed PVC Plastic Mill Machine

Product Overview

Description

Tairong Machine

SMF-500 High-Speed PVC Plastic Mill Machine



1.Characteristic

The unit is an ideal equipment of processing and milling thermal PVC,PE and other plastics.



1.With water cycle and wind cooling,the machine can be applied into processing heat sensitive material.

2.With the tail-wagging air stream(partly eddy flow)produced by the tail-wagging of the main shaft capstan of the machine(without sieving).

3.Both the board and the cutting blade are made of abrasion-resistant steel,with excellent performance after heat treatment.

4.With severeness of framework,the volume of the machine is quite small.If you open door closure,you can maintain it.It is completely airproof and without any dust leakage.

5.With winding reclaiming equipment,the machine is features by cooling materials evenly,quick cooling and some other characteristics.

Model	SMW-400	SMW-500	SMW-520	SMW-550	SMW-600
Milling chamber DIA:	Φ400	Φ500	Φ520	Φ550	Φ600
Rotor QTY	3	3	3	3	3
Main Speed RPM.	3800	3900	3900	3900	3900
Main motor power:	30KW	30KW	37KW	37KW	45KW
Close blower power	0.75kw	0.75KW	0.75KW	0.75KW	0.75KW
Blower power	2.2kw	2.2KW	3KW	3KW	4KW
Final powder size	12-120 micron	12-120 micron	12-120 micron	12-120 micron	12-120 micron
capacity	50-120kg/hr	150-200kg/hr	180-250kg/hr	200-300kg/hr	300-550kg/hr
Round Vibrating sieve	without	Customized	Customized	Customized	Customized
Dust collecting system	without	Customized	Customized	Customized	Customized
Cooling system	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling
Machine weight	850kgs	1200kgs	1250kgs	1300kgs	1550kgs
Dimension	2200*800*2100 (mm)	5900*1450*2900 (mm)	5900*1450*2900 (mm)	5900*1450*2900 (mm)	5900*1450*2900 (mm)

 Machine Pictures



For the SMF 400

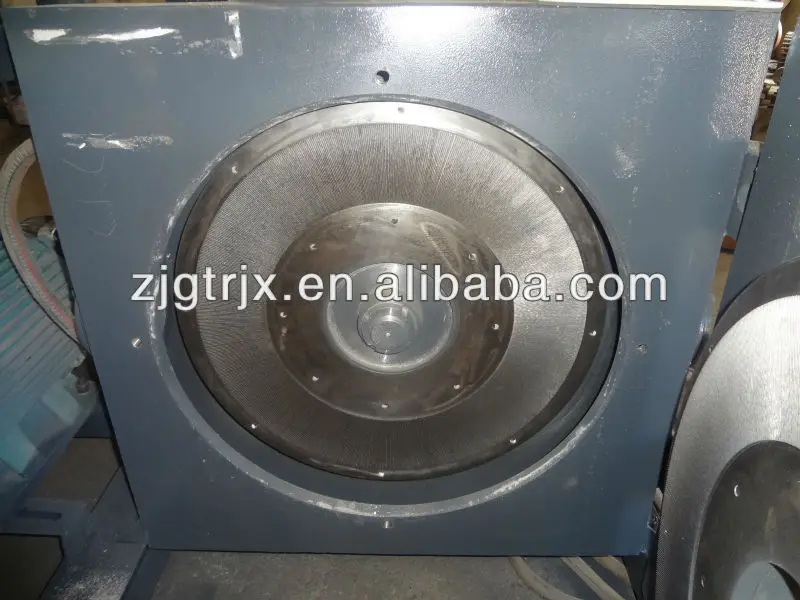

For  the Soft Material we will suggest the Disk- Type

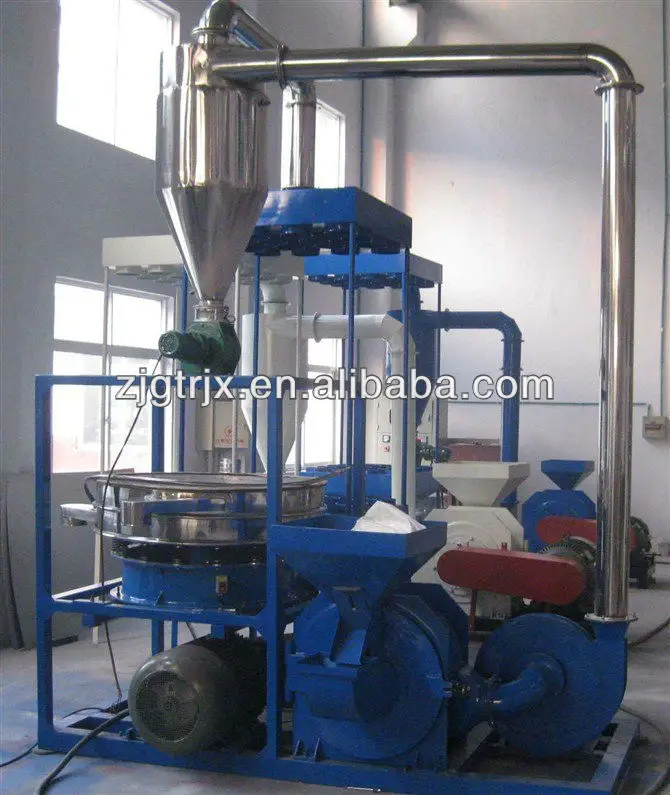

SMF 500 For Hard PVC PE Material

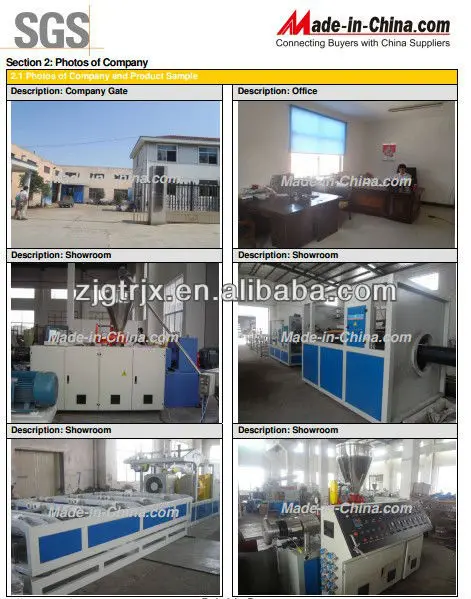

 SGS
