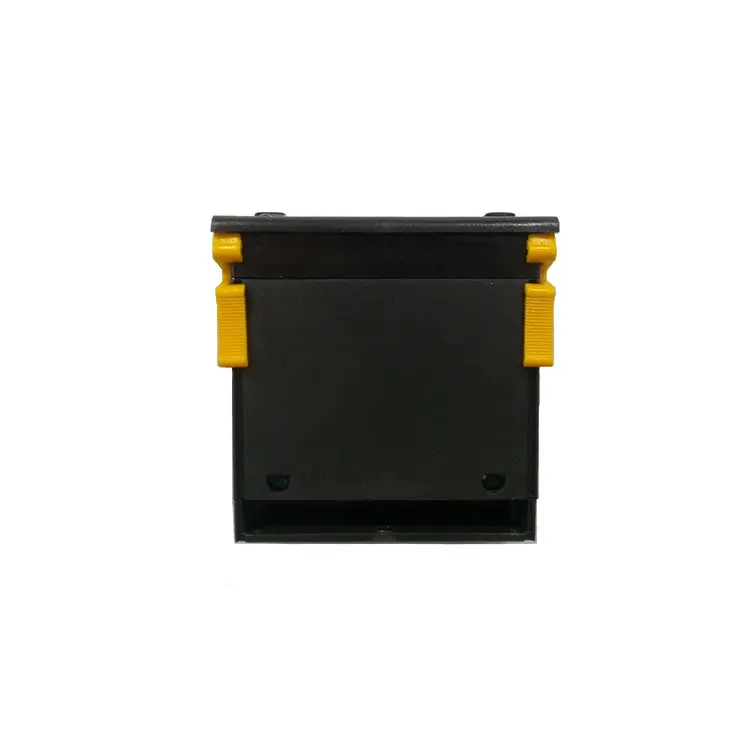

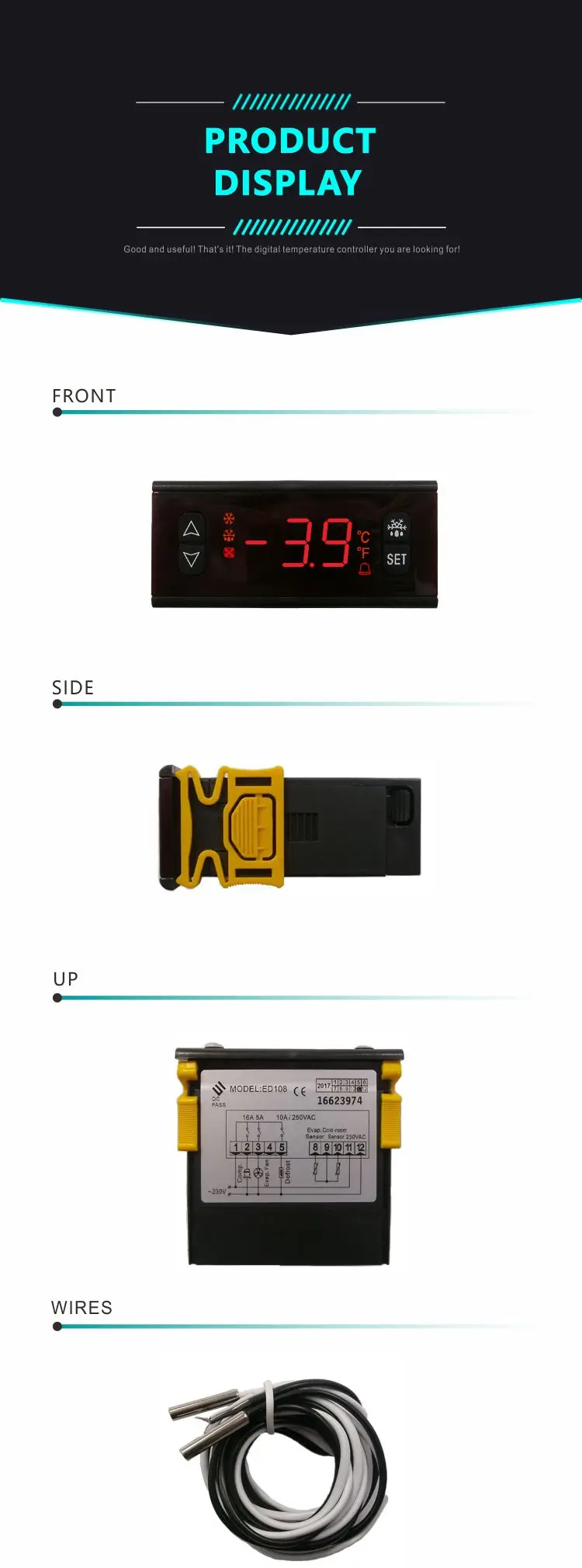

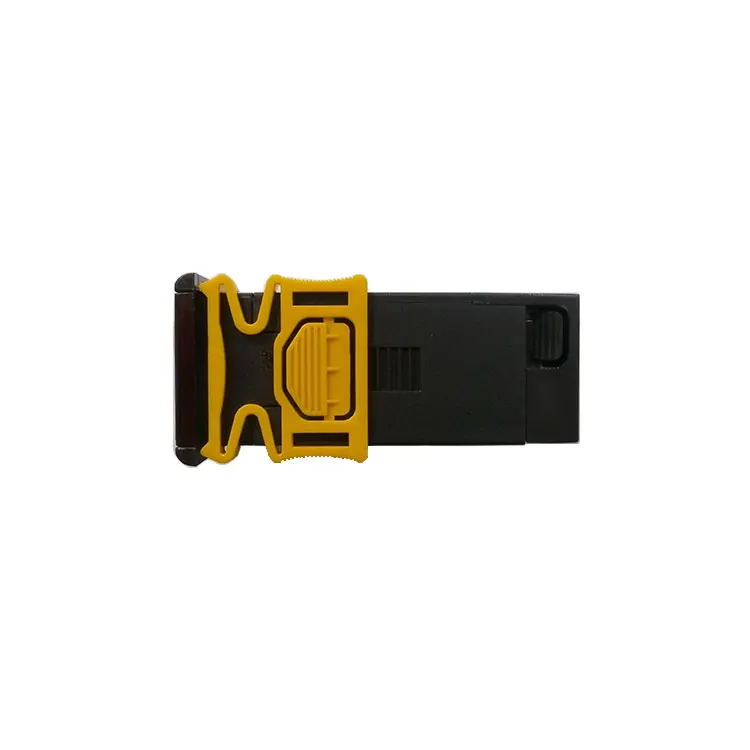

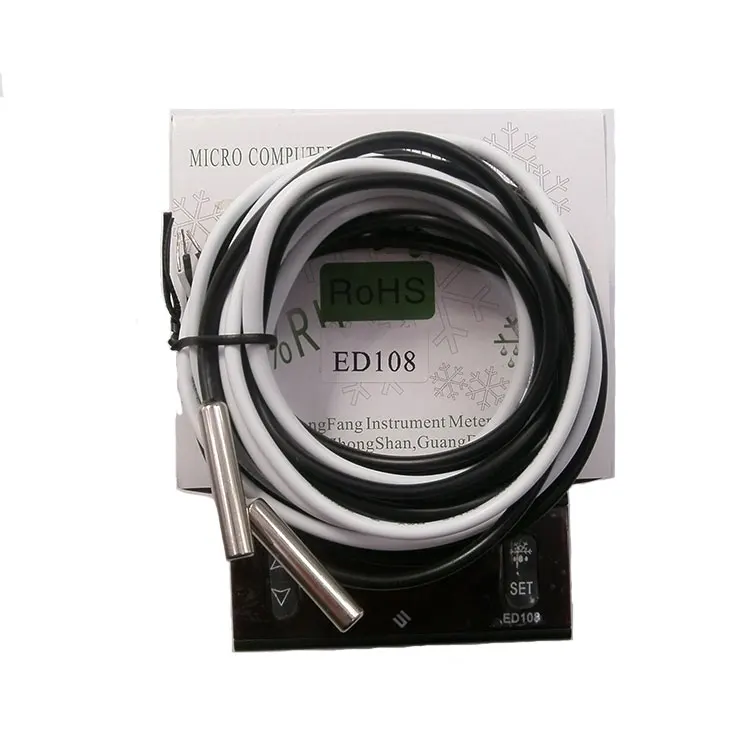

ED108 Freezer Cabinet Temperature Control Refrigerated Electronic Thermostat
- Category: >>>
- Supplier: Zhongshan Shangfang Instrument Meter Co. Ltd.
Share on (571020355):
Product Overview
Description
ED108 Freezer Cabinet Temperature Control Refrigerated Electronic Thermostat
Product Description
Features
Temperature Control / Evap.Fan Control
Manual/automatic defrost by electric heater,hot gas
Time/temp.setting to end defrost
High,Low temperature alarm
Re-start delay / Parameters locking
Technical Data
Range of temperature displayed : —45~150℃ (-45~150℉)
Range of set temperature: —45~45℃ (-45~113℉)
Accuracy:±1.0℃ (±1.8℉)
Resoluition:0.1℃(-19.9~99.9℃)

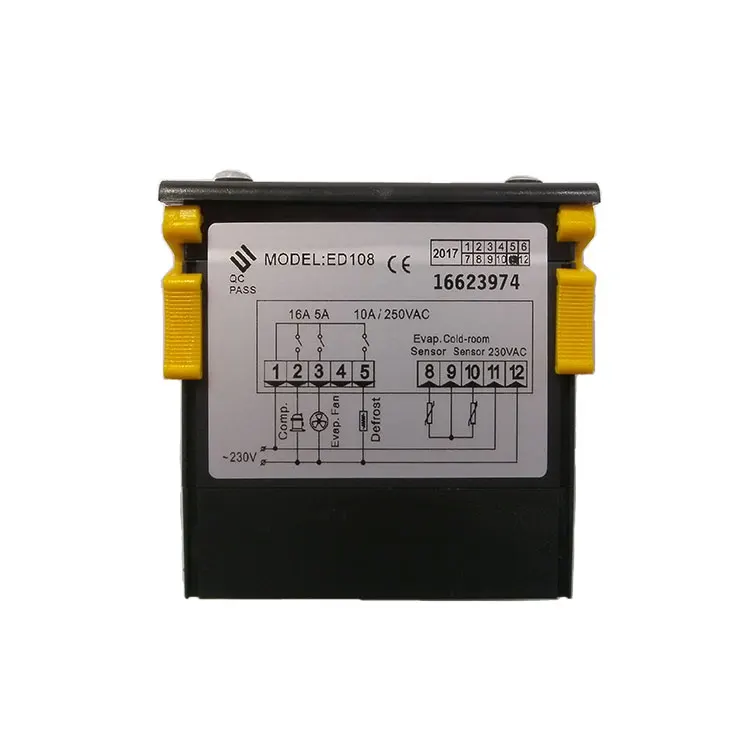

Compressor: N.O. 16A/250VAC
Defrost: N.O. 10A/250VAC
Evap.Fan: N.O. 5A/250VAC
Dimension:77(Length)×35(Width)×60(Depth)mm
Mounting hole dimension:71(Length)×29(Width)mm
Parameters
Paramete | Function | Set range | Default |
| E1 | Lower setpoint limit | -45℃/-45℉~Set temp. | -31℃/-35℉ |
| E2 | Higher setpoint limit | Set temp.~45℃/113℉ | 45℃/113℉ |
| E3 | Temp.hysteresis | 1~20.0℃/1.8~36.0℉ | 4.0℃/7.2℉ |
| E4 | Comp.start delay time | 0~10Min | 2Min |
| E5 | Offset on room temp. | -20.0~20.0℃/-36.0~36.0℉ | 0 |
| E6 | Offset on evap.temp. | -20.0~20.0℃/-36.0~36.0℉ | 0 |
| F0 | Defrost function | 0=Electric heater 1=Hot gas | 0 |
| F1 | Max.Defrost duration | 1~60Min | 20Min |
| F2 | Defrost interval time | 0~24Hr | 6Hr |
| F3 | Defrost termination temp. | 0~30℃/32~68℉ | 8℃/46℉ |
| F4 | Display during defrost | 0=Normal display 1=Last value before defrost | 0 |
| F5 | Dripping time | 0~30Min | 2Min |
| F6 | Temperature display delay time after defrosting(F4=1) | 0~60Min | 20Min |
| H1 | Fan start delay time after defrosting | 0~10Min | 1Min |
| H2 | Fan operating function | 0=Parallel with comp.,close when defrosting 1=Continuous running except defrosting 2=Parallel with comp.,open when defrosting 3=Continuous running except defrosting 4=Start temperature(rests with evap.temp. 5=Start temperature (rests with the temperature in cold-room) | 4 |
| H3 | Fan start temp.(H2=4,5) | -30~30℃/-22~86℉ | 5℃/41℉ |
| H4 | Fan delay after time after comopressor stops.(H2=1,2H) | 0~30Min | 0Min |
| C0 | Resolutio | 0.1/1 ℃/℉ | 0.1 |
| C1 | Temperature unit | 0=Celsius 1=Fahrenheit | C |
| C2 | High temperature alarm | C3~130℃/ C3~130℉ | 50℃/122℉ |
| C3 | Low temperature alarm | -40℃~C2/-40℉~C2 | -40℃/-40℉ |
| C4 | Alarm delay time | 1~90Min | 60Min |
Company Information
Our Services
Packaging & Shipping
FAQ
Could the controller change to 110V and Fahrenheit degree?
The voltakge could be 12 VDC/VAC, 110V, 220V,230V etc and in Fahrenheit degree.
How could I get a sample?
Sample for testing is available here, please contact us for more details.
The specification listed is not perfectly for my needs?
We have many customized options, we can provide the suitable ones for you.
Could not understand the description well?
We can provide more detail photos and even videos to presentation.
We do not need as much as MOQ?
Our MOQ is 50 pcs, but small orders less than MOQ is also acceptable.
