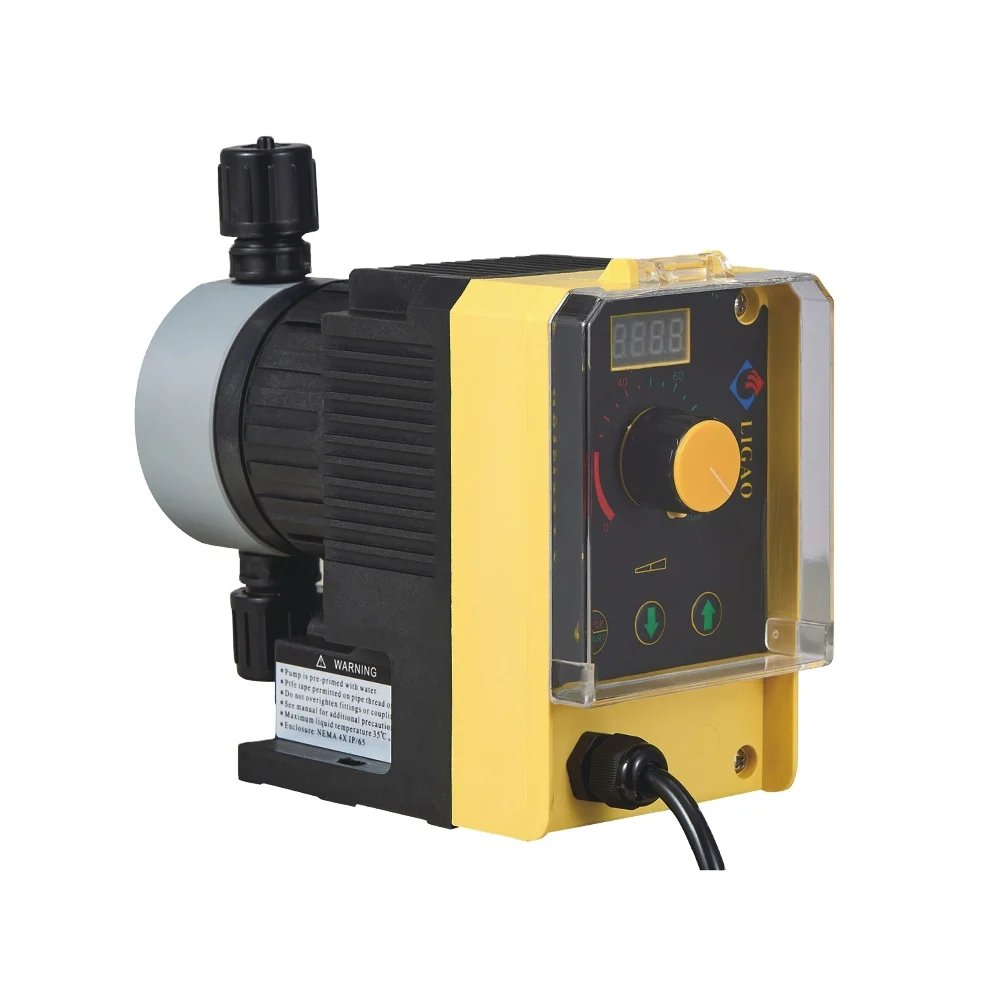

JLM Soleniodl Chlorinne Dosing Pump

Product Overview

Description

 PARAMETER TABLE



Model	Flow          l/h		Pressure Bar		Stroke Rate             spm	Diaphragm          mm	Motor Rower    w	connection mm	Weight        kg
JLM0110	1		10		80	34	30	5*8mm PE hose	4.5
JLM0210	2		10		140
JLM0408	4		8		180
JLM0505	5		5		140	41
JLM0804	8		4		170
JLM1003	10		3		130	51
JLM1202	12		2		150
JLM1501	15		2		160
JLM2001	20		1		180
Material	PVC, PVDF for pump head(liquid end)
Connection type	Hose
Supply voltage	220v, single phase,  50/60 hz on standard; others on request





Capacity range: 1-20 l/h

Electromagnet driving without bearing

Stylish design with smart size

Ease of precise control: by stroke length or stroke speed manually

Fully-sealed pump body offers IP 65 Protection

Low energy consumption with rate power only 30W

PVC or PVDF materials available for all chemical liquids

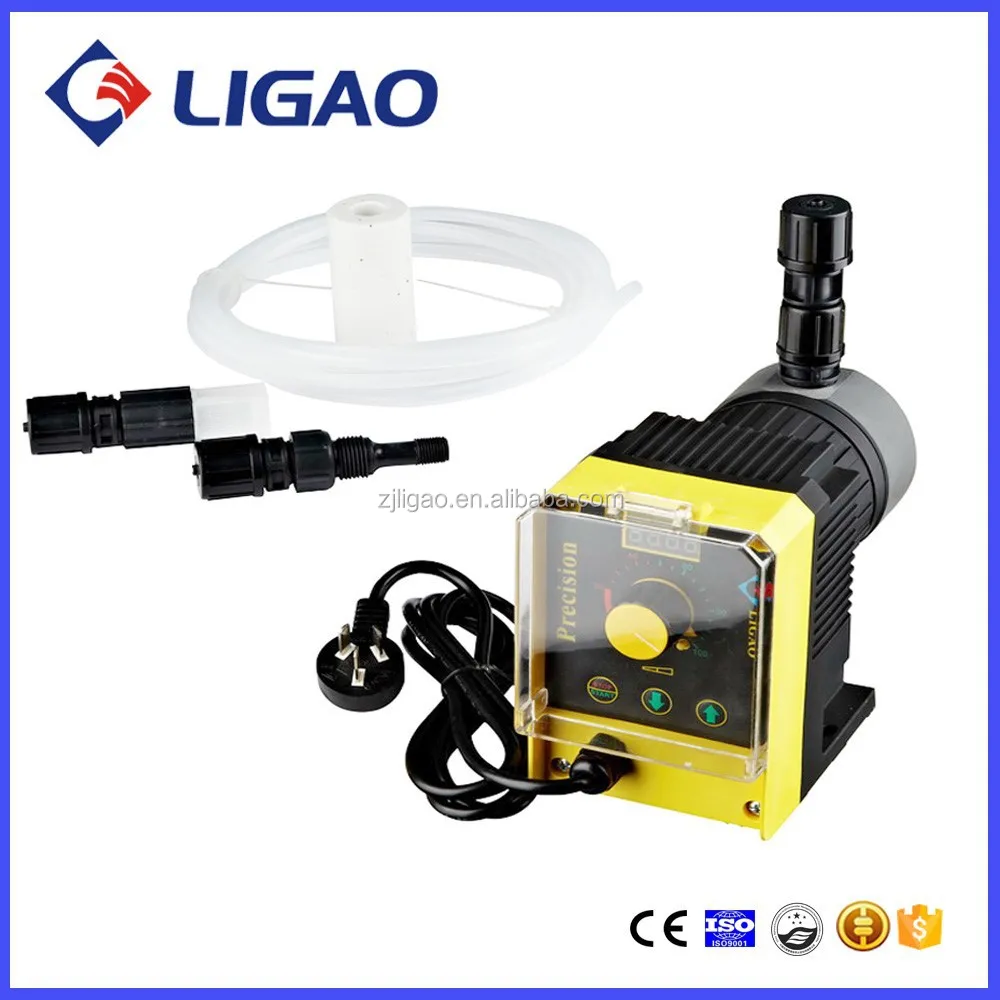

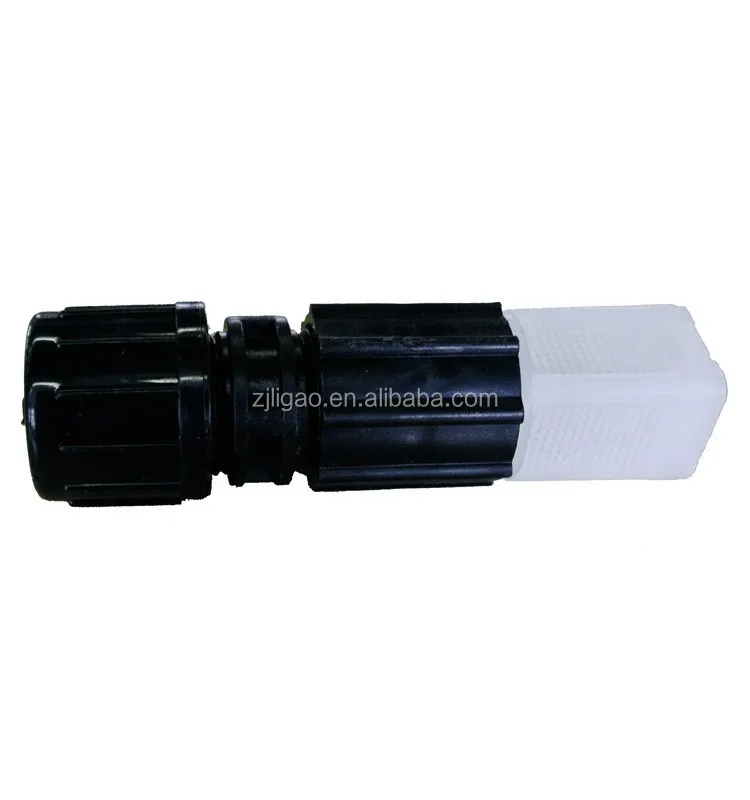

All models with accessories: hose tube,injection valve ,foot valve and check valves
