Точный вертикальный шлифовальный станок для поверхности SGA4080AH, цена

Product Overview

Description

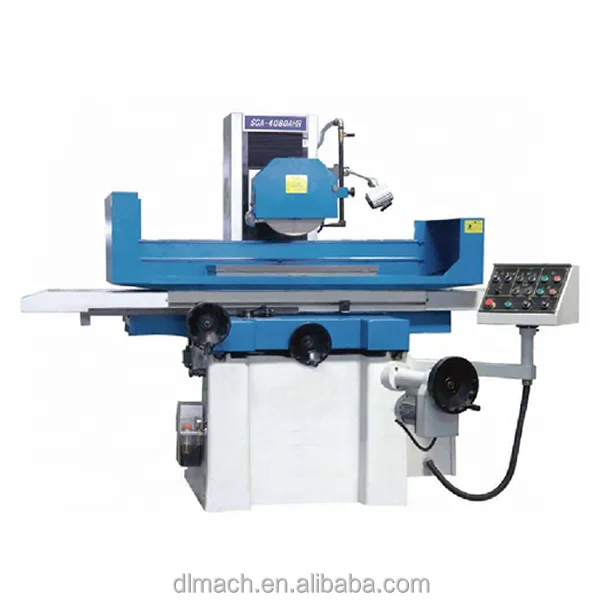

SGA4080AH Precision Vertical Surface Grinding Machine Price









Technical Paraments of Surface Grinding Machine Price

MODEL		Unit	SGA4080AH
Table size(W x L)		mm	406x813
Max longitudinal travel		mm	910
Max cross travel		mm	450
Max distance from spindle center to table		mm	580
Electro magnetic chuck size		mm	400x800
Speed of table longitudinal movement		m/min	7-23
Table transverse movement	Auto feed	mm/min	0.1-8
	Rapid speed	mm/min	990
	Feed of handwheel	Mm/div	0.02
Wheelhead vertical movement	Rapid speed	Mm/min	(H/AH model) model)/460(for AHR
	Feed of handwheel	Mm/div	0.005
Grinding wheel	Speed	rpm	1450(50Hz)  1750(60Hz)
	Size	mm	350x40x127
Spindle motor		kw	5.5
Hydraulic motor		kw	2.2
Cooling pump motor		kw	0.125
Elevating motor		kw	(AH mode)  0.25(AHR mode)  0.5(AHD mode, servo motor)
Cross feed motor		kw	0.04
Max loading capacity of table		Kg	500
Total rated power		kw	9
Height of machine		mm	1890
Floor space(LxW)		mm	3600x2400
Gross weight		kg	3500
Package dimensions(L x W x H)		mm	2850x2270x2180
