Product Overview
Description

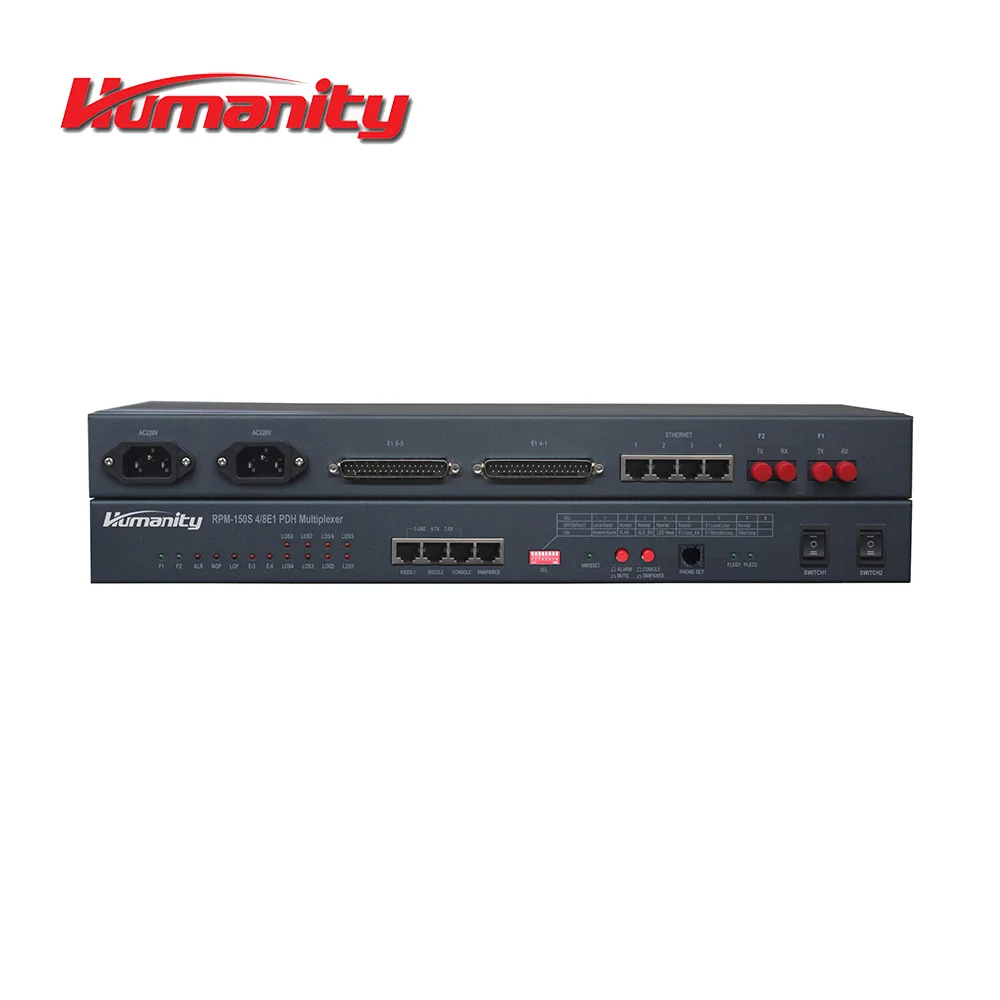

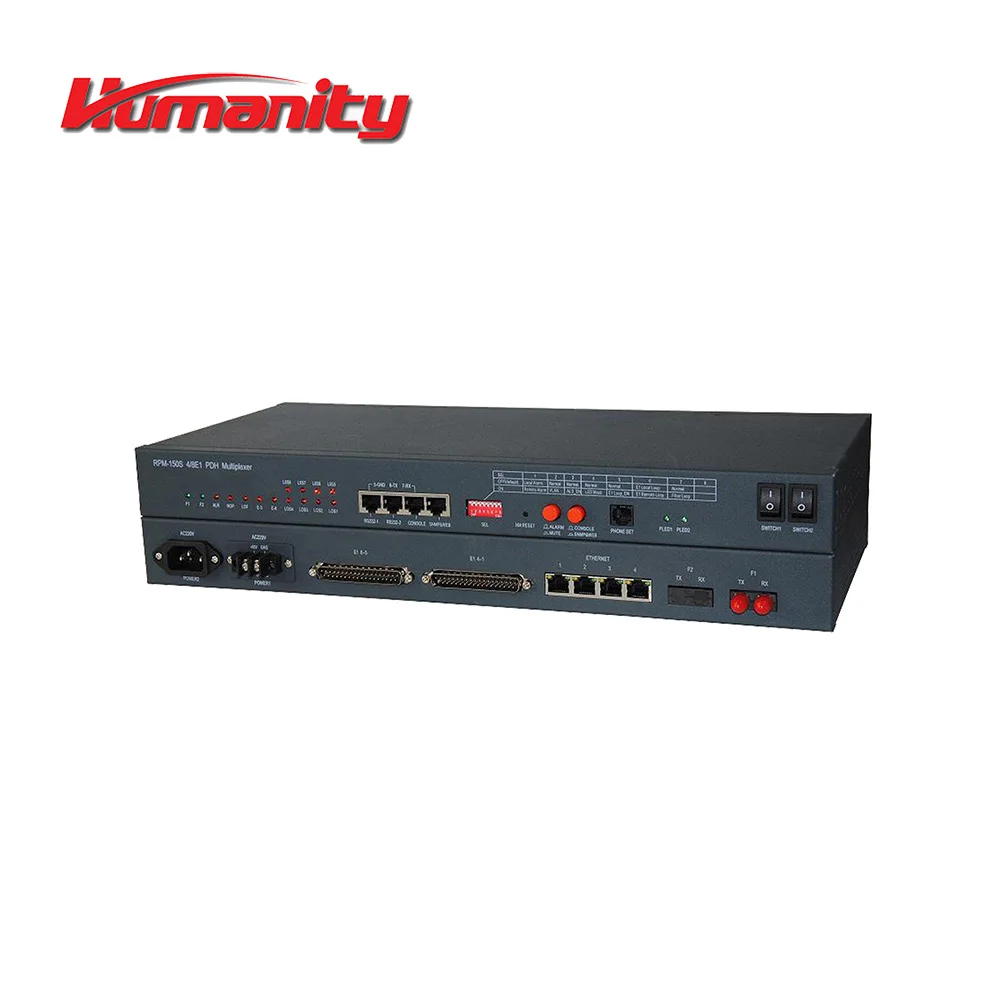

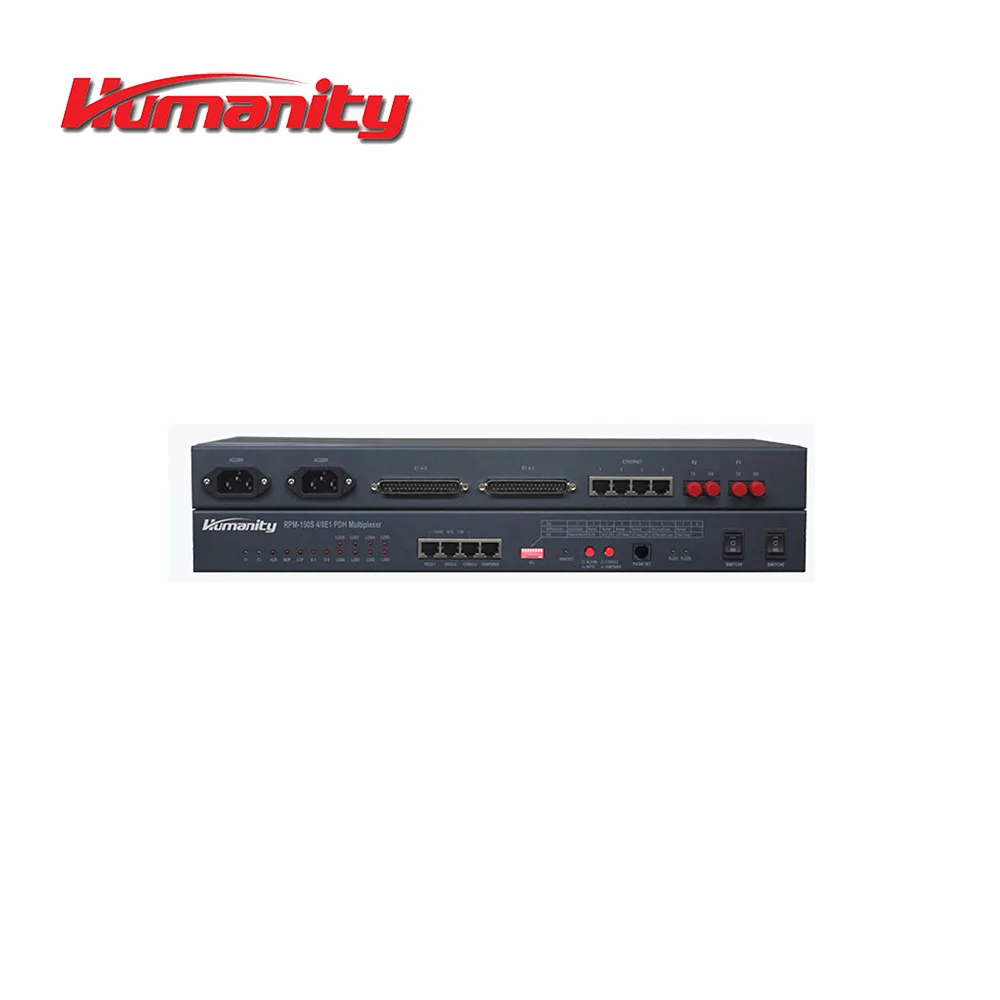

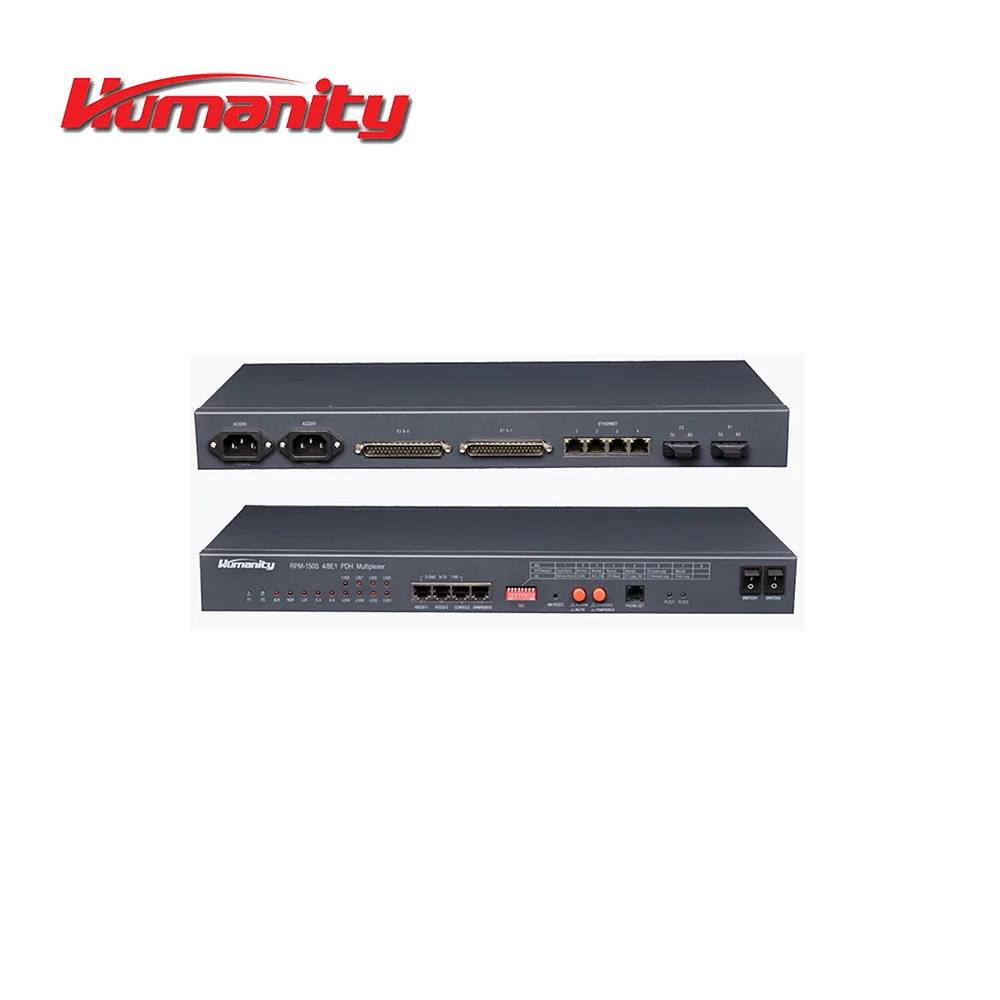

Humanity PDH manufacturer offer 8E1 PDH multiplexer
Humanity PDH manufacturer offers 8E1 PDH multiplexer. It realizes 8E1 transmission over optical fiber cable.
Overview
8E1 PDH Multiplexer is a point to point fiber transmission device. It's with full alarm monitor, high integration, low power consumption, stable performance and easy to use.
Main Features
- Single board design, 1U, 19inch
- Comply with ITU-T G.703, G823 and G.742
- Optical rate with 150Mbps
- Maximum two Ethernet ports available
- Ethernet auto adapts 10/100M, MDI/MDIX, full/half duplex
- One RS232 available for the transmission
- Full alarm indicators, easy to monitor the local and remote device status
- AC and DC dual power supply
Technical Specifications
Optical
- Default: dual fiber, single mode, 1310nm, 40km, FC
- Optical fiber type: dual fiber/single fiber optional
- Connector: FC/SC/ST
- Wavelength: 850nm/1310nm/1550nm
- Distance: 2km/40km/60km/120km
E1
- 1~16E1 available
- Comply with ITU-T G.703, G.823, G.742
- Rate: 2.048Mbps±50ppm
- Code: HDB3
- Connector: BNC for 75Ω, RJ45 for 120Ω
Ethernet
- Maximum 2 Ethernet available
- Connector: RJ45
- Frame length: 64kbps~1536kbps
- Auto adapt 10/100M, MDI/MDIX, full/half duplex
- MAC address table: 1024
Environment
- Temperature: 0~50centigrade
- Humidity: 95%, non-condensing
Order Information
P/N | Product Information |
RPM-150S4M | 4E1 PDH Multiplexer |
RPM-150S4EM | 4E1+Ethernet PDH Multiplexer |
RPM-150S4EN | 4E1+4FE PDH Multiplexer |
RPM-150S8M | 8E1 PDH Multiplexer |
RPM-150S8EM | 8E1+Ethernet PDH Multiplexer |
RPM-150S8EN | 8E1+4FE PDH Multiplexer |
RPM-150S16 | 16E1 PDH Multiplexer, BNC or RJ45 optional |
RPM-150S16E | 16E1+2Etherent PDH Multiplexer, BNC or RJ45 optional |

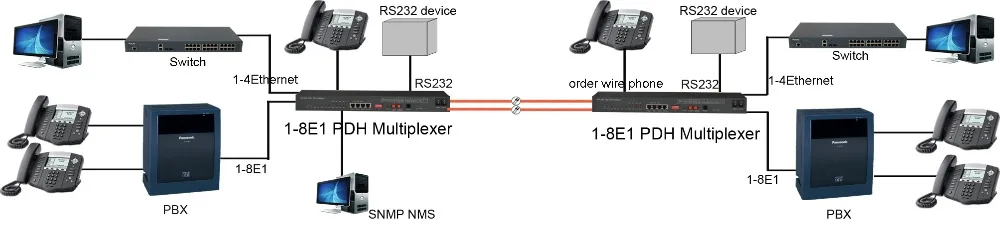

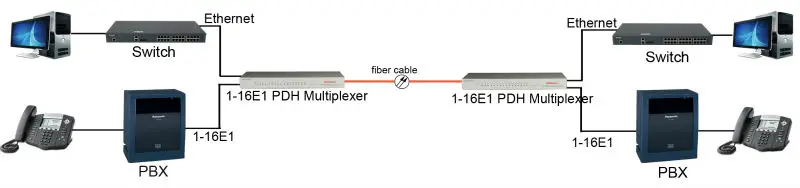

Application Diagram
Order Information
| Model | Description |
| RPM-150S4M | 4E1 PDH multiplexer |
| RPM-150S4EM | 4E1+Ethernet PDH multiplexer |
| RPM-150S8M | 8E1 PDH multiplexer |
| RPM-150S8EM | 8E1+Ethernet PDH multiplexer |
| RPM-150S4T | 4E1 PDH multiplexer, with ALS, optical 1+1 redundancy |
| RPM-150S4ET | 4E1+4Ethernet PDH multiplexer, with ALS, optical 1+1 redundancy |
| RPM-150S8T | 8E1 PDH multiplexer, with ALS, optical 1+1 redundancy |
| RPM-150S8ET | 8E1+4Ethernet PDH multiplexer, with ALS, optical 1+1 redundancy |
| RPM-150S16M | 16E1 PDH multiplexer |
| RPM-150S16EM | 16E1+2Ethernet PDH multiplexer |
