HSS M2/M35 16*5 Woodruff Key Seat Cutter with Metric size

Product Overview

Description

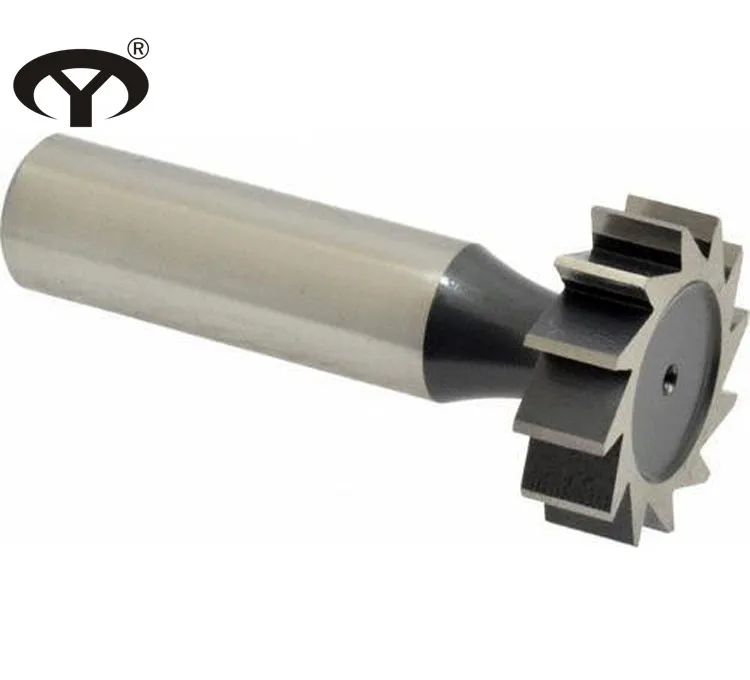

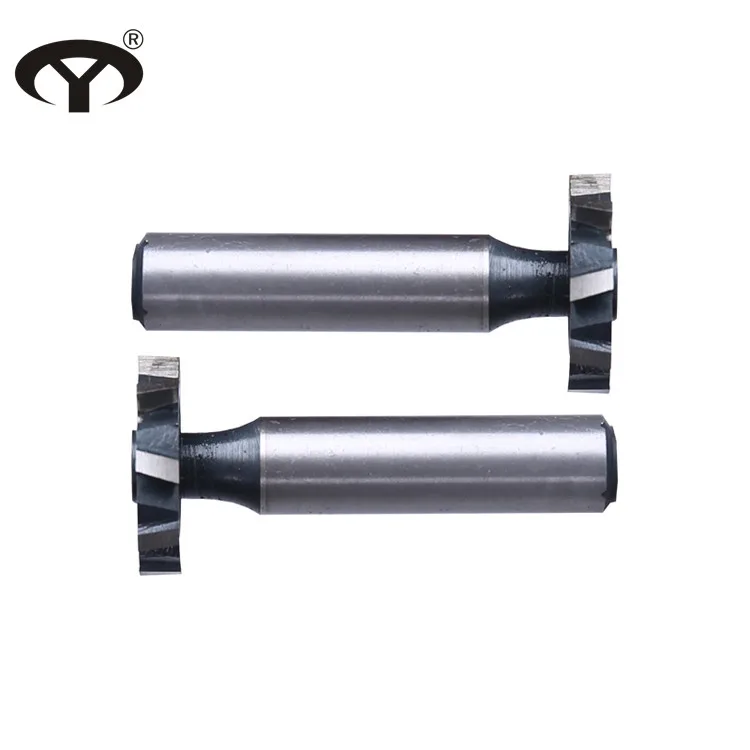

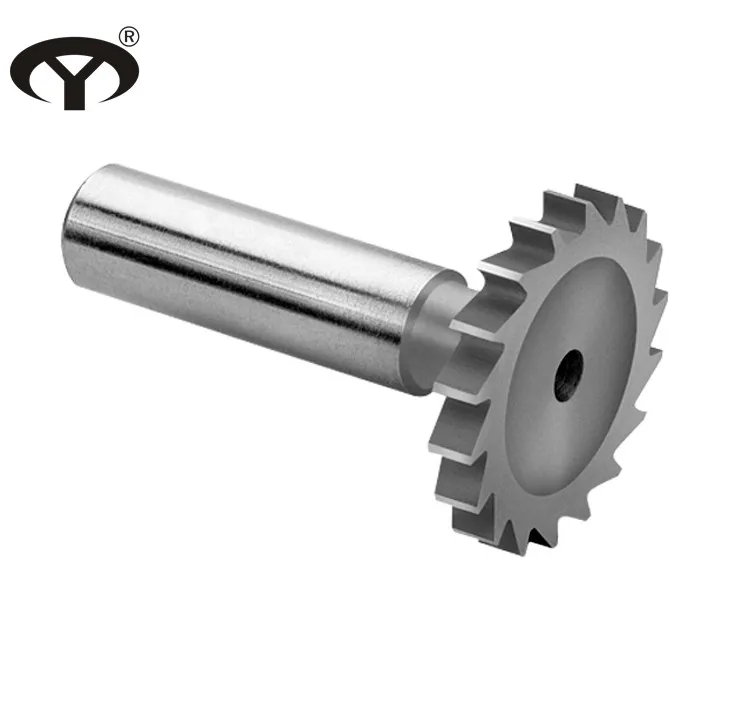

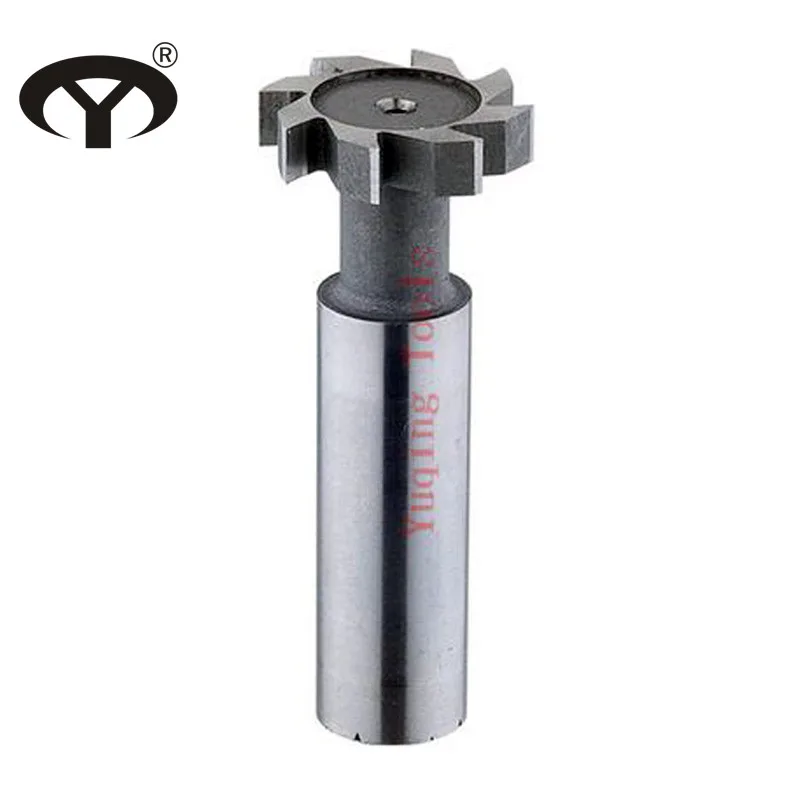

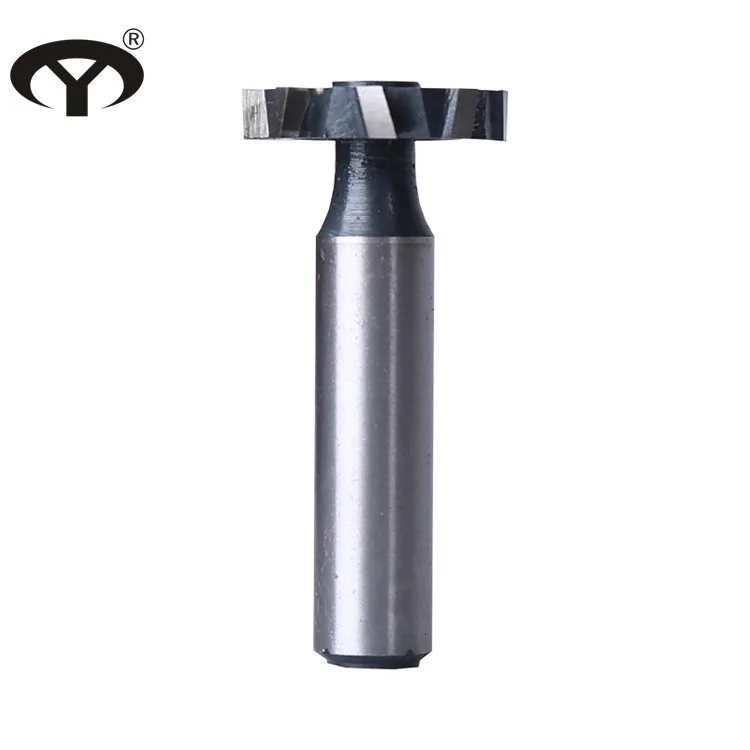

HSS M2/M35 16*5 Woodruff Key Seat Cutter with Metric size



 type1 (Straight Teeth)



Key Size	Outside Dia.	Width of Tooth	Length	Neck Dia.	Suitable neck shaft
4×1	4.25	1	48	6	>3-7
7×1.5	7.4	1.5	48	6	>4-10
7×2	7.4	2	48	6	>5-14
10×2	10.6	2	50	6	>7-18
10×2.5	10.6	2.5	50	6	>7-18
10×3	10.6	3	50	6	>7-18



Type 2(Straight Teeth)

Key Size	Outside Dia.	Width of Tooth	Length	Neck Dia.	Suitable neck shaft
13×3	13.8	3	60	10	>77-18
13×4	13.8	4	60	10	>10-24
16×3	16.9	3	60	10	>77-18
16×4	16.9	4	60	10	>10-24
16×5	16.9	5	60	10	>14-30
19×4	20.1	4	60	10	>10-24
19×5	20.1	5	60	10	>14-30
22×4	23.2	4	60	12	>10-24
22×5	23.2	5	60	12	>14-30
25×5	26.5	5	60	12	>14-30
28×5	26.7	5	60	12	>14-30























Milling cutter series :   Shank end mill  , keyway milling cutter , shell end mill , angle milling cutter , cylindrical milling cutter, side and face milling cutter , concave convex milling cutter , rack milling cutter , roller chain sprocket milling cutter, T-slot milling cutter, woodruff keyseat milling cutter and dovetail milling cutter.



The production process of HSS M2 woodruff key seat milling cutter :











Material Introduction:



A. W6Mo5Cr4V2 (GB)  M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance





W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
