Product Overview
Description
Product Overviews

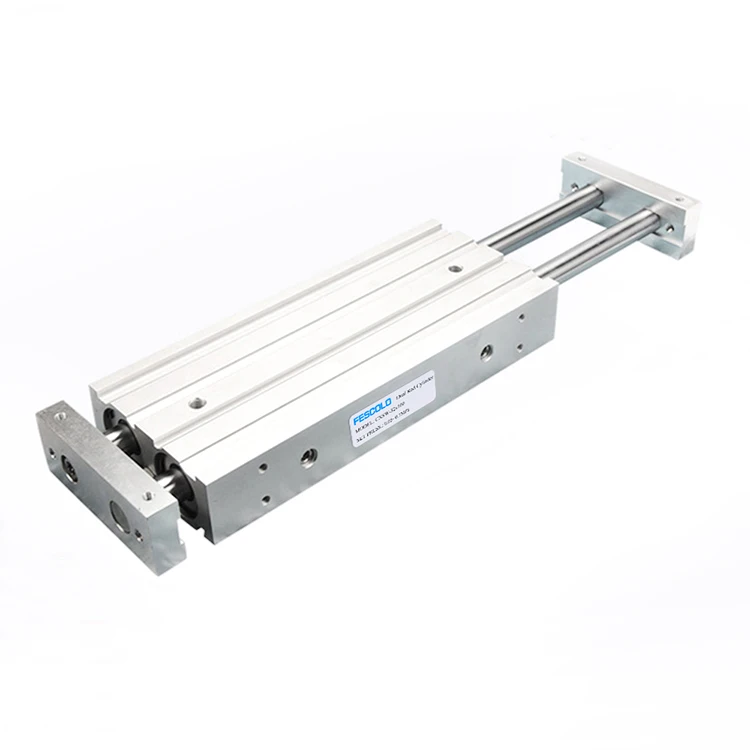

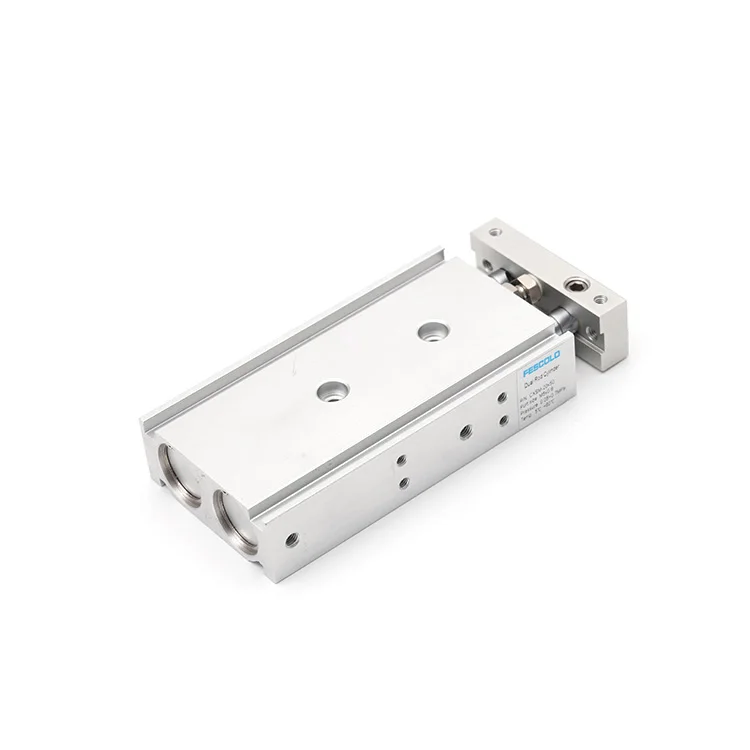

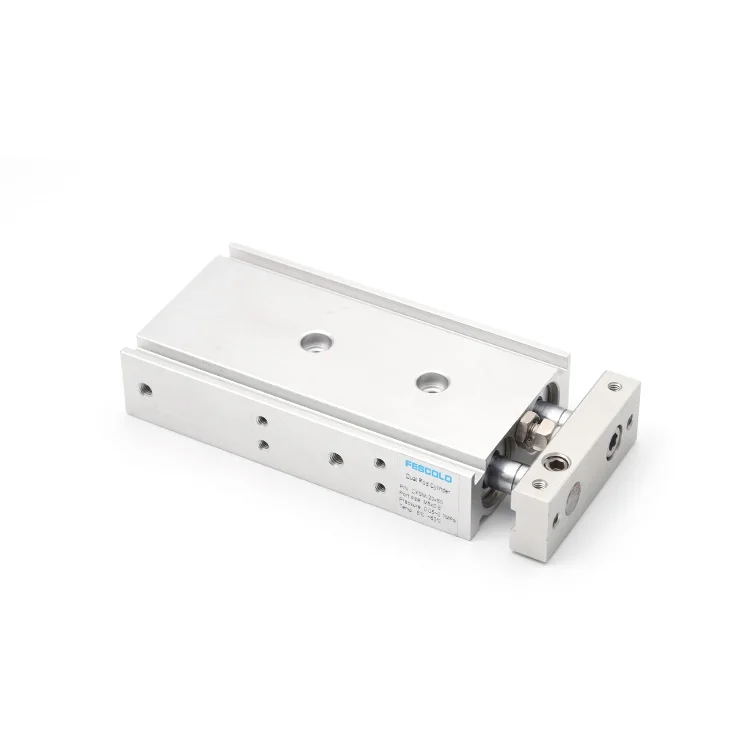

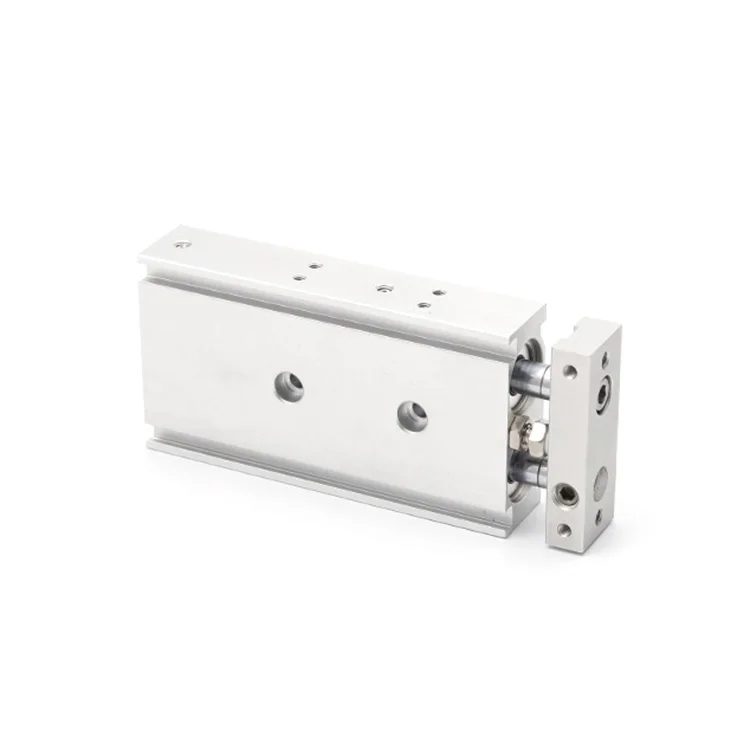

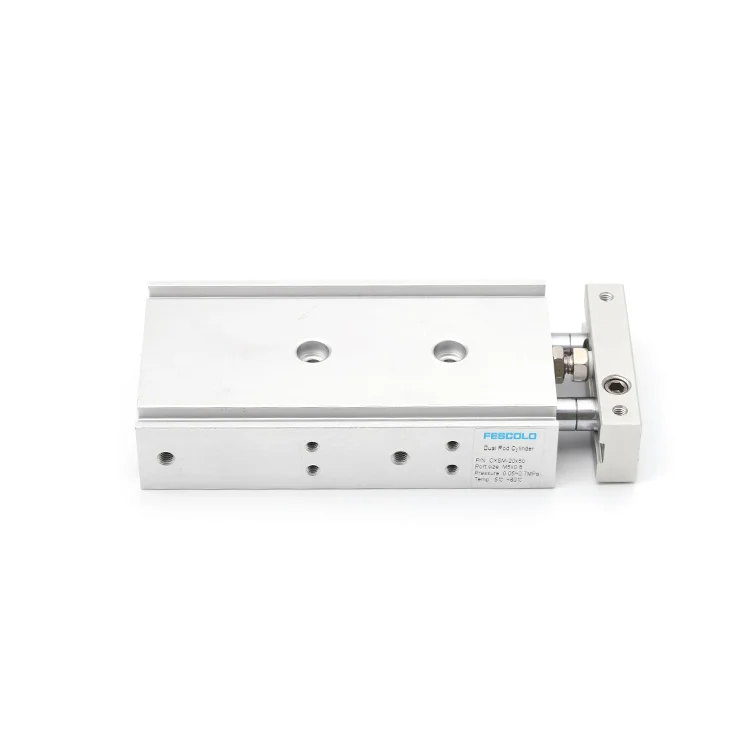

♦ Product name: CXSM series Dual Rod pneumatic cylinder SMC double shaft air cylinder
♦ Ordering code:
CXS M - 20 x 50
Model Bearing Type Bore Stroke
M:Slide Bearing Type 6mm 0~100mm
L:Ball Guide Bearing 10mm
16mm
20mm
25mm
32mm
♦ Characteristic:
1) This series of cylinder conforms to: SMC standard
2) There is an adjustable buffers at the terminals of the cylinder except for mounted cushion.
3) We can offer different kinds of mounting style according to SMC standard, like Foot mounting,
Front flange mounting, Rear-flange mounting,and so on.
4) Different thread type can be offered according to customers' requirements, e.g.:BSP, NPT etc.
5) Needn't lubricate on piston rod by oil
♦ Specification:
| Specification | Parameter | ||||
| Applicable medium | Compressed Air, Vacuum | ||||
| Pressure range | 0.1~0.7 MPa | ||||
| Proof pressure | 1.2 MPa | ||||
| Negative range | -100kpa (10Torr) | ||||
| Temperature range | 5°C~60°C | ||||
Advantages
Production Flow
company profile
Certifications
FAQ
1) Can you provide a sample before a big order?
Answer: Yes, we can provide a sample.
2) What 's the delivery date?
Answer: It depends on the quantity you order. Normally, it will take 10~15working days for our regular products.
3) Can you make NPT thread for the port size?
Answer: Yes, we can make NPT thread. But here is MOQ requirement for the quantity.
4) Are you able to make Non-standard or customized air cylinders?
Answer: One of our biggest advantage is for non-standard and customized products.
5) Which port can you delivery?
Answer: Ningbo, Shanghai, Guangzhou, Qingdao.
