Easy Operate Flexible Drinking Straw Bending Machine

Product Overview

Description

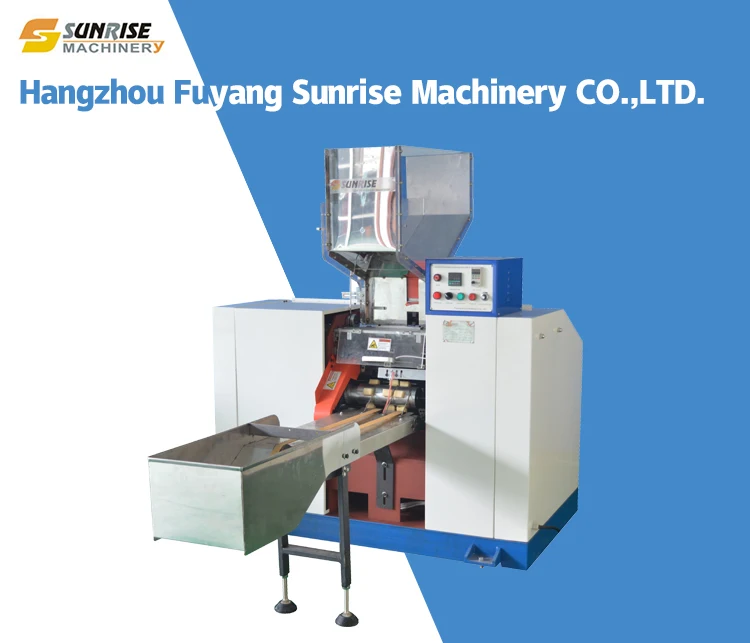

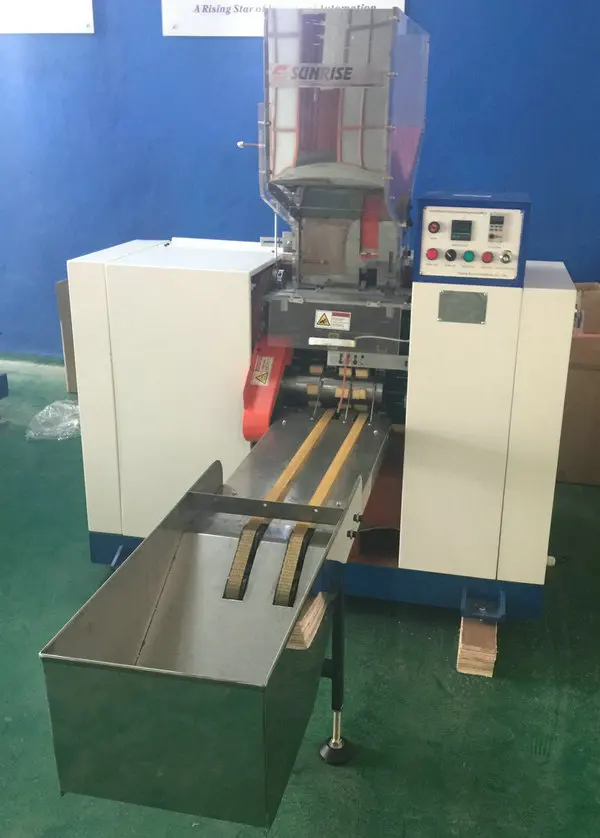

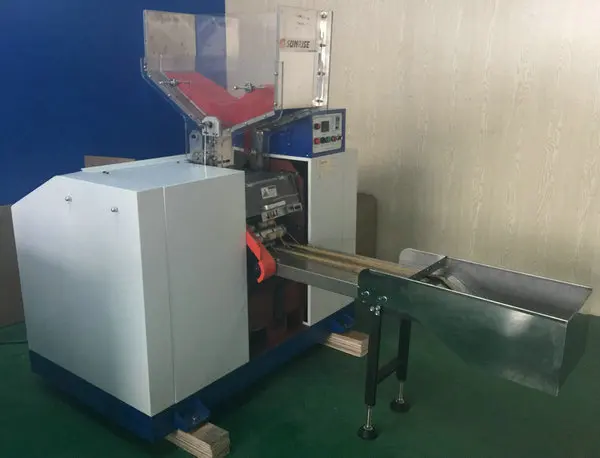

Easy Operate Flexible Drinking Straw Bending Machine



1. Introduction

An ideal automatic machine for flexible straw bending.

we have more than 10 years experience for flexible drinking straw bending machine.

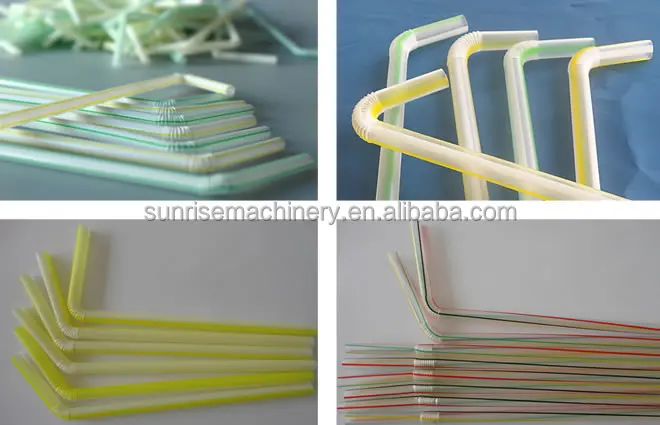

It turns straight straws to flexible straws. We have two models of SBM12, SBM18 for you to choose from. SBM18 makes straw with a biggr concertina-type hinge than SBM12 does.

It is easy to operate. One labour can easily handle two machines at the same time.



2. Characteristics:

Production capacity: 250-420pcs/min.
One labour can operate 2 machines

The machine is equipped with automatic counting and batch alarm.
It can automatically stop when there appears an error.

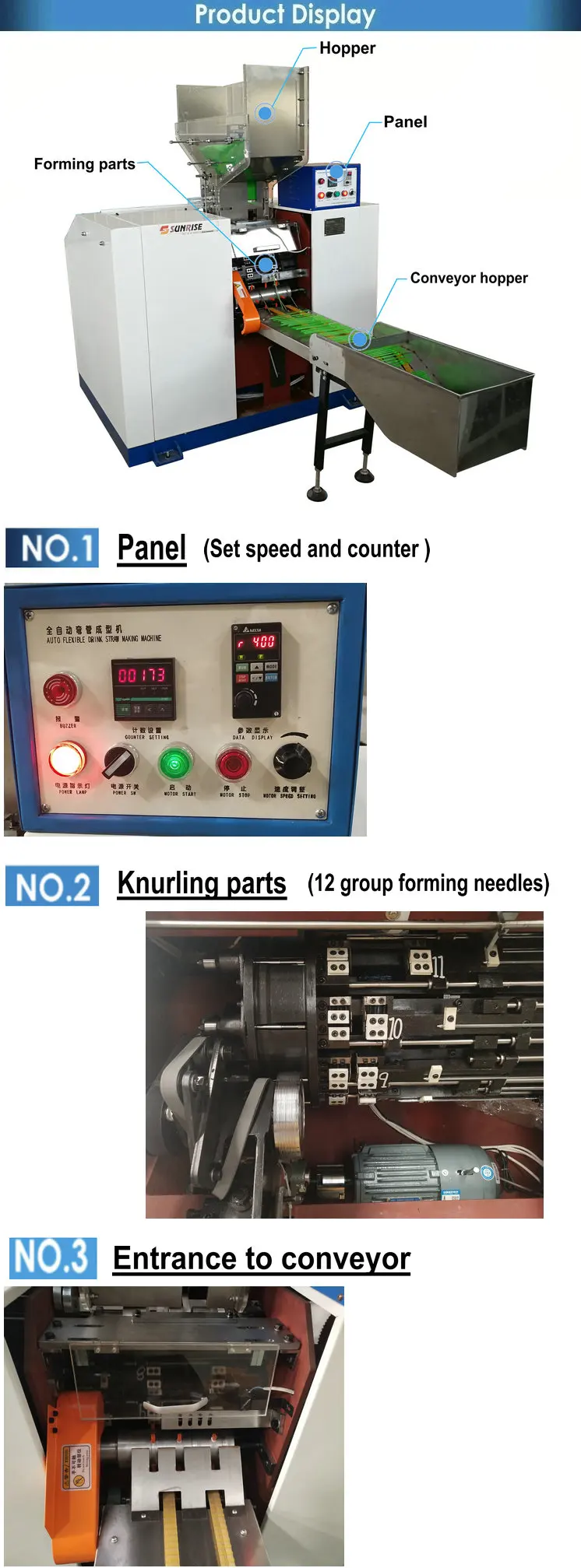

With watch windows, backside controller and emergency switch, it is much safer.

3. Technical data:

Model	SBM-12		SBM-18
No. of bending groups	12 bending groups		18 bending groups
Driving motor	1.5kw (control by DELTA inverter)		2.2kw (control by DELTA inverter)
Capacity	250-300pcs/min.		350-420pcs/min.
Specification of straw	Inner diameter	3.8mm	4.8mm	5.8mm
	Thickness of straw	0.2±0.02mm	0.2±0.02mm	0.2±0.02mm
	Length of straight straw	165~245mm	200~260mm	200~260mm
	Length of flexible straw	150~230mm	185~245mm	185~245mm
	The others specification can be special made.
Dimension of machine	1500x1800x1600mm		2000x2000x1900mm
Weight of machine	1000kgs		1200kgs
