JS Portable wheel conveyor or Skate wheel conveyor or Roller track

Product Overview

Description

Name:

JS-5A MINI  Al alloy skate rail roller conveyor



>>Spe.

(U:mm)

SPE.	Name	frame material	frame size(W*H*T)	skate diameter	shaft pitch	load
JS-1A	metal plate skate rail	galvanized plate	(29~41)*H26*T0.8/1.0,total H 38	ABS skate	33/35/45	6kg/skate
				ø28*25		45kg/m
JS-2A-1	Reinforced metal plate skate rail	galvanized plate	W40*H33*T0.8/1.0,total H 45	PE/ABS skate	35	10kg/skate
				ø32/ø35*22.5	28 skates/m	120kg/m
JS-2A-2	Reinforced metal plate skate rail	galvanized plate	W40*H33*T0.8/1.0, total H 47	PE/ABS skate	45	12kg/skate
				ø32.5/ø38*22	22skates/m	120kg/m
JS-2B	Reinforced metal plate skate rail	galvanized plate	W60*H33*T0.8/1.0,total H 44	PE/ABS skate	36	30kg/skate
				ø30*42	28skates/m	300kg/m
JS-2C	Reinforced metal plate skate rail	galvanized plate	W85*H33*T1.2,total H 50	PE skate	50	60kg/skate
				ø45*55	20skates/m	1000kg/m
JS-3A	Al alloy skate rail	Al alloy	W42*H35*T1.3,	ABS skate	30/45	10kg/skate
			total H 38.5	ø28*25	22skates/m	100kg/m
JS-3B	Al alloy skate rail	Al alloy	W42*H35*T1.3	ABS skate	30/45/60	10kg/skate
			total H 42.5	ø28*25	33/22/16 skates/m	80kg/m
JS-3C	Al alloy skate rail	Al alloy	W44*H38,	ABS skate	45	20kg/skate
			total H 50	ø38*24.5	22 skates/m	100kg/m
JS-4A	Al alloy skate rail for bar	Al alloy	W44*H33,	ABS/PE	45	20kg/skate
			total H 45	ø38*24.5	22skates/m	100kg/m
JS-4B	Al alloy skate rail for bar	galvanized plate	W44*H32*T1.0	ABS skate	45	20kg/skate
			total H 45	ø38*24.5	22skates/m	100kg/m
JS-5A	Mini Al alloy skate rail	Al alloy	W30*H22	ABS skate	15/30/45	4kg/skate
			total H 24	ø13*14	66/33/22 skates/m	40kg/m

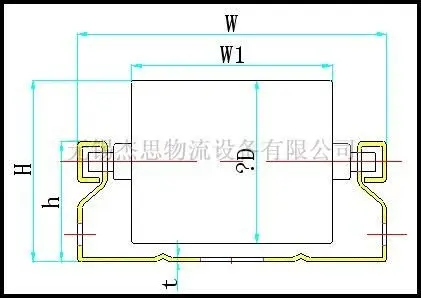

 Drawing

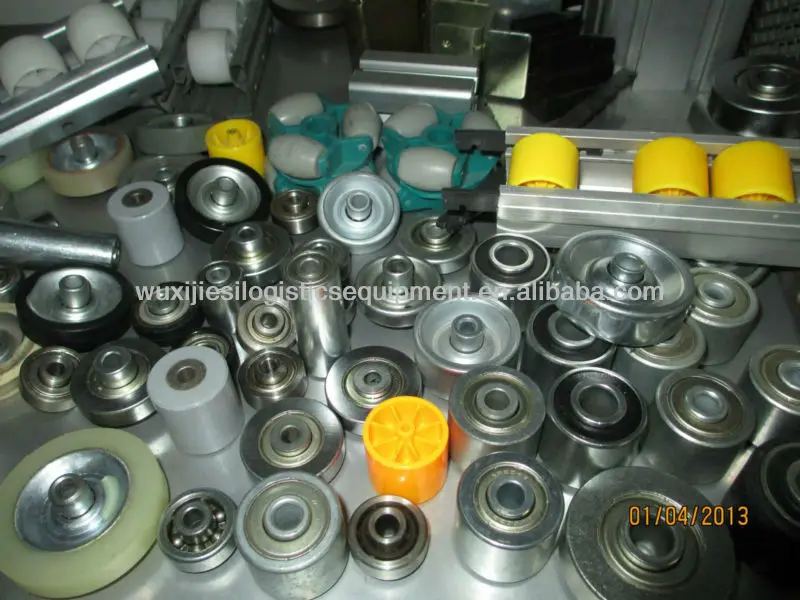

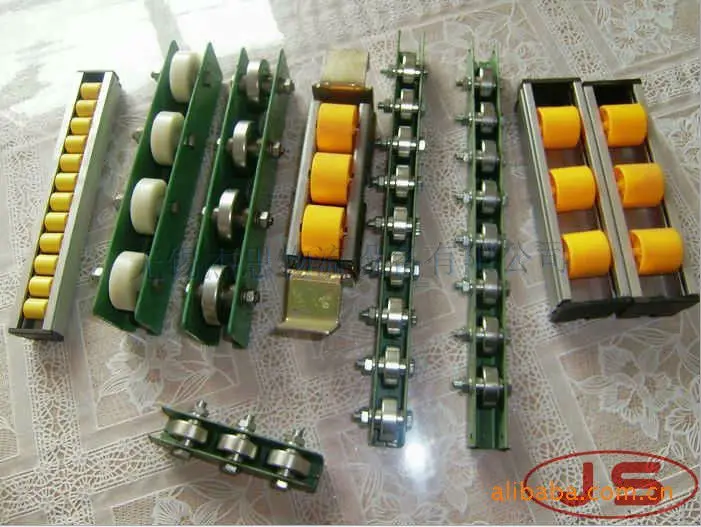

Metal wheels are available:

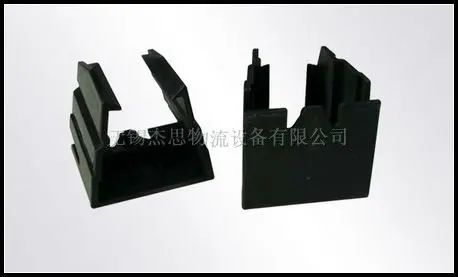

>>parts for JS-5A Al alloy frame skate rail









If you are interested in this product,please do not hesitate to contact us,

Sales manager Robert will give you detail information promptly.
