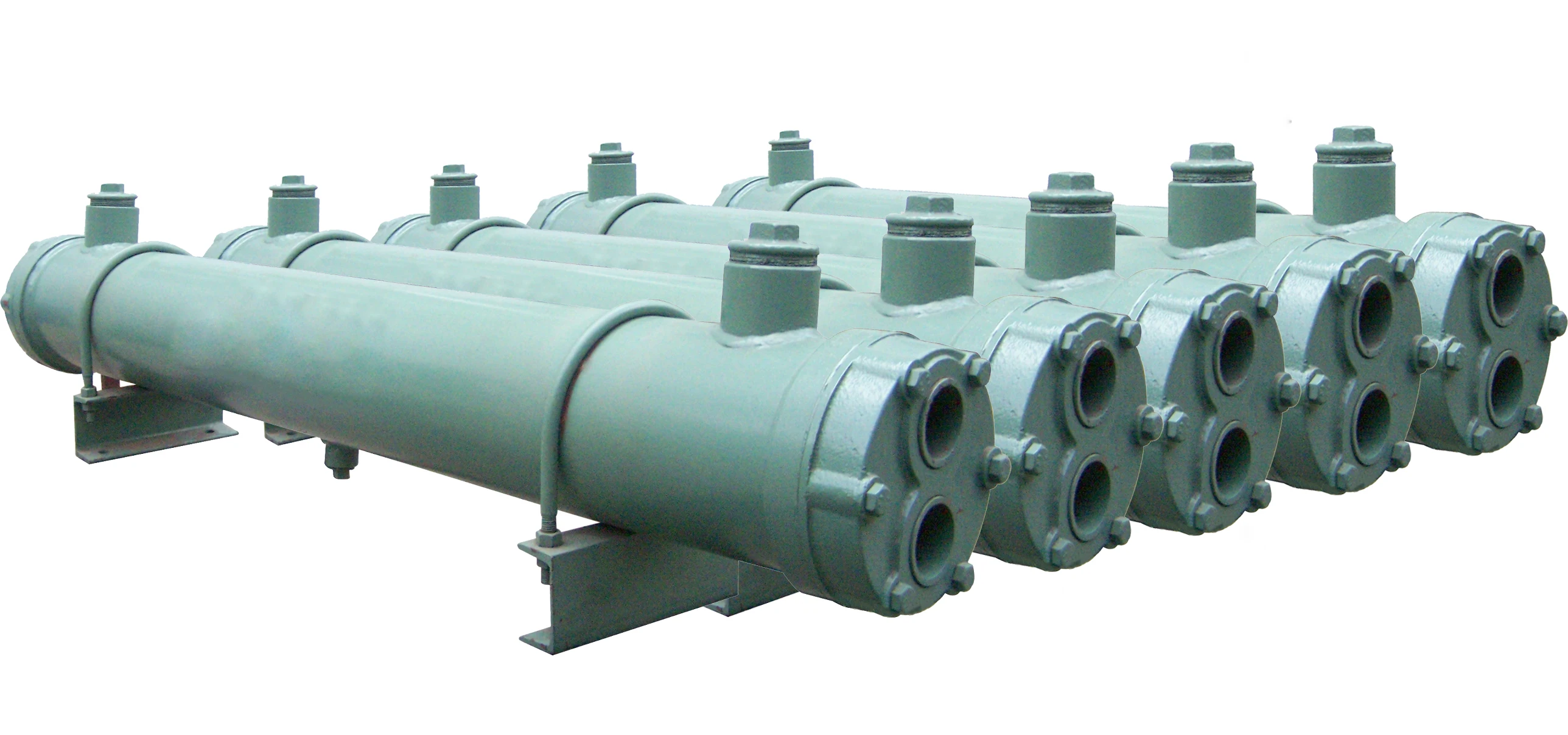

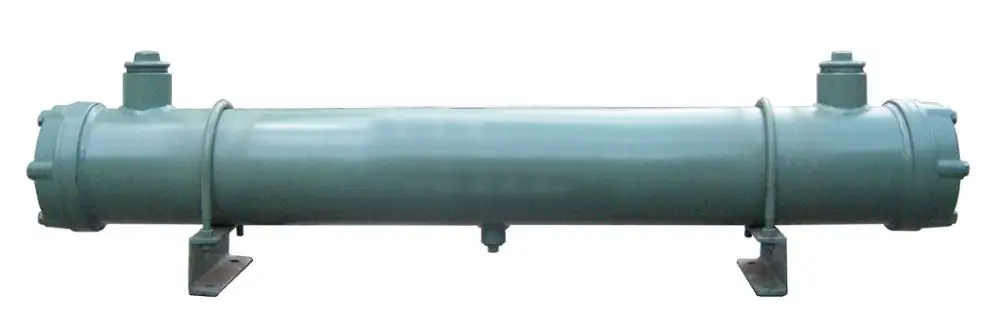

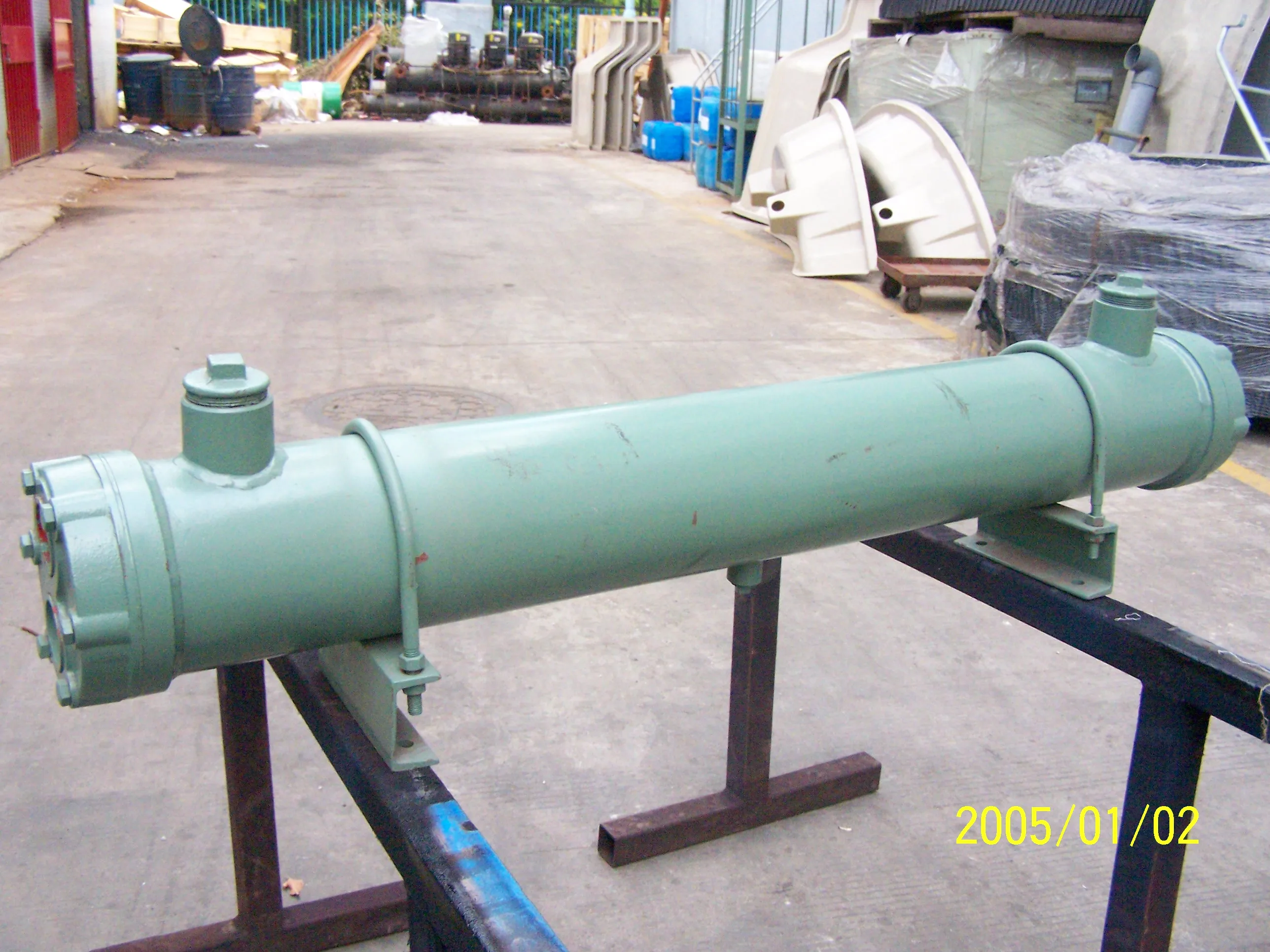

Shell and tube Water to Water Heat Exchanger hot water to air heat exchanger

Product Overview

Description

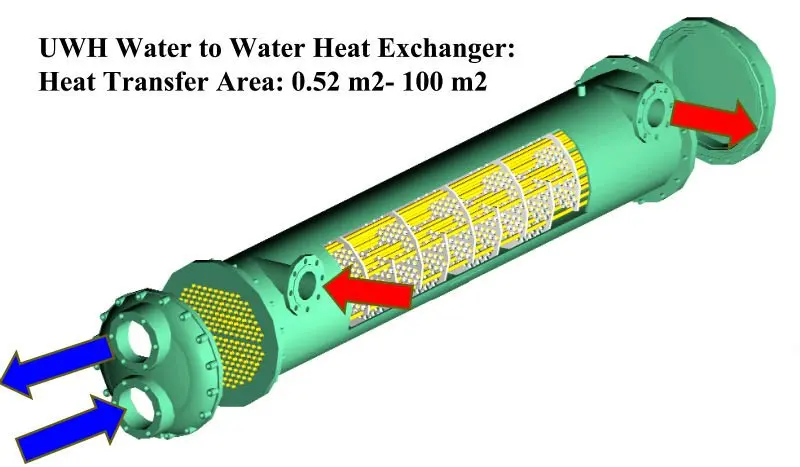

UWH Water To Water Heat Exchanger

Heat Transfer Area:

0.52m2~100m2





Features of Heat Exchanger:



(1).Internal & external enhanced groove, ensure high heat transfer efficiency.



(2).High efficiency Self-made ASME heat exchanger condensers from Raw Material metal sheet(Cutting,Rolling,Welding,X-ray Exam Welding Leak etc.), Strict quality control and pretty competitive price.





(3).X-ray Leakage test, Water Bath Leakage Test, N2 Pressure Test with third party certification for each heat exchanger before shipment.



Hot water heat exchanger:













UAR Pressure Vessel Material for Heat Exchangers:





Metal Sheet Q235B



Design Pressure: P≤1.6 MPa



Applicable Tem.:0C~350C



For Shell Sheet Thickness Less Than 20 mm



No Toxic or High Harmful Medium Pressure Vessel





Metal Sheet Q235C



Design Pressure: P≤2.5MPa



Applicable Tem.:0C~400C



For Shell Sheet Thickness Less Than 30 mm



No Toxic or High Harmful Medium Pressure Vessel





Metal Sheet Q345C



Applicable Tem.:-20C~475C



Material Status: Cold Roll, Heat Treated



Shell Thickness>30 mm, Flange, Tube sheet and cover Thickness should over 50 mm



Sub-sonic Test: Shell Thickness > 30 mm should no lower than Ⅲ



For Shell Q345R metal sheet: applicable for temperature lower than 0C, thickness > 38 mm; for temperature lower than -10C, thickness > 20 mm

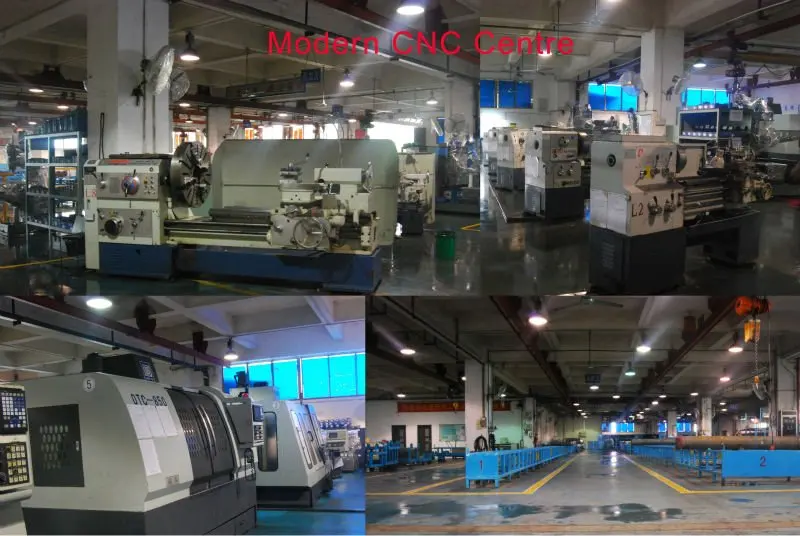

CNC Centre:

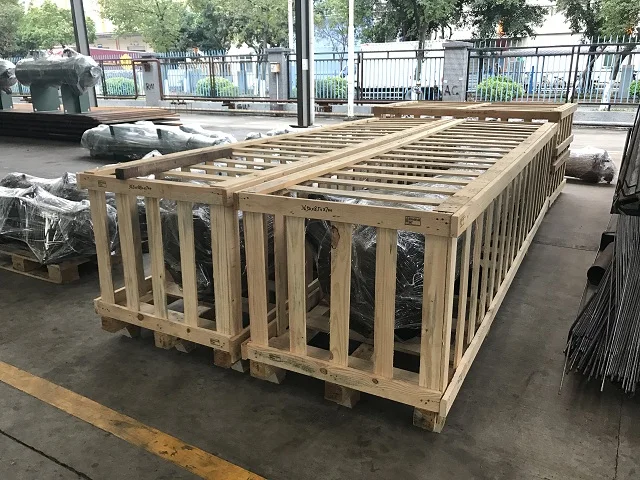

Shipment Export Packing:



 Your Customized Warmly Welcome!



 If you have interest in our products please do not hesitage to send us enquiry. Thanks!
