TECHMLV3kw/5kw maglev vertical axis wind turbine

Product Overview

Description

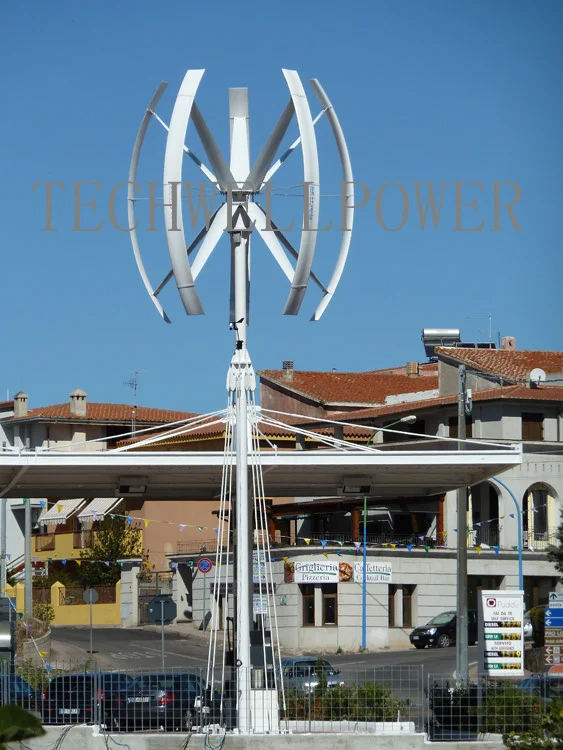

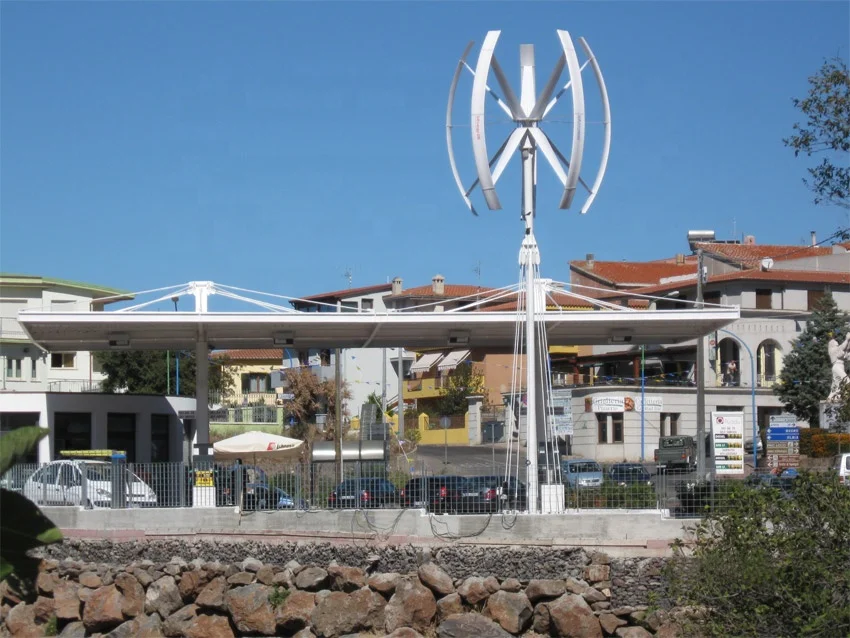

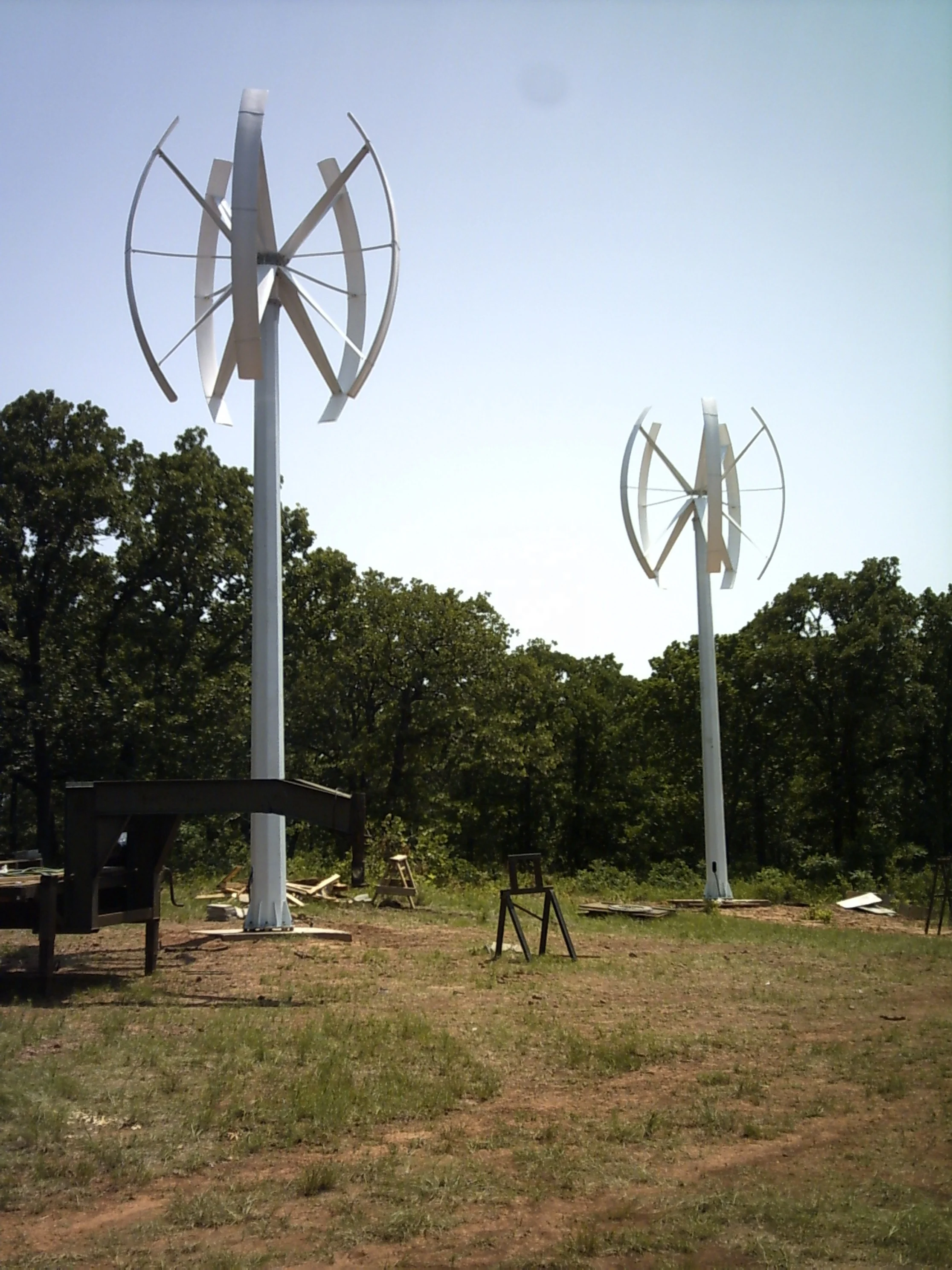

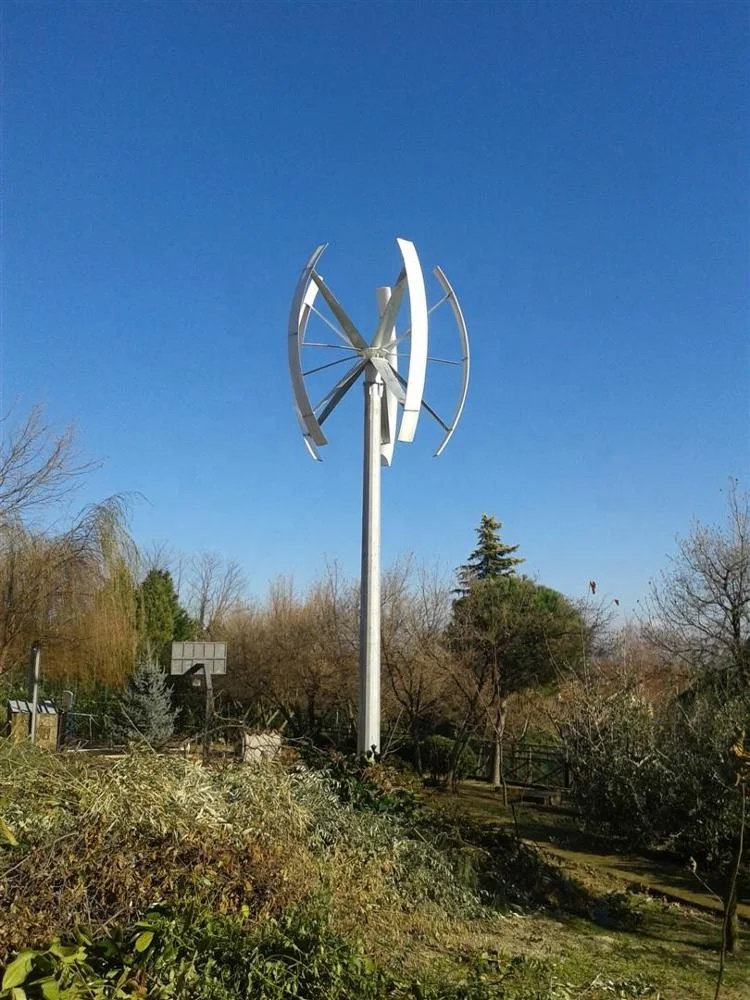

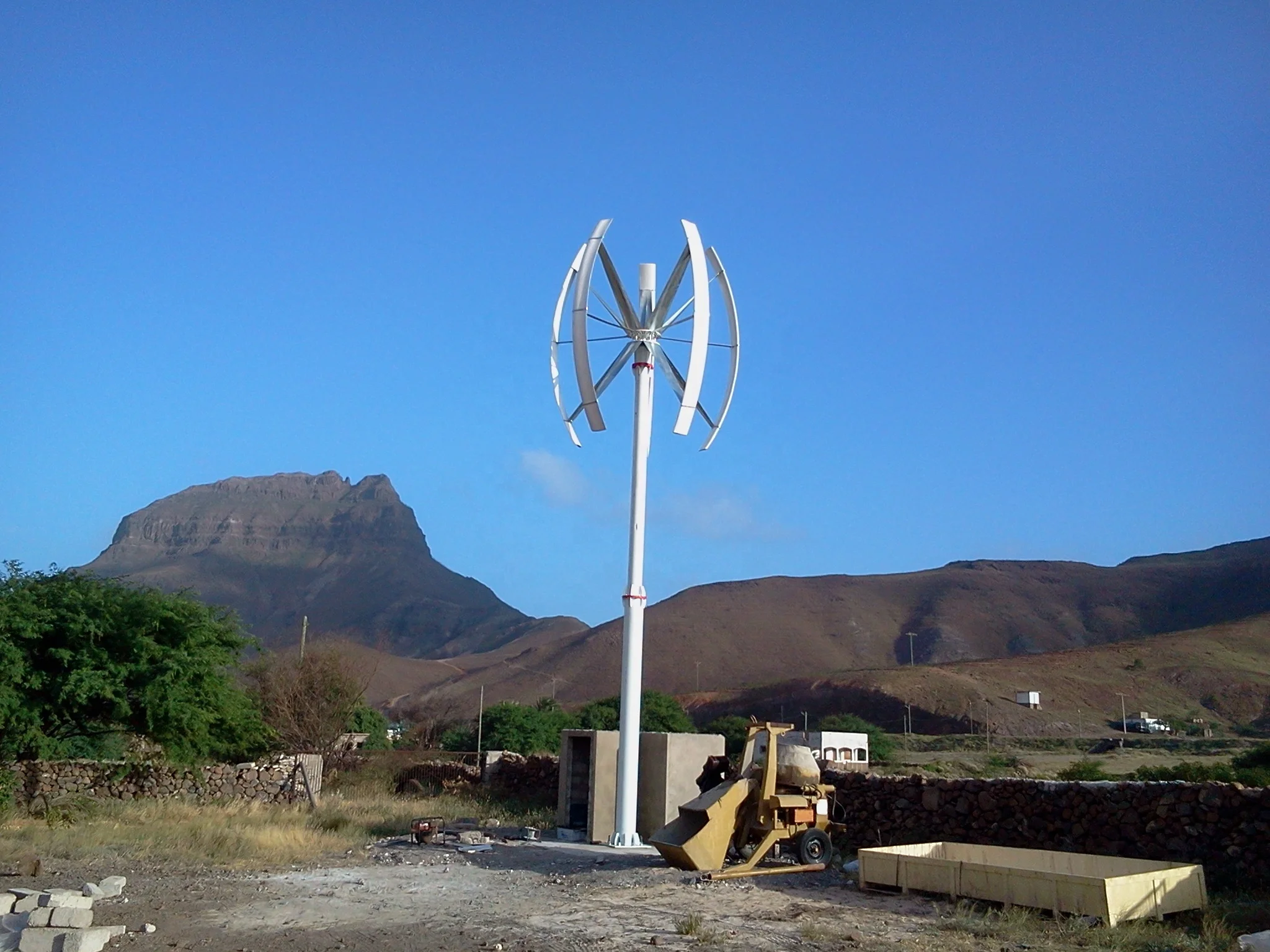

TECHMLV3kw /5kw MAGLEV Vertical axis wind turbine

Model: TECHMLV3kw/5kw





Vertical Axis Wind Turbine 1-5kw





Model:TECHMLV5kw/3kw 220v system







Our Advantages

---Magnetic Levitation designed generator

---Low  noise  below 40db, less noisy

---high efficiency,less vibration
---Low price, much popular designed style



System Composition

- Wind turbine + Blades Assembly

- Free-stand Mast (Hot galvanized 8m)

- Off-grid Controller + Battery + Inverter  + User Loads







Model	TECHMLV 5kw
Rotor Diameter (m)	4.0
Material of blades and No.	RFP/ 5
Rotation per minute for generator  (rpm)	150 -170rpm
Working wind speed (m/s)	3-25
Cut-in wind speed (m/s)	3
Rated wind speed (m/s)	11
Survival wind speed (m/s)	50
Rated output power at rated wind speed (kw)	5kw
Maximum output power (kw)	7kw
Rated output voltage (V)	220V

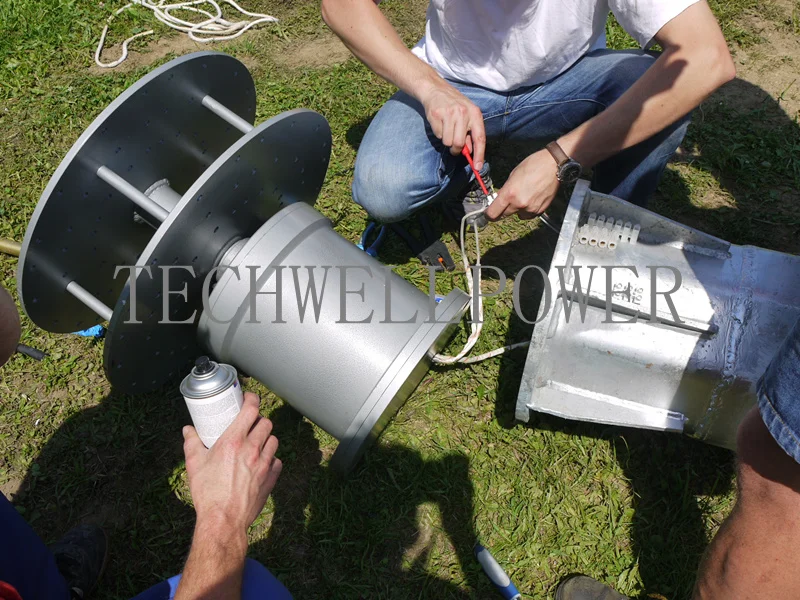

Generator type	PMG 3 phases AC
Suggestion battery	12v 150ah 18 pcs
Warranty	Two years for Generator, and one year for spare parts



















Our homepage:

www.techwellpower.com







- We, Techwellpower is one of the leading supplier of residential maglev vertical  wind turbine from China with more than 10 years experience.

- Our wind turbines have been installed in around 50 countries with more than 50 stable globle market customers. Techwellpower is capable to put the wind work for you with lower cost.

- Our VAWT ranges from 500w - 5000w, in name of the model of TECH 300w -5kw, TECHMLV3kw/5kw, TECHVH2kw, both on-grid and off-grid system available.

- At techwellpower, we take pride in offering advanced products that let homewoners and business generate their clean power.

- Our VAWT is designed for harsh climate, they are built simply and ruggedly to quietly last.Our machines have a large wind swept area to capture more wind and produce more energy, especially in low wind . These machines produce energy in the wind you get, day in and day out, power when you need, not just in storms.

-Detailed information please contact us at  anytime.

- In the past 2011, we have installed more than 80pcs of Maglev wind turbine.



Welcome to Techwellpower !

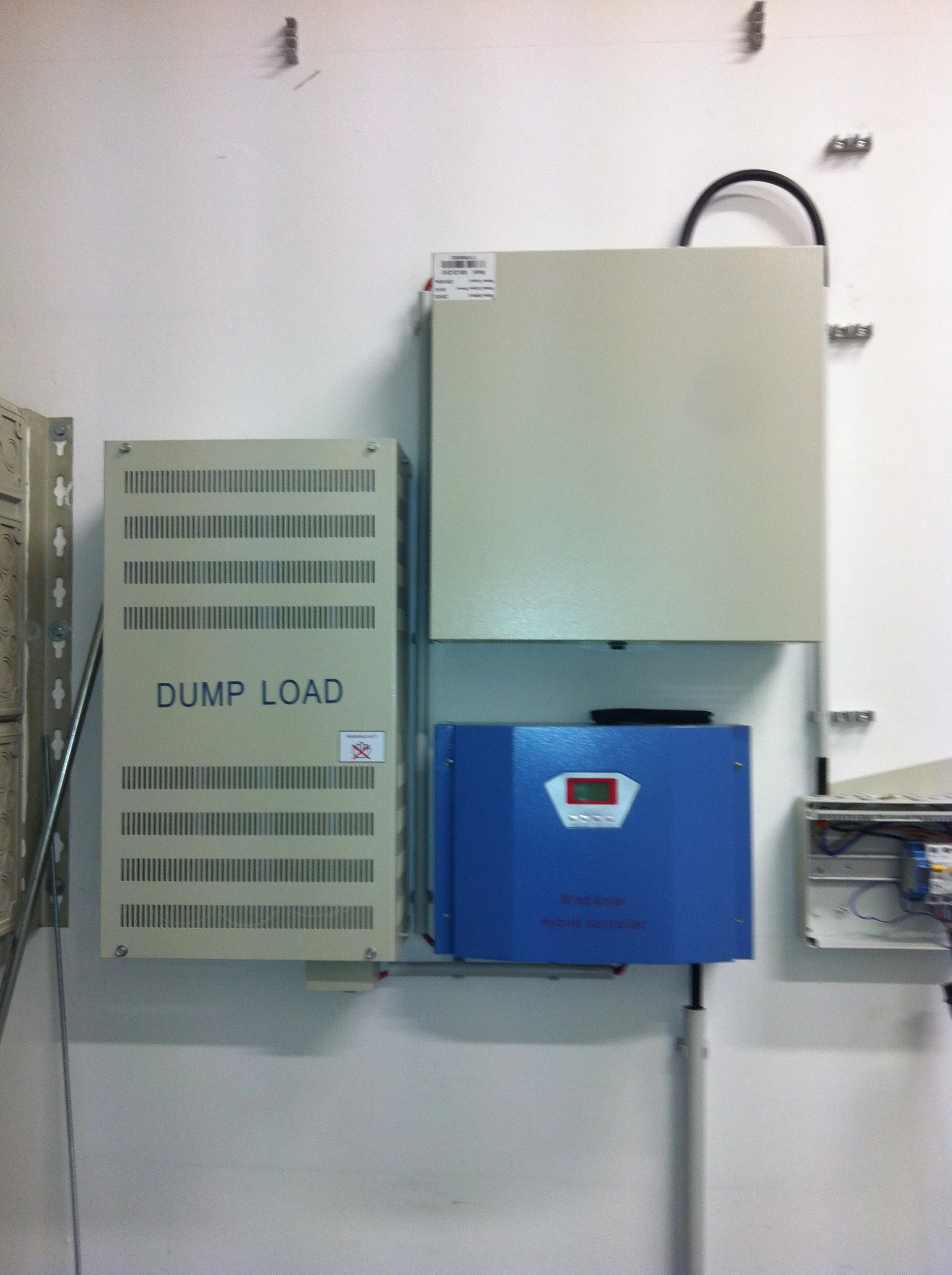

The following is 5kw ON-grid Inverter/ Controller/Dump load for the generator:
