Power Force Diesel Generator 4.0kw

Product Overview

Description

Specifications :

	Model No.	WY3.5GF-3/3.5GF-4	WY4GF-3/4GF-4	WY6GF-3/6GF-4
Generator	Noise(7meters away)	70db	72db	75db
	Rated output frequency	50hz	50hz	50hz
	Rated output voltage	220v	220v	220v
	Rated ouput power	3.5kw	4.0kw	6.0kw
	Max Output Power	3.8kw	4.5kw	6.5kw
Gasoline Engine	Engine Model	177F/177FD	182F/182FD	190F/190FD
	Engine type	4-stroke ,25″ inclinded single -clinder,air-cooled		4-stroke ,25″ inclinded single -clinder,air-cooled
	BorexStroke (mm)	77x58	82x64	90x66
	Displacement(ml)	270	337	420
	Compression Ratio	8.2:1	8.0:1	8.2:1
	Theoretical Maximum Output Power	6.6kw/3600rpm	8.0kw/3600rpm	10.5kw/3600rpm
	Rated output power	5.4kw/3600rpm	7.1kw/3600rpm	8.5kw/3600rpm
	Continuouse Operating	11.9hr	40hr	8.3hr
	Horse Power	9Hp	10Hp	15Hp
	Max Torque	15.5N.m/3000rpm	21N.m/3000rpm	24N.m/3000rpm
	Ignition system	Non-contact Transistorized Magneto(TCL)
	Start System	Recoil Start /Electric Start
	Air Cleaner	Semi-dry type /Oil bath type
	Fuel Tank Capacity	25L	25L	25L
	Fuel Consumption	2.1L/hr	2.45L/h	3.0L/h
	Oil Capacity	1.1L	1.1L	1.1L
Packing Detail	Dimension (LXWXH)mm	735x555x580	735x565x590	735x565x590
	Net Weight	67/69KG	77/79KG	83/85KG





Model	WY1200	WY2200	WY3500	WY4500
PICTURES	Bitmap	Bitmap	Bitmap	Bitmap
Engine Specs
Model	156F	168FA	168FB	170F
Horsepower@3600rpm	3.0hp	5.5hp	6.5hp	7.0hp
Displacement	97.7ml	163mlml	196ml	208ml
Starting	Recoil	Recoil	Recoil	Recoil
Noise(7 meters amay ) (db)	63	63	65	65
Generator Specs
Rated Frequency(Hz)	60	60	60	60
Rated Voltage (v)	220	220	220	220
Rated Power output(KVA)	1	1.8	3	4
Max. Power Output(KVA)	1.2	2.2	3.5	4.5
Standard Feature
Large-capacity air-cleaner	Yes	Yes	Yes	Yes
Large-capacity fuel tank	Yes	Yes	Yes	Yes
Large-capacity muffler	Yes	Yes	Yes	Yes
Fuel indicator	Yes	Yes	Yes	Yes
Voltmeter	Yes	Yes	Yes	Yes
AVR	Yes	Yes	Yes	Yes
Oil alert system	Yes	Yes	Yes	Yes
Circuit breaker	Yes	Yes	Yes	Yes
Carton dimension(mm)	460x365x440	645x490x490	645x490x490	645x490x490
Container QTY(20Q/40Q)	390/780	390/780	160/420	160/420

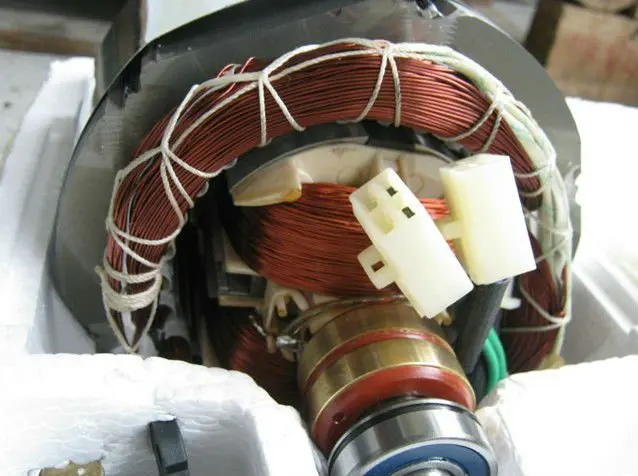

100% copper wire alternator :

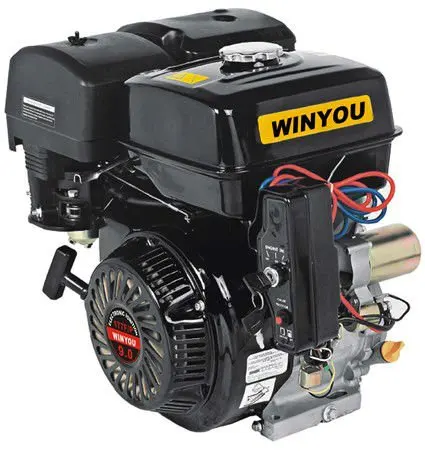

10.0hp gasoline engine/petrol engine 180F for generator

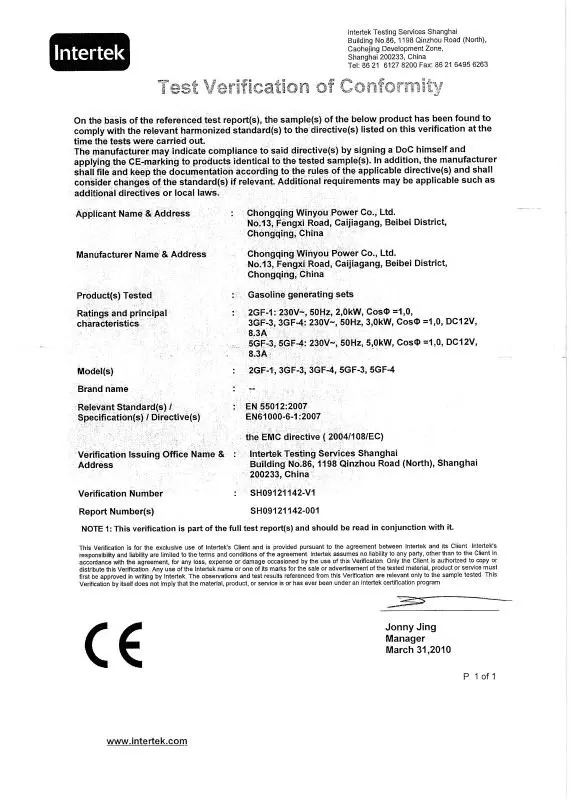

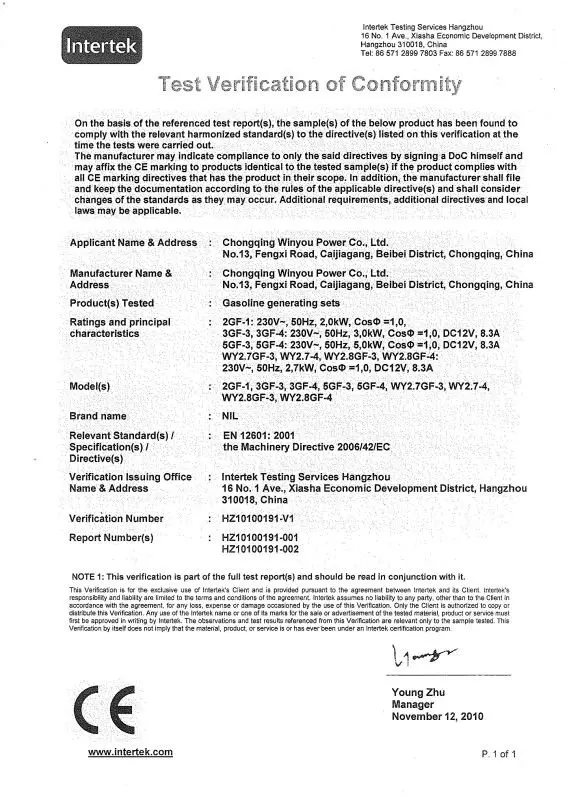

CE APPROVALS :
