65 мм одиночный экструдер винт и ствол (винт и ствол для ПВХ экструдера) Theysohn Maris Jsw Battenfeld Cincinnati
- Category: Plastic & Rubber Machinery Parts >>>
- Supplier: Zhoushan OSD Plastic Machinery Co. Ltd.
Share on (574560611):
Product Overview
Description

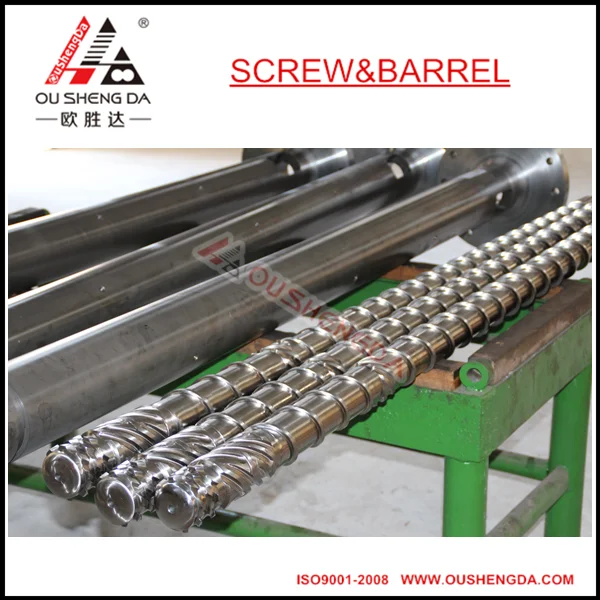

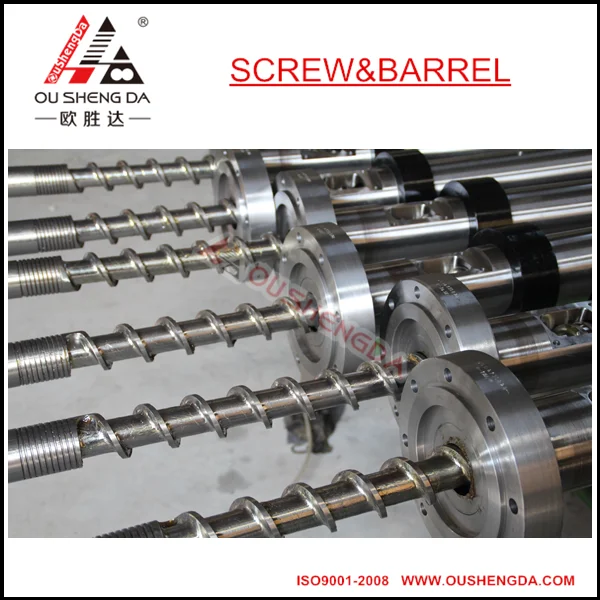

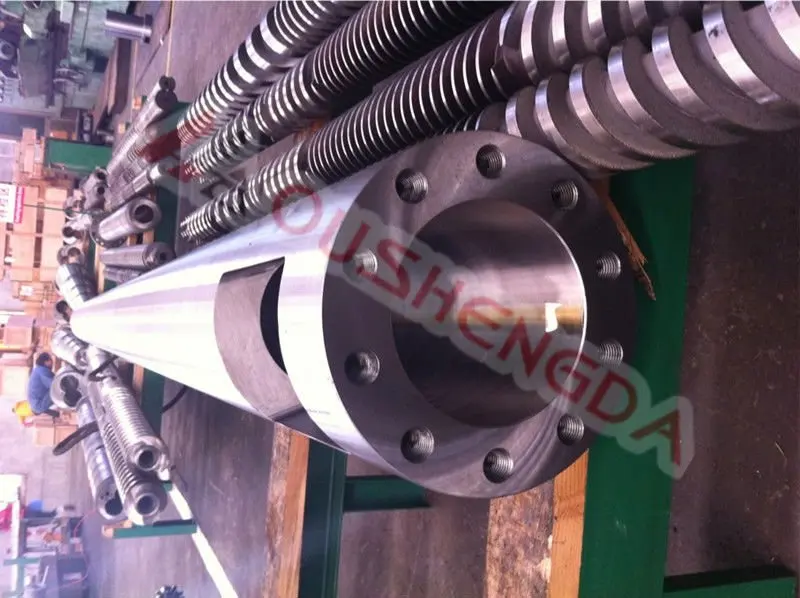

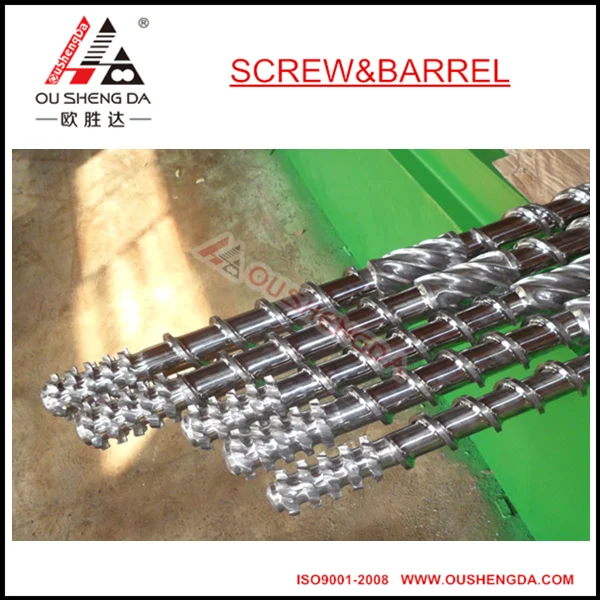

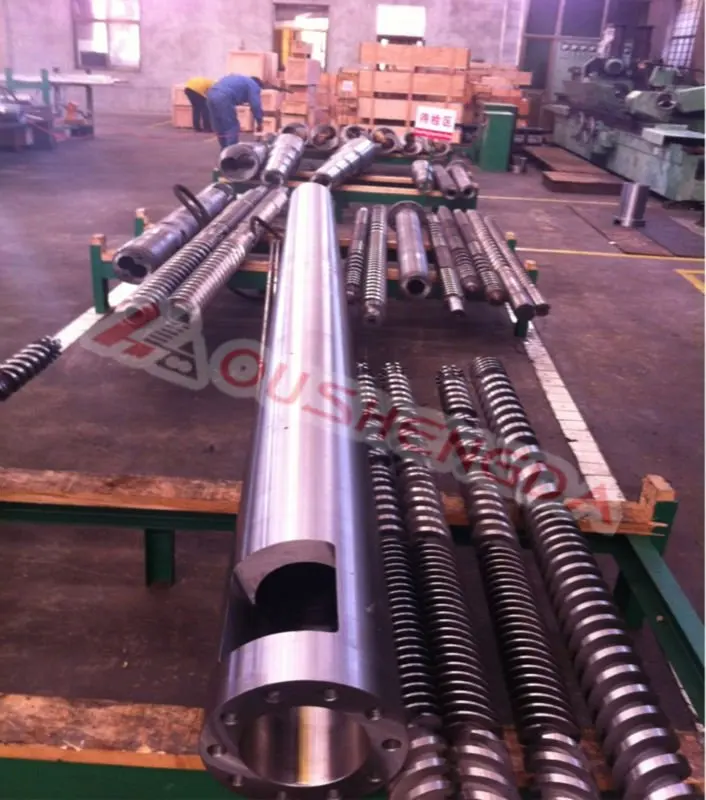

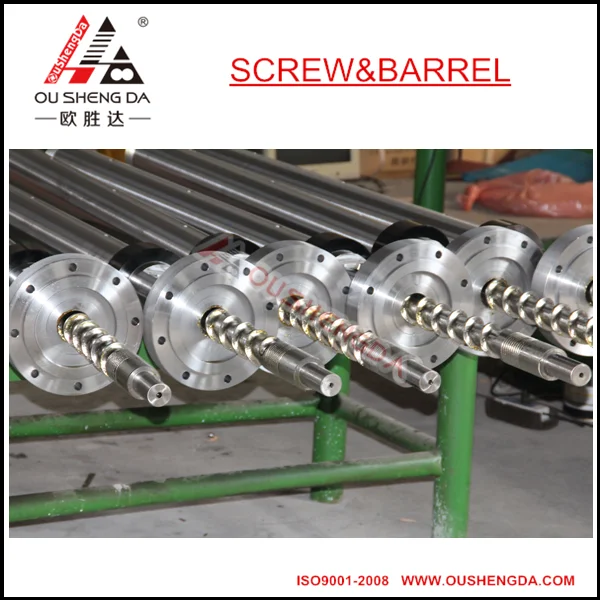

Single extruder screw and barrel | ||||
Diameter | Φ15mm-Φ350mm |
Designing
| Screw structure and compression ratio can be designed according to different products & different output requiremet. | |
Materials | 38CrMoAlA (JIS SACM645) SKD61 | Application | PVC plate, pipe, profile, pellet and mould, at the same time, it solved the technical problem of low foaming, high foaming, high filling, wear and corrosion. | |
Nitride Case Depth | 0.5mm-0.8mm | Technology | 1)Longer time Gas Nitriding treatment 2)special anti-wear & abrasion alloy (bimetallic) 3)tungsten carbide 4)cobalt base alloy 5)stainless steel 6)Gh113 nickel based alloy | |
Nitride Hardness | 950-1020HV | Packing | Wrapped up by film in wooden | |
Nitride Brittleness | ≤Grade One | Payment Term | T/T , L/C | |
Surface Roughness | Ra0.4um | Delivery Term | 25 working days | |
Screw Straightness | 0.015mm | Port Departure | Shanghai/Ningbo | |
Alloy Hardness | HRC58-62 | Min. Order | 1 set | |
Alloy Depth | 1.5-3.5mm | Common Nitrided:2.5-4years Bimetallic: much longer lifetime. | ||
Our Services
Our company, ZHOUSHAN OSD MACHINERY COMPANY, provides professional CAD drawing design and dimensional mapping. Provide you with as much service as possible.
- We can make any specification of extruder screw barrel and injection screw barrel for Engel, Krauss-maffei, Milacron, Demag, Arburg, Haitian, JSW, Toshiba, Nissei, Sumitomo, Nippon Steel, Mitsubishi, Fanuc, Chenhsong, Haitai, Yizumi, Cincinnati, Battenfeld, Weber, Theysohn, Bausano, Maris, Jwell, Jinhu, Liansu, Windsor, etc.
- We also can supply all types of screw and barrel according to your different requirements.
- Our screw barrel can ensure the well performance and low energy consumption of extruder and Injection molding machine. We insist on the principle of quality first, honest to customers, the quickest service for customers” to improving us, our goal is to satisfy our customers.
