JS Mini PVC belt conveyor, Workshop portable belt conveyor

Product Overview

Description

Name:JS Small size PVC belt conveyor, Workshop portable belt conveyor

Small size belt conveyor



The belt conveyor is very widely used in many industrial fileds, especially the aluminum standard frame type  belt conveyor, it is very simlple with strong structure and good looking appearance. Our aluminum frame belt conveyor is adops the advanced Japanese technology manufacturing, and very popualr among the diffirent industries.

  The 34mm aluminum fame belt conveyor is very light duty type belt conveyor to used widely. The belt is usually adopts PVC material with diffirent thickness from 1mm-3mm, the color is greem, bule, white, etc. Many food industries adopts white PVC with food grade requirment, and use stainless steel frame instead of the aluminum. But  the aluminum is widely welcomed with light weight, withourt painting, beautiful looking, easy cutting and installing.

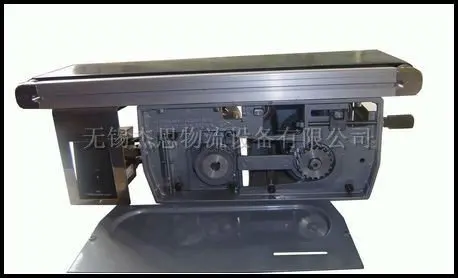

 This is narrow type 34mm-frame belt conveyor, driving center is moved by timing belt. The belt good capacity of silence and wearability.



>> Belt conveyor technical parameters:

1.constant speed:1.9~45m/min

 2.variable speed:0.13~50m/min

 3.Width: 100mm~600mm

 4.Load capacity: max about 30kg

 5. Dimension: L500~8000*W100(belt width)~600*H169

 6.Option: Support  Guide and so.

 7.Power: 25 40 60 90W

 8. Voltage:AC100V(1PH),AC200V(1PH),AC200V(3PH)

 >> Belt conveyor Size:

belt W		100		150			200
conveyor W		140		190			240
conveyor L		500	1,000		1,500			2,000









ruduction rate	speed mark	constant speed(m/min) 50/60Hz			speed mark		variable speed(m/min)        50/60Hz
1/180	T1	2.0/2.5			H1		0.14~2.7
1/150	T2	2.5/2.9			H2		0.16~3.3
1/120	T3	3.1/3.7			H3		0.20~4.1
1/100	T4	3.7/4.4			H4		0.25~4.9
1/90	T5	4.1/4.9			H5		0.27~5.5
1/75	T6	4.9/5.9			H6		0.33~6.5
1/60	T7	6.1/7.4			H7		0.41~8.2
1/50	T8	7.4/8.8			H8		0.49~9.8
1/36	T9	10.2/12.3			H9		0.68~13.6





























>> Belt conveyor DWG:

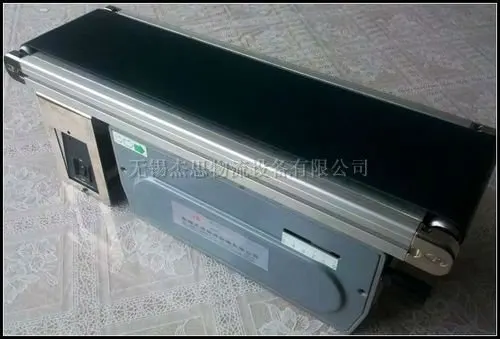

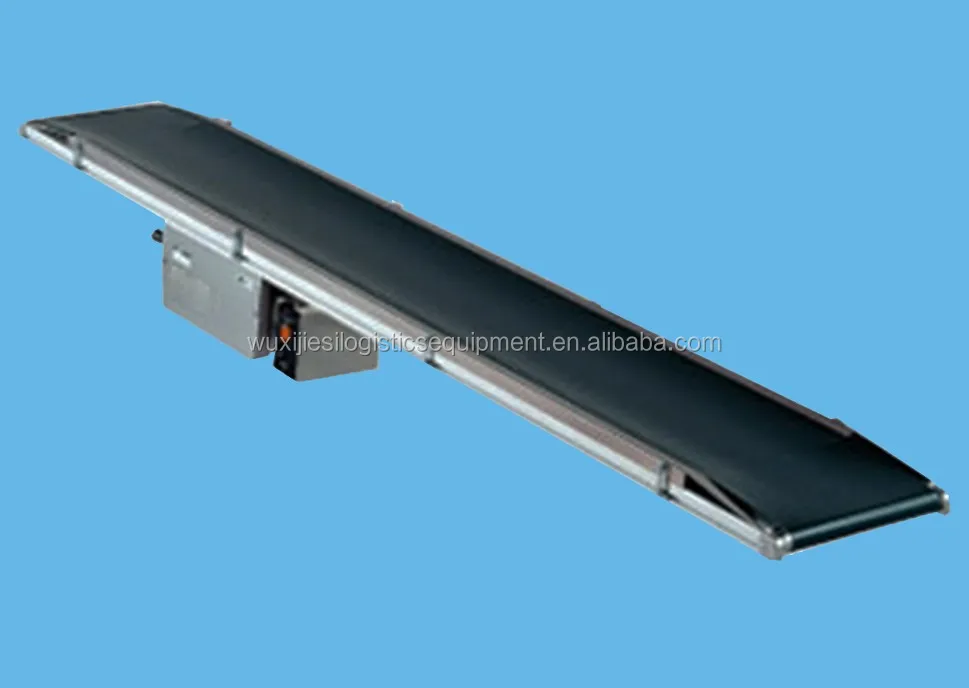

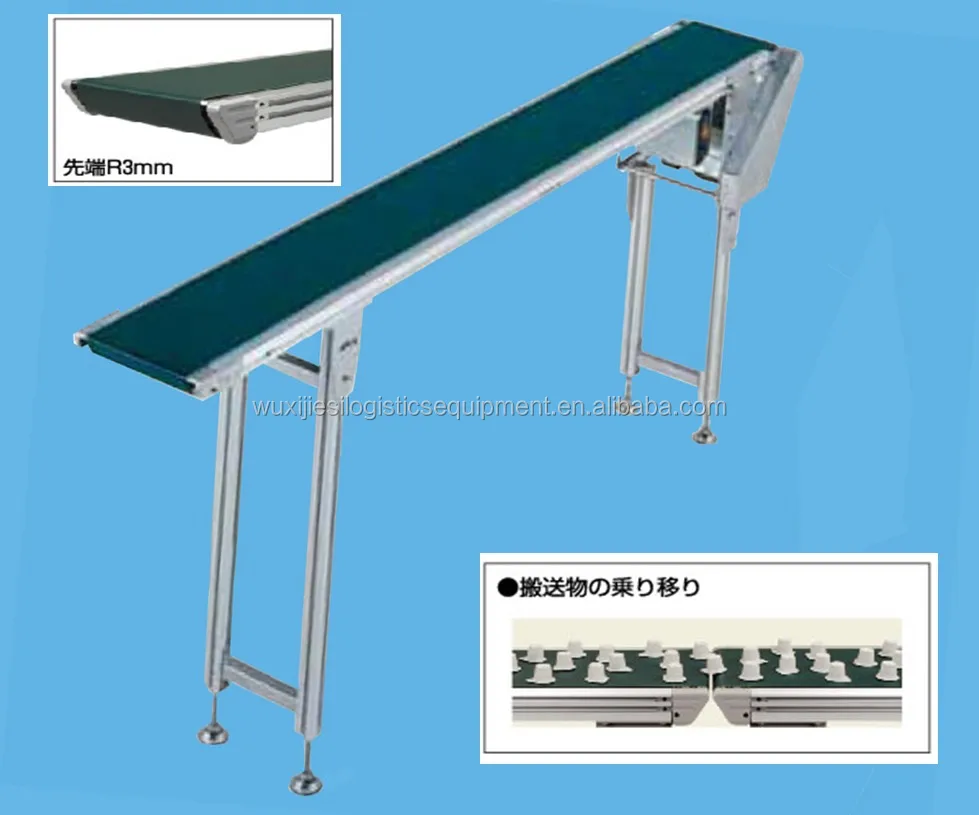

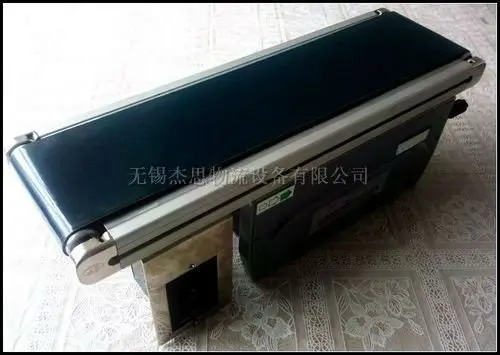

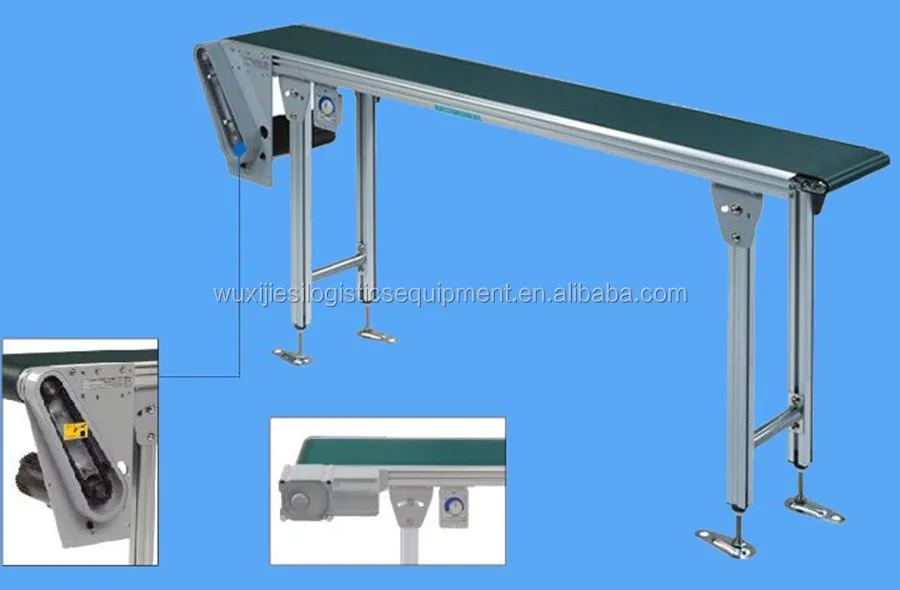

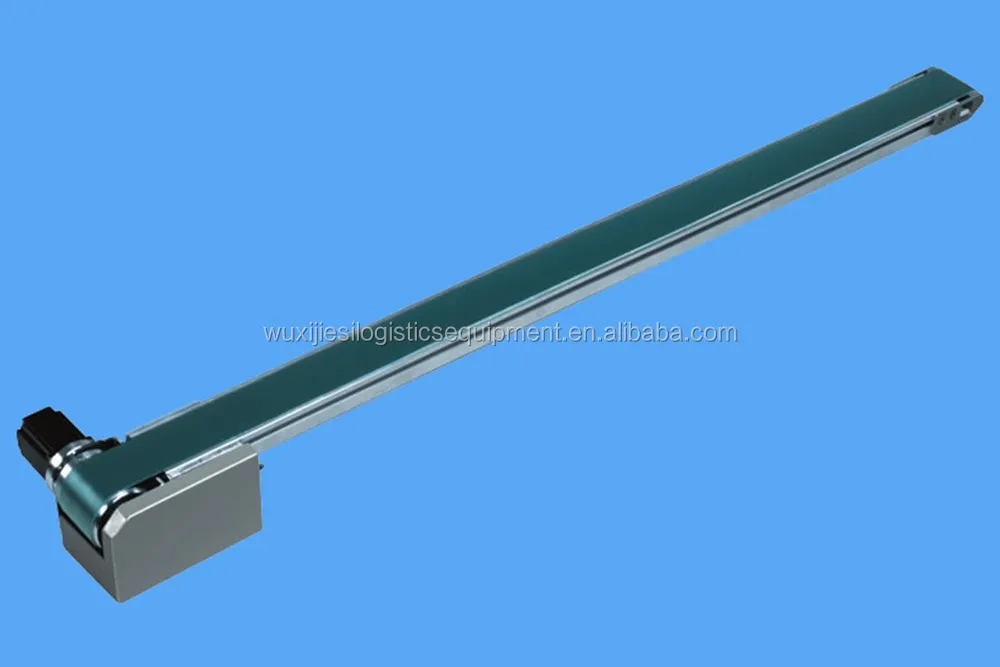

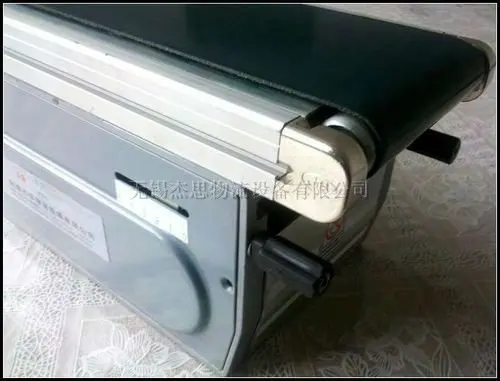

>> Belt conveyor Pictures:













If you are interested in this product,please do not hesitate to contact us,

Sales manager Robert will give you detail information promptly.
