Product Overview

Description

trending products 2024 new arrivals medical science 12-Lead pc based mobile digital ecg system from China

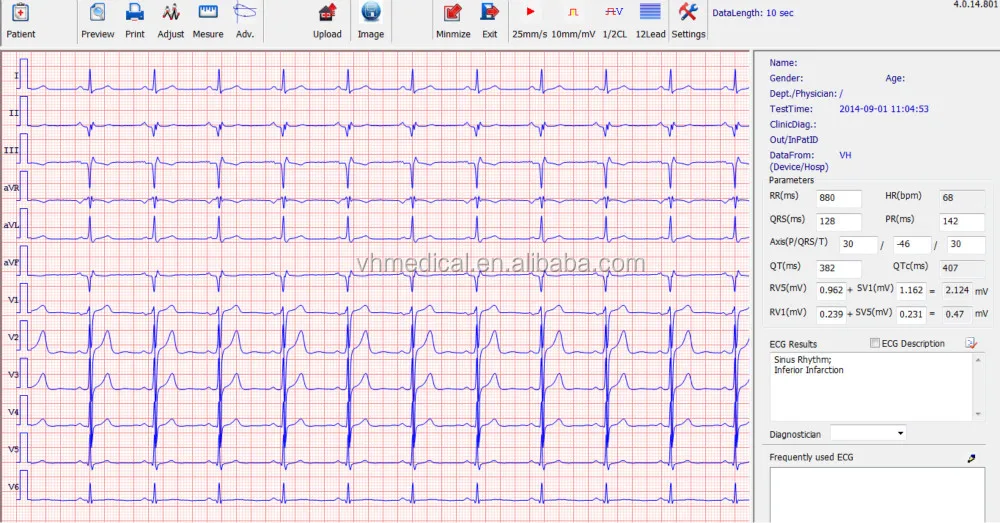

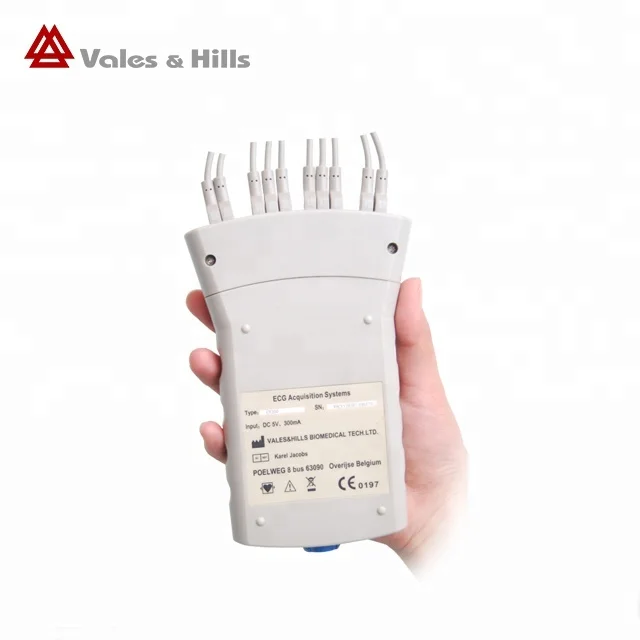

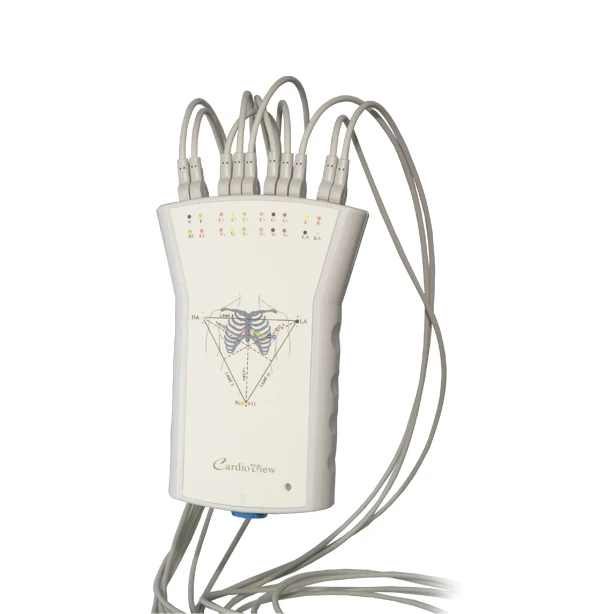

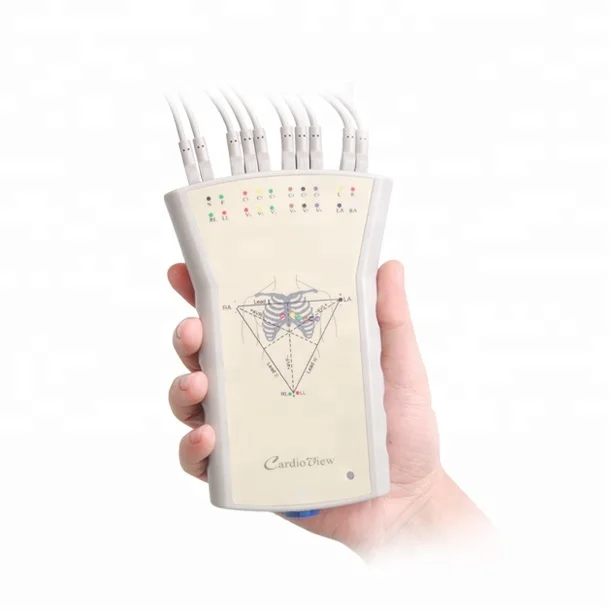

CARDIO VIEW CV-200 is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and Ventricular Late Potential (VLP).The system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG and VLP data. In the Windows XP environment, different reports can be viewed on-screen and printed in numerous formats on most Windows compatible printers. By means of regular updating of software,CV-200 remains state-of-the-art both now and in the future. With the optical isolating ECG signal sampling recorder connected to PC USB interface,CV-200 guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the patient.

• Pentium III Processor


• 128MB RAM


• 20G HD


• Windows XP/7 Operating System


• VGA Compatible Display


• Windows XP Compatible Laser or Inkjet Printer

• Sampling:1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording


• Digital Resolution:0.4µV


• Frequency Response:0.05-250Hz(+3dB)


• Common Mode Rejection:>90dB


• Input Impedance:>10 M


• Time Constant:>3.2 Sec.


• Maximum Electrode Potential:+300mV DC


• Dynamic Range:+12mV


• Isolate Voltage:4000V


• Patient Current Leak:<10µA


• Patient Cable: Standard 10-wire,15-Pin D Connector


• PC Interface: USB Connector


• Dimensions: 14912226 mm(5.94.81.0 in.)
