Fiji cone bottom wheat storage steel silo with steel structure for Flour mill
- Category: >>>
- Supplier: Zibo Boda Steel Silo Co. Ltd.
Share on (575728873):
Product Overview
Description
BODA bolted steel grain storage silos offer an extensive range of designs; hundreds of size and model combinations; fast assembly and low cost. An extensive range of grain handling equipment and accessories including bucket elevators, drag conveyors, temperature measurement systems, aeration systems and electric control systems. Project planning assistance, foundation design and comprehensive installation instruction manuals are available.
All silos include
Boda silo itself includes these components that come free of charge (the silo diameter should be equal to or more than 5.5m)
l Roof Natural vents
l Roof guardrail
l Roof manhole
l Roof ladders
l Silo door
l Silo door platform
l Inside and outside ladders on silo body
BODA offer you the best grain storage solution with a complete range of back-up services.
BODA use only high quality, corrugated galvanized steel plate in the construction of their silo walls. For large capacity silos the bottom rings of wall sheets may be double-thickness to provide additional strength.
We manufacture steel silo from 5 tons to 1000 tons capacity in a wide variety of sizes.Hopper bottom silos are discharged automatically with quality unloading systems.They can store any flow able commodity from grain,feed and plastic pellets to certain mineral supplements.

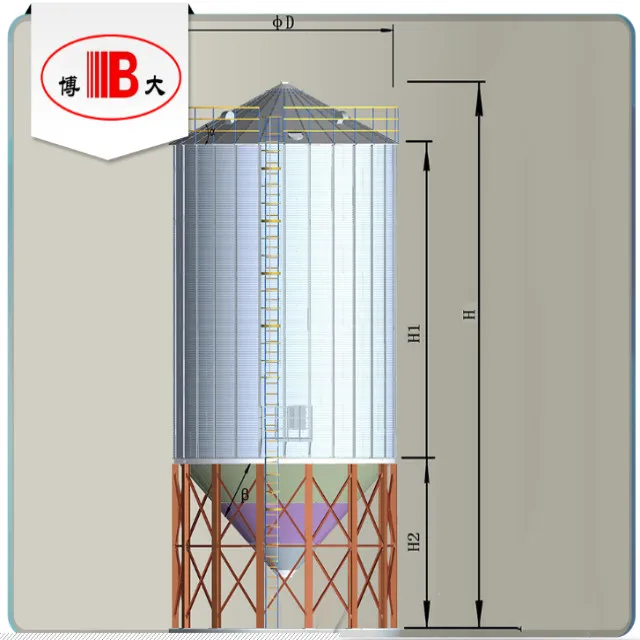

Hopper angles can be 45° and 60°.

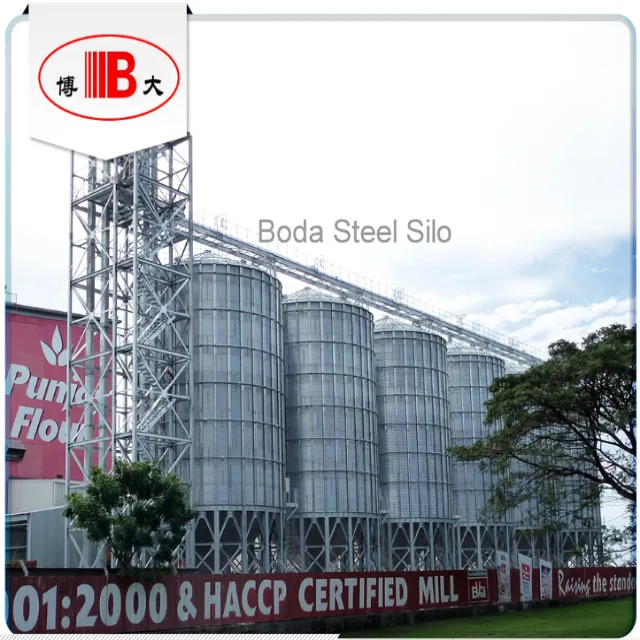

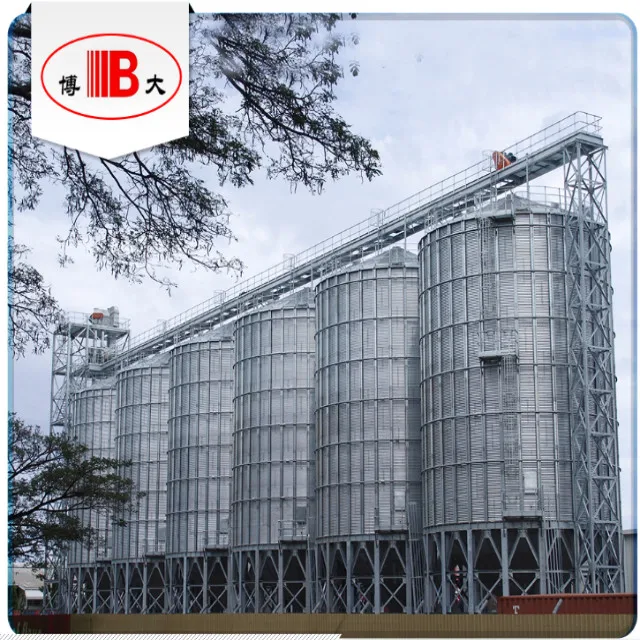

Attached picture is our 6x1200t silos being installed in FIJI , the material is wheat.
The hopper bottom is special designed as 40°
Main structure of BODA Steel Hopper Bottom Storage Silo | |||
Item | Materials | Quality Standard | Features |

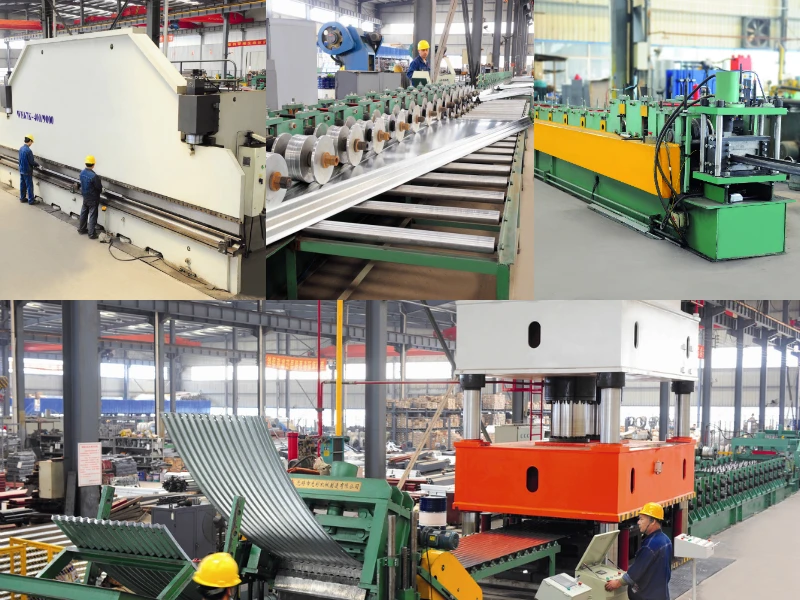

Roof Sheet | By Hot Dip Galvanized Steel Plate, | China National Standard with Factory Quality Report | Our Corrugated Steel Plate Production Line is controlled by advanced CNC equipments |
Natural vents | By Hot Dip Galvanized Steel Plate, | China National Standard with Factory Quality Report | Production Line is controlled by advanced equipments |
Manhole | By Hot Dip Galvanized Steel Plate, | China National Standard with Factory Quality Report | Production Line is controlled by advanced equipments |
Simple roof ladder | By Hot Dip Galvanized Steel Plate, | China National Standard with Factory Quality Report | Assembly type, Production Line is controlled by advanced equipments |
Roof handrail | By Hot Dip Galvanized Steel Pipe | China National Standard with Factory Quality Report | Assembly type, Production Line is controlled by advanced equipments |
Body Sheet | By Hot Dip Galvanized Steel Plate, | China National Standard with Factory Quality Report | Our Corrugated Steel Plate Production Line is controlled by advanced CNC equipments |
Bolts and nuts | Hot Dip Galvanized, Strengthened, with hex flange for Max Sealing | Quality Strength Report | Hot dip galvanized with longer life |
Other sealant | Like as washers and caulking strip | China National Standard with Factory Quality Report | Purchased from reliable qualified suppliers |

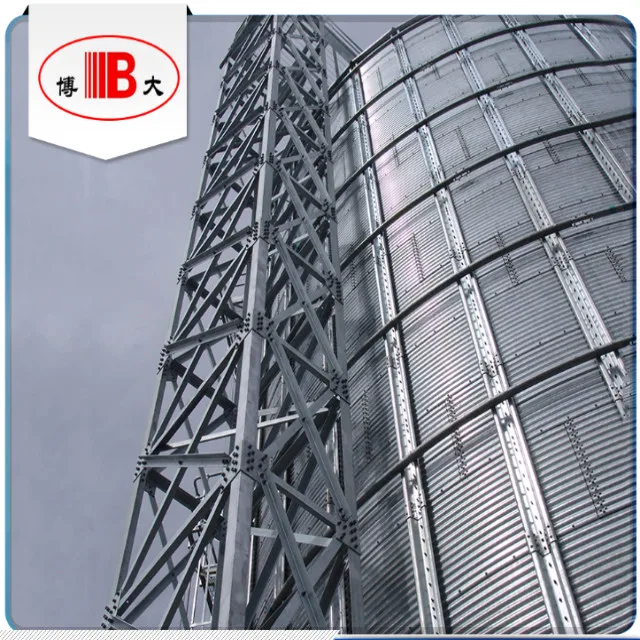

Rib Stiffeners | Sidewall stiffeners are manufactured from min. 450 N/mm² tensile high strength steel. This type of stiffeners easily transit the vertical loads during loading or unloading | China National Standard with Factory Quality Report | Can be inside or outside. Rigorous calculation to meet full silo strength safety |
Wind Ring | The wind ring is attached directly to the stiffeners. The rings strengthen the silo providing reinforcement against damaging wind. | China National Standard with Factory Quality Report | Rigorous calculation to meet the anti-wind needs for sea port area or windy area |
Silo door with platform | A standard manhole door is located in the second ring of the silo. Double size door with strong frame and block system. | China National Standard with Factory Quality Report | Easy to inspect and maintenance. |
Vertical Ladders | We offer both inside and outside ladders for most silos.The outside kinds have handrail or safety guard. | China National Standard with Factory Quality Report | Can be installed inside and outside of the silo body, Easy to inspect and maintenance. |
Steel hopper | Including hopper bottom sheets, steel support legs made by H beam, lintel girder made by channel beam and braces made of angle steel between legs. | China National Standard with Factory Quality Report | Automatic-flow unloading; easily to be installed; save foundation and operation resources and costs; less grain residues in steel insulated rice storage silo; |
|
|
| |
